X-Bull 4X4 4WD Winch 14500LBS/6577KG 12V Electric Winch with 26M Synthetic Rope Wireless and Handle Remote for Off-Road Automotive SUV Stuck in Sand Mud Snow…
X-Bull 4X4 4WD Winch 14500LBS/6577KG 12V Electric Winch with 26M Synthetic Rope Wireless and Handle Remote for Off-Road Automotive SUV Stuck in Sand Mud Snow…
Brand: X-BULL
A$565.95

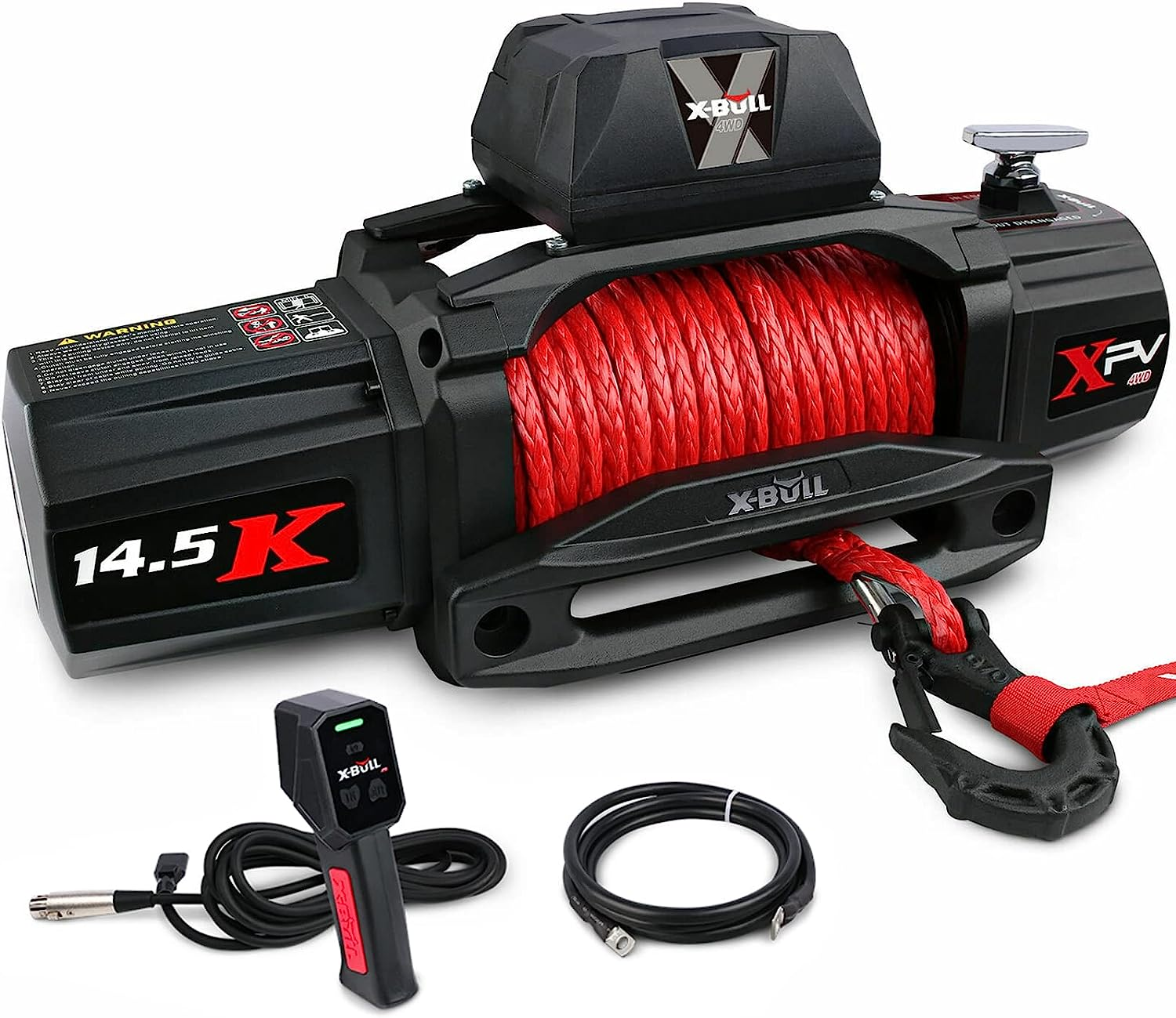

- [What You Get] X-BULL 14500lbs Synthetic Rope Winch, senior 2 in 1 wireless and wired remote, control box and hawse fairlead with forged hook, All required power cables to hook up to your vehicle. The winch comes with a 1 year free warranty and replacement service. We will give you professional service with a friendly attitude.
- [Overall Dimensions] 21.9"L x 4.9"W x 10.4" H. Mounting Bolt Pattern: 10.00 ± 0.015" × 4.50 ± 0.010". Synthetic Rope :Ø0.375″ X 80′ (Ø9.5mm X24.4m). Net weight: 59.5lbs(27kg). 14500 LBS is suitable for towing vehicles under 3.3 tons out of mud, sand and deep trenches. Suitable for the vehicle:on-road or off-road FWD,RWD,4WD car,4x4 car,pickup truck,SUV,RV,camper trailer,UTV,ATV! Suitable for all kinds of harsh environment.

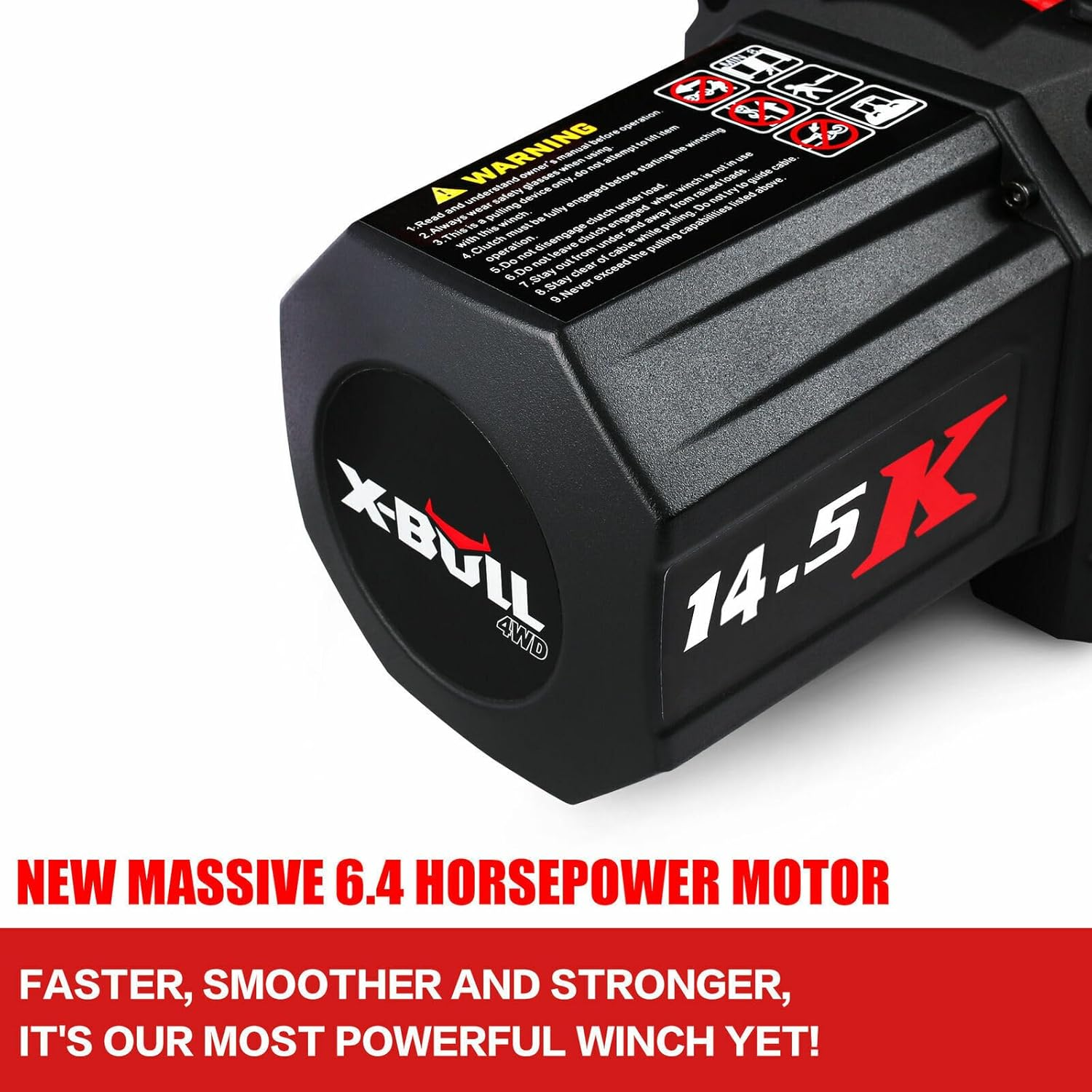

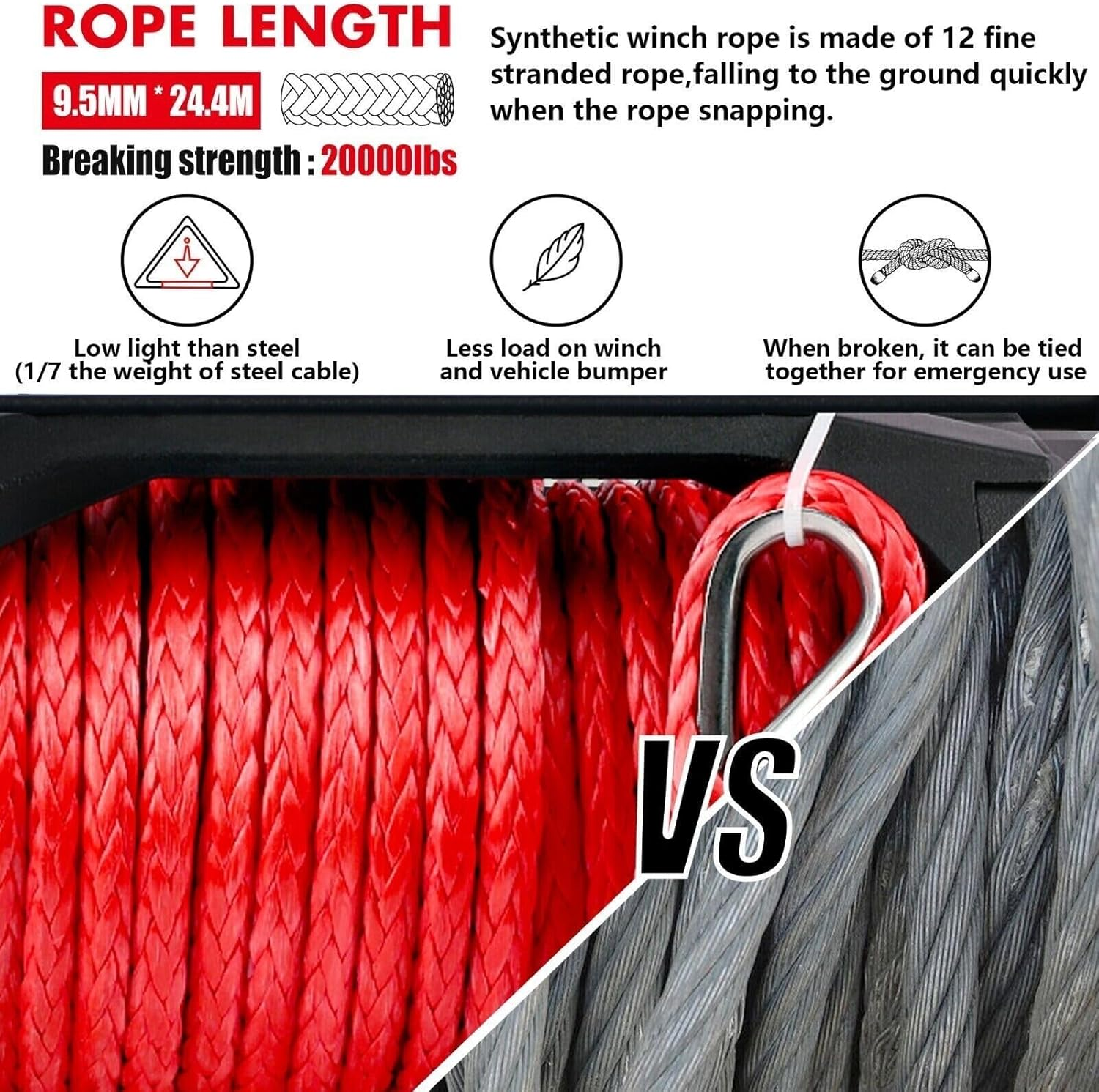

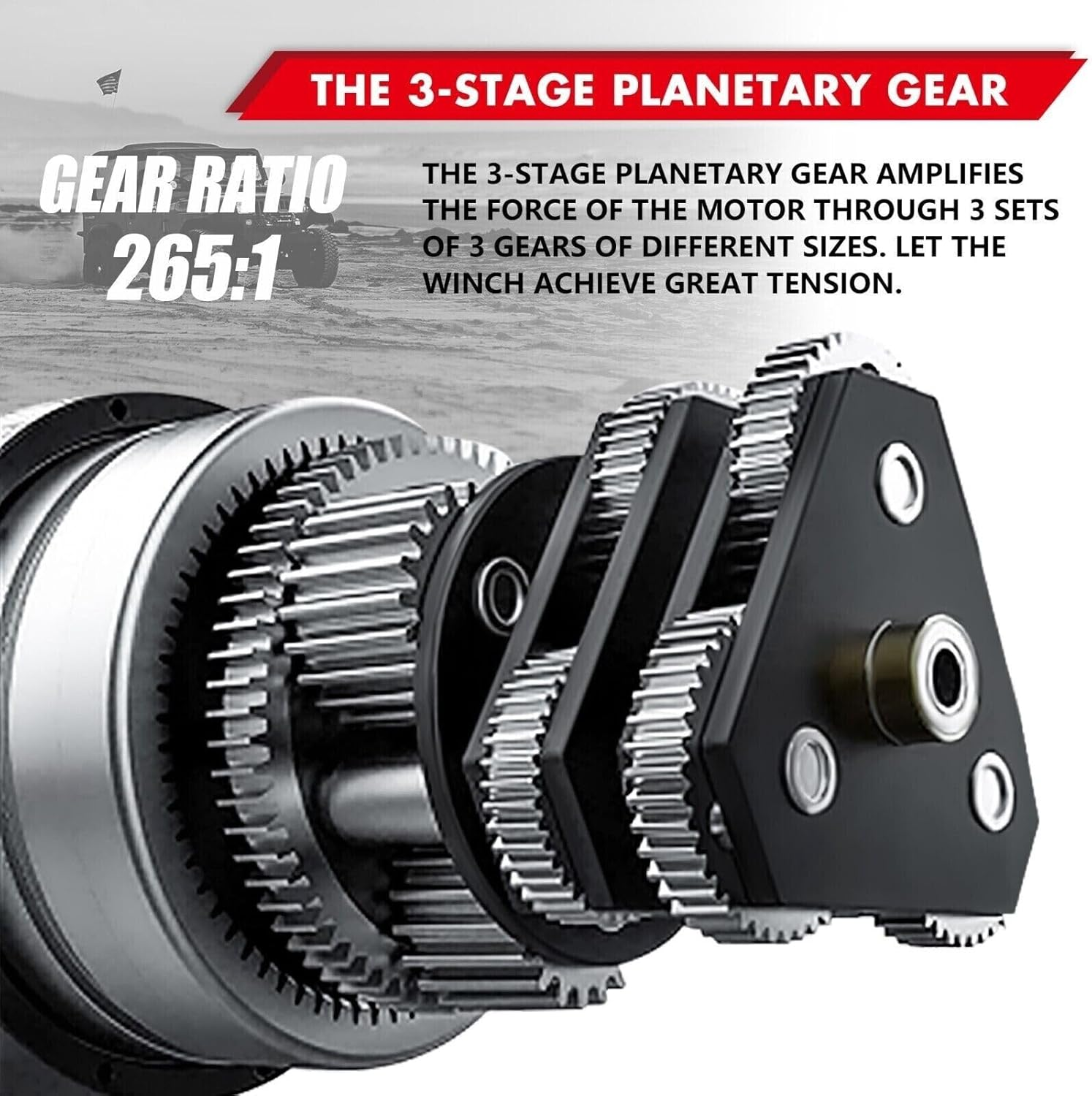

- [Strong Performance] 6.4 HP Wound Motor, 3-Stage Planetary Gear System, Stainless Steel Shell, Auto Load Holding, advanced 500AMP Solenoid, a Ratio of 265:1, IP67 Waterproof. Equipped with Dyneema Synthetic Rope, the weight is only 1/7 of that of steel cable. When the synthetic rope is broken, it will not rebound and can be knotted for emergency use. Customized Shell, Unique Winch.
- [Unique Remote Control] The remote control has the functions of wired remote control and wireless remote control. The red light is wired remote control, and the green light is wireless remote control. Remote control distance up to 100m. Press the power button for 3 seconds to turn on the remote control.
- [The Xbull Advantage] Become one of the more than 1,000,000 member of Xbull which's motto is "affordable toughness". Winches and recovery tracks are Xbull's core products. If you have any doubts, welcome to tell us.
- [Attention] This winch can be used for lifting. In addition, 14500lbs of tension is used horizontally. Non-horizontal pulling will reduce the tension.Due to weight limitations, we are unable to ship using AU-POST.
Product Description
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.
-

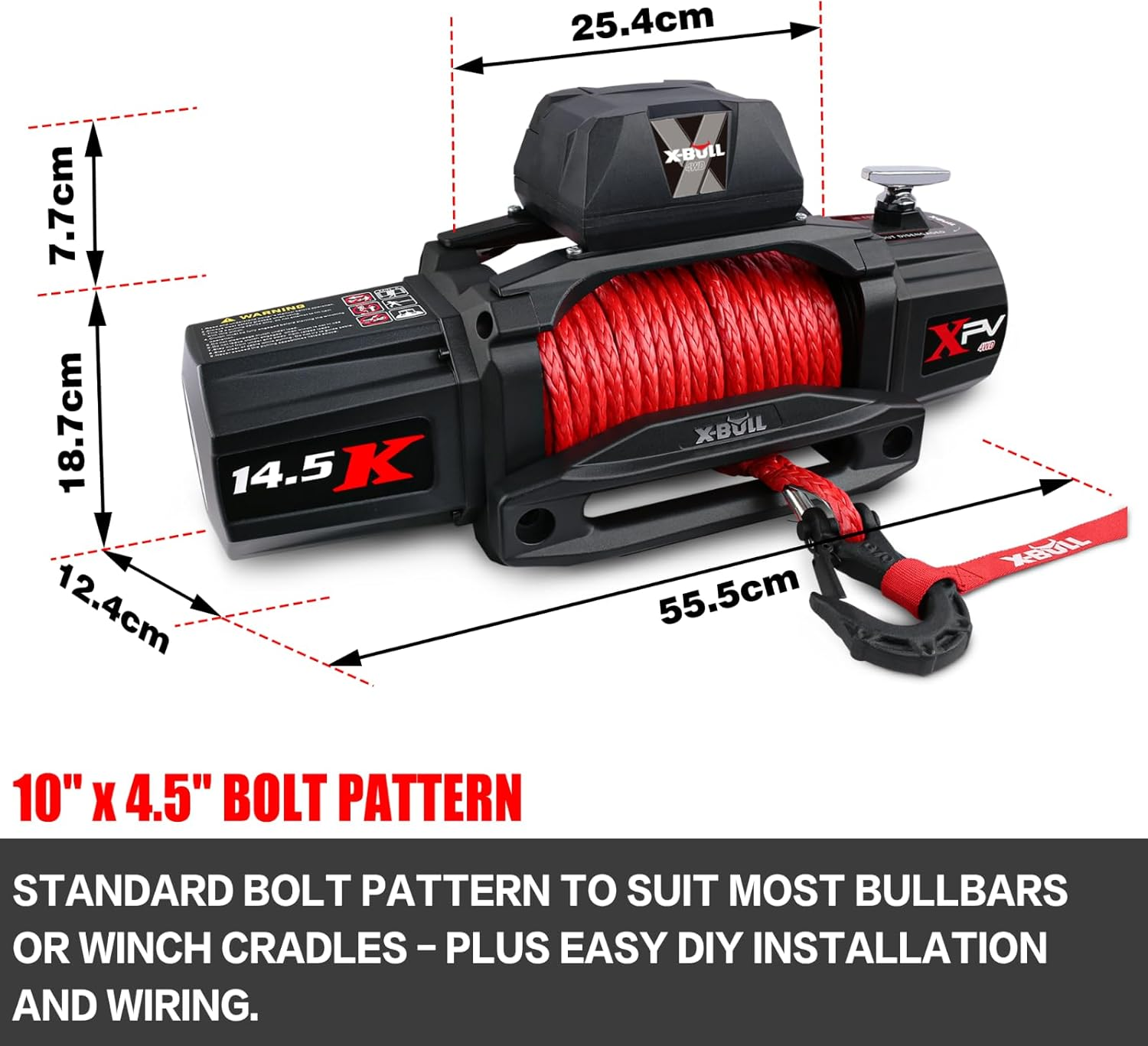

Dimensions of Winch
-
Removable Control Box Saves Your Bumper Space
-
Please Wire According to the Right Figure
-
Pay attention to the working time of the winch.
Rest for 15 seconds every 45 seconds.
The winch can be easily damaged if it works continuously for more than 5 minutes.
-
Pay attention to the length of rope.
The rope will be knotted at the end.
At least 4-5 circles should be left on the winch drum to prevent the rope from breaking. There is a red warning position on the winch.
-
Avoid overloading the winch
Overload will cause serious deformation of the winch.
| Rated Single Line Pull | 14500 lb(6590 kg) |
| Duty Cycle Rating | 5%(45 set at Max Rated) |
| Battery | 12V DC Minimum 650 CCA |
| Application | SUV/4X4/4WD/ATV/UTV/BOAT//Trucks/Vehicle Recovery |
| Gear Train | 3-Stage Planetary |
| Weight | 59.5 lb (27 kg) |
| Hook | 3/8″, Replaceable with Spring-loaded Safety Latch. |
| Brake | Auto,Load Holding |
| Winch Certification | CE |
| Motor | 12V DC 6.4 HP Series Woundn |
| Synthetic Rope | 0.375″ X 80′ (9.5mm X24.4m) |
| Mounting Pattern | 10″ x 4.5″ (254mm) |
| Drum (Dia. X L) | 2.5″ X 9.6″ (64mm x 244mm) |
| Gear Ratio | 265:1 |
| Fairlead | Aluminium Fairlead |
ALL XBULL RECOVERY TRACKS SERIES
| Customer Reviews | — | 5.0 out of 5 stars 3 | 4.7 out of 5 stars 4 | — | — | 4.7 out of 5 stars 8 |
| Price | — | $479.00$479.00 | $349.00$349.00 | — | — | $152.90$152.90 |
| Generation | Latest | Latest | Latest | Latest | Latest | Latest |
| Come with | Synthetic Rope | Steel Cable or Synthetic Rope | Synthetic Rope | Steel Cable or Synthetic Rope | Steel Cable or Synthetic Rope | Steel Cable or Synthetic Rope |
| Size (mm) | 900 X 300 X 60 | 526 X 157 X238 | 385 X 110 X 195 | 327 X 117 X 119 | 335 X 108 X 114 | 300 X 100 X 110 |
| Load Capacity | 13000lbs/14500 lbs | 12000lbs | 6000lbs/12000lbs | 5000lbs | 4500lbs | 3000lbs |
| Rope Length | 10mm*28m/9.5mm*24.4m | 9.5mm*26m/10mm*28m | 6.3mm*16.8m | 6.3mm*15.2m | 5.5mm*13m | 5.4mm*9.2m |
| Motor | 12V DC 6.0HP/12V DC 6.4HP | 12V DC 6.0HP | 12V DC 1.9HP | 12V DC 1.5HP | 12V DC 1.9HP | 12V DC 1.3HP |
| Wireless Remote | 1 | 1 | 1 | 1 | 1 | 1 |
| Gear Train | 3 Stage Planetary | 3 Stage Planetary | 3 Stage Planetary | 3 Stage Planetary | 3 Stage Planetary | 3 Stage Planetary |
| Gear Ratio | 201.6:1/265:1 | 265:1 | 226:1 | 198:1 | 189:1 | 153:1 |
- Manufacturer reference: AUEB-AXEW016
- Product dimensions: 55.5 x 12.4 x 26.4 cm; 27 kg
- Manufacturer Part Number: AUEB-AXEW016
- Item Weight: 27 kg
- Lift Type: Electric
- Brand: X-BULL
- Manufacturer: Xbull
