AGFRC 24KG Digital High Torque Servo Programmable Metal Gear Steering Servo for 1/10 RC Model, 180 Degree (B53DHS)
AGFRC 24KG Digital High Torque Servo Programmable Metal Gear Steering Servo for 1/10 RC Model, 180 Degree (B53DHS)
Brand: AGFRC
A$51.10
- Large Torque - 24KG high torque DC motor digital servo. The maximum torque is up to 24 kg-cm (333 oz-in) @ 8.4V. Operating Voltage: 4.8V ~ 8.4V
- High Quality - Equipped with CNC Aluminum middle shell can enhance the heat dissipation; Titanium gear with high accuracy performance, service life has been greatly increased.
- High Precision - Advanced linearity and accuracy with precision potentiometer with new design, stable, low noise, IP65 waterproof, dust-proof.
- High Performance - Double ball bearing, Operating Speed: 0.190sec/60° @ 8.4V. Dimension: 40*20*42.3mm
- Application - Suitable for 1/10, 1/12 on road, off road, cars, trucks, airplane, helicopter, UAV and engine etc.
AGFRC 24KG Digital High Torque Servo Programmable Metal Gear Steering Servo for 1/10 RC Model, 180 Degree (B53DHS)
Good choice for the RC model enthusiasts who love DIY, and university professor or student who are interested in developing software for robot parts.

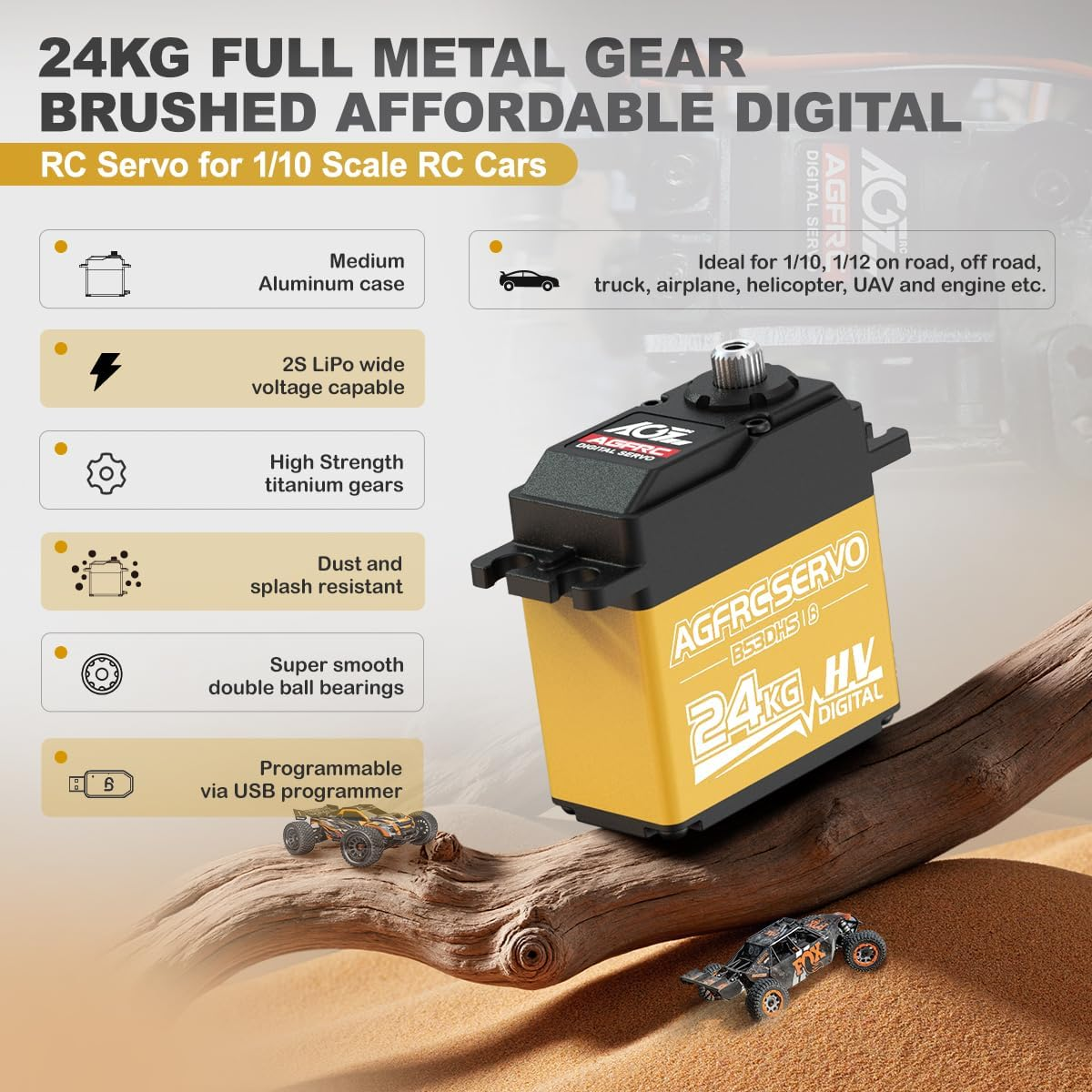

Feature
- Medium aluminum case
- Environmentally friendly materials
- High strength titanium gears
- Dust and splash resistant

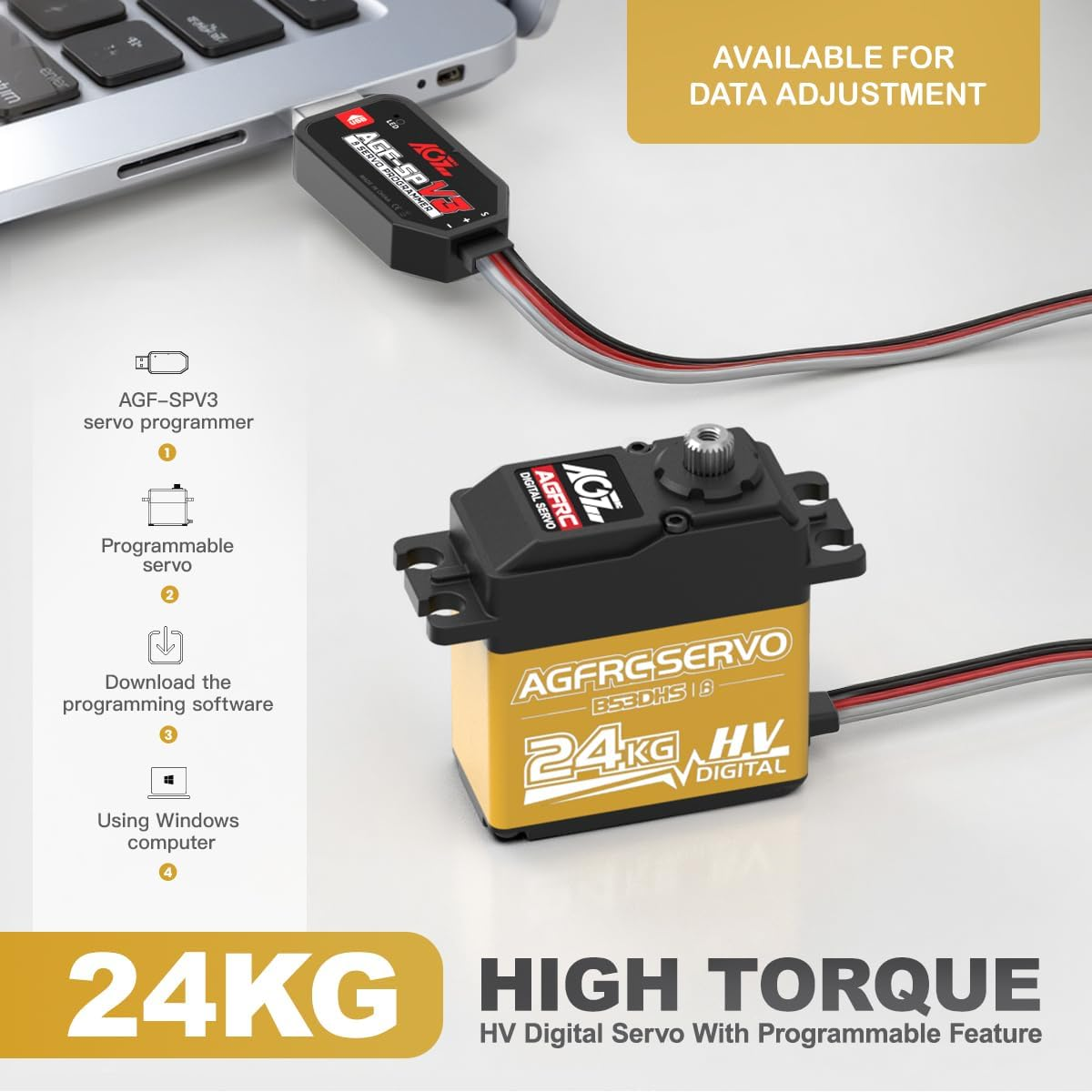

- Programmable via USB programmer (Not include)
- Ideal for 1/10 RC cars, airplanes, boats, robots etc.
Note: USB servo programmer is not included, if need it, please search the Asin: B08MZY9NHY
Stall Torque
- 17.0 kg-cm (236 oz-in) @ 4.8V
- 19.0 kg-cm (264 oz-in) @ 6.0V
- 21.5 kg-cm (298 oz-in) @ 7.4V
- 24.0 kg-cm (333 oz-in) @ 8.4V
Operating Speed
- 0.240sec/60° @ 4.8V
- 0.220sec/60° @ 6.0V
- 0.200sec/60° @ 7.4V
- 0.190sec/60° @ 8.4V

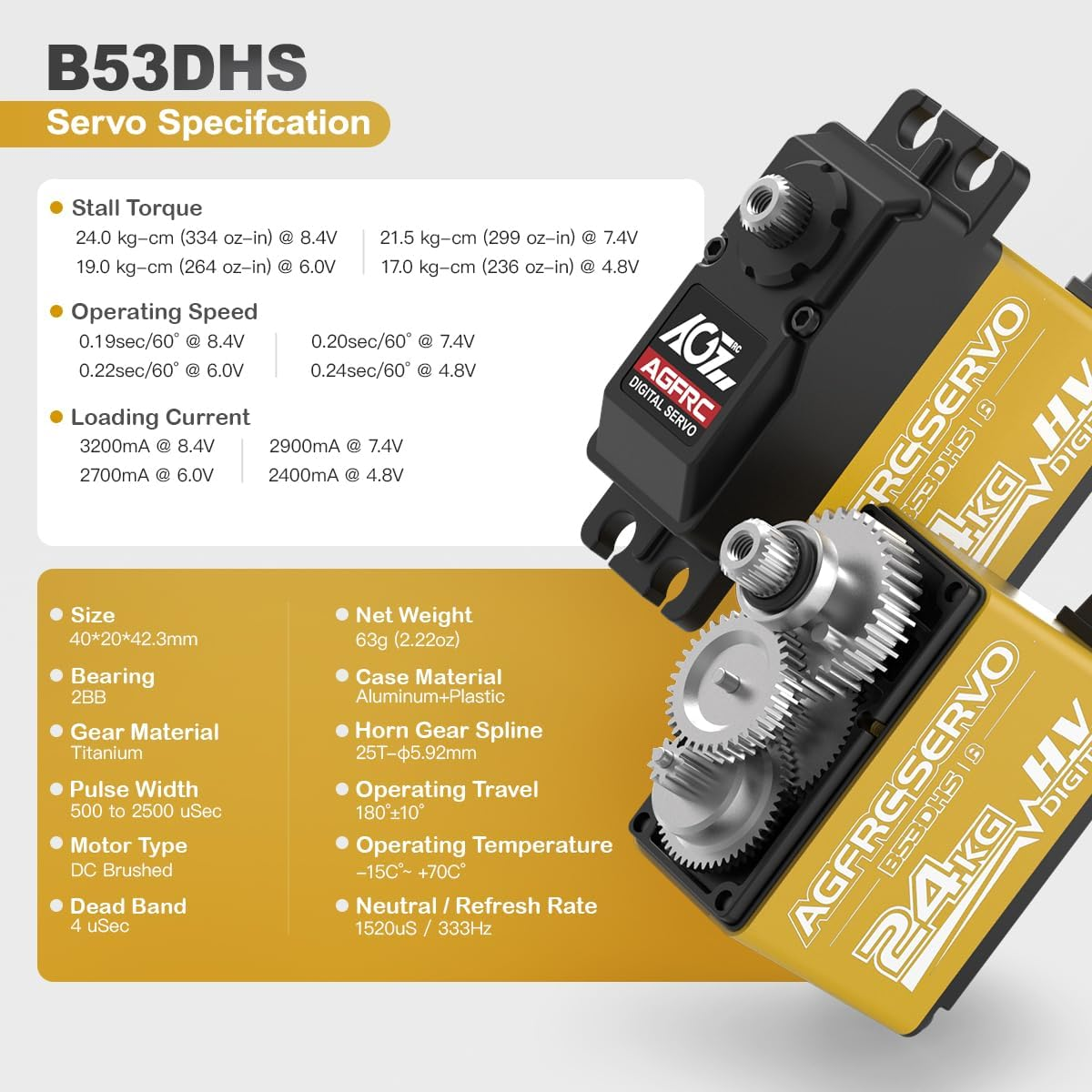

Specification
- Brand: AGFRC
- Item: B53DHS
- Control System: PWM/333hz
- Motor Type: DC motor
- Gear Type: Titanium
- Dead Band: 4 uSec
- Operating Travel: 180°±10°, 500 to 2500 uSec
- Horn Gear Spline: 25T-φ5.92mm
- Bearing: Dual Ball Bearing
- Case Material: Aluminum+Plastic

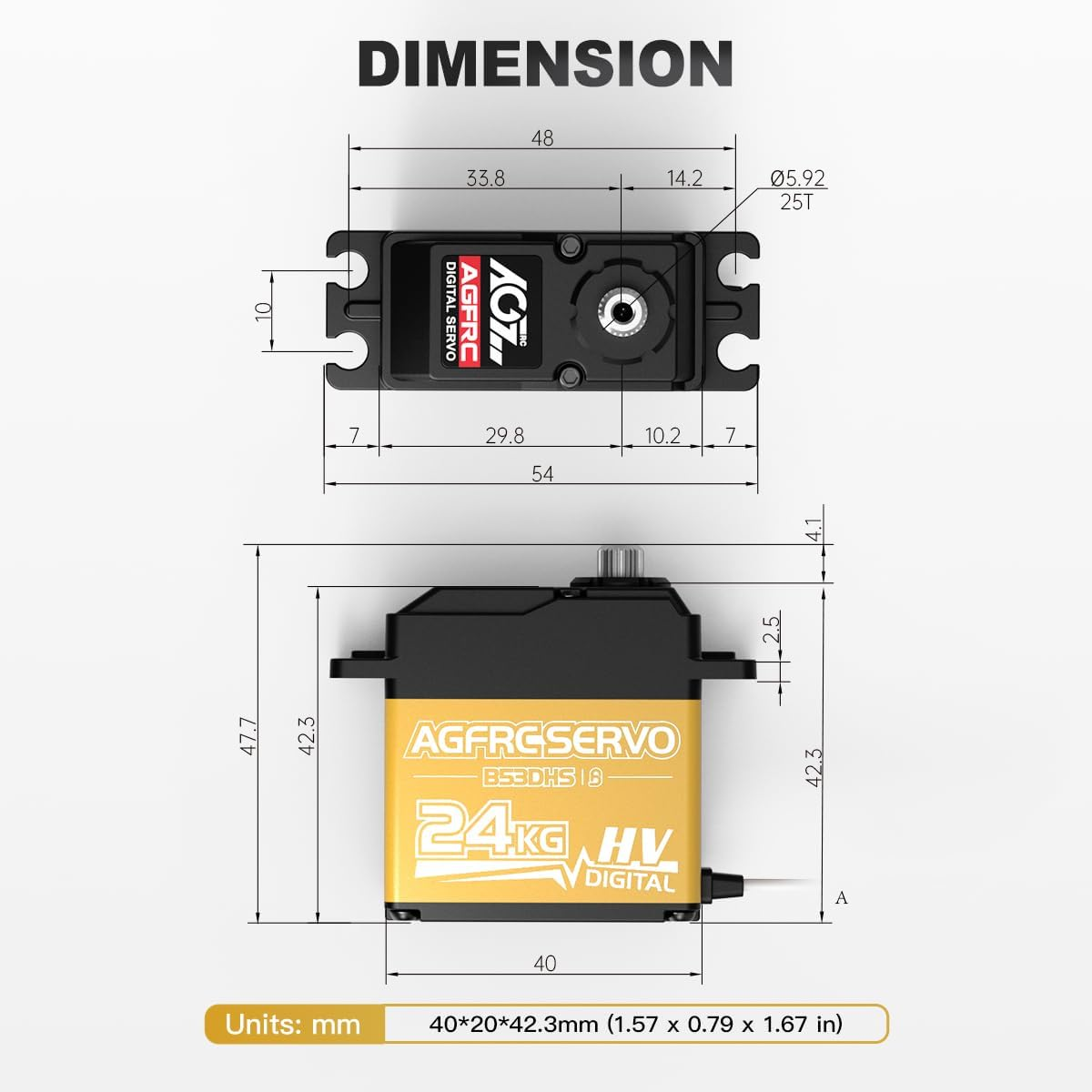

- Size: 40*20*42.3mm(1.57*0.79*1.67in)
- Certification: CE, FCC, RoHs
- Weight: 63g(2.22oz)
- Wire: JR 300mm

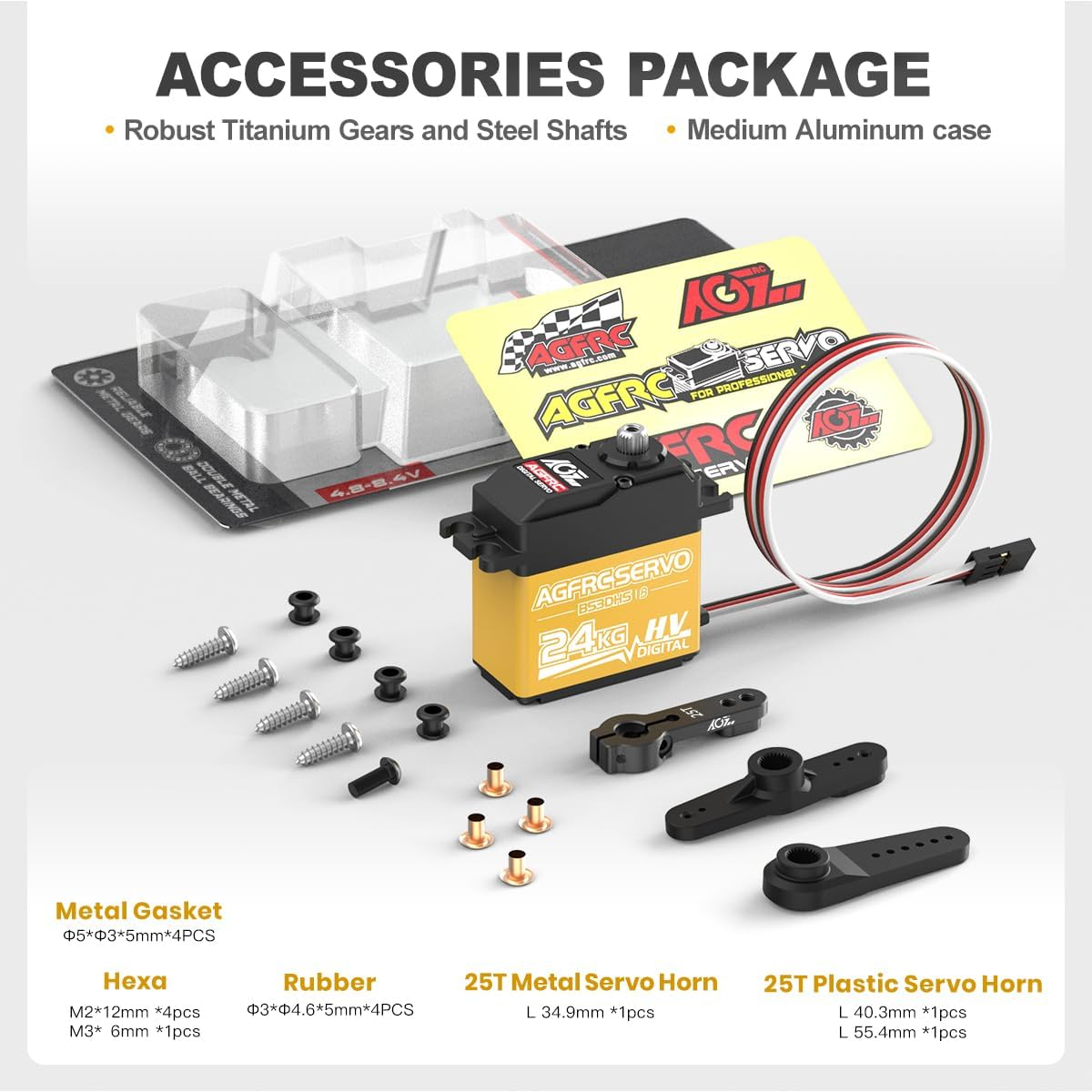

Package Included
- 1 x AGFRC B53DHS Digital Servo
- 1 x 25T Metal Servo Horn
- 1 x Accessory Kit
- Item Model Number: B53DHS
- Batteries Required?: No
- Colour: Yellow
- Model Number: B53DHS
- Material Type(s): Aluminum, Plastic
- Manufacturer recommended age: 12 years and up
- Batteries Included?: No
- Product dimensions: 4 x 2 x 4.23 cm; 63 Grams
