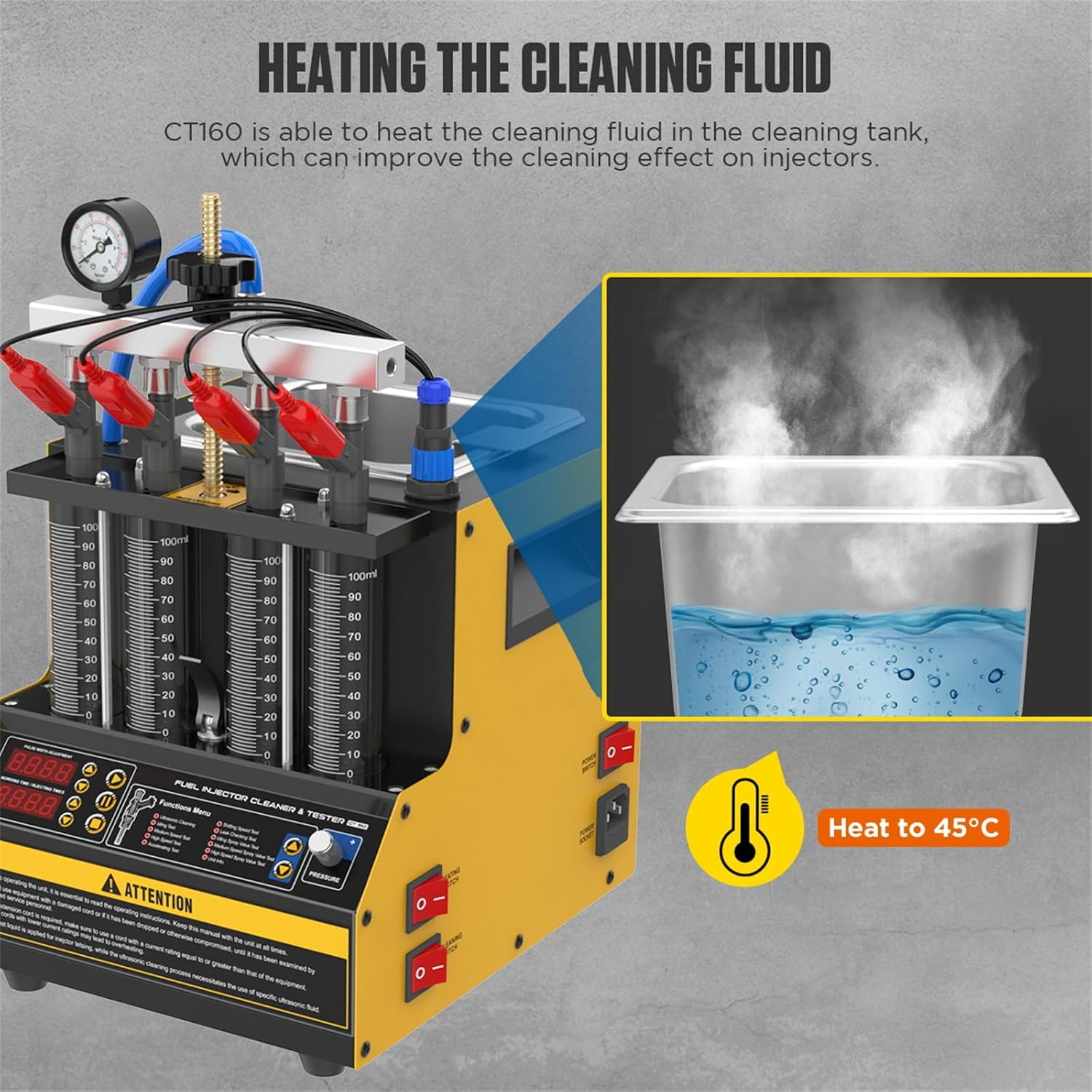

• CT160 Fuel Injector Cleaner & Tester is a fuel injector cleaning machine newly developed by QPKING TECH. It combines ultrasonic cleaning technology and microcomputer oil pressure closed-loop control cleaning and detection technology. This product simulates various engine working conditions and cleans and inspects various automobiles and motorcycle fuel injectors. Its unique design saves weight and volume, while further optimizing the product's functionality. With a larger cleaning tank and cleaning fluid heating effect, which can achieve better cleaning results.

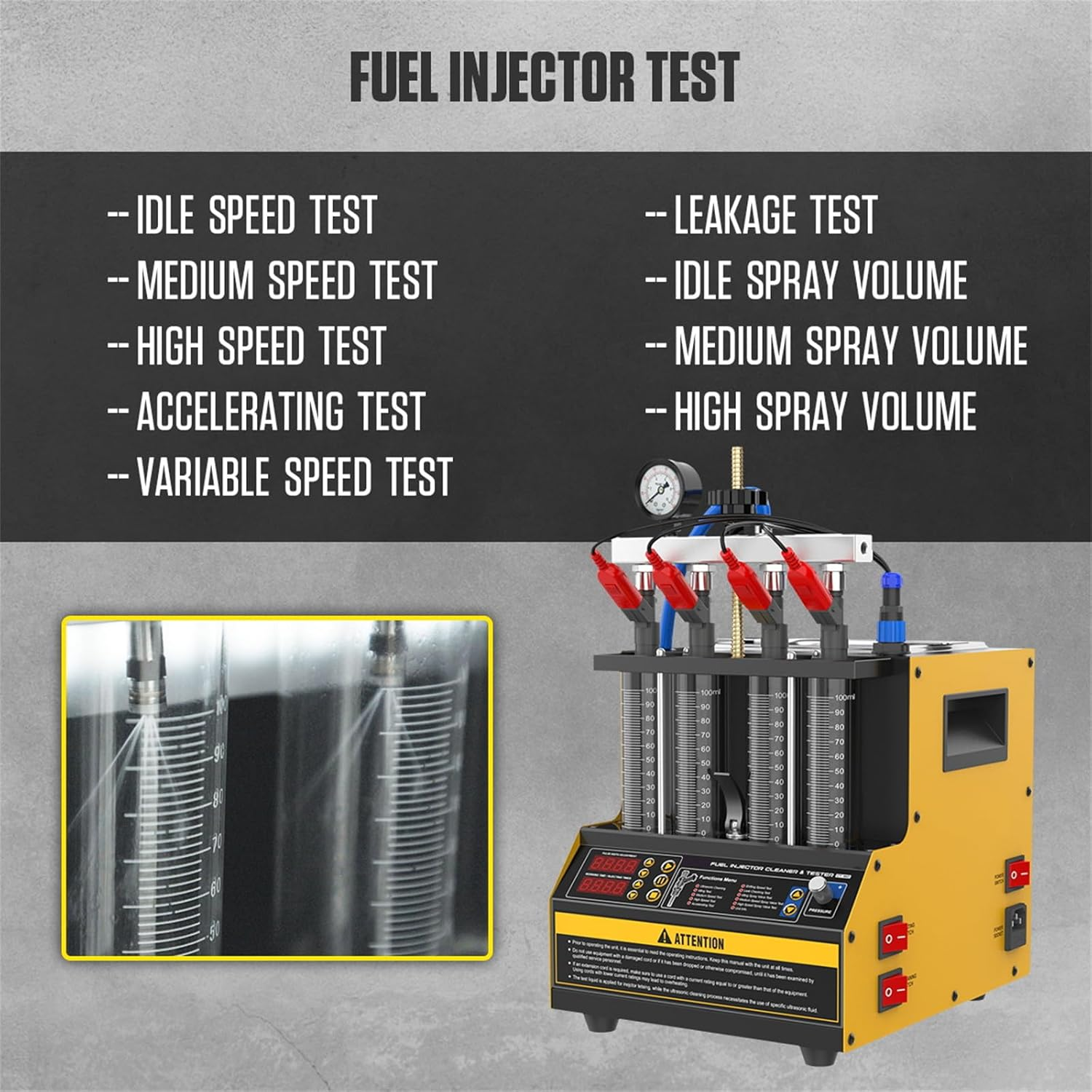

FUEL INJECTOR TEST

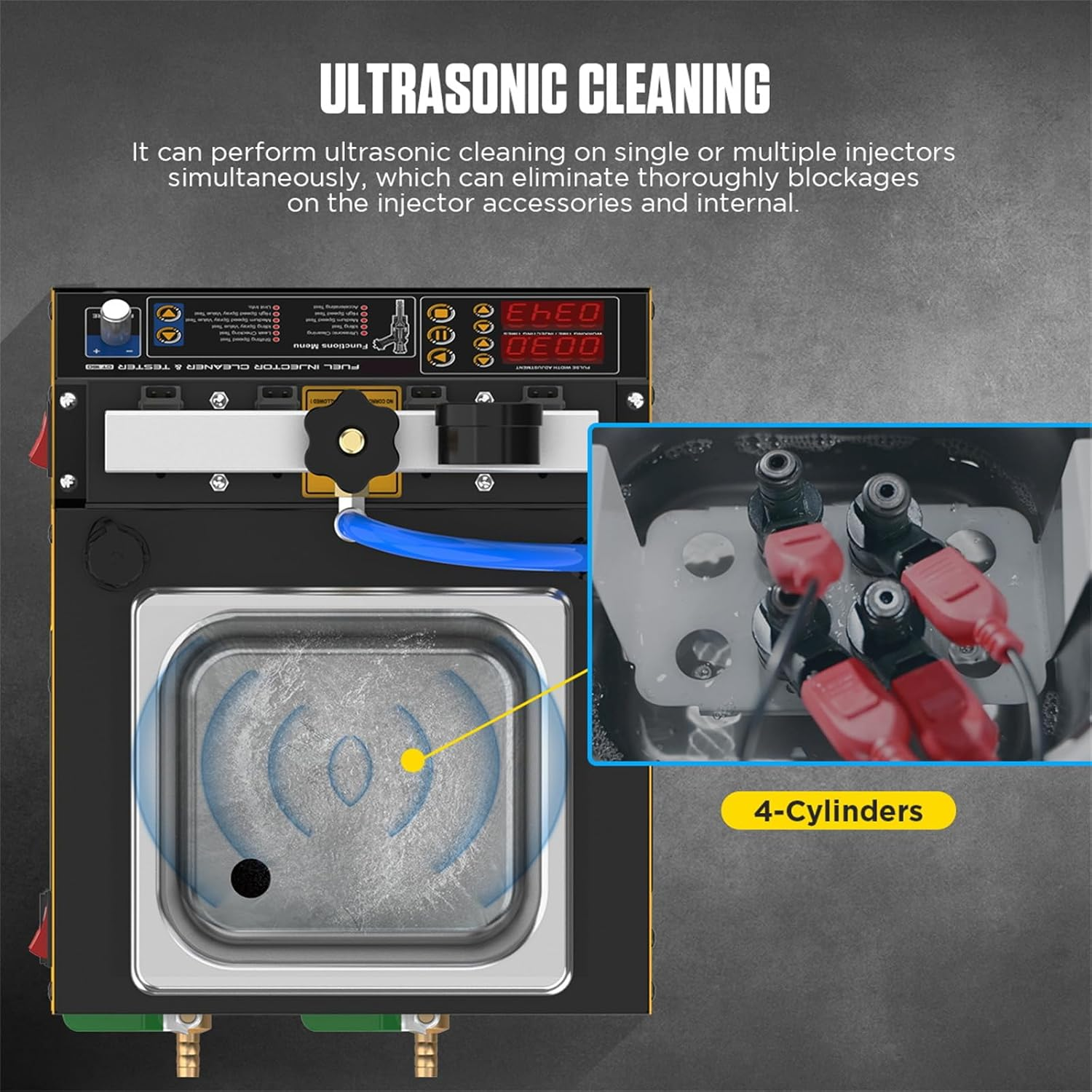

• Ultrasonic Cleaning: It sends signals to the injectors through the pulse signal line, using the cleaning fluid with the ultrasonic vibration so as to completely remove the carbon and impurities inside the injectors.
• Idle Speed Test (0-20ms): Simulate the engine idling speed and test the state of the fuel injector.
• Medium Speed Test (0-7.5ms): simulate the engine running at medium speed and test the state of the fuel injector.
• High-Speed Test (0-4ms): Simulate the high-speed performance of the engine and test the state of the fuel injector.
• Acceleration Test: Simulate the acceleration state of the car and test the performance of the fuel injector.
• Shift speed Test: Simulate the shifting state of the car and test the working performance of the fuel injector.
• Leakage Test: Test the sealing condition of the fuel injector.
• Idle Dpeed Sprayability Test: Simulate the engine idling state and test the spraying performance of the fuel injector.
• Medium Speed Sprayability Test: Simulate the engine medium-speed state and test the spraying performance of the fuel injector.
• High-Speed Sprayability Test: Simulate the high-speed state of the engine and test the spraying performance of the fuel injector.
• Main Unit Information: used to store the product number and date of manufacture of the product.
• Auto. mode Test: Under this function, the parameter of fuel pressure can be adjusted in real time.
• Uniformity/Sprayability Test: Under this function, the parameters of RPM, PW and time can be adjusted in real time.
• Injecting Flow Test: Under this function, the parameter of fuel pressure can be adjusted in real time.

Functions Menu

• Ultrasonic Cleaning
• ldling Test (0-20ms)
• Medium Speed Test (0-7.5ms)
• High Speed Test (O-4ms)
• Accelerating Test
• Shifting Speed Test
• Leak Checking Test
• ldling Spray Value Test
• Medium Speed Spray Value Test
• High Speed Spray Value Test
• Reverse Flushing
• No-disassembly Cleaning

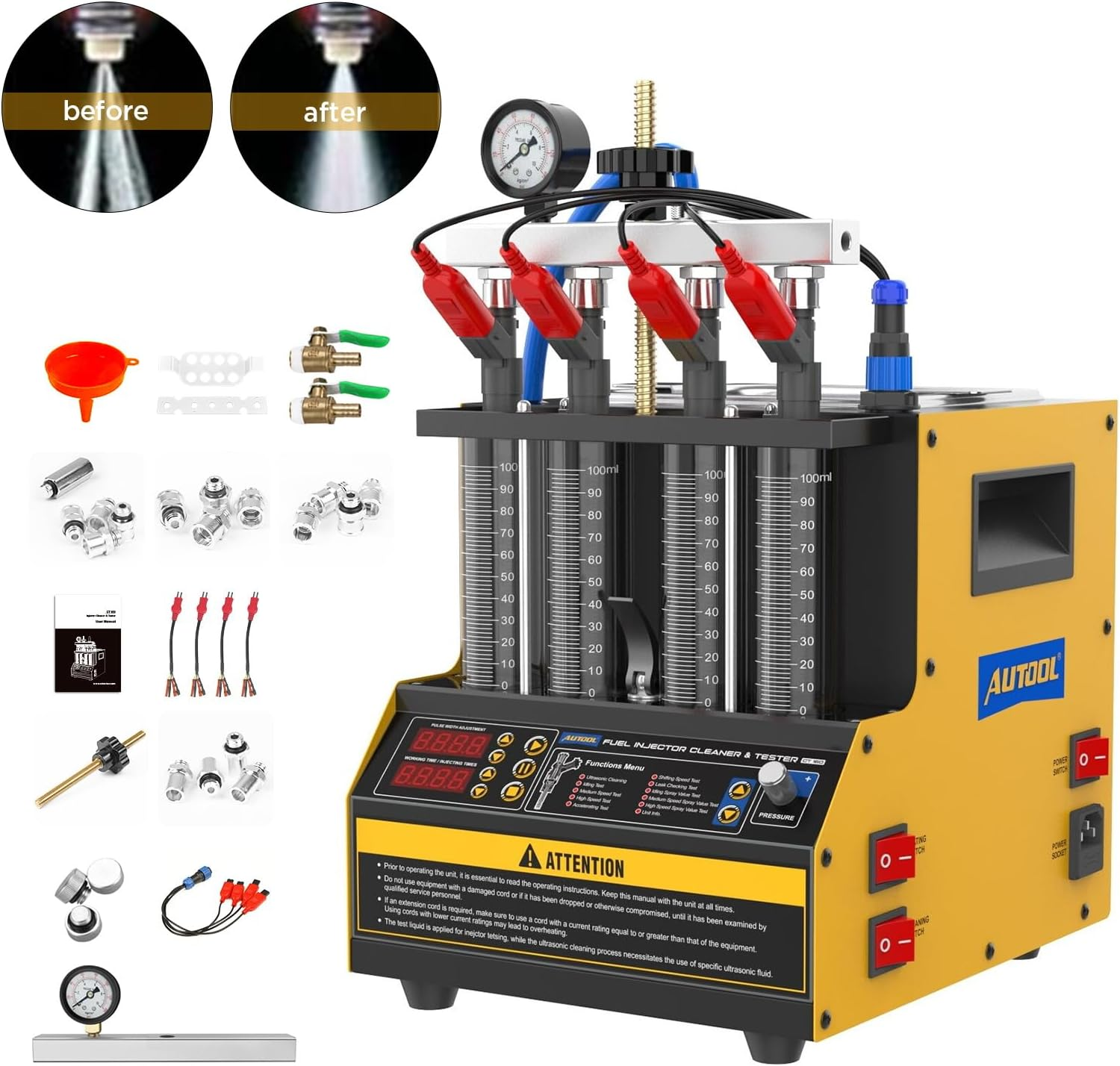

Packing list

• 1pcs * CT160 Fuel Injector Cleaner Tester Main Unit;
• 1pcs * Funnel(for adding test fluid);
• 1pcs * Ultrasonic Cleaning Bracket(for placing the injectors during cleaning);
• 1pcs * Micro gaskets(for auxiliary installation of special fuel injectors)
• 2pcs * Drain Valve(To drain the cleaning fluid and test fluid);
• 1pcs * Locking rods(For fixing the oil separator)
• 1pcs * Locking Nut(For fixing the oil separator);
• 1pcs * Extended plug (used to block the holes on the oil separator)
• 4pcs * Top inlet connectors φ9.8mm/φ11mm/φ10.6mm/φ10.5mm/φ13.5mm (for connecting the top of the injector and the oil separator hole)
• 3pcs * Plugs for oil separator(used to block the holes on the oil separator)
• 1pcs * Drive signal line (used to transmit pulse signal, connect to the injector signal input pin)
• 4pcs * Adapter cables(For transferring the pulse signal line connector, instead of connecting the injector signal input pin)
• 1pcs * Oil Separator(Distribution device for outputting pressurized test fluid to the injectors);
• 1pcs * Power Cable(for connecting power supply);
• 1pcs * Sealing gasket kit (for the sealing of fuel injector and oil separator junction) & User Manual(Instructions)

How to work

• Ultrasonic Cleaning:
• Step 1: Pour in the detergent andplace the fuel injector inthe ultrasonic cleaner.
• Step 2: Connect the pulse signal wire &.select the ultrasonic cleaningfunction to start working.
• Fuel Injector Testing:
• Step 1: Pour in the test liquid, install theuel injector to the fuel distributorand fix it to the main unit by bolts.
• Step 2: Test if the fuelinjector iseaking or blocked underdifferent functions.

• How to Work ?

1. Clean injector's outside with gasoline or cleaning liquid before open machine
2. Putting injectors in ultrasonic bathtub after the outside of injector are free of dirt.
3. Turn on ultrasonic system，pulsed allowing the ultrasonic energy to dislodge any particles even build-up inside the injectors.
4. Fixed injectors on main machine.
5. Testing injectors for resistance, shorts, and current draw.
6. Performing leak test, spray pattern, and flow rate testing on flow bench.
7. The injectors are now returned to the flow bench for retesting of all functions.
