Renogy Wanderer Li 30A 12V PWM Negative Ground Charge Controller Compatible with Lithium, Sealed, Gel, and Flooded Batteries and Renogy Bluetooth Module

Renogy Wanderer Li 30A 12V PWM Negative Ground Charge Controller Compatible with Lithium, Sealed, Gel, and Flooded Batteries and Renogy Bluetooth Module

Brand: Renogy
3.2
A$47.25
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • Optimized for a 12V system; Deep cycle Sealed, Gel, Flooded, and Lithium battery option ready.

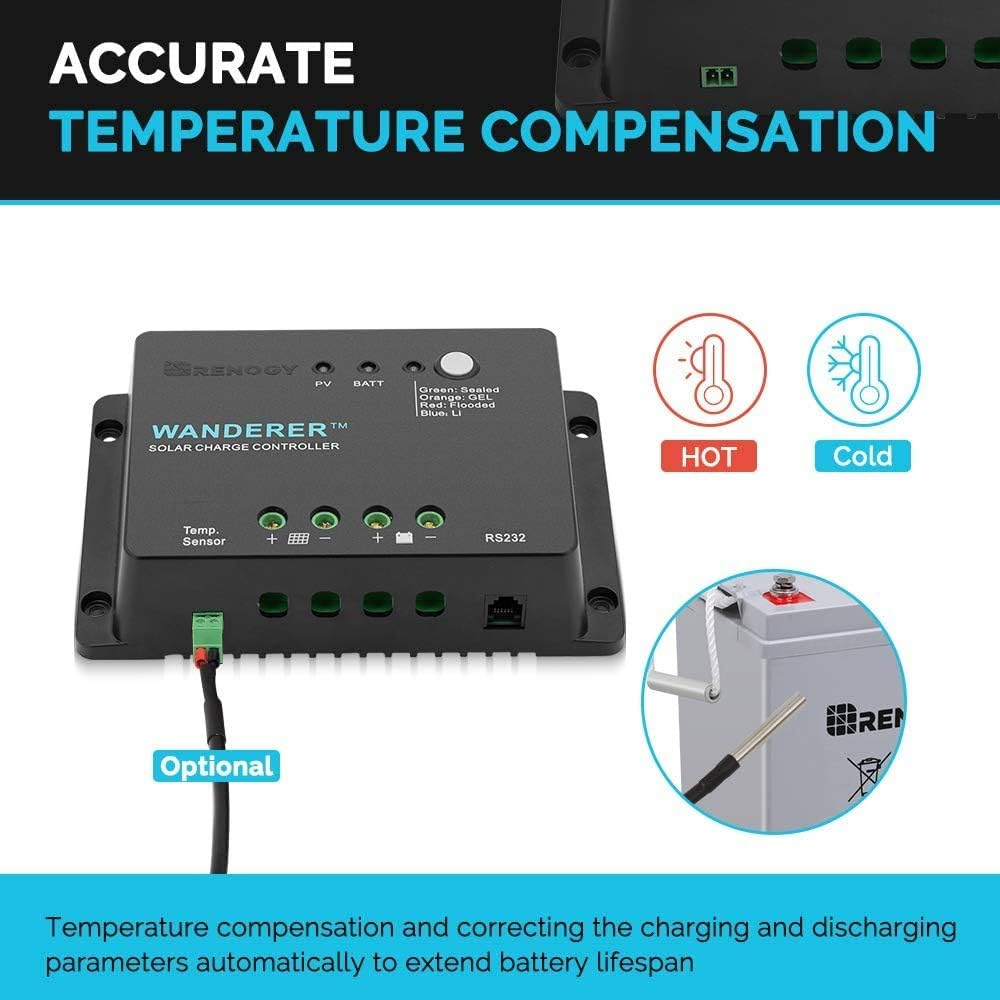

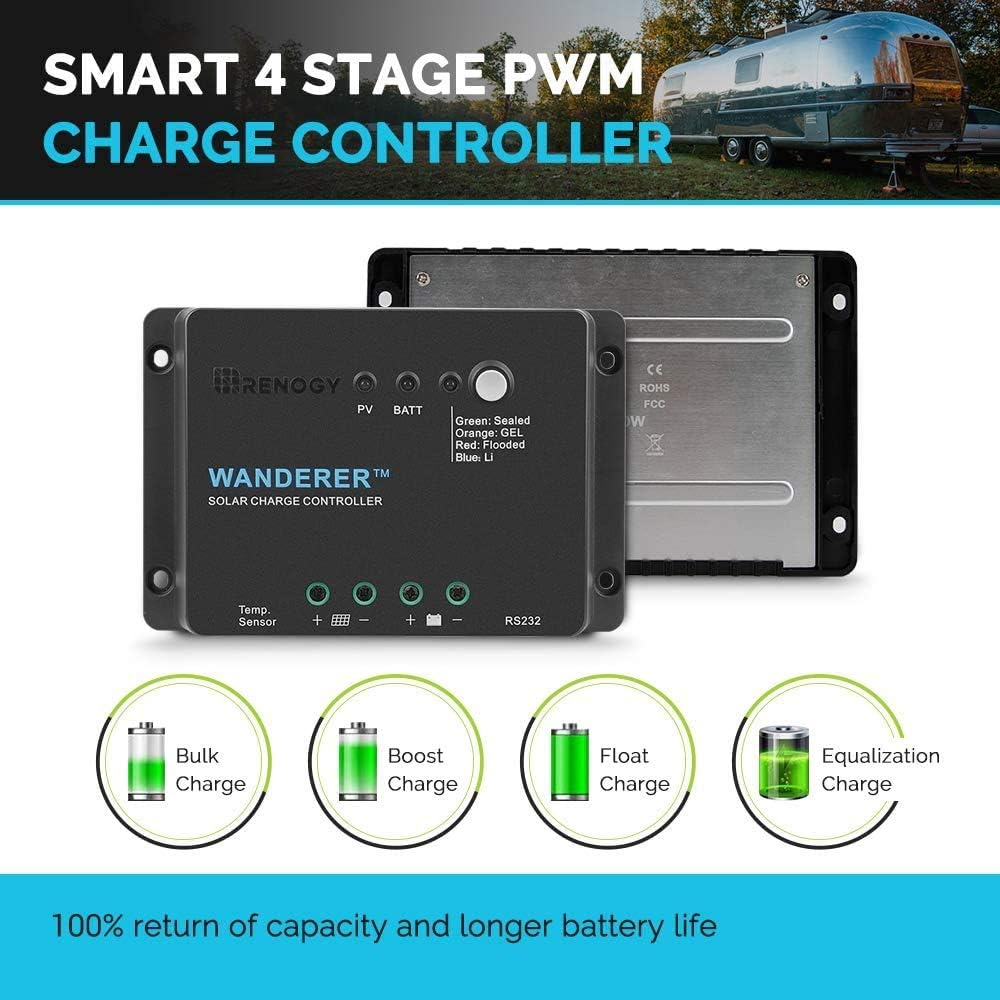

  • Smart 4 Stage PWM charging (Bulk, Boost, Float, and Equalization) and temperature compensation increases battery life and improves system performance. Intelligent protection against reverse polarity, overcharging, short-circuit, and reverse current.
  • Multiple LED indicators for easy to read charge status and battery information.

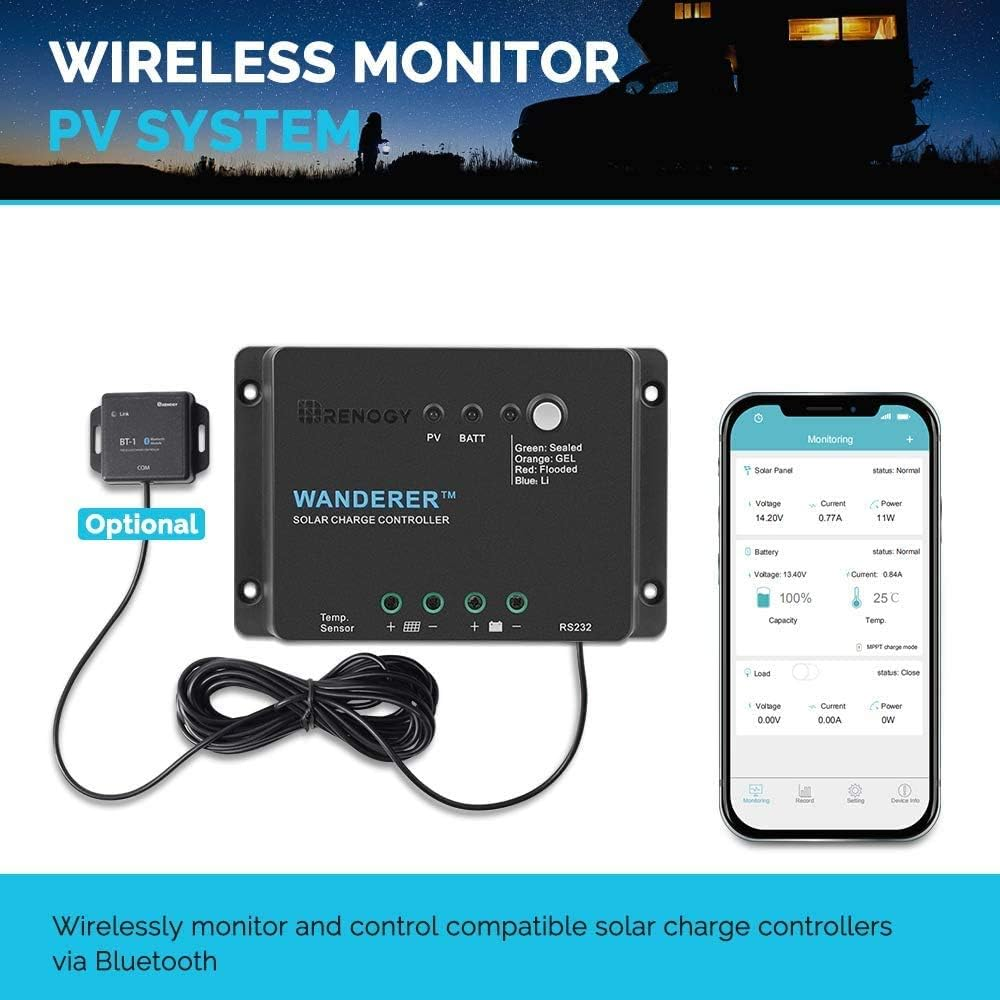

  • Integrated RS232 port allows communication with BT-1 Bluetooth module and usage of Renogy BT smartphone app.

Product Description


  • Nominal Voltage: 12 VDC
  • Rated Charge Current: 30A
  • Max. PV Input Voltage: 25 VDC
  • Max. PV Input Power: 400W
  • Self-Consumption: <10mA
  • Max Gauge Size: Up to 8AWG

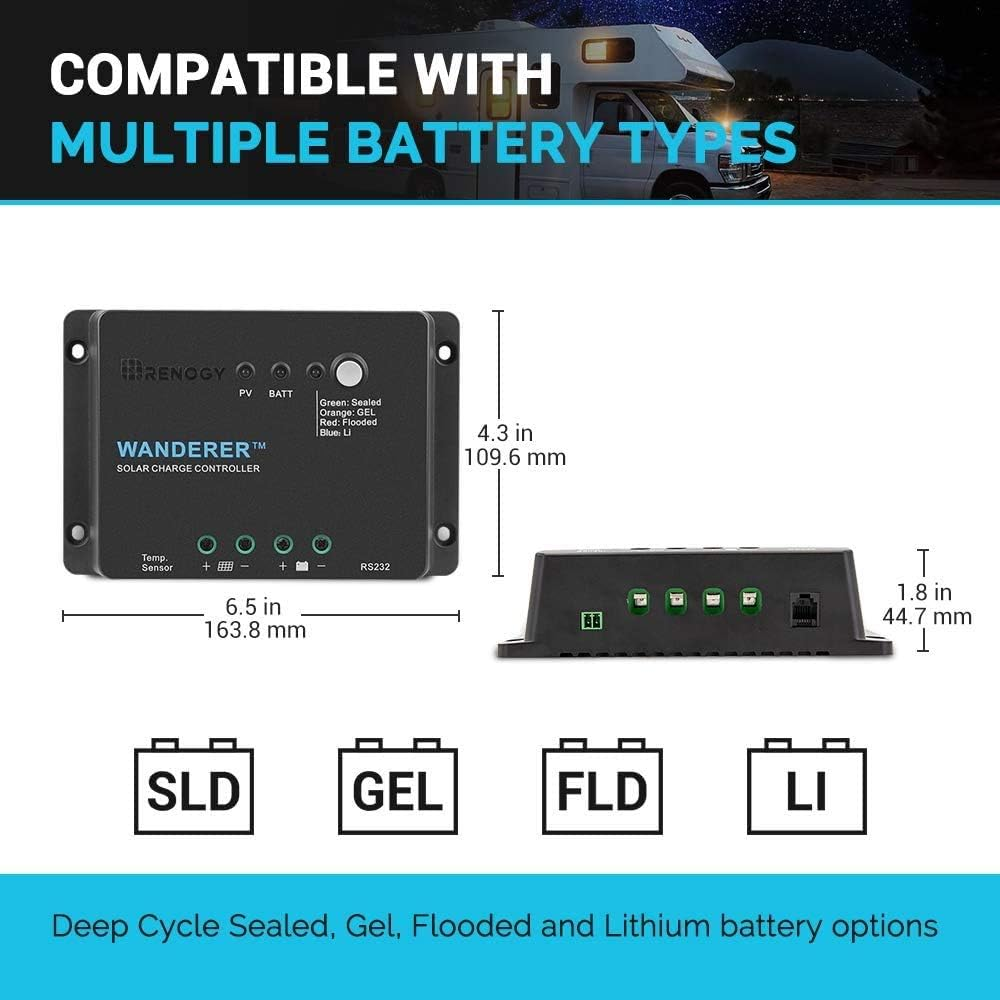

  • Dimensions: 6.45 x 4.31 x 1.76 inches
  • Weight: 0.65 lbs

Renogy Wanderer Li

The Traveler SeriesTM

The Renogy Wanderer-Li is a 30A PWM solar charge controller that integrates efficient PWM charging to increase battery life and improve system performance. Designed with a simple interface for ease of use, the controller uses multiple LED indicators to notify users of charge status and battery information.

LED Indicators & Battery Selection Button

Monitor system status and set your battery type

Layout

  1. Select Button
  2. Battery Type Indicator
  3. Battery Indicator
  4. PV Indicator
  5. Temperature Sensor Port
  6. PV Terminals
  7. Battery Terminals
  8. RS232 Port

Temperature Sensor Port

For optional temperature sensor

RS232 Port

For optional communication module

  • Battery cell composition: Lithium
  • Batteries Required: No
  • Brand: Renogy
  • Compatible Devices: controller
  • Item Weight: 320 g
  • Voltage: 12 Volts (DC)
  • Package Dimensions: 17 x 12.4 x 5.2 cm; 320 Grams
  • Manufacturer: Renogy
