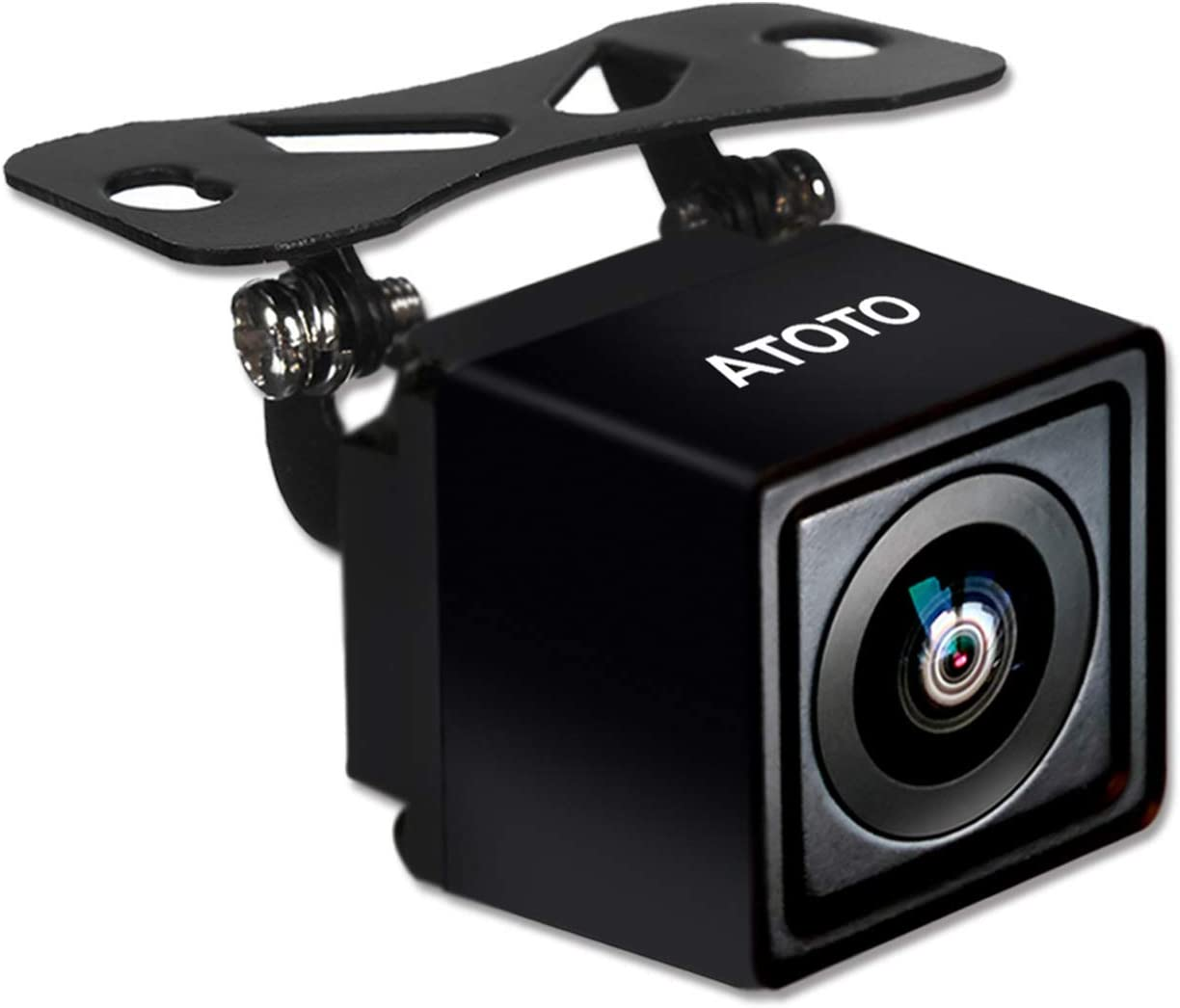

ATOTO AC-HD02LR 720P Rearview Camera with Live Rearview, HD Picture Quality, Night Vision/Waterproof, Compatible with ATOTO S8 / F7 / A6 / A5 / X10 Series. Not Compatible P5 / P8 / P9
ATOTO AC-HD02LR 720P Rearview Camera with Live Rearview, HD Picture Quality, Night Vision/Waterproof, Compatible with ATOTO S8 / F7 / A6 / A5 / X10 Series. Not Compatible P5 / P8 / P9
Brand: ATOTO
A$62.90
Availability:
-
This item is currently not available
Shop with confidence
- HD 720P Rear-view Backup Parking Assist Camera, which can output 720P HD video signal. Special wiring design plus system firmware support allows user to have a live rearview when vehicle is moving ahead
- It only works on selected ATOTO car stereos (S8 / F7 / A6 / A5 / X10 Series) and the video image quality is much better than traditional cameras that output CVBS signal type. It is not compatible with other car stereo brands!
- If you own ATOTO S8 (Gen2), and it comes with virtual surround view feature, we highly recommend ATOTO AC-HD03LR camera instead.
- It does not work on the ATOTO P5 ,P8 ,P9 series.

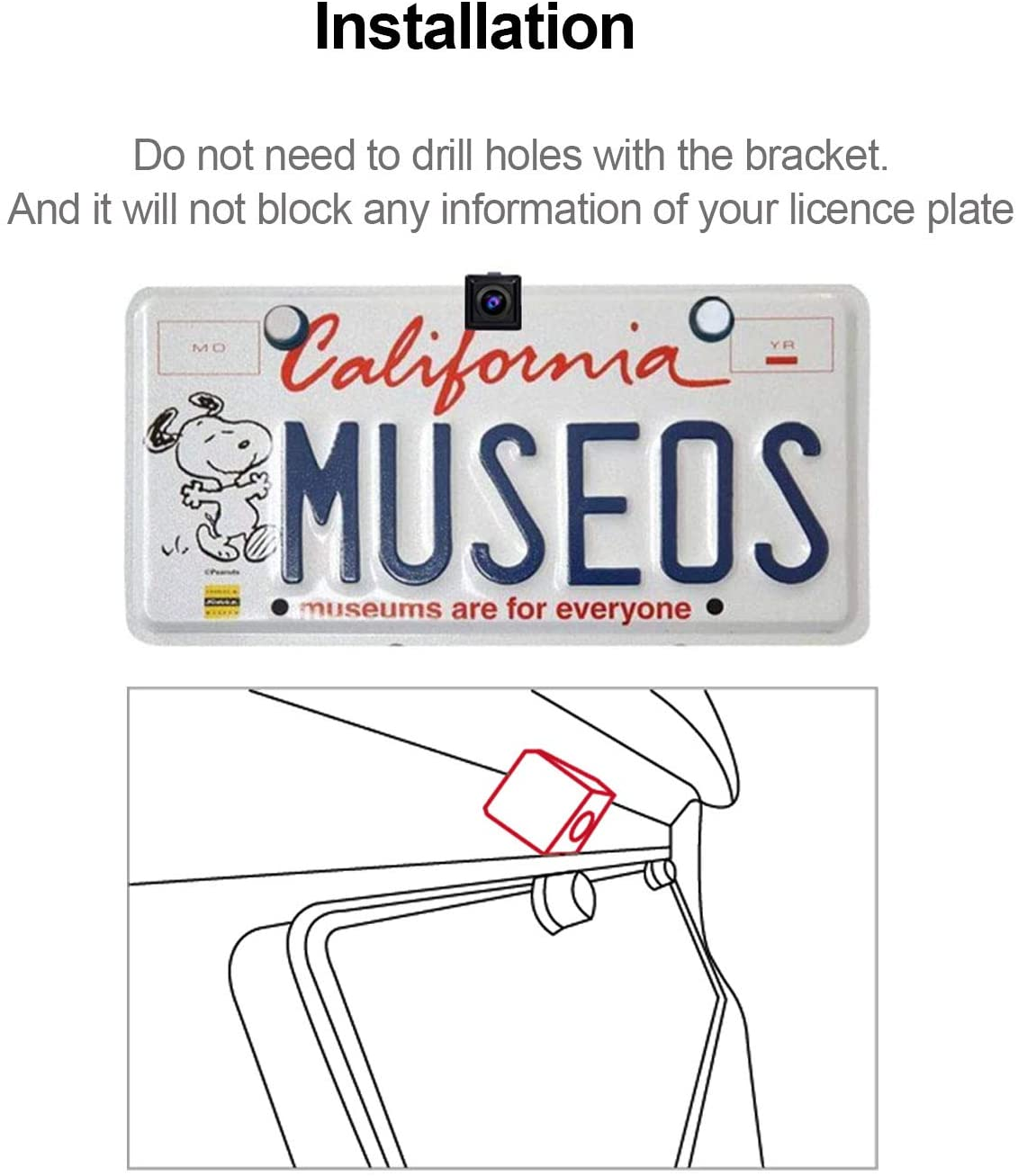

- HD Rear View Backup Parking Assist Camera with Installation Cables. Easy to install: 2 Installation options, you could choose bracket mounting or flush mounting as per your case.
Product Description
Applicable Headunit models:
- AC-HD02LR: This AC-HD02LR works with A6 KarLink, A6 Performance, the F7 Series, S8Series and the X10 Series car stereos. It is NOT compatible with A6 Y, SA102, P5, P8, P8AI, P9 or any other car stereos. Besides, S8 models manufactured before Jan. 2021 (also known as S8 Gen 1) can support AC-HD02LR, but the system firmware update is required before the LRV feature can work properly. See the rearview camera comparison table below for more details.
Specifications：
·Product Model: AC-HD02LR ·Image sensor format: 1/2.9” CMOS · Pixels：1280(H)x720(V) · White balance: automatic · Backlight compensation: Yes · Noise reduction: 3D DNR · Video Frame rate: 720P@30FPS · Video Signal Out：Analogue HD signal, 1.0 Vp-p / 75Ω · Working Voltage: DC 12V · Working Current: 130mA～150mA · Working Temperature：-30℃～+80℃ (-22°F ～ 176°F) · Rear-view guideline: Not built-in, provided by Car stereo system · Waterproof Rate: IP67 · Night-vision: YES ·Lens Viewing Angle: 150 Degrees
· Powering method: powered by ATOTO Headunit or vehicle's Accessory (ACC).
· Rearview Image Access: (1).When vehicle is in reverse gear, the rearview will display on the headunit display; (2). Manually run Rearview app when vehicle is moving ahead, or use steering wheel keys (if applicable). For selected S8 (Gen2) modes that come with Hand Gesture operation, gesture control is available

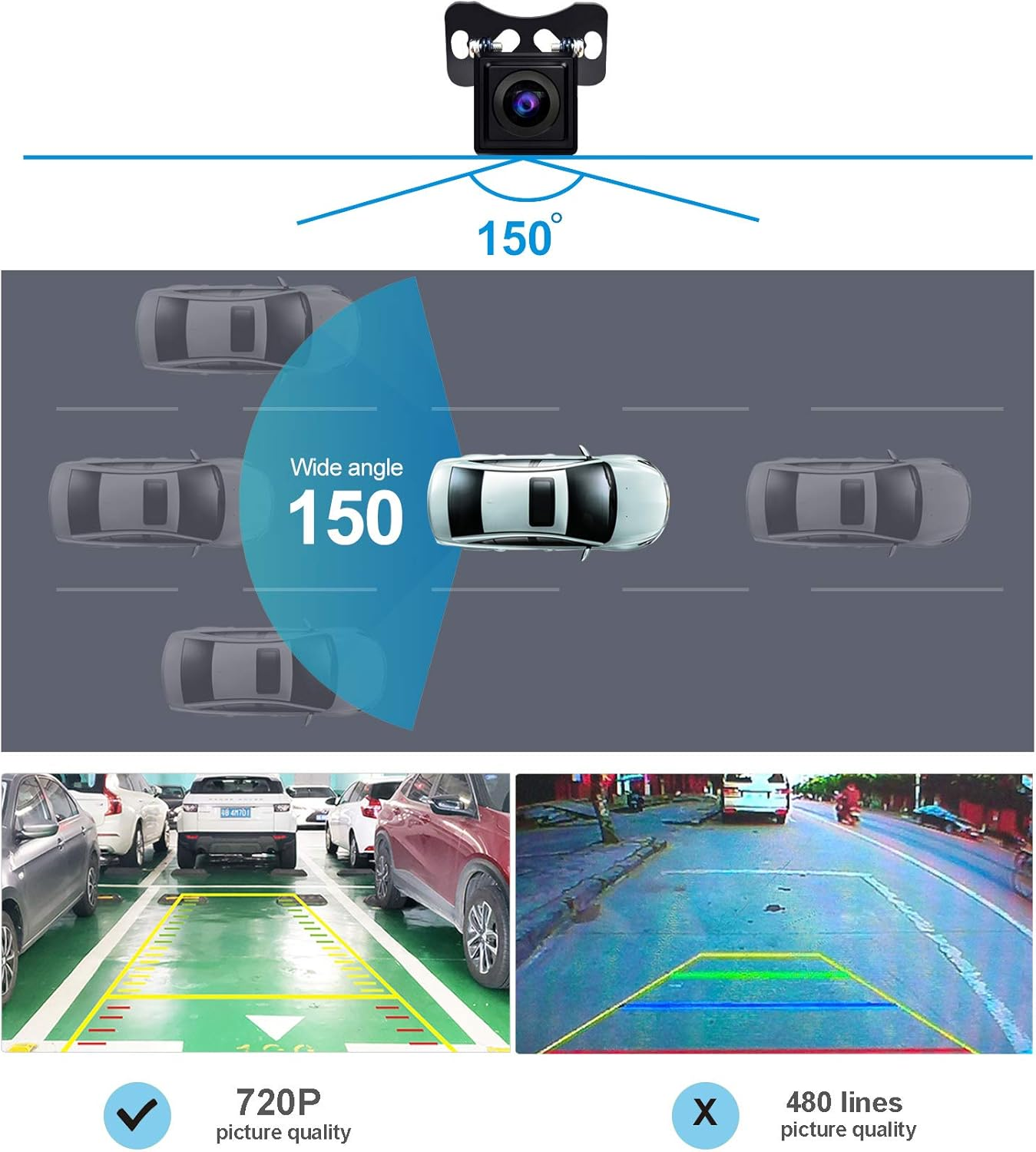

HD 720P Rear-View Video Signal Output
Traditional car stereos can only take and display 400-600 lines CVBS rearview video signal. Working with specific ATOTO head-unit models, The AC-HD02LR can output an HD 720P rearview video signal, and you can have an HD color display on the ATOTO headunit. Say goodbye to the snowy static picture screen when reversing a vehicle.
How does the LRV feature Work?
ATOTO LRV (Live Rear-View) technology
Live RearView (LRV) Feature - Access Rearview even if the vehicle is moving ahead. This could remove obstructions of passengers, headrests, and the vehicle’s roof and rear pillars, increasing field of view and allowing the driver an unimpeded view of the lanes behind and traditional blind-spots. To use this feature, special wiring is required, see below for reference.

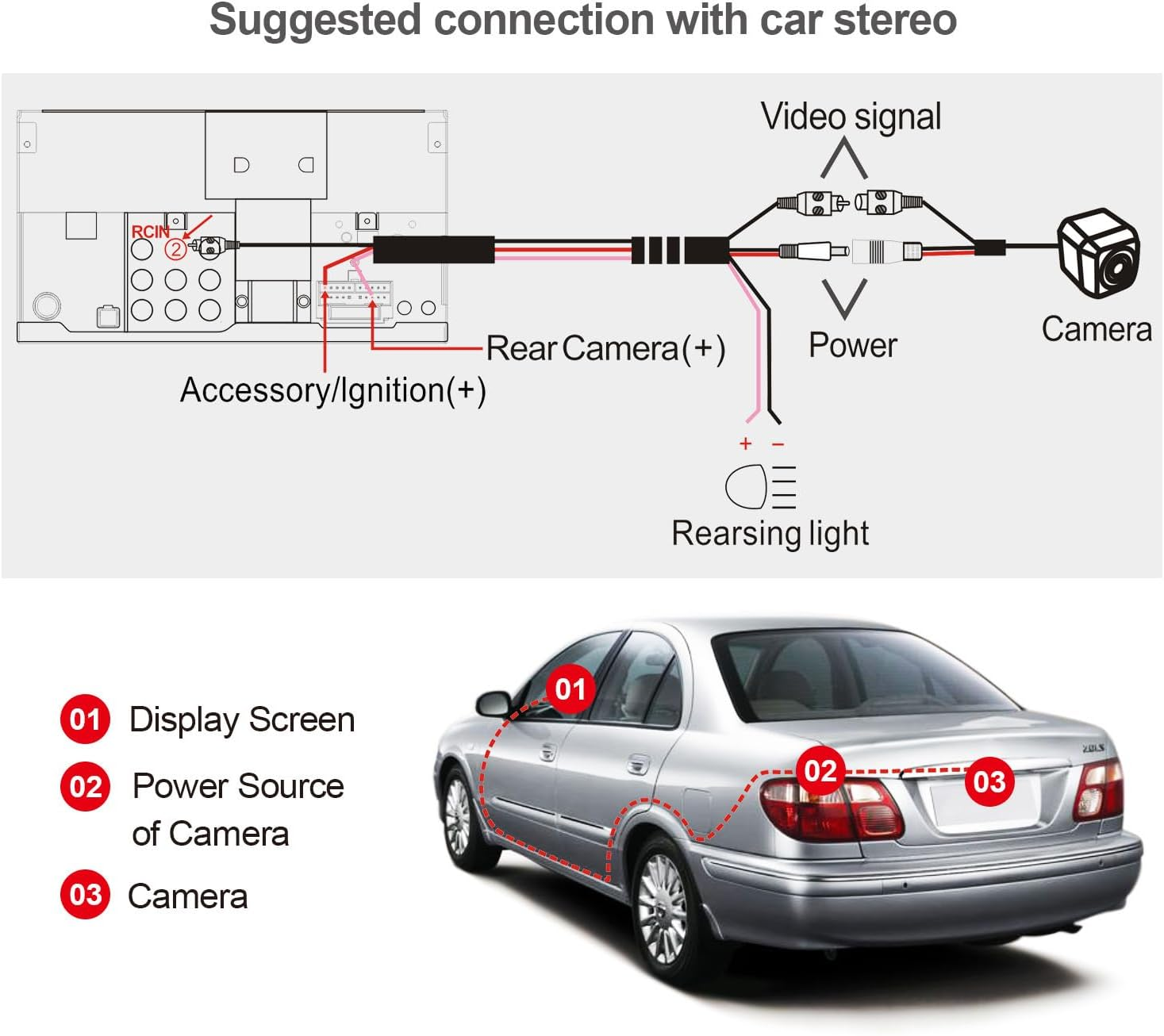

Easy Installation, compatible with selected ATOTO S8 (Gen2) models
Unlike traditional backup cameras that are powered up by reversing lamp of the vehicle, AC-HD02LR is rewired to be powered by a head-unit or vehicle's ACC power (Accessory) wire. And built-in hardware in selected ATOTO head-unit is required to make sure camera's video signal can be read and displayed without putting your vehicle into reverse gear.
- Item Model Number: AC-HDLR-EU
- Part Number: AC-HD（LR）
- Video capture resolution: 720p
- Batteries Required: No
- Brand: ATOTO
- Batteries Included: No
- Compatible Devices: Monitor
- Actual viewing angle: 150 Degrees
- Lens type: Wide Angle
- Item Weight: 250 g
- Voltage: 5 Volts
- Model: AC-HDLR-EU
- Display Technology: LED
- Package Dimensions: 15.2 x 11.4 x 4.7 cm; 250 Grams
- Manufacturer: ATOTO
