Description

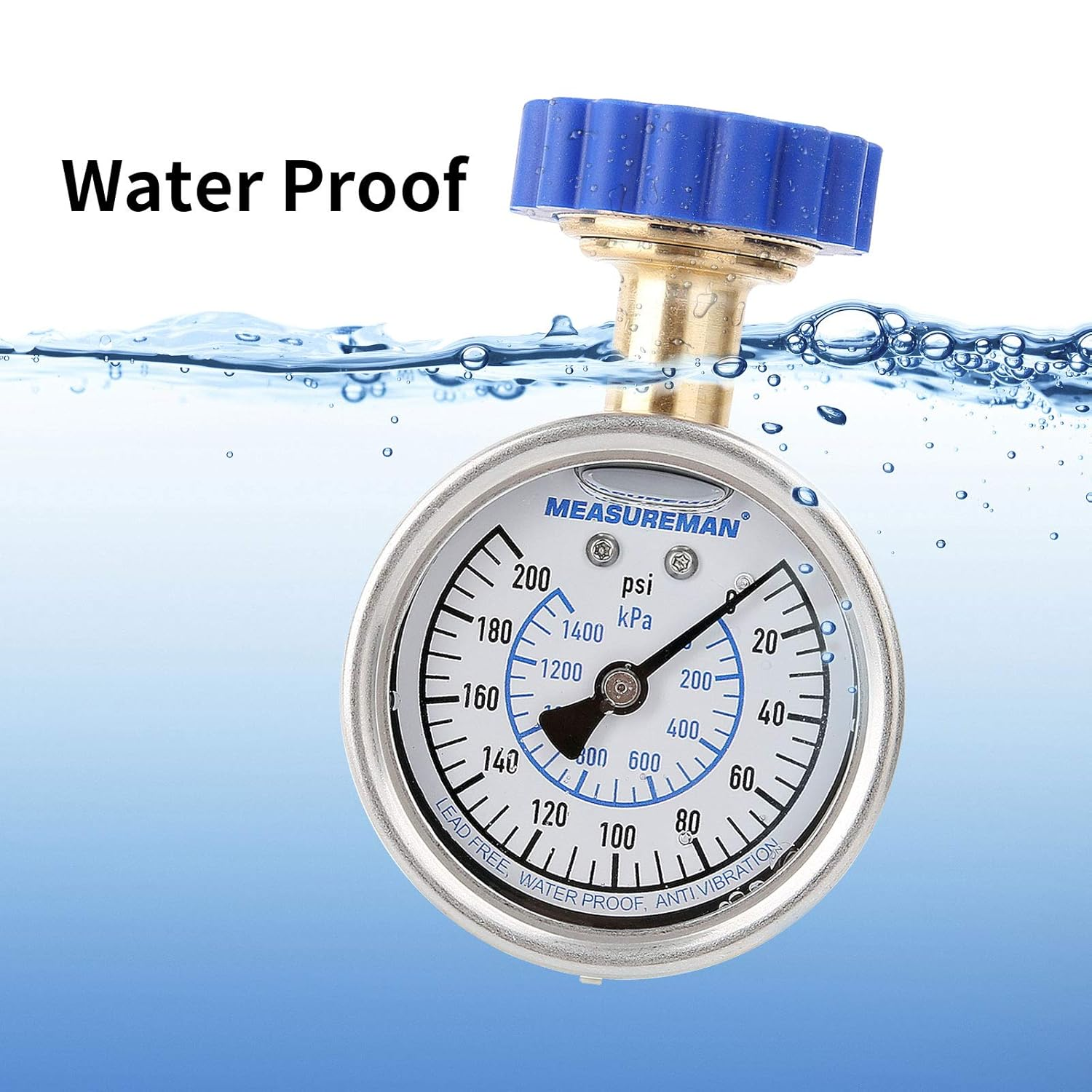

This pressure gauge is designed for water pressure measuring in the irrigation system, garden, house etc.It has very nice looking,
the joint between hose connection and gauge is seamless sealed, no possibility of leaking water into the gauge. Water Proof.

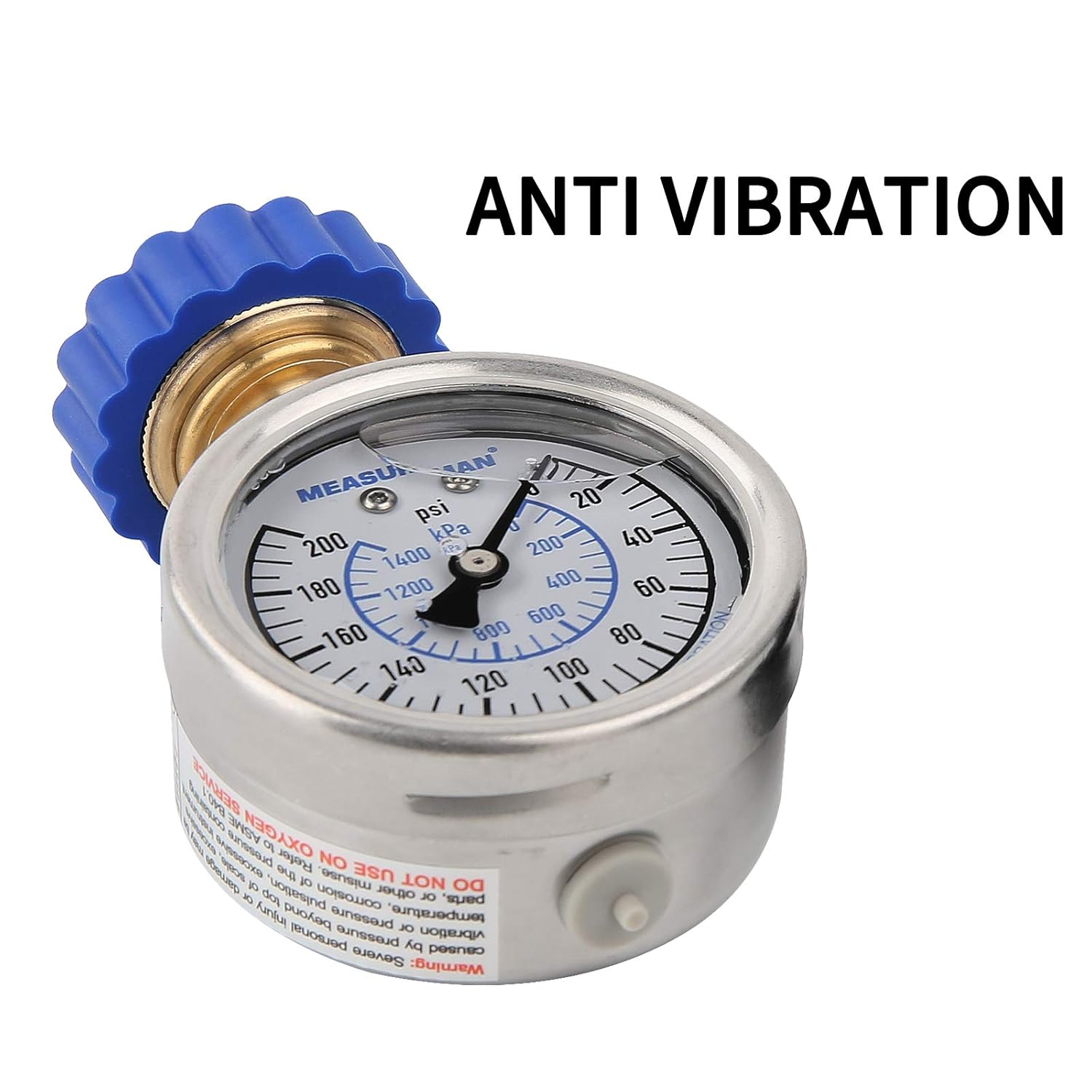

Glycerin filled to anti vibration, will increase the life of the gauge.
Dial size : 2-1/2"

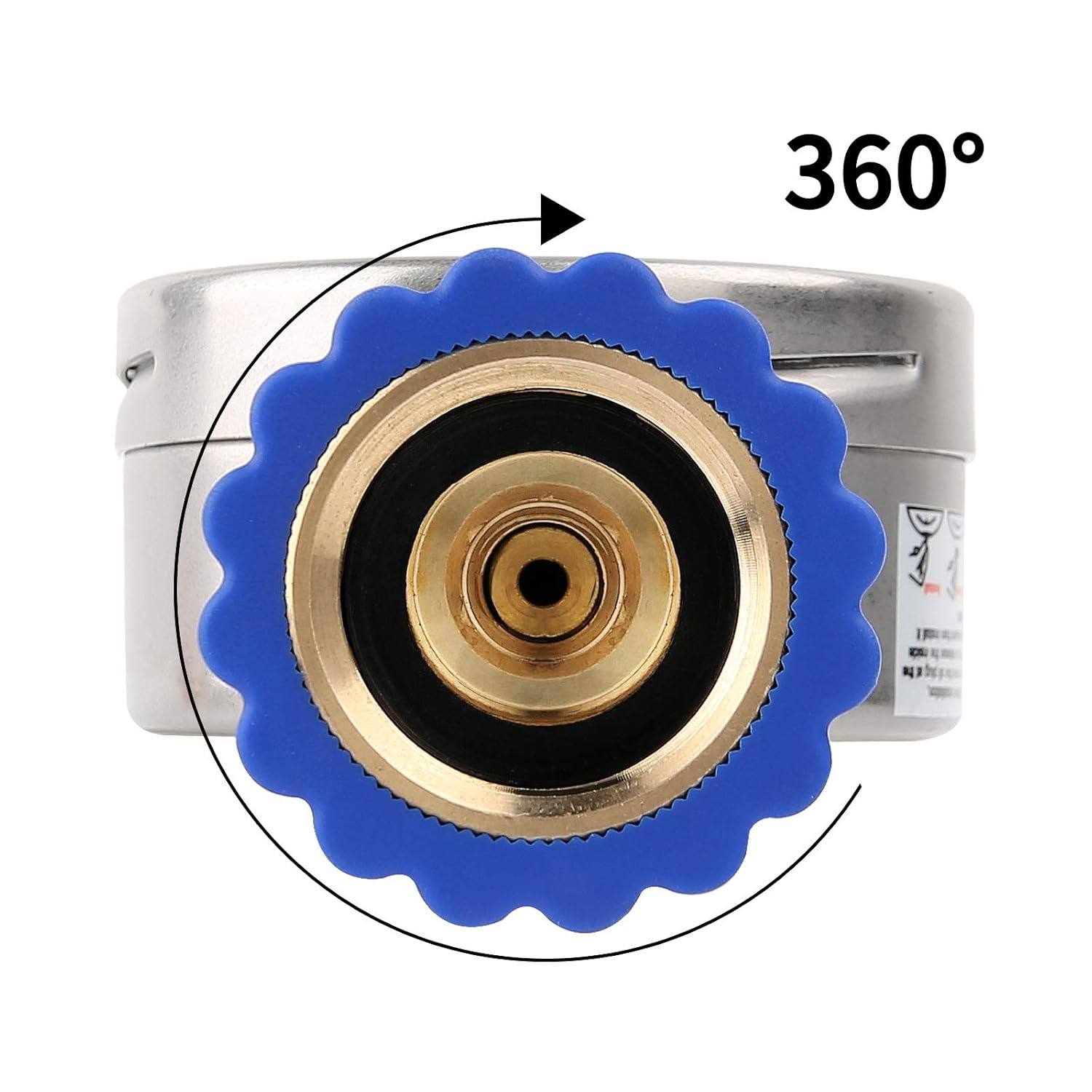

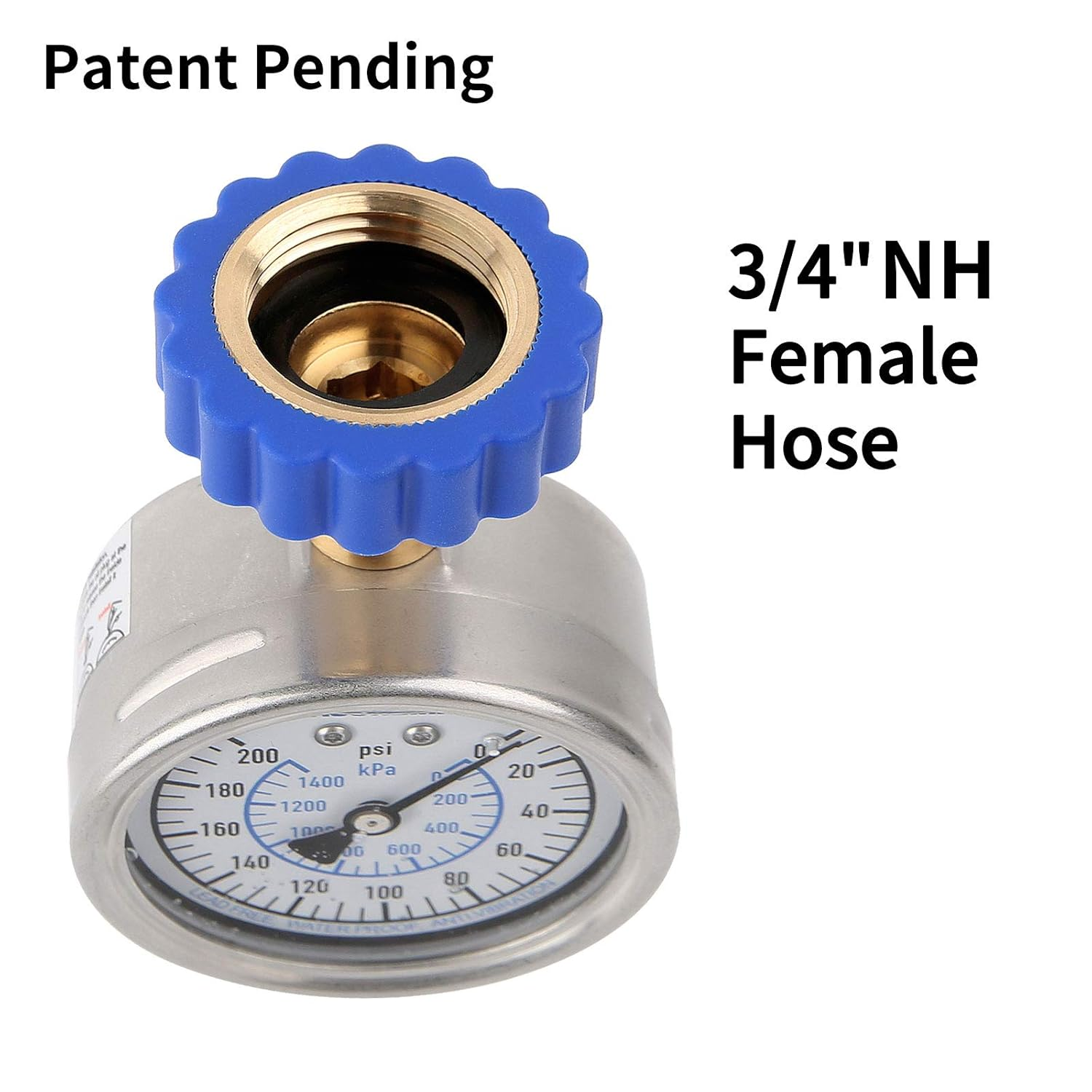

Process connection : 3/4"" hose upper mount female
Case : 304 stainless steel case and bayonet ring
Window : Clear polycarbonate
Dial plate : aluminum, with pointer stop
Pointer : Aluminum, black, round end
Bourdon tube : Copper alloy
Movement : Brass
Connection : Brass
Oil cap: gray rubber
Pressure range : 0-200psi/kpa, psi outside in black, kpa inside in blue, 1bar=100kpa, double scale
Working temperature : 32 to 140 deg F/0 to 60 deg C
Ambient temperature : 140 deg F/60 deg C maximum
Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
