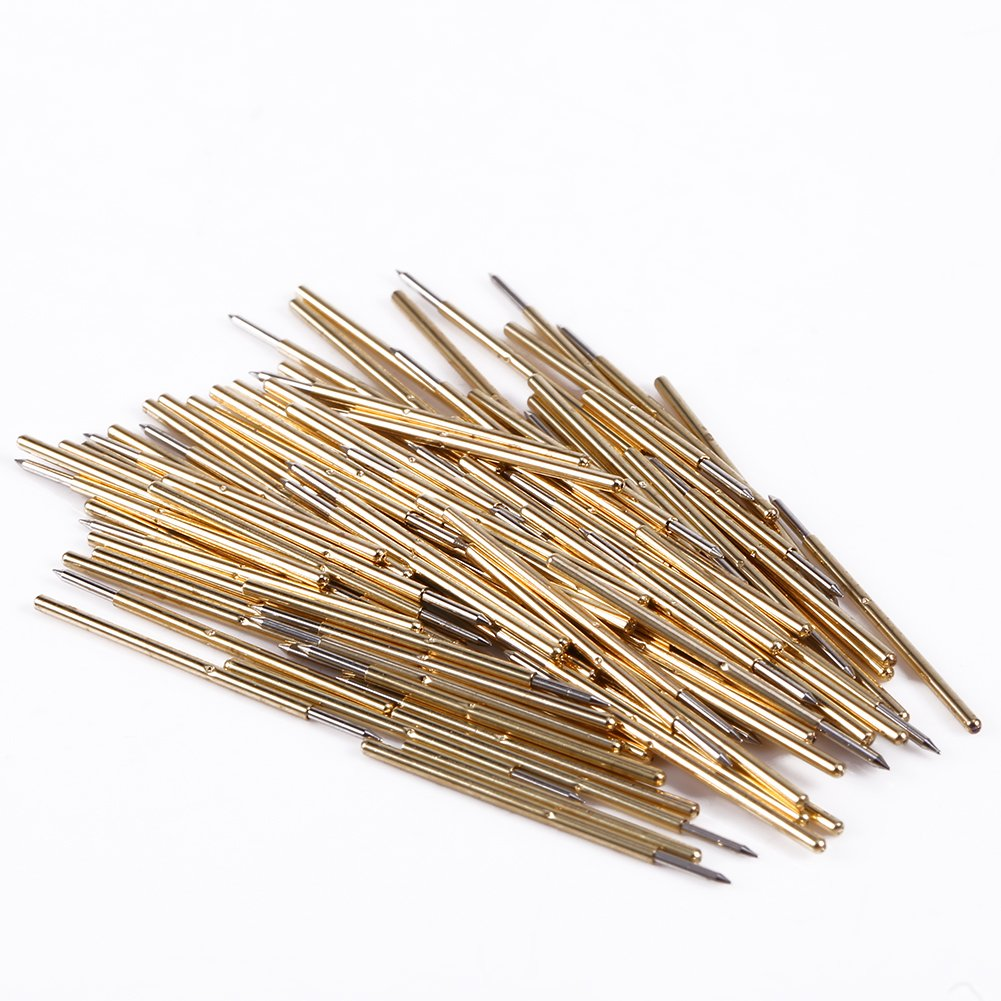

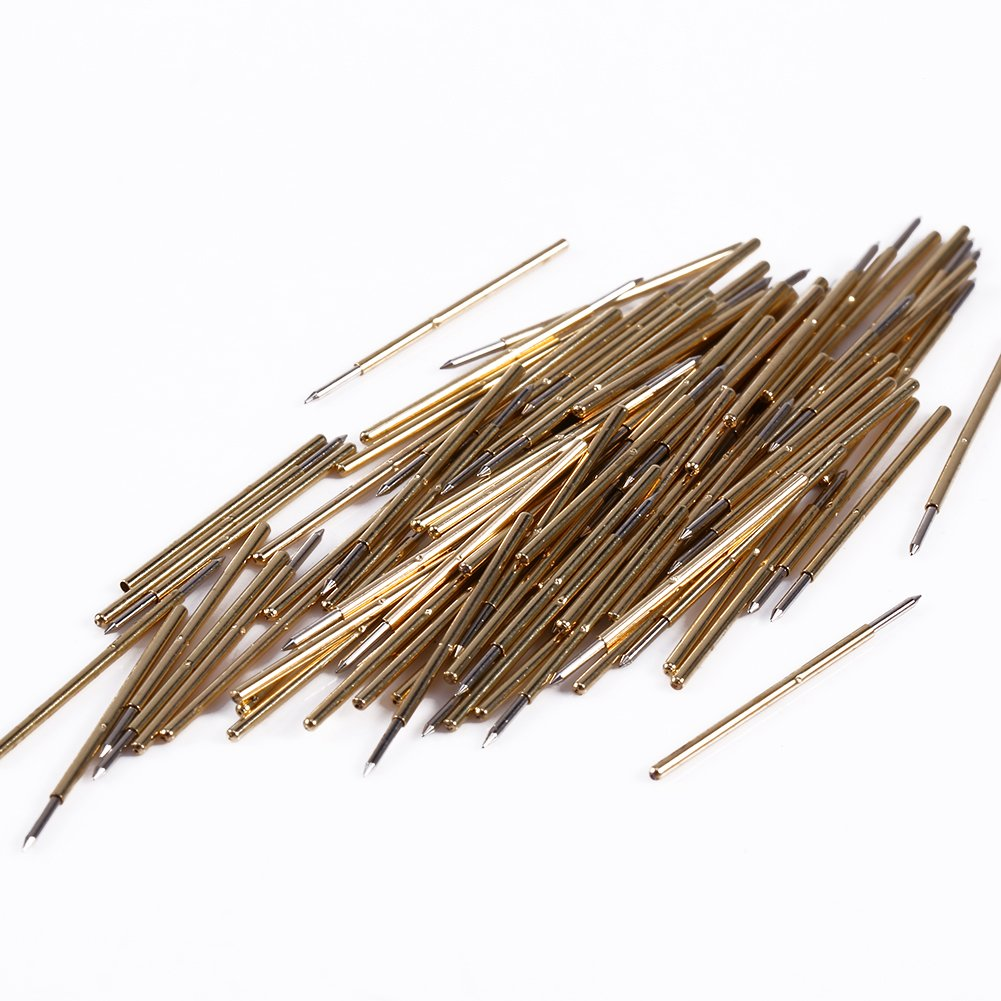

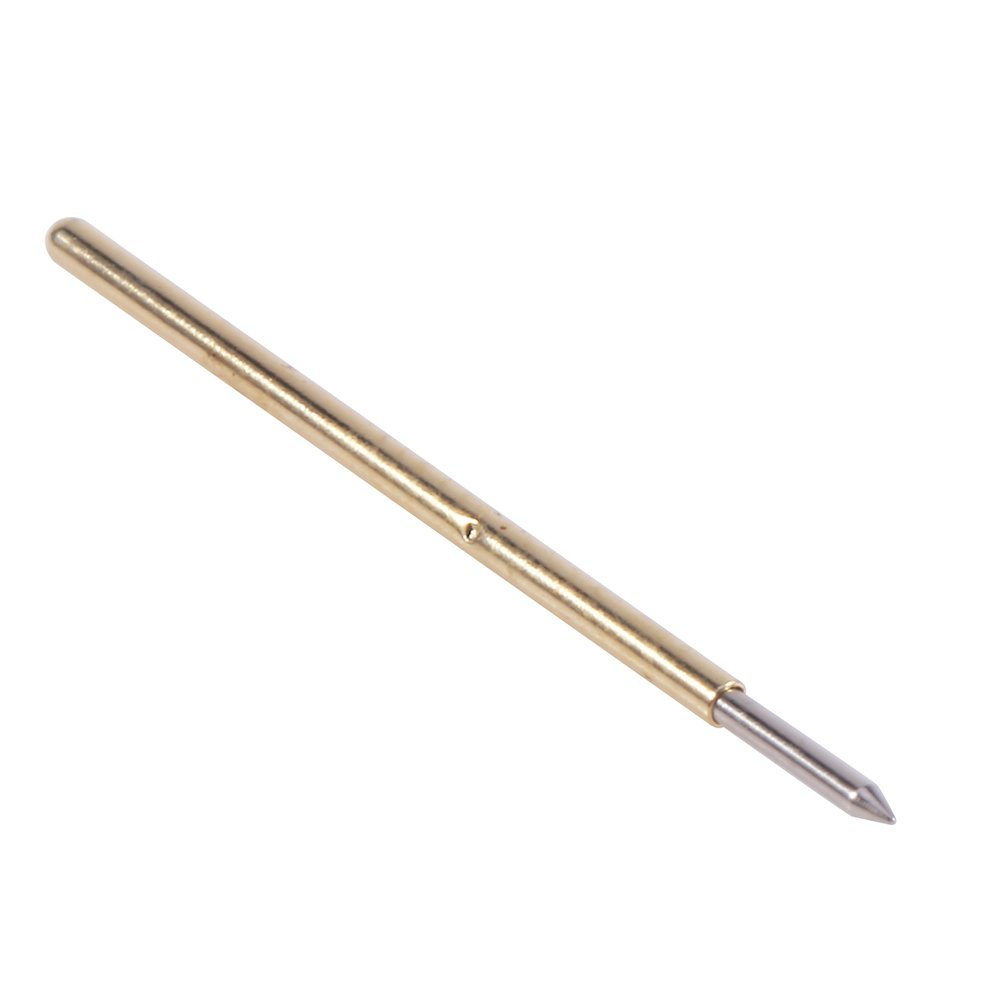

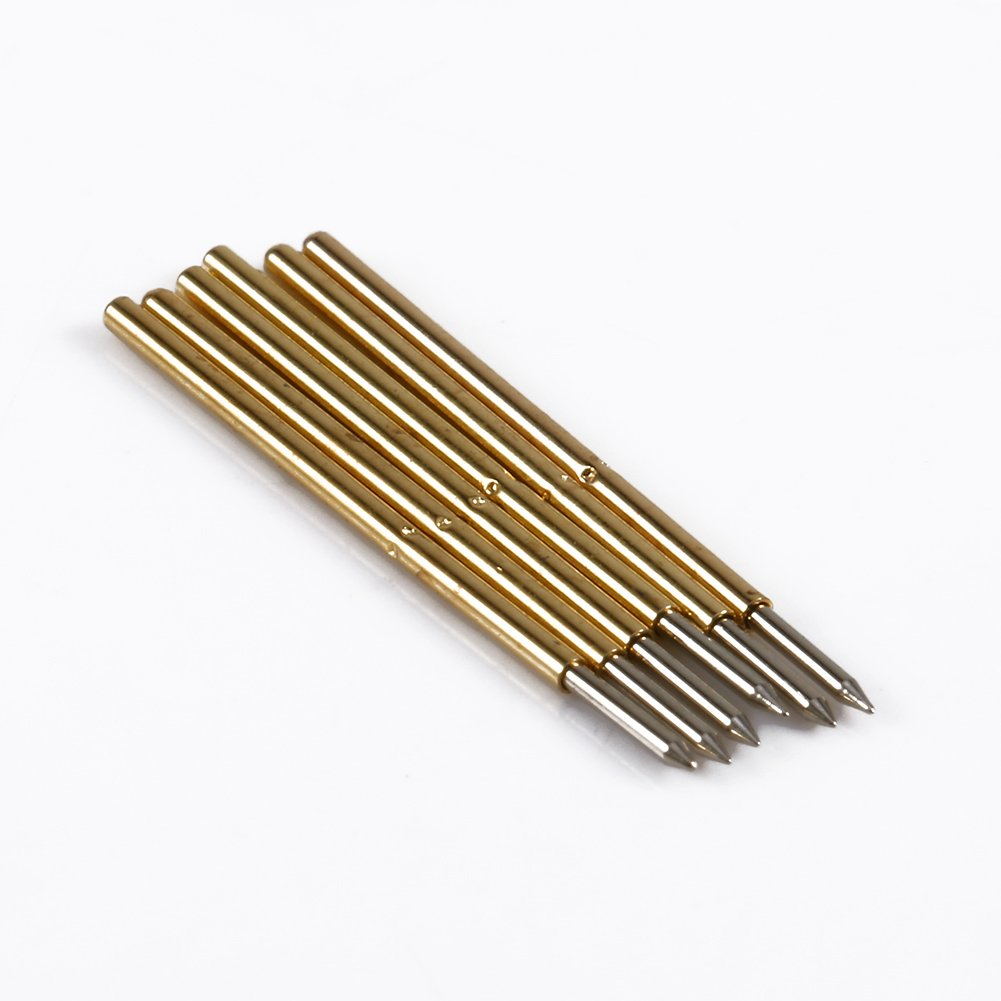

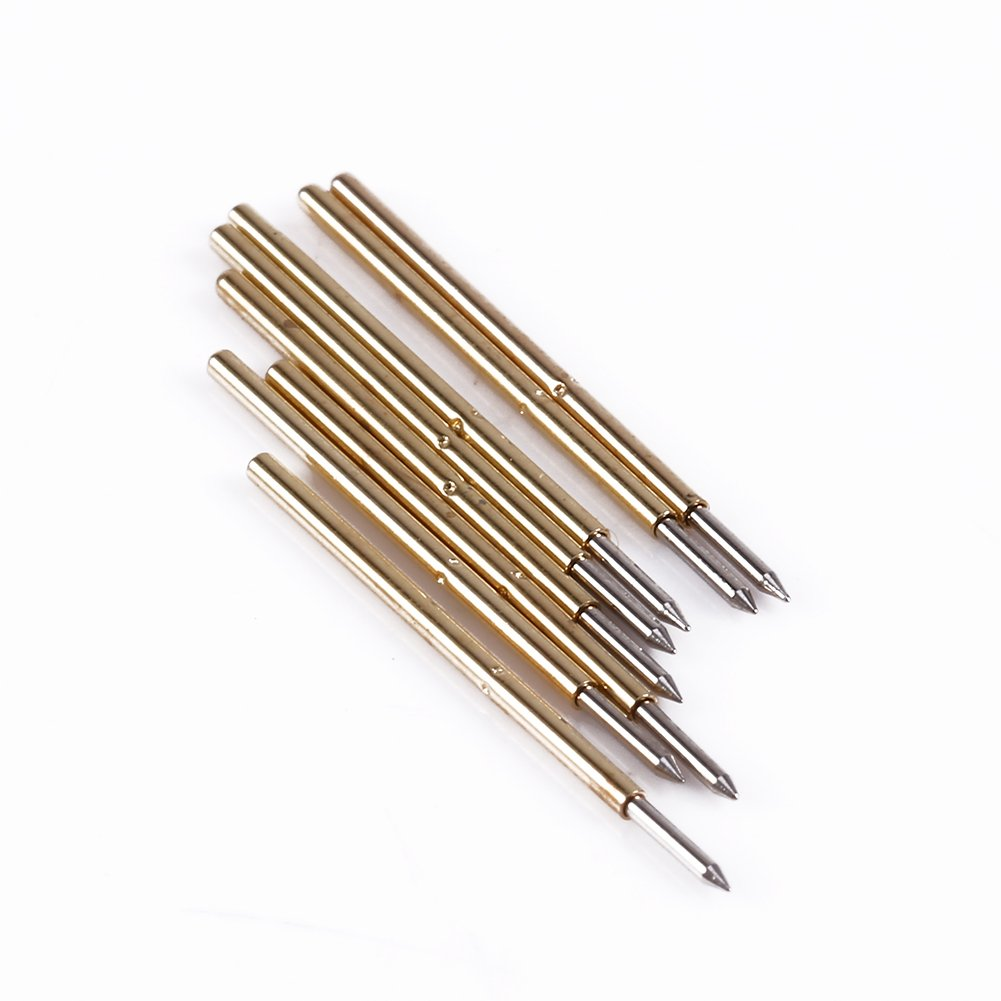

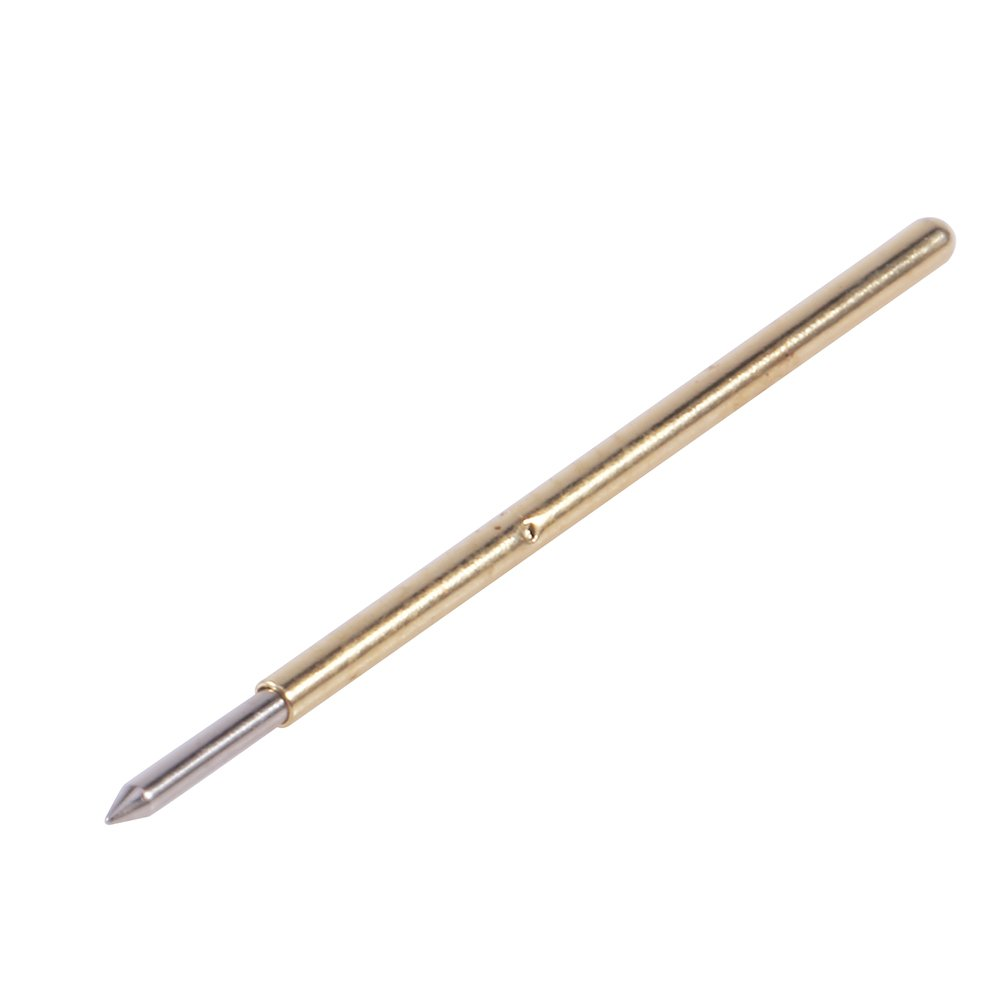

100X P50-J1/P50-B1/P75-B1/P75-E2/P100-E2 Spring Test Probe round Pogo Pin Tools for Testing PCB Gold Fingers and Pads

100X P50-J1/P50-B1/P75-B1/P75-E2/P100-E2 Spring Test Probe round Pogo Pin Tools for Testing PCB Gold Fingers and Pads

Brand: fasient
4.8
A$139.80
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • Spring test probes are necessary parts for PCB testing to access components on printed circuit assemblies.
  • There are total 100 pieces spring test probes in one set that you can use for a long time.
  • Cone shape head can be used for testing through-hole components.
  • Widely used for testing PCB gold fingers(edge connectors) and pads.
  • They are great replacement probes if you need to change broken or old test probes.

P75-E2:
Head Shape: Cone
Current Rating: 3A
Resistance: 50mΩ
Stroke: 6.5mm
Head Diameter: 1.5mm
Probe Tube Diameter: 1.36mm
Probe Rod Diameter: 0.99mm
Probe Length: 33.3mm
Boring Size: 1.7mm
Min. Test Interval: 2.54mm
Quantity: 100pcs
P50-J1:
Head Shape: Round
Current Rating: 3A
Resistance: 50mΩ
Stroke: 2.6mm
Probe Tube Diameter: 0.68mm
Probe Rod Diameter: 0.48mm
Probe Length: 16mm
Boring Size: 0.9mm
Min. Test Interval: 1.27mm
Quantity: 100pcs
P100-E2:
Head Shape: Cone
Current Rating: 3A
Resistance: 50mΩ
Stroke: 6.5mm
Head Diameter: 1.5mm
Probe Tube Diameter: 1.36mm
Probe Rod Diameter: 0.99mm
Probe Length: 33.3mm
Boring Size: 1.7mm
Min. Test Interval: 2.54mm
Quantity: 100pcs
P50-B1:
P50-B1 - 16mm
Pin Centre: 0.68mm
Min test distance: 1.27mm
Spring Pressure: 75g
Full Stroke: 2.65mm
Current Rating: 3A
Current Resistance: 50mm
Plunger: Heat Treated Copper
Barrel: Phosphor Bronze . Gold Plated
Spring: stainless steel
P75-B1:
Specification:spring thimble
Needle tube diameter: 1.02mm
Needle bar diameter:0.74mm
Pin Total Length: 15.8mm
Drill size: 1.4mm;
Minimum distance between test: 1.91mm
Package Includes:
100 x Probes

  • Item Weight: 20 g
  • Package Dimensions: 10.3 x 9.7 x 0.7 cm; 20 Grams
  • Manufacturer reference: fasient27uoespda6
  • Manufacturer: fasient
