Adventure Kings 12V Control Box 5X 16A Pre-Wired Switches 2 USB Port 4WD Caravan
Adventure Kings 12V Control Box 5X 16A Pre-Wired Switches 2 USB Port 4WD Caravan
Brand: Adventure Kings
A$151.20
- Control all your 12V Equipment. 12V Control Box – a feature packed bit of gear that will make anyone’s 12V setup better! If you’ve been dreaming of an epic camping 12v system, then this is the bit of gear you’ve been waiting for.

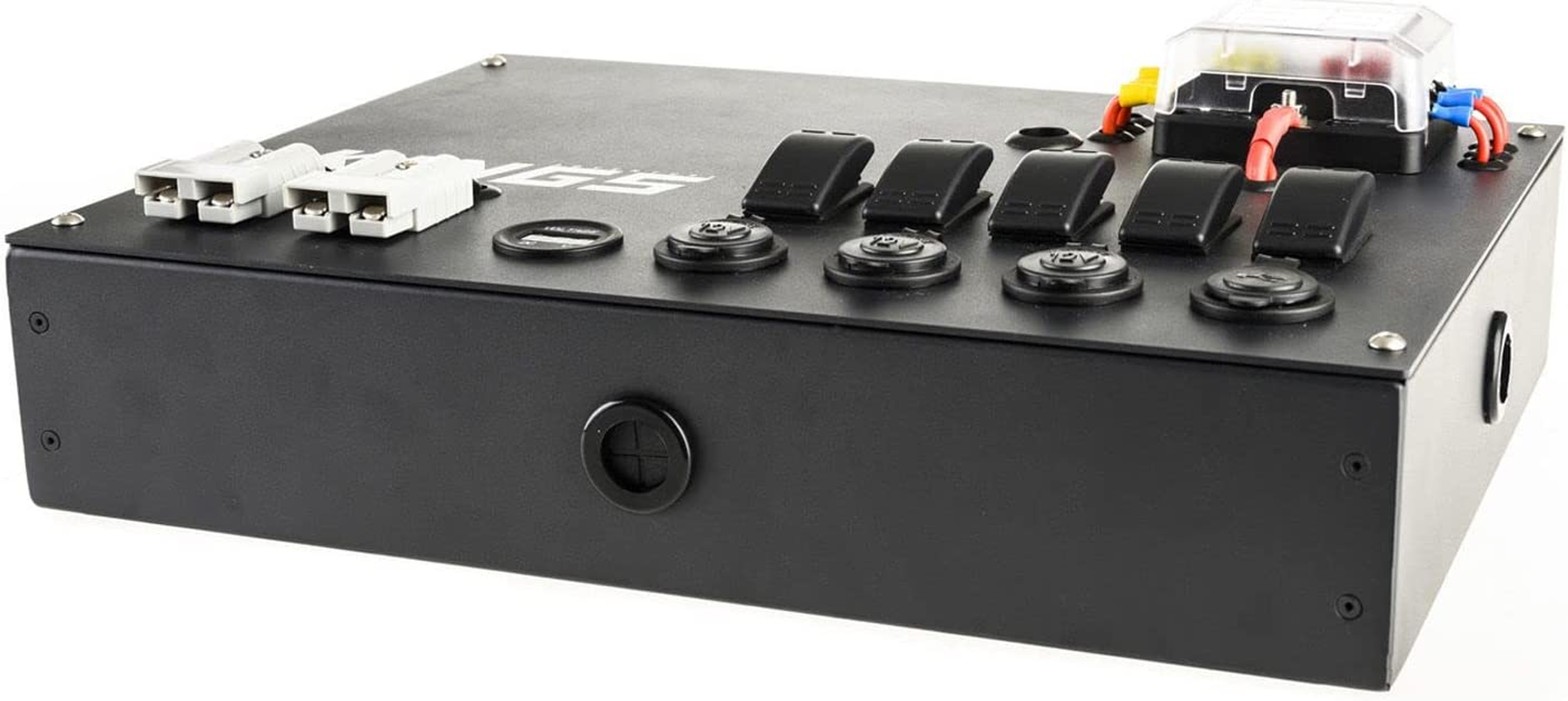

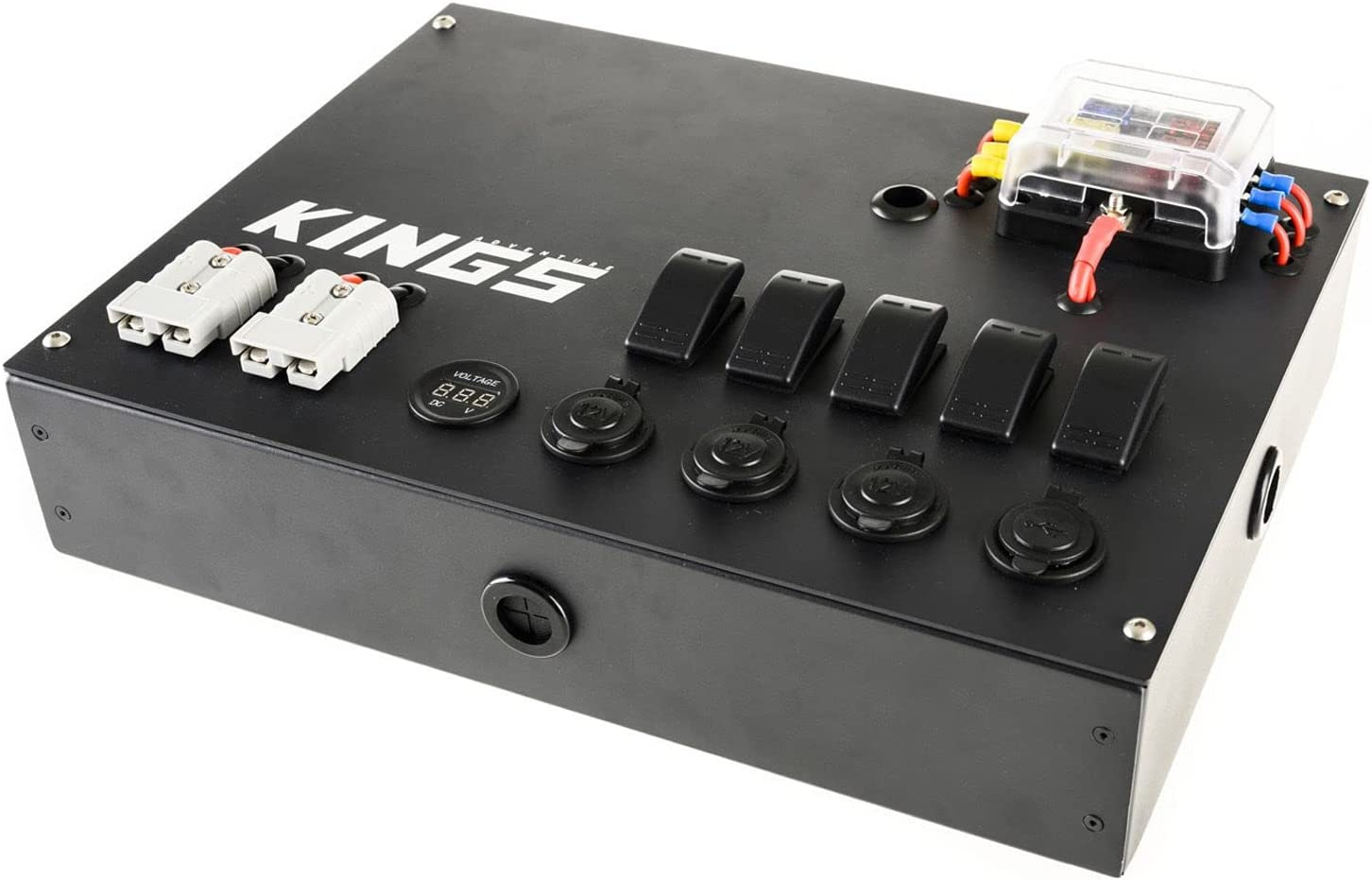

- 5x 16A pre-wired switches, 3x Cig Sockets, and 2x USB ports. On the front you’ll notice the space at the top left, along with the extra grommet – this space is designed so you can mount a DCDC charger directly onto the box – feed the wiring through the grommet and you can wire up to the internal posts for an all-in-one install.

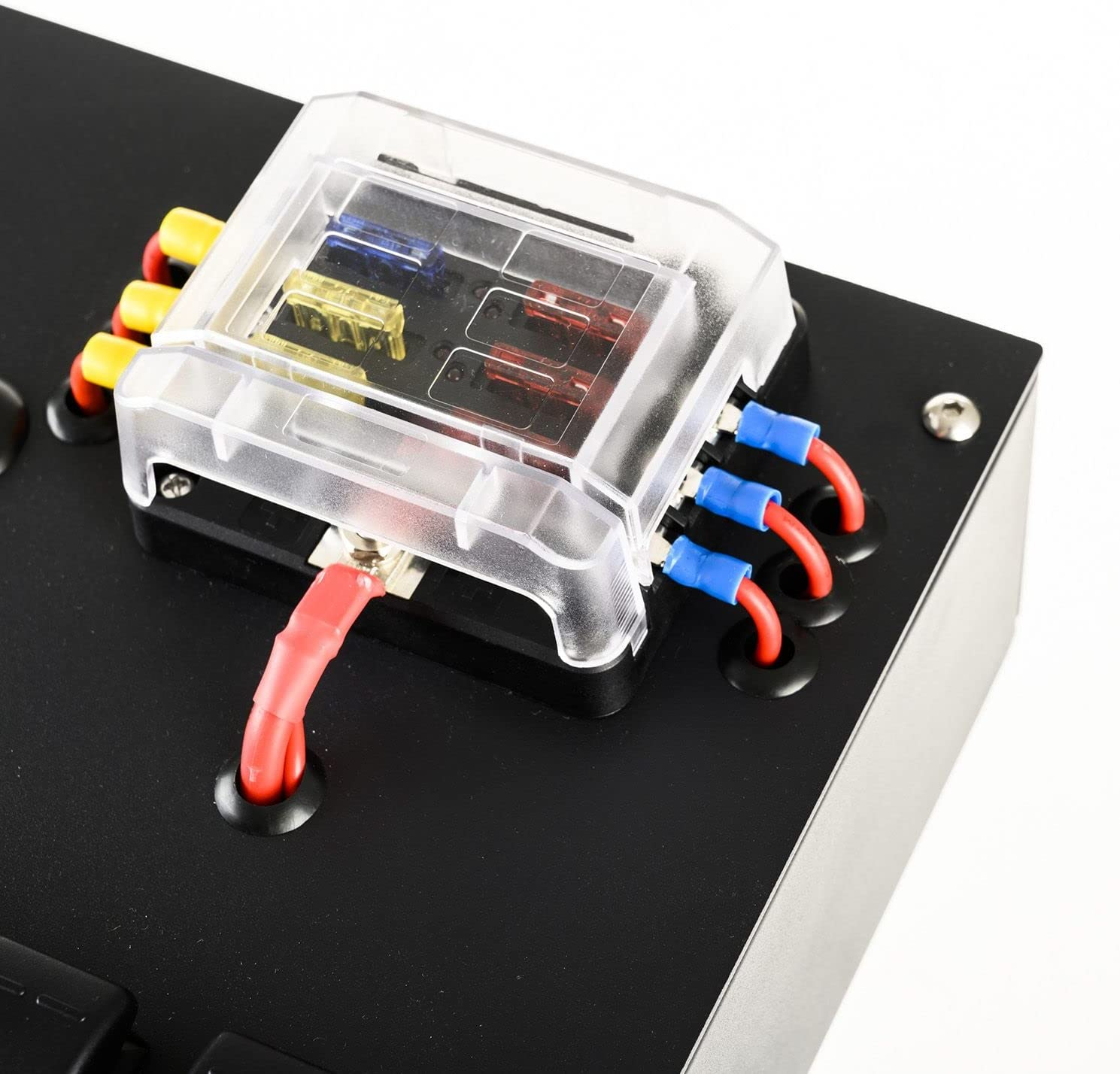

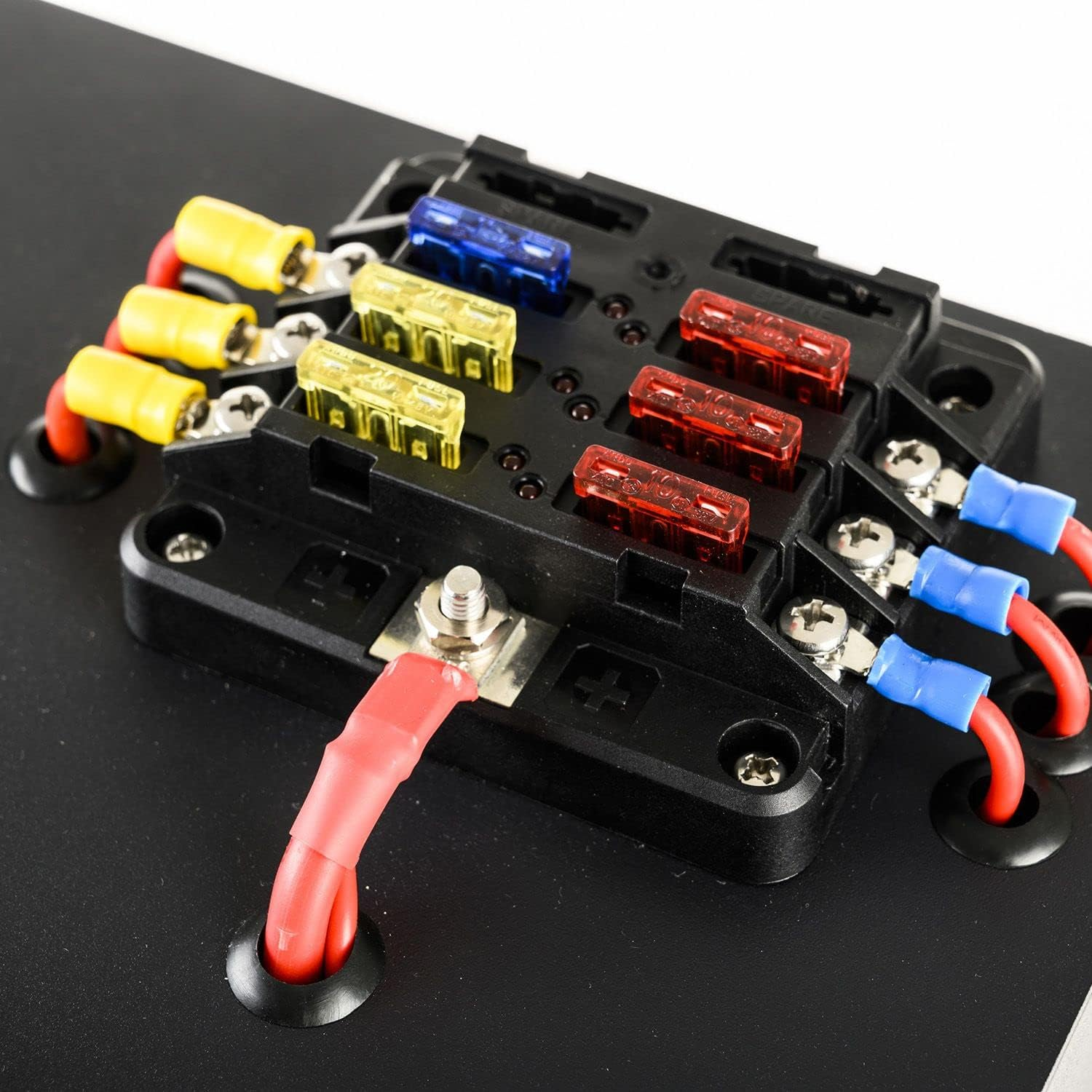

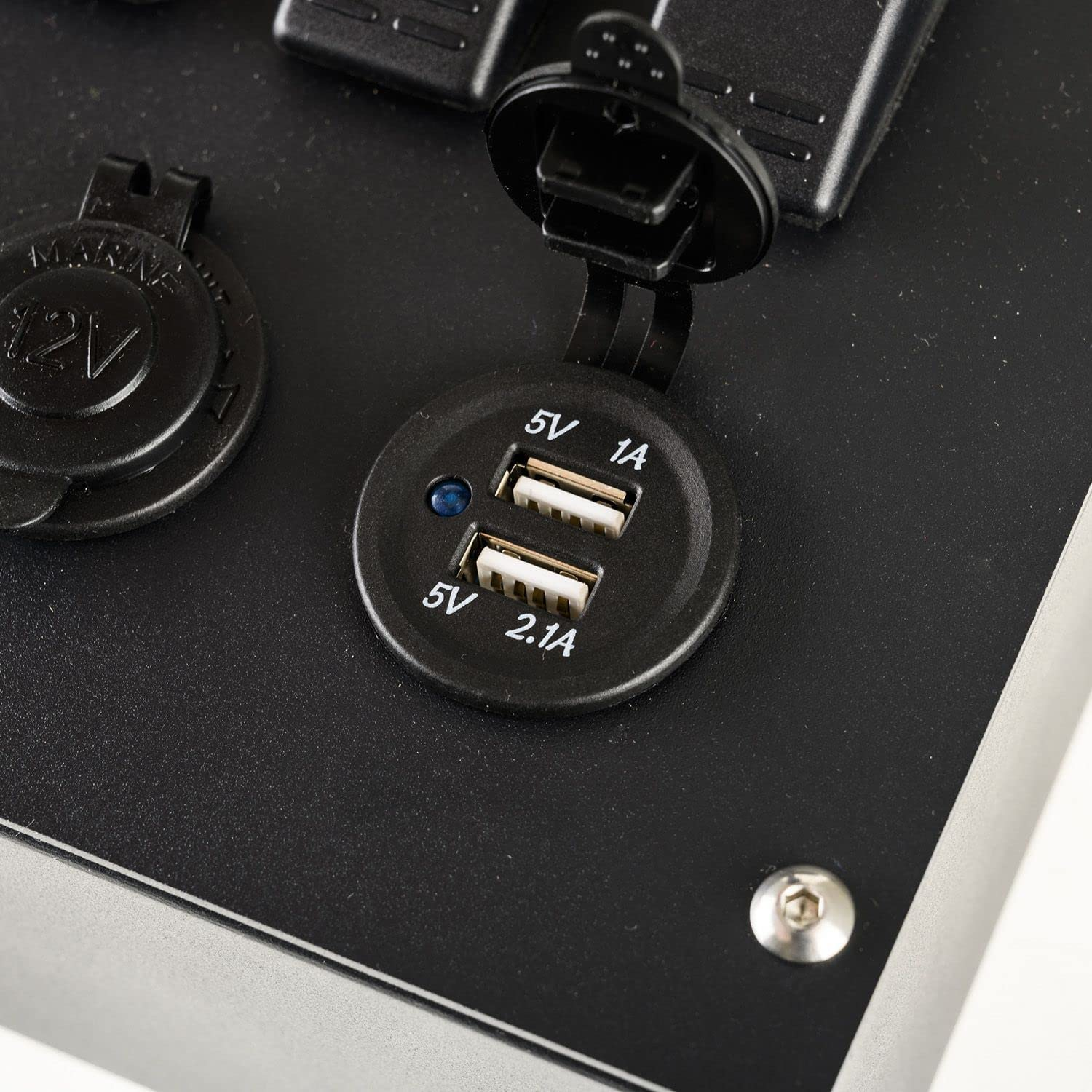

- Digital Voltage Indicator. Next up there’s an easy to access fuse holder – these fuses run the switches, plugs and sockets that run along the bottom of the control box. From left to right you’ve got 2 quick connect plugs – the first can be easily configured as a solar input for your DCDC charger. Then there’s a voltmeter, three 20A-rated cig sockets and a double USB socket with 1amp and 2.1amp USB connections.

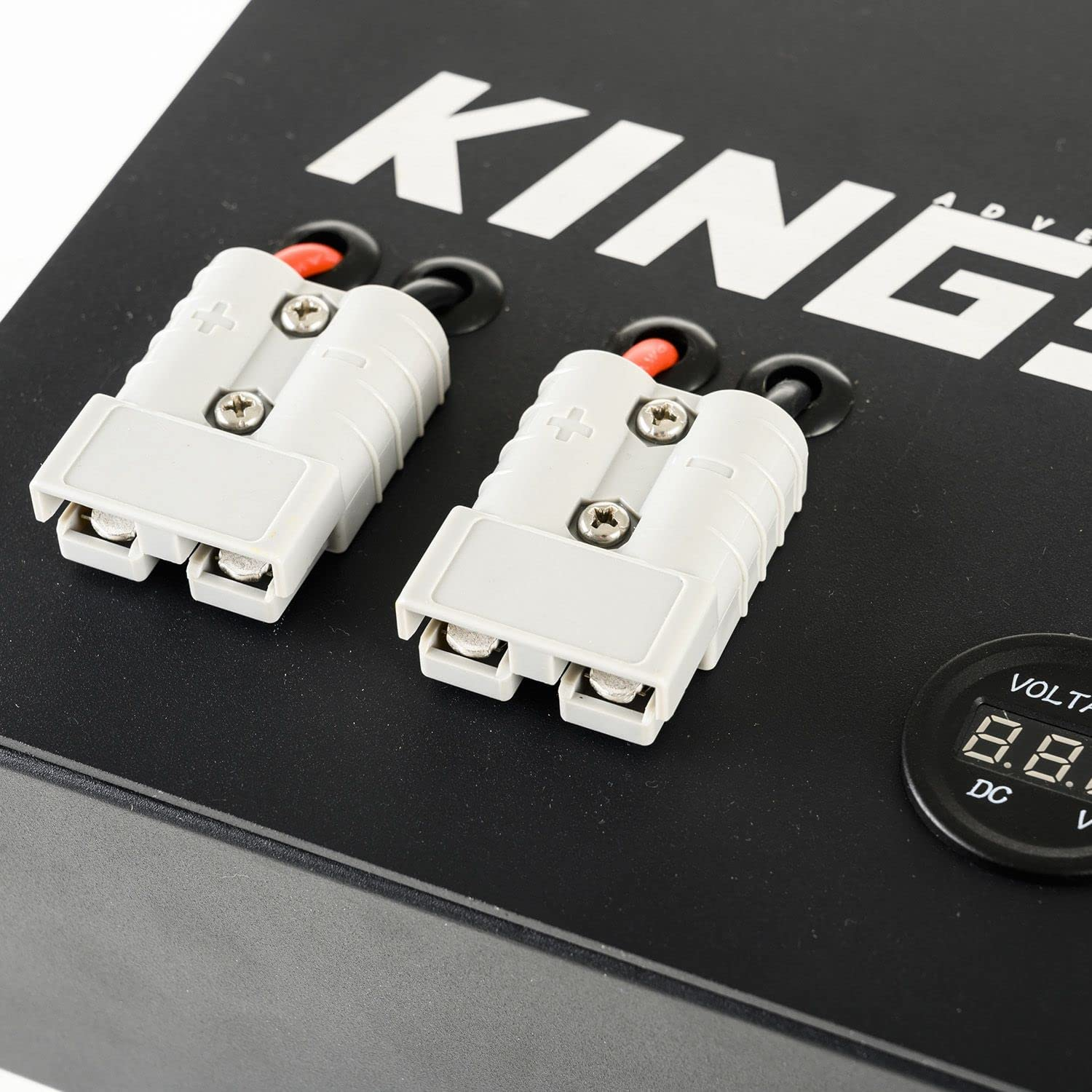

- Above that you’ll see 5 x 16Amp rated rocker switches – these are pre wired with fused power so you can easily switch any added accessories and circuits on and off. You even get a sheet of pre-labelled stickers to customise your setup for your own needs! Dual 20A quick-connect fittings - Plug your Adventure Kings solar panel & regulator straight in for instant solar charging!
- Black powder coated laser cut aluminum. First, the box itself is built with laser cut 1.5mm powder coated aluminium and the lid is 2mm thick for strength. Coming in at 400mm by 305mm and 80mm deep, it’s compact enough to fit just about anywhere while still providing plenty of room for all the switches, wiring and 12v gear.
Product Description
The box itself is built with laser cut 1.5mm powder coated aluminium and the lid is 2mm thick for strength. Coming in at 400mm by 305mm and 80mm deep, it’s compact enough to fit just about anywhere while still providing plenty of room for all the switches, wiring and 12v gear.
With heavy duty wiring the Adventure Kings 12V control box is ready to go – all you need to do is add fused power from your battery. Plus because it uses ring and spade terminals, it’s easy to modify, upgrade or update the whole setup as you go. Whether it’s changing the quick connect plug to become your DCDC charger’s solar input, or using the switches to trigger relays and run all your vehicle’s camp lighting and 12V accessories.
MORE FEATURES:
Technical Specifications
| Box Material | Black powder coated laser cut aluminium |
| Box Size | 400 x 305 x 80mm |
| Weight | 2.74kg |
| Lid Thickness | 2mm |
| Box Thickness | 1.5mm |
| DCDC Charger | Provisions for CTEK D250SA or Kings DCDC Charger |
| Coating | Black Powder Coating |
| Fuse Size for Batteries | 40A (Input cable from vehicle’s battery needs to be fused as close as possible to the battery using a 40A inline fuse or circuit breaker) |
| Cable Size for Batteries | 0-1m = 8 Gauge Battery Cable, 1-3m = 6 Gauge Battery Cable (Depending on Length) |
- Manufacturer reference: AKEP-12VCB_01
- Brand: Adventure Kings
- Country of origin: China
- Manufacturer Part Number: AKEP-12VCB_01
- Item Weight: 3 kg
- Voltage: 12 Volts
- Product dimensions: 40 x 31 x 8 cm; 3 kg
- Manufacturer: Adventure Kings
