Pisugar2 Pro Portable 5000 Mah UPS Lithium Battery Power Module Platform for Every Raspberry Pi 3B/3B+/4B Model Accessories (Not Include Raspberry Pi)

Pisugar2 Pro Portable 5000 Mah UPS Lithium Battery Power Module Platform for Every Raspberry Pi 3B/3B+/4B Model Accessories (Not Include Raspberry Pi)

Brand: PI PISUGAR
5.0
A$68.25
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • Continuous Operation:PiSugar2 ensures seamless system operation even when external input is lost. It can also initiate an automatic safe shutdown at low capacity to prevent data loss or system damage from unexpected outages.
  • Elegant Experience: Control the module through well-designed graphical web interface. you can get power level and charging status, configure timing power on, custom button functions, low power auto off, etc.
  • Onboard RTC: The onboard RTC makes it possible to obtain real time in any network condition. Timing boot function is also provided.
  • Multiple Usage: Charge the device via the Type-C port (with e-mark support) or the Micro USB port. PiSugar2 Pro uses a PH2.0 standard connector, allowing you to swap in compatible 3.7V modules as needed.
  • The circuit board includes input and output pads that support connection to various 5V input sources, such as solar panels and Qi wireless chargers, enabling flexible power options.

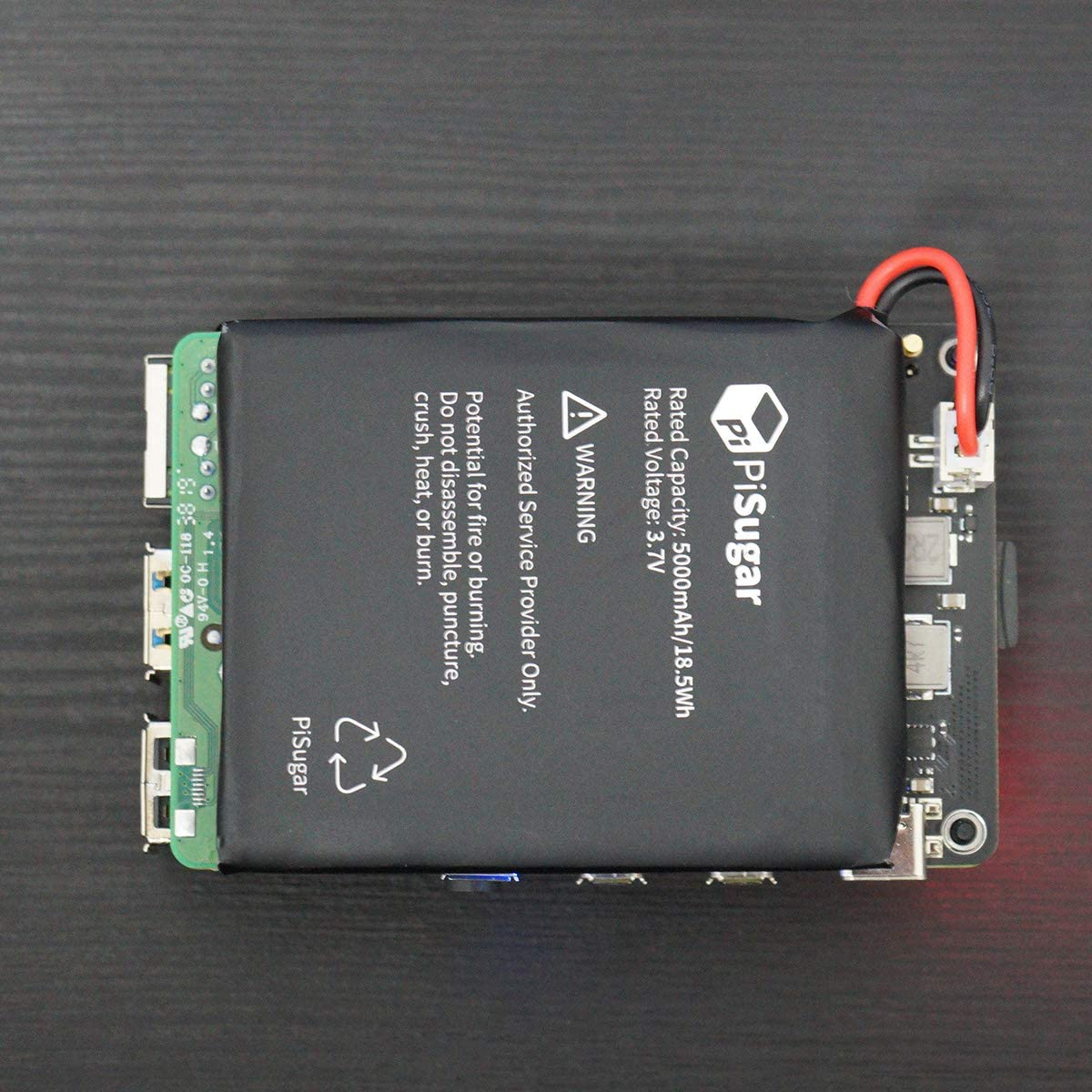

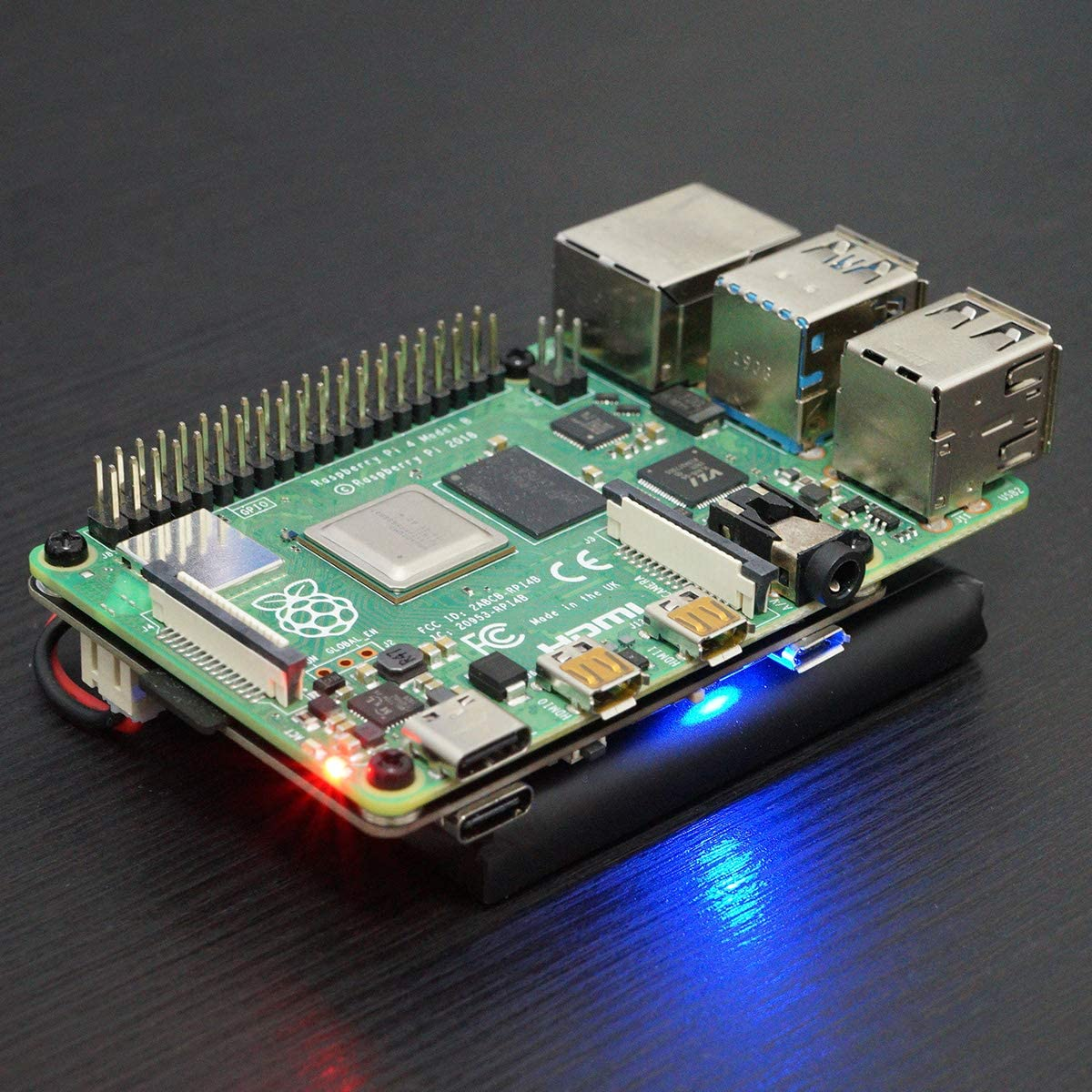

PiSugar 2 Pro is a portable power platform specially designed for Raspberry Pi 2/3A+/3B/3B+/4B.

It integrates UPS, RTC, I2C battery management, and custom buttons, the continuous output capability of 5V3A. All of these features bring unprecedented portability to Raspberry Pi.

Features

  • 5V3A output, perfect for all versions of Raspberry Pi
  • Bottom contact with SugarPin, do not occupy GPIO
  • I2C to get battery information
  • Onboard RTC, timing boot
  • TypeC + Micro USB Charging
  • Server + WebUI for easy management
  • Custom button function

Electrical SPECS

  • Input: 5V-3A
  • Output: 5V-3Amax
  • Battery Capacity: 5000mah
  • Battery Voltage: 4.2Vmax

Advanced Features

  • Support charged and discharged at the same time
  • UPS
  • Low battery safe shutdown
  • RTC real-time clock
  • Timing boot
  • Programmable button
  • WebUI for management
  • Physical disconnect switch
  • Extensible with wireless charging and solar charging

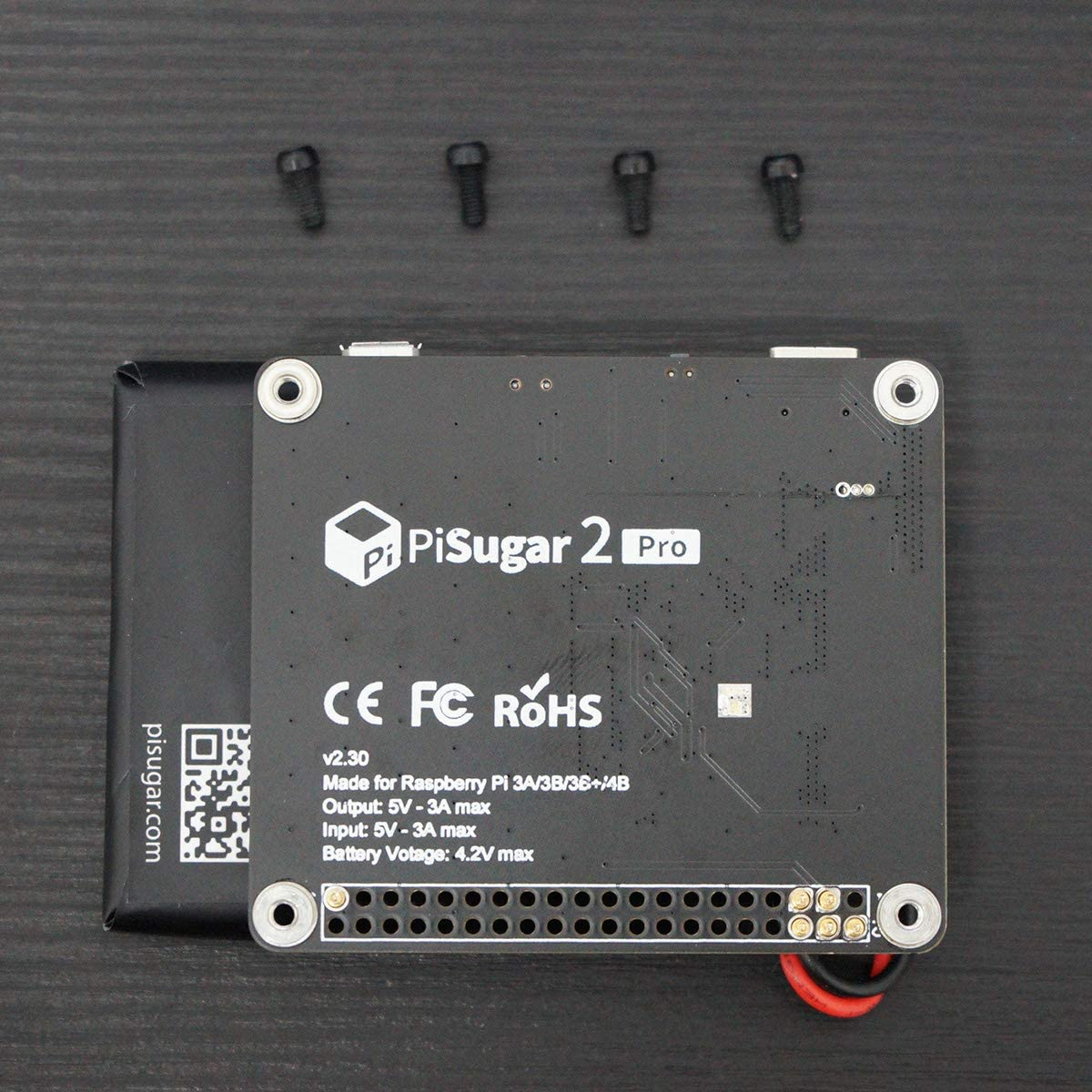

Package Include:

  • 1 x Battery Module
  • 4 x Screws

Hardware Installation

  1. Turn the switch to OFF
  2. Align SugarPin to Raspberry Pi GPIO
  3. Use matching screws to tighten
  4. Press and hold the activation button for 2 seconds (activation is required after battery replacement/low battery shutdown)
  5. Turn the switch to ON and enjoy


Software and more details can be found on Github.

  • Country/Region of origin: China
  • Product dimensions: 8.64 x 5.84 x 1.52 cm; 120 Grams
  • Processor Count: 1
  • Output Wattage: 15 Watts
  • Processor Brand: ARM
  • Wireless Type: Bluetooth
  • Operating System: Linux
  • Brand: PI PISUGAR
  • Batteries Included: Yes
  • Ram Memory Technology: LPDDR4
  • Model Name: Pisugar2 Plus
  • Manufacturer: Guangzhou AiChongWu Technology Co., Ltd
  • Item Model Number: PiSugar 2 Plus 5000mAh
  • Battery cell composition: Lithium Polymer
  • Batteries Required: Yes
  • Connector Type: GPIO, USB
  • Item Weight: 120 g
  • Human interface input: Buttons
  • Model: PiSugar 2 Plus 5000mAh
  • Part Number: PiSugar2PV2.3
  • Total USB ports: 4
  • Mounting Hardware: Battery Module, 4 x Screws
  • Wattage: 15.00
  • Compatible Devices: Raspberry Pi 2/3A+/3B/3B+/4B
  • Batteries: 1 Lithium Polymer batteries required. (included)
  • Voltage: 5 Volts
