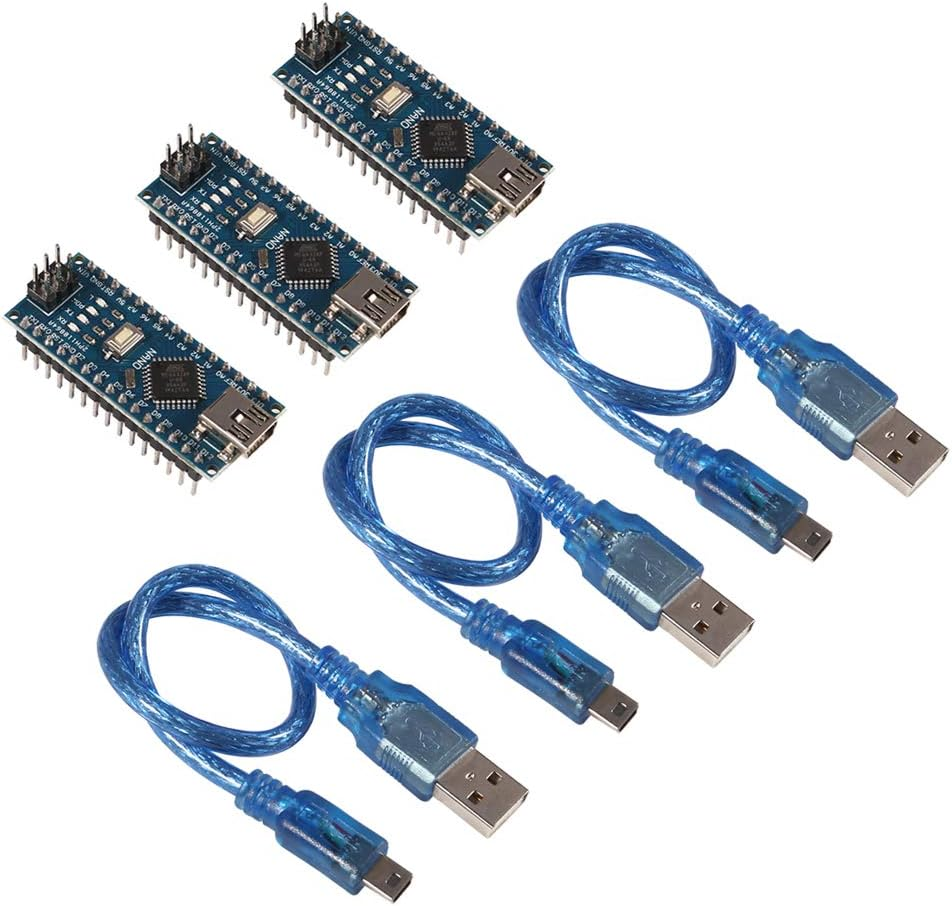

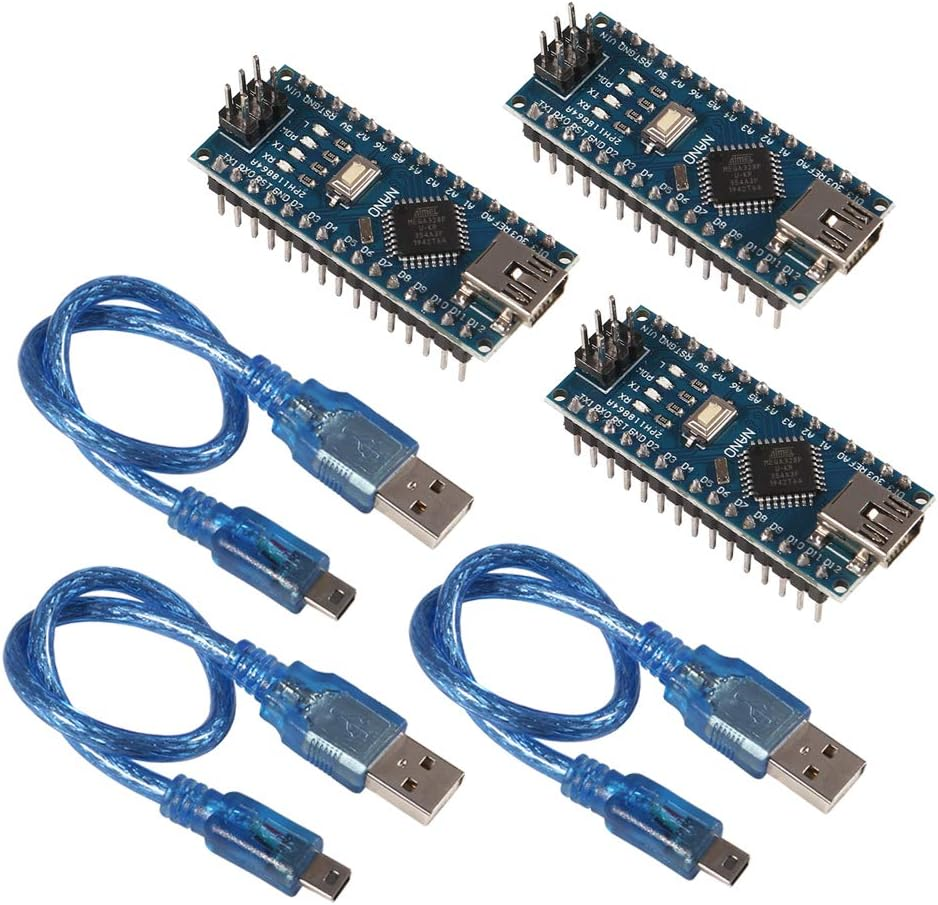

AITRIP 3Pcs for Arduino Mini Nano V3.0 Atmega328P 5V 16M Micro Controller Board Module with 3Pcs USB Cable Compatible with Arduino IDE

AITRIP 3Pcs for Arduino Mini Nano V3.0 Atmega328P 5V 16M Micro Controller Board Module with 3Pcs USB Cable Compatible with Arduino IDE

Brand: AiTrip
3.3
A$41.45
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

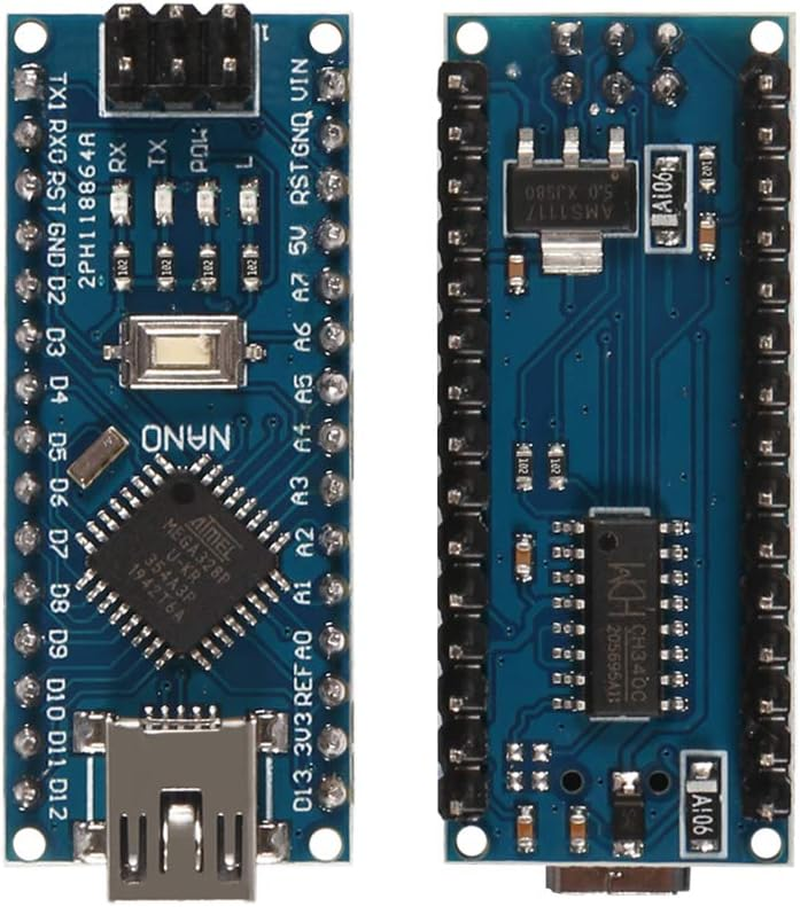

  • *The Nano is using the chips ATmega328P and CH340, Replace FT232RL.
  • *It is a smallest, complete, and breadboard friendly board. It has everything that Diecimila/Duemilanove has (electrically) with more analog input pins and onboard +5V AREF jumper.
  • *Nano's got the breadboard-ability of the Boarduino and the Mini+USB with smaller footprint than either, so users have more breadboard space. It's got a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one top, power and ground on the other).
  • *The Nano can be powered via the Mini-B USB connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.
  • *Arduino Nano V3.0 ATMEGA328P Improved version with 3pcs pin headers (2pcs 15pin headers +1pcs 6pin headers).

The Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x). It has more or less the same functionality of the Arduino/Genuino UNO, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.
Technical specs
Microcontroller:ATmega328
Architecture: AVR
Operating Voltage: 5 V
Flash Memory: 32 KB of which 2 KB used by bootloader
SRAM: 2 KB
Clock Speed: 16 MHz
Analog I/O Pins: 8
EEPROM: 1 KB
DC Current per I/O Pins: 40 mA (I/O Pins)
Input Voltage: 7-12 V
Digital I/O Pins: 22
PWM Output: 6
Power Consumption: 19 mA

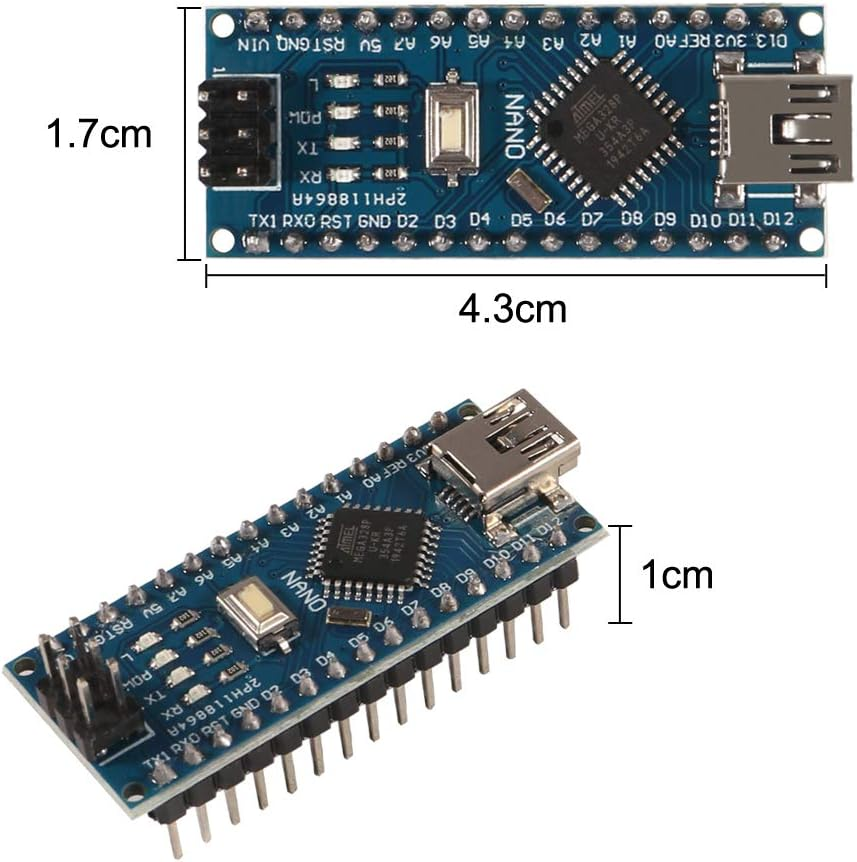

PCB Size: 18 x 45 mm
Weight: 7 g
Package Include :
3 X Nano Board
3 X Mini-B USB cable

  • Memory Storage Capacity: 32 KB
  • Product dimensions: 1.78 x 0.58 x 4.5 cm; 7 Grams
  • Processor Count: 1
  • Is discontinued by manufacturer: No
  • Processor Speed: 16 MHz
  • Operating System: FreeRTOS
  • Processor Brand: Microchip Technology
  • Brand: AiTrip
  • Ram Memory Technology: DDR3
  • Model Name: Arduino Nano V3.0
  • Hardware Interface: USB
  • Manufacturer: AITRIP
  • Item Model Number: 15231
  • Batteries Included: No
  • Batteries Required: No
  • Ram Memory Installed Size: 32 MB
  • Connector Type: USB
  • Item Weight: 7 g
  • Model: 15231
  • Type of cable or wire: USB
  • Part Number: 15231
  • Total USB ports: 1
  • Compatible Devices: Arduino Mini, Arduino Nano V3.0, ATmega328P
