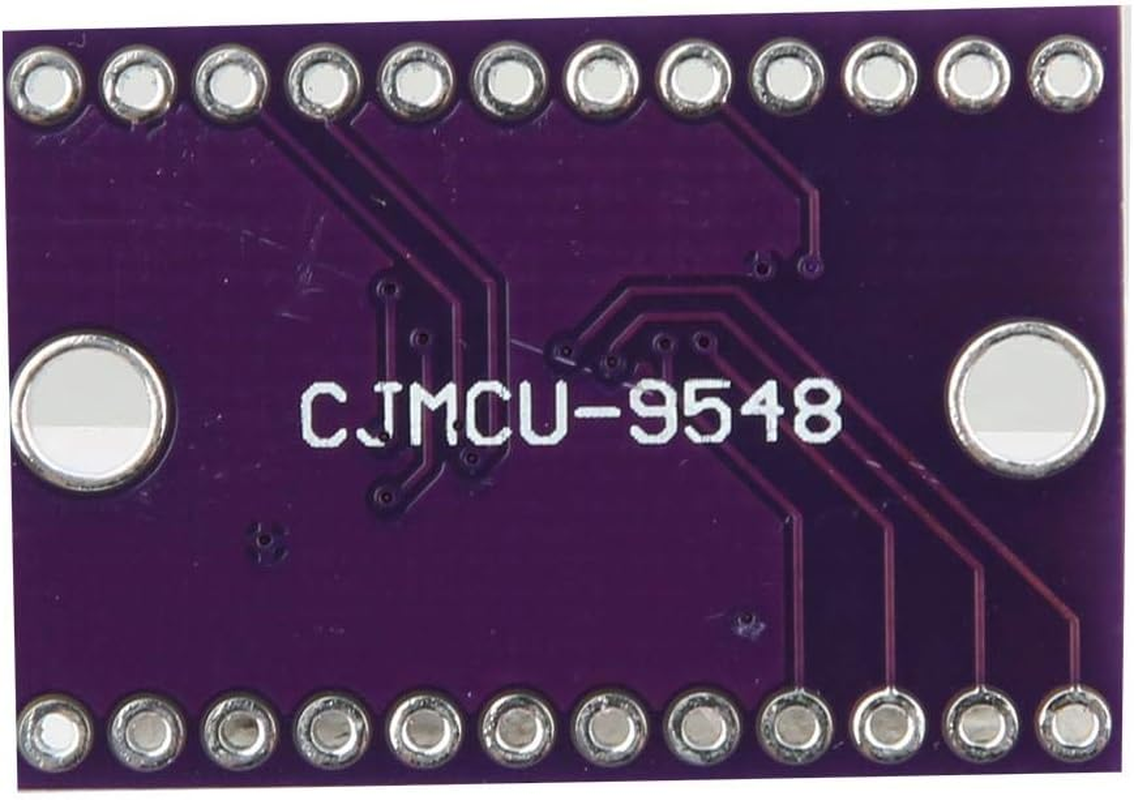

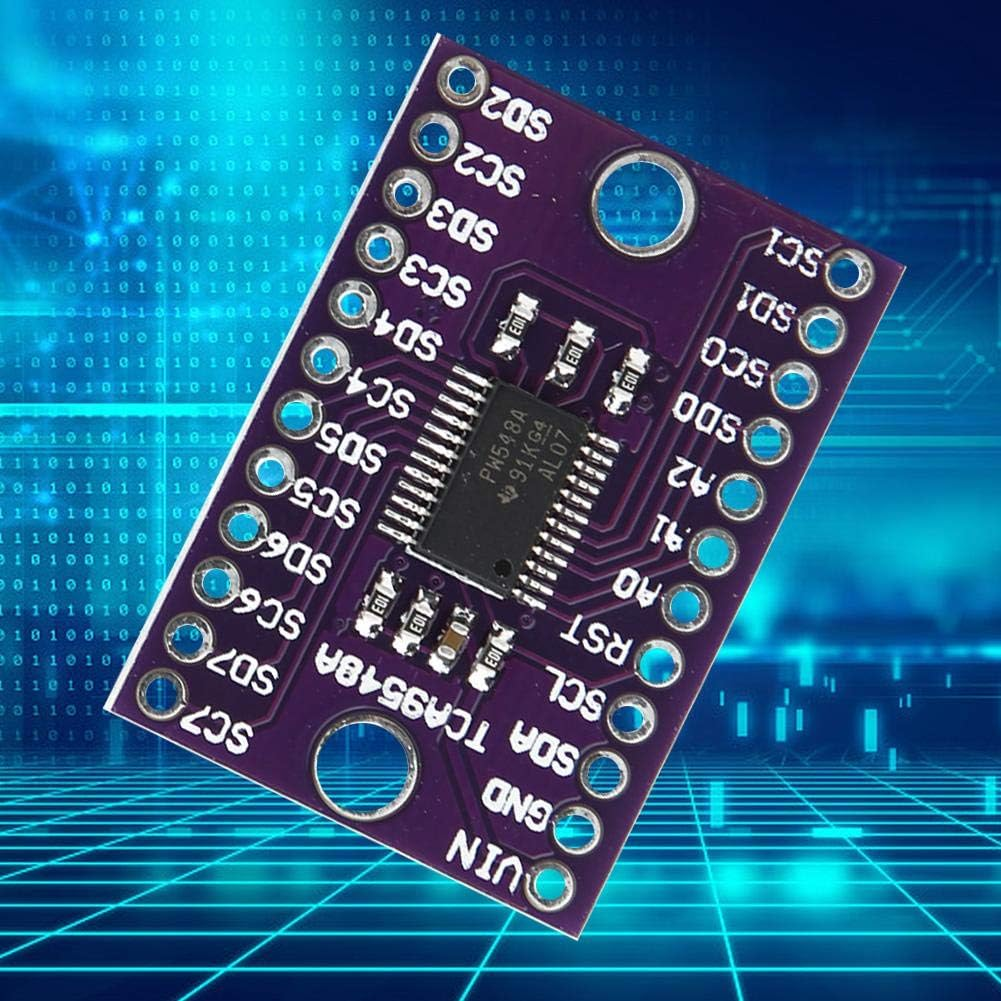

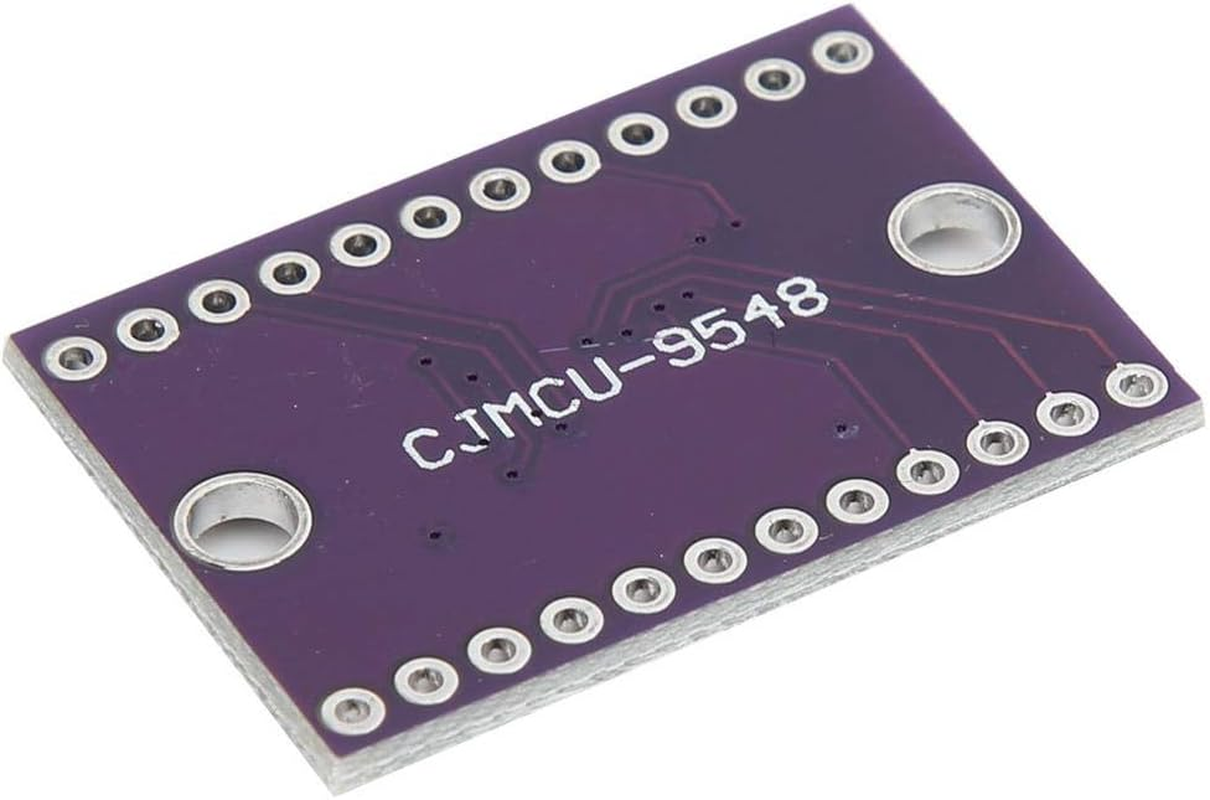

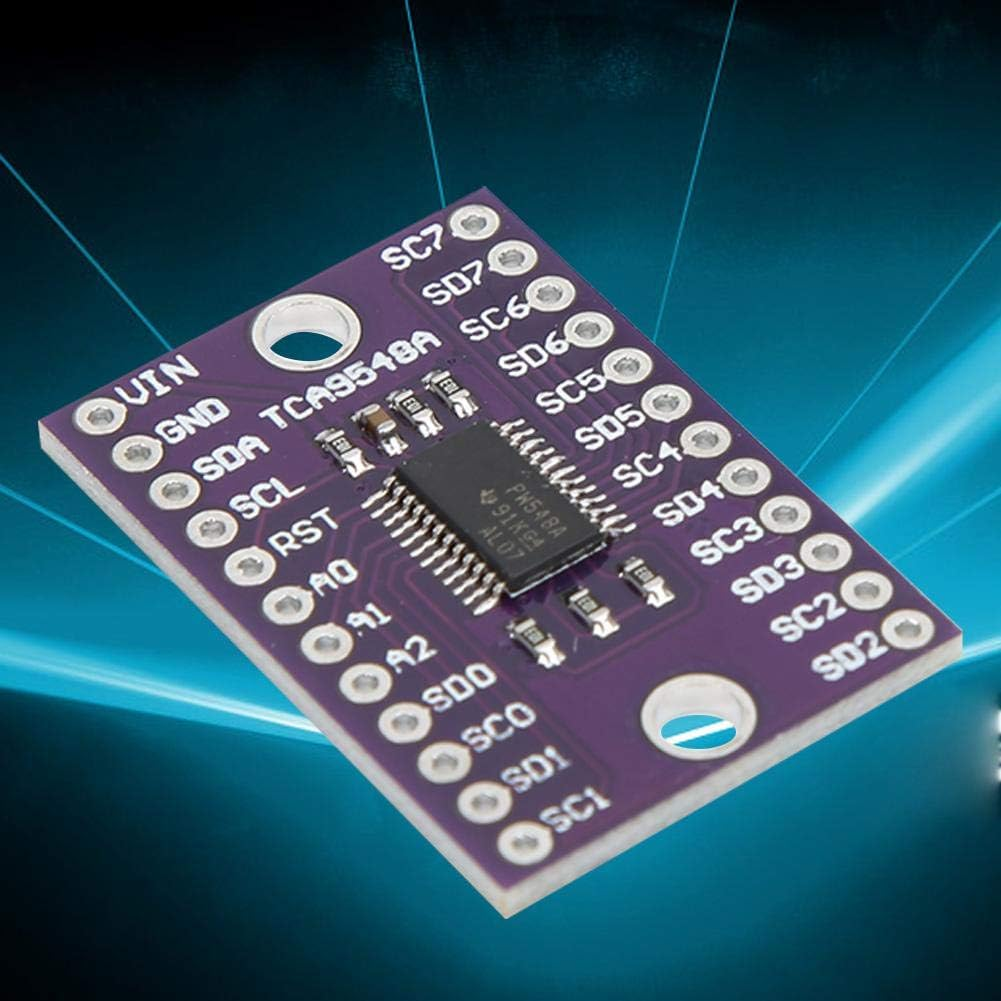

Wakects TCA9548A 8-Channel Multiplexer Breakout Board Module for Single Board Computer Development Board with I2C IIC Interface

Wakects TCA9548A 8-Channel Multiplexer Breakout Board Module for Single Board Computer Development Board with I2C IIC Interface

Brand: Wakects
3.2
A$13.15
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • 【MULTIPLEXER】 There are 8 multiplexers at each address of the 0x70-0x77 address to control 64 identical I2C addressing portions.
  • 【SIMPLE TO USE】 The multiplexer itself is on I2C address 0x70 (but can be adjusted from 0x70 to 0x77) and you simply write a single byte with the desired multiplexed output number to that port, and bam - any future I2C packets will get sent to that port.
  • 【USE】 It can be used on a breadboard with capacitors, and pullups and pulldowns to make usage a snap. Some header is required and once soldered in you can plug it into a solderless-breadboard.
  • 【TCA9548A CHIP】 The chip itself is 3V and 5V compliant so you can use it with any logic level.
  • 【RESETTABLE CHIP】 When a timeout or other incorrect occurs, the system host can reset the TCA9548A by setting the RESET input low.

Product Description

Wakects TCA9548A 8-Channel Multiplexer Breakout Board Module for Single Board Computer Development Board with I2C IIC Interface


SIMPLE TO USE The multiplexer itself is on I2C address 0x70 (but can be adjusted from 0x70 to 0x77) and you simply write a single byte with the desired multiplexed output number to that port, and bam - any future I2C packets will get sent to that port.


TCA9548A CHIP The chip itself is 3V and 5V compliant so you can use it with any logic level.


USE It can be used on a breadboard with capacitors, and pullups and pulldowns to make usage a snap. Some header is required and once soldered in you can plug it into a solderless-breadboard.


Specification:


Condition: Brand New


Item Type: Expansion Board


Interface: I2C IIC


Chip: TCA9548A


Optional I2C Address: 0x70-0x77


Working Voltage: 1.65-5.5V


Maximum Clock Frequency: 400KHz

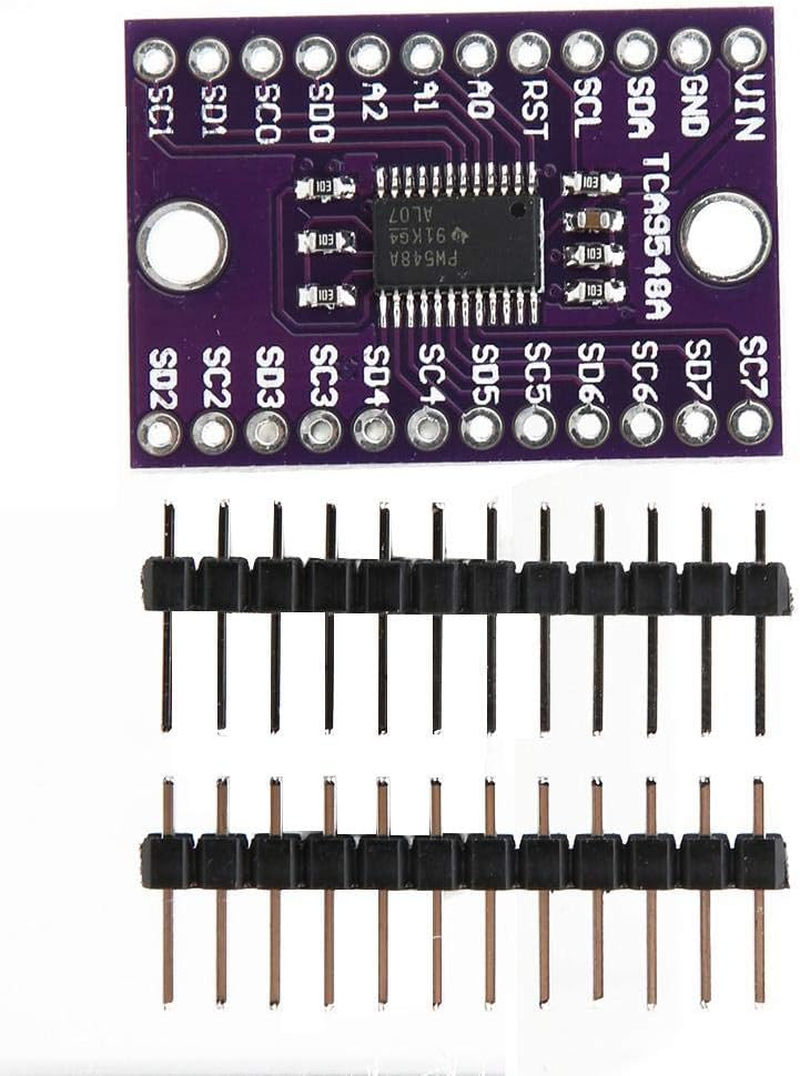

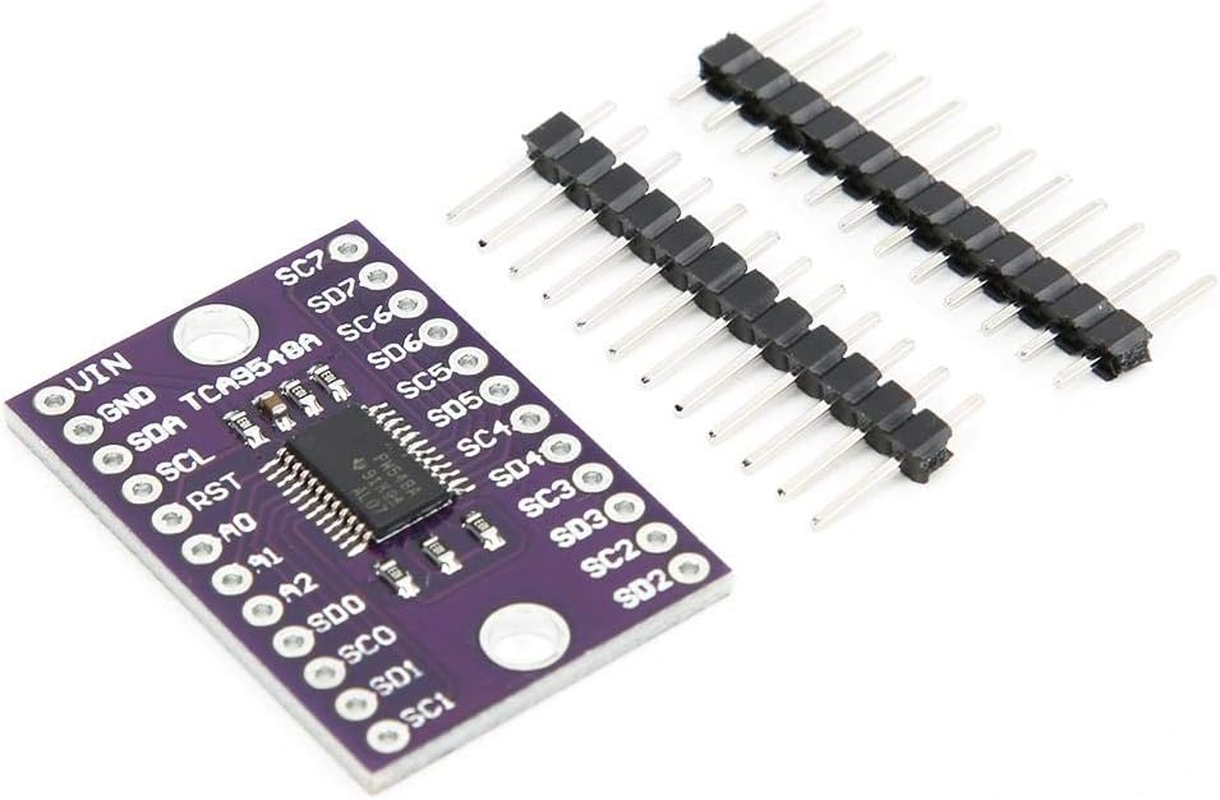

Package List:


1 x Expansion Development Board


2 x Pin Header


  • Part Number: Wakects5h0743nqfo
  • Manufacturer reference: Wakects5h0743nqfo
  • Country/Region of origin: China
  • Processor Socket: default
  • Batteries Required: No
  • Brand: Wakects
  • Compatible Devices: I2C-based Peripheral, Microcontroller, Sensor
  • Connector Type: I2C
  • Item Weight: 4 g
  • Processor Count: 1
  • Processor Type: Unknown
  • Wireless Type: 802.11a
  • Manufacturer: Wakects
