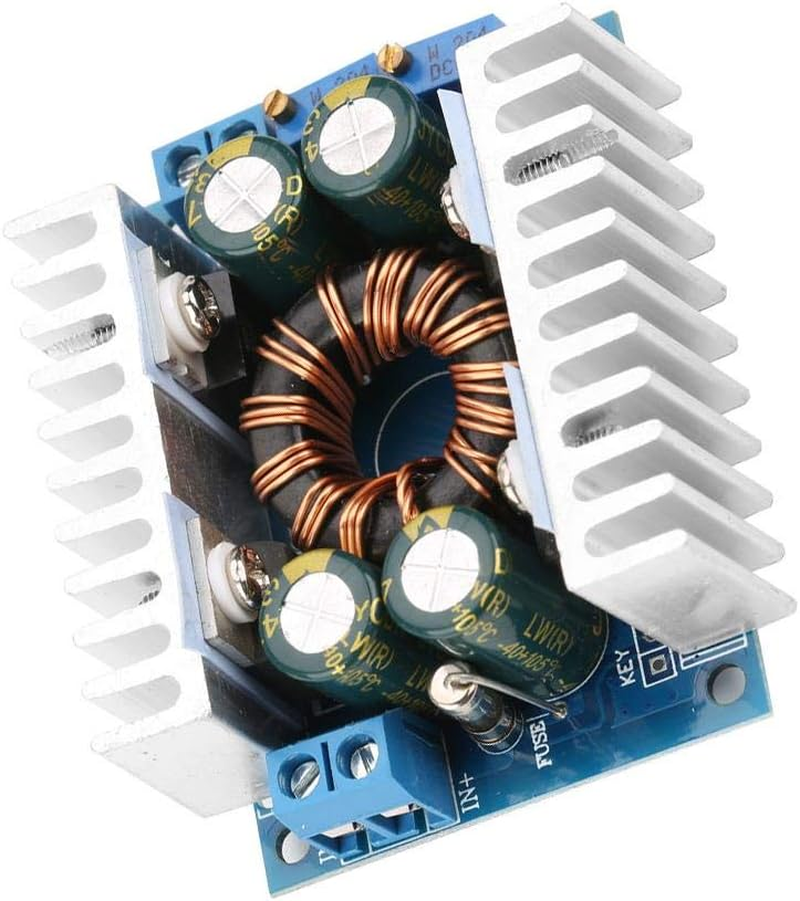

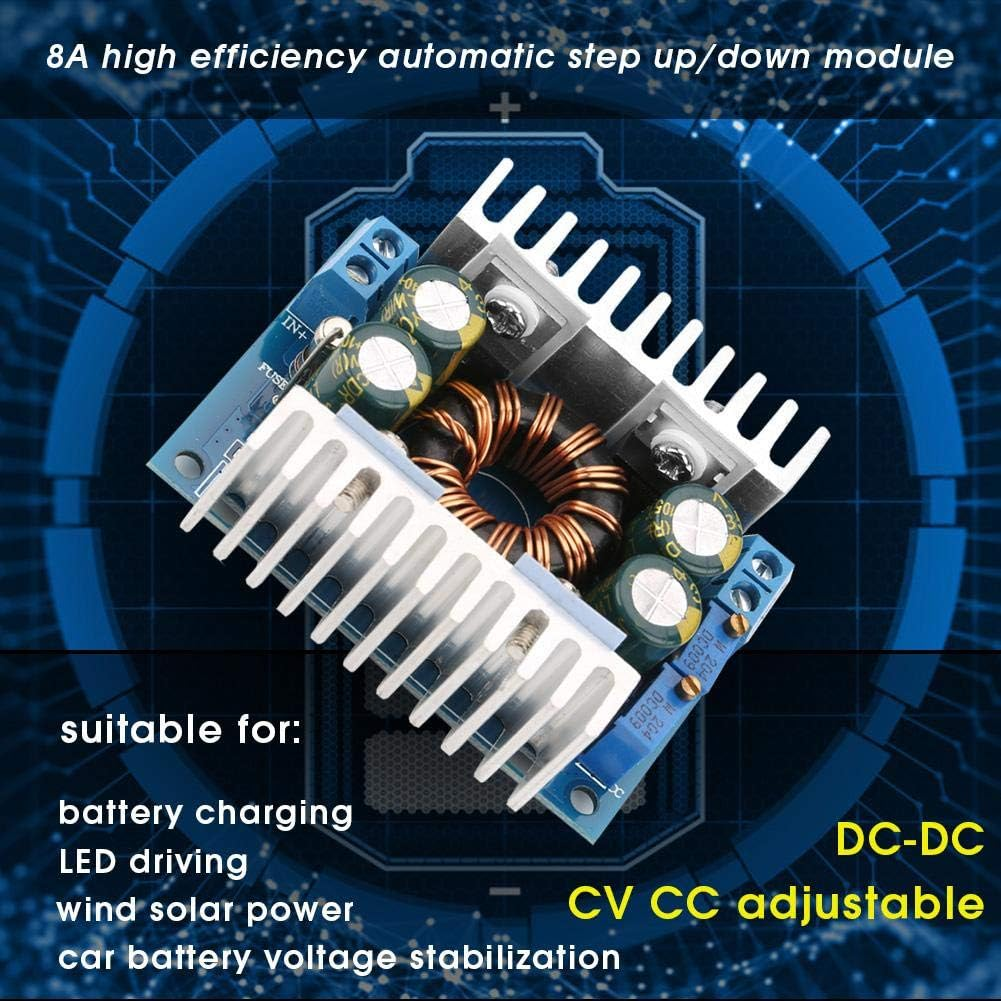

Specification:

Type: Non-isolated synchronous rectification automatically step up/down module

Input Voltage: DC5-30V

Input Current: 8A, (MAX) 10A, (within 6A for long-term work)

Quiescent Current: 4mA (there will be deviation when working voltage is different)

Output Voltage: 1.25-30V continuously adjustable

Output Current: 10A (MAX) (long-term natural cooling within 5A, please reduce rated value when output high voltage), enhance heat dissipation or reduce rated value when module temperature is over 65℃

Constant Current Output Range: 0.2-10A

Operating Temperature: -40℃ to +85℃

Frequency: 150KHz

Conversion Efficiency: Typical 91%, maximum 93%

Over Current Protection: Yes

Short Circuit Protection: Yes (current limiting protection)

Over Temperature Protection: Yes (automatic reduce output voltage)

Reverse Input Protection: No, please connect to a diode in series at input if needed

Output Flow Back Protection: Yes, do not need to add the diode when used for charging.

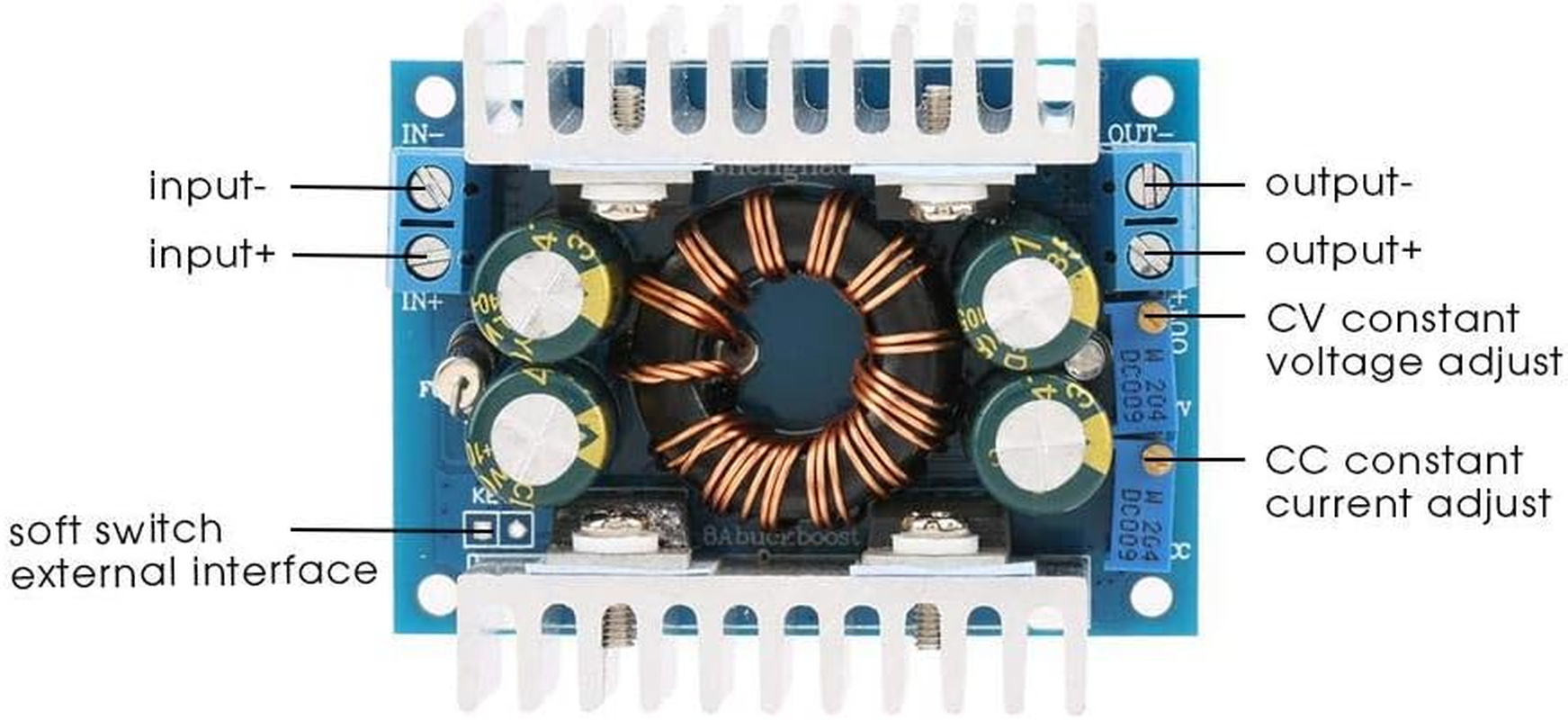

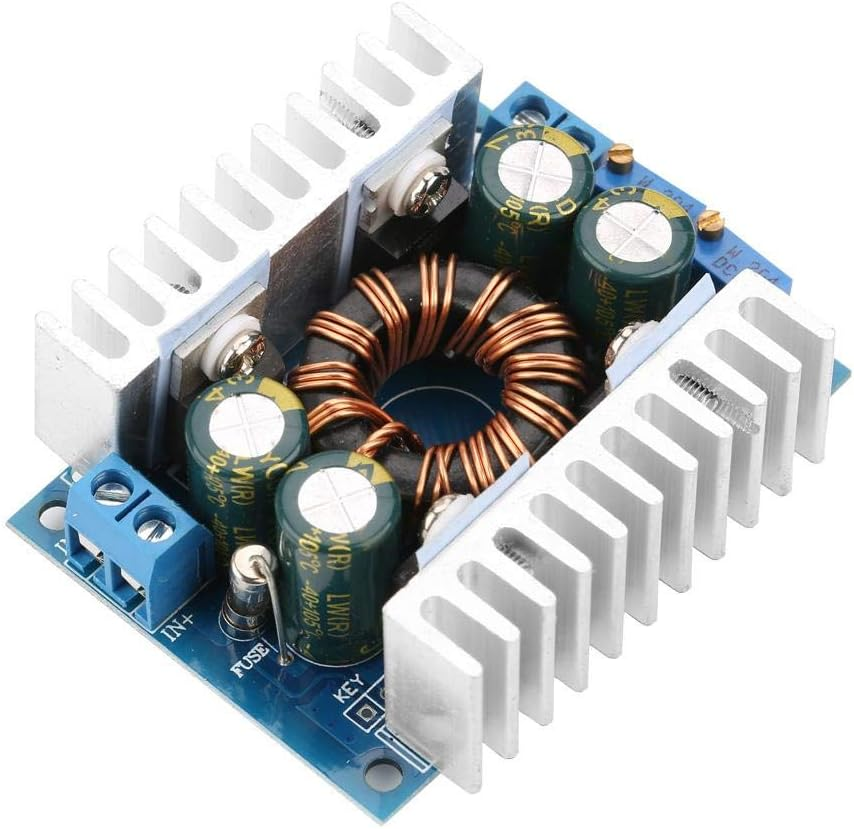

Wiring Method: Terminal block output, (IN is input, OUT is output)

Weight: 70g / 2.5oz (approx.)

Package list:

1 * Module

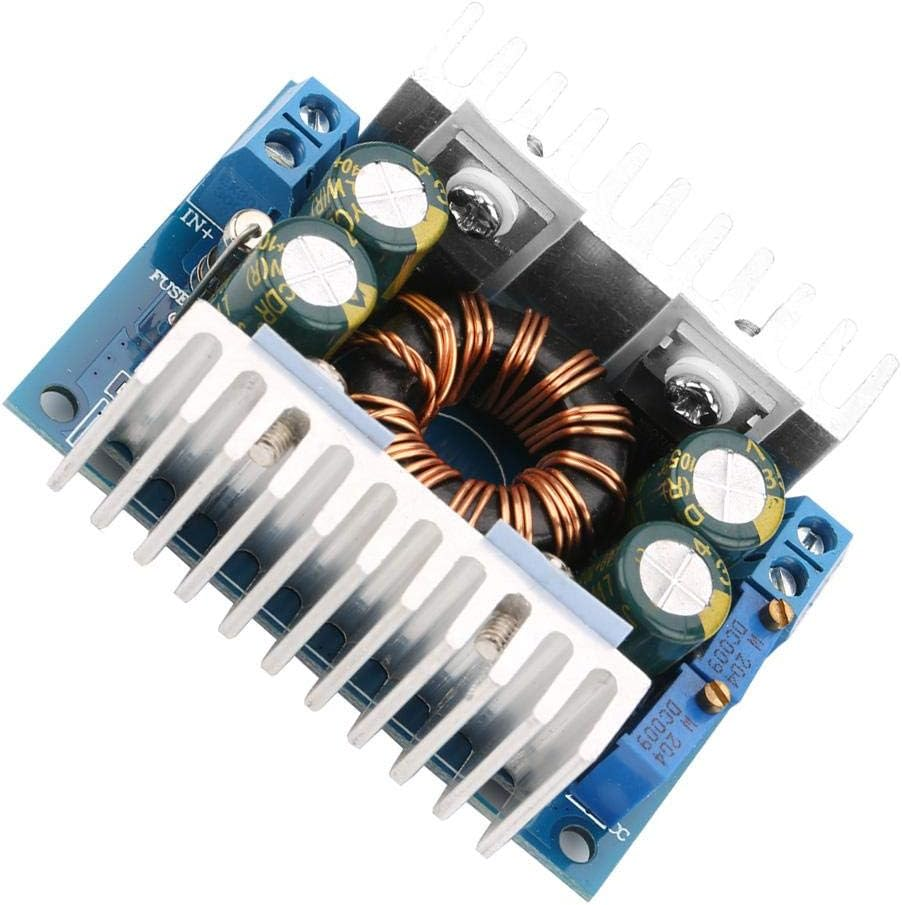

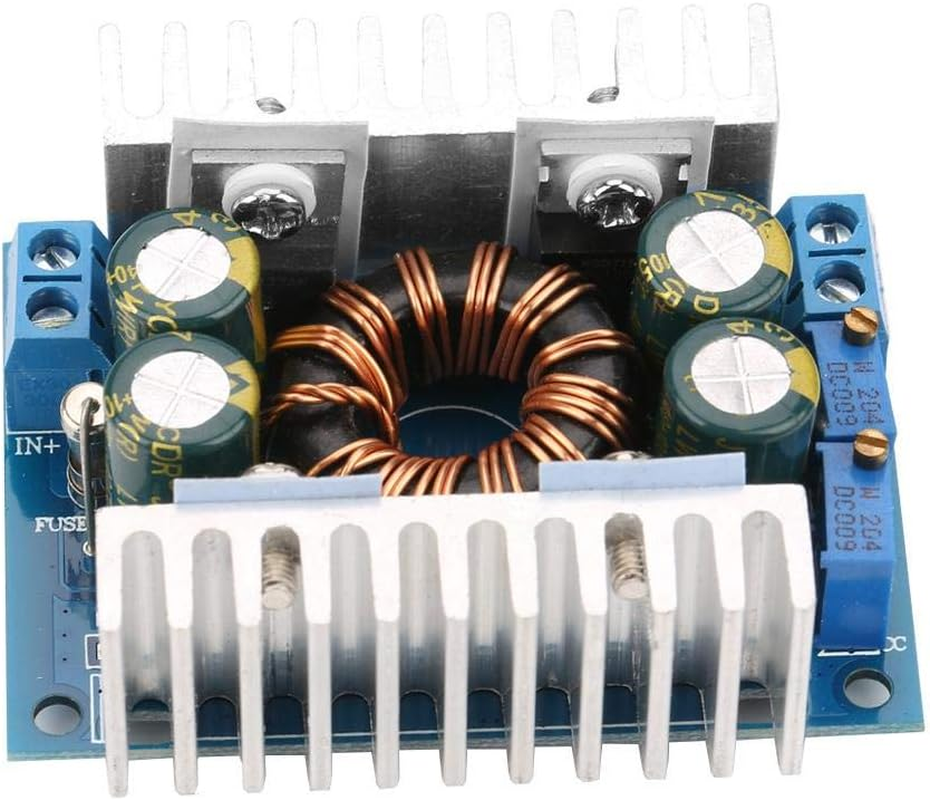

Current Adjustment:

1, Adjust the CV potentiometer, set the output voltage according to the load requirements.

2, Rotate counterclockwise CC potentiometer about 30 circles, (i.e. the output current is set to minimum), connected to the LED, set CC potentiometer to required current.

If you use the module for battery charging, connect to output after battery is fully discharged. Adjust CC to required current. Because if the more energy is left in battery, the less charging current will be.

Please do not use short circuit to adjust current.
