Waveshare POE Hat,Power over Ethernet HAT (Type B) for Raspberry Pi 3B+/4B 802.3Af-Compliant
Waveshare POE Hat,Power over Ethernet HAT (Type B) for Raspberry Pi 3B+/4B 802.3Af-Compliant
Brand: Waveshare
A$45.15

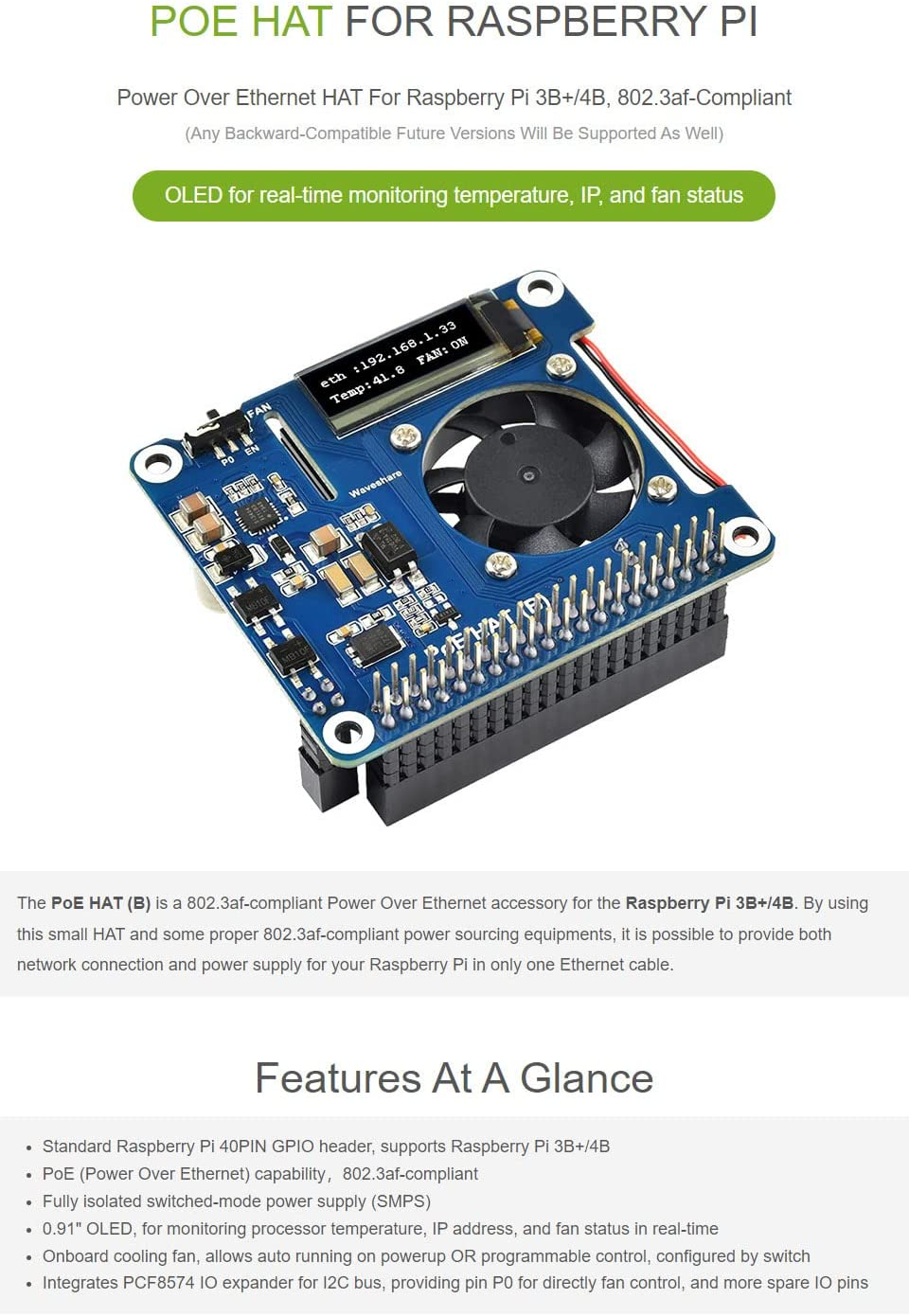

- Power Over Ethernet HAT (Type B) For Raspberry Pi 3B+/4B, 802.3af Power-Sourcing Equipment Required

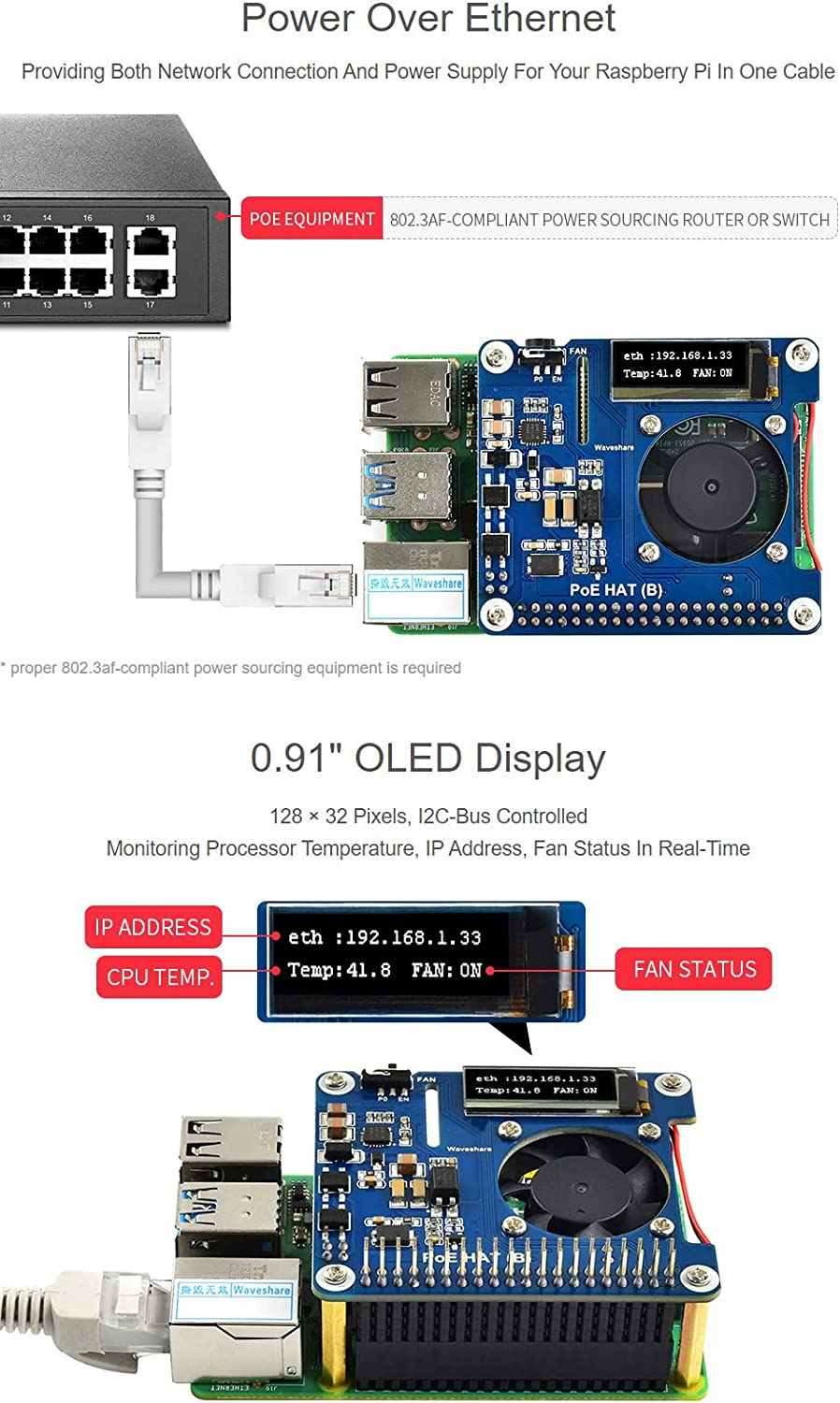

- 0.91" OLED, for monitoring processor temperature, IP address, and fan status in real-time

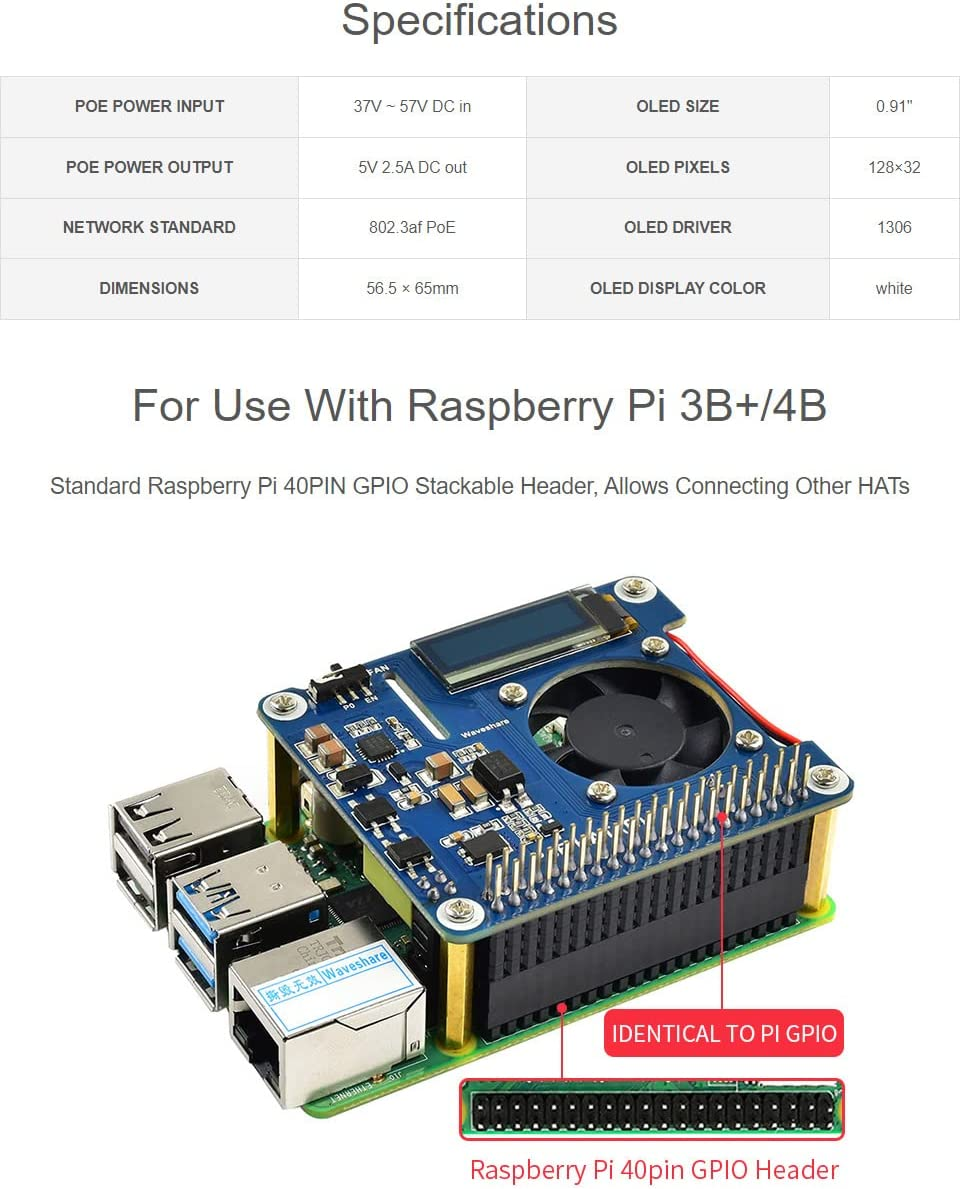

- Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 3B+/4B
- Fully switched-mode power supply (SMPS)

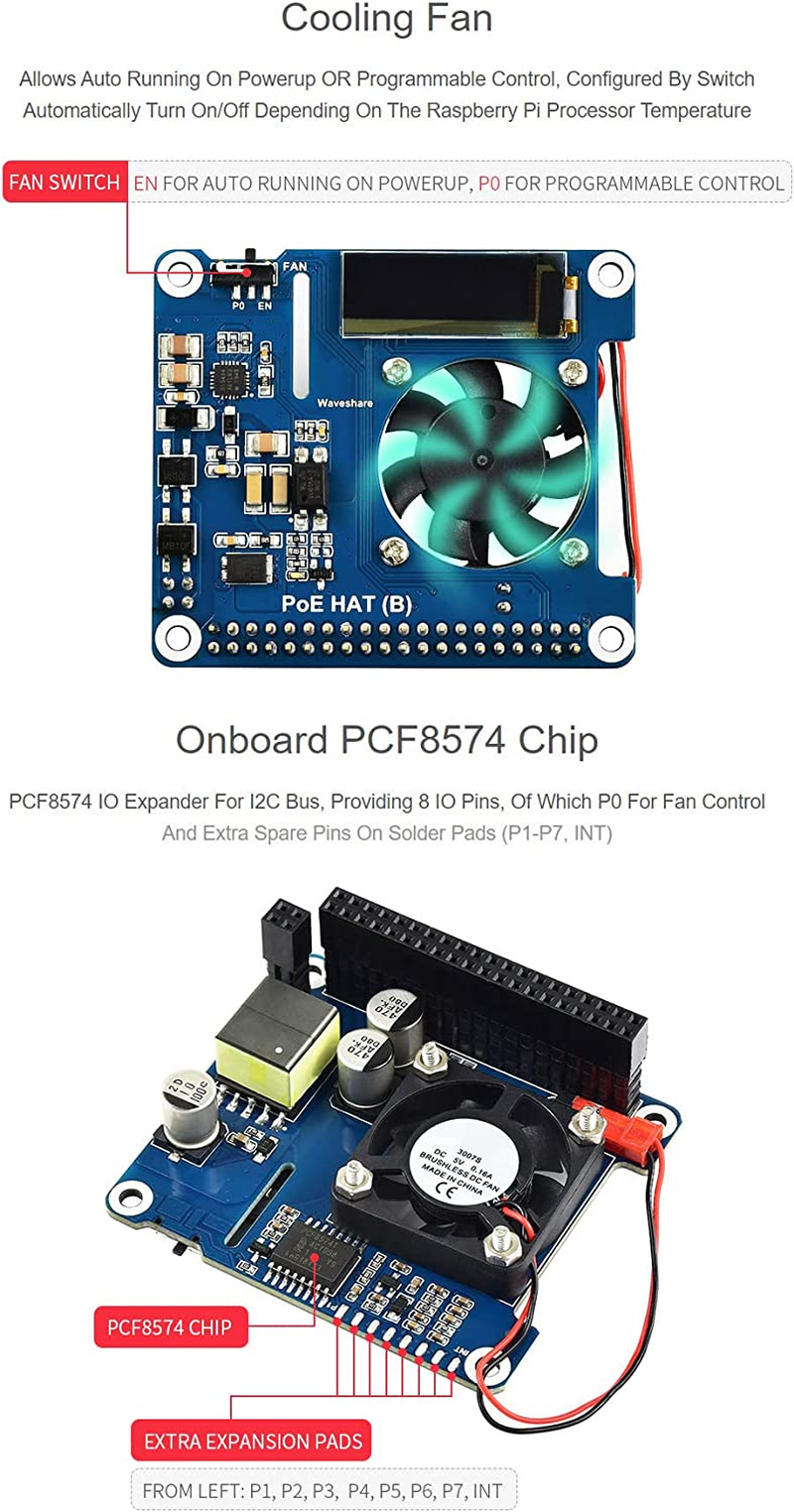

- Onboard cooling fan, allows auto running on powerup OR programmable control, configured by switch
Product Description
Selection table
| Customer Reviews | 4.4 out of 5 stars 40 | 4.3 out of 5 stars 36 | 4.3 out of 5 stars 36 | 4.6 out of 5 stars 57 | 4.3 out of 5 stars 123 | 4.0 out of 5 stars 47 |
| Price | $42.99$42.99 | $45.60$45.60 | $35.99$35.99 | $35.99$35.99 | $50.50$50.50 | $39.99$39.99 |
| POE POWER INPUT | 37V ~ 57V DC in | 37V ~ 57V DC in | 37V ~ 57V DC in | 37V ~ 57V DC in | 37V ~ 57V DC in | 38V ~ 57V DC in |
| POE POWER OUTPUT | 5V 2.5A DC out | USB-A: 5V 4A 2P: 12V 2A (MAX) | 5V 2.5A DC out | 5V 2.5A DC out | GPIO: 5V 4.5A 2P: 12V 2A (MAX) | GPIO header: 5V 5A (MAX) |
| NETWORK STANDARD | 802.3af PoE | IEEE 802.3af/at PoE | IEEE 802.3af PoE | IEEE 802.3af PoE | IEEE 802.3af/at PoE | IEEE 802.3af/at PoE |

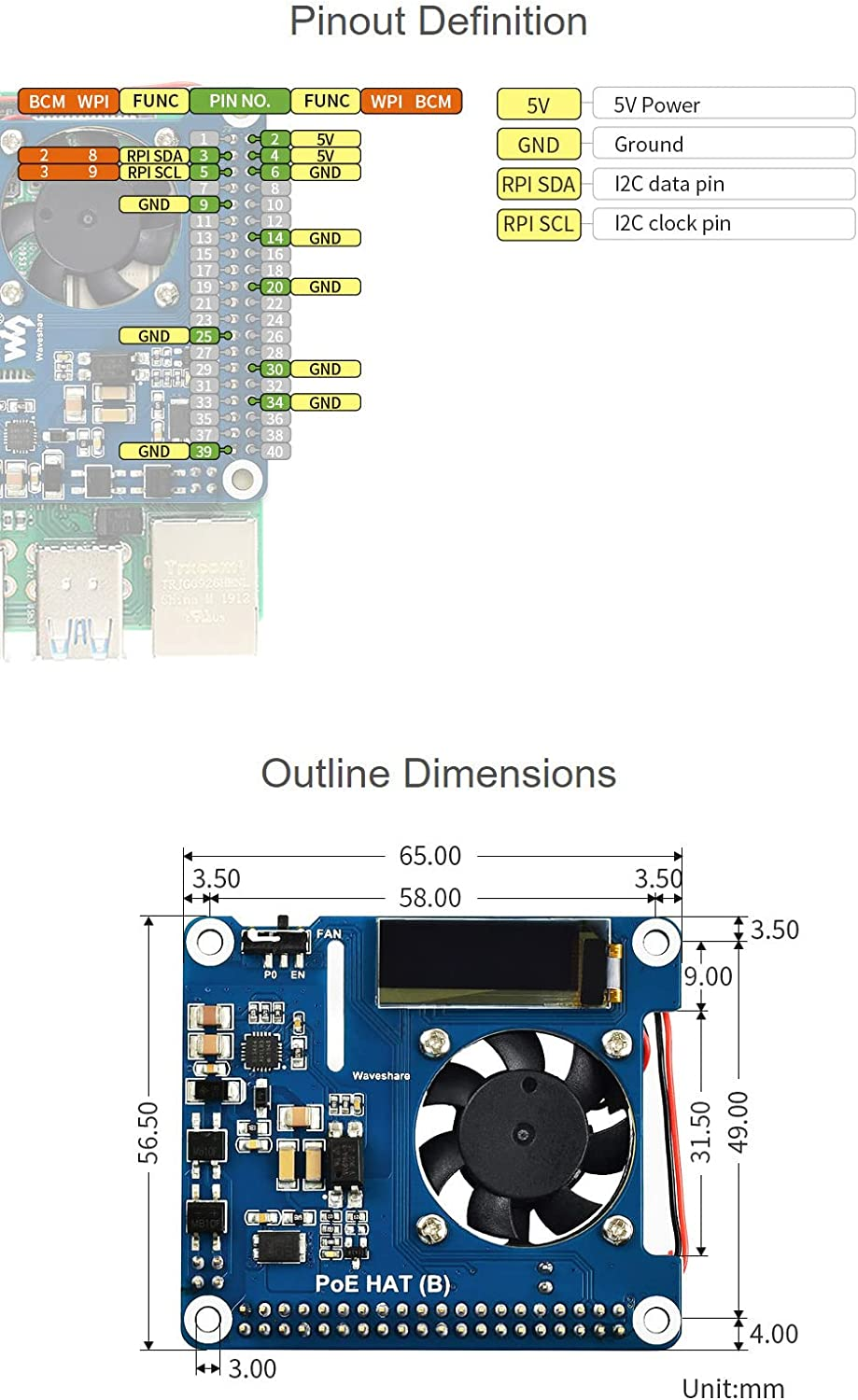

| DIMENSIONS | 56.5 × 65mm | 56.5 × 65mm | 58.90 × 54.92mm | 65.00 × 32.00mm | 56.5 × 70.0mm | 56.5 × 64.98mm |
| Compatible devices | RPi 3B+/4B | RPi 3B+/4B | RPi 3B+/4B | RPi 3B+/4B | RPI 5 | RPI 5 |
- Country/Region of origin: China
- Processor Count: 1
- Processor Brand: Broadcom
- Wireless Type: 802.11b
- Operating System: Linux
- Brand: Waveshare
- Ram Memory Technology: LPDDR3, LPDDR4
- Model Name: POE HAT
- Hardware Interface: Ethernet
- Package Dimensions: 11.4 x 6.8 x 3.4 cm; 50 Grams
- Manufacturer: Waveshare
- Item Model Number: PoE HAT (B)
- Batteries Included: No
- Batteries Required: No
- Connector Type: Ethernet
- Item Weight: 50 g
- Has Auto Focus: No
- Model: PoE HAT (B)
- Part Number: PoE HAT (B)
- Total USB ports: 4

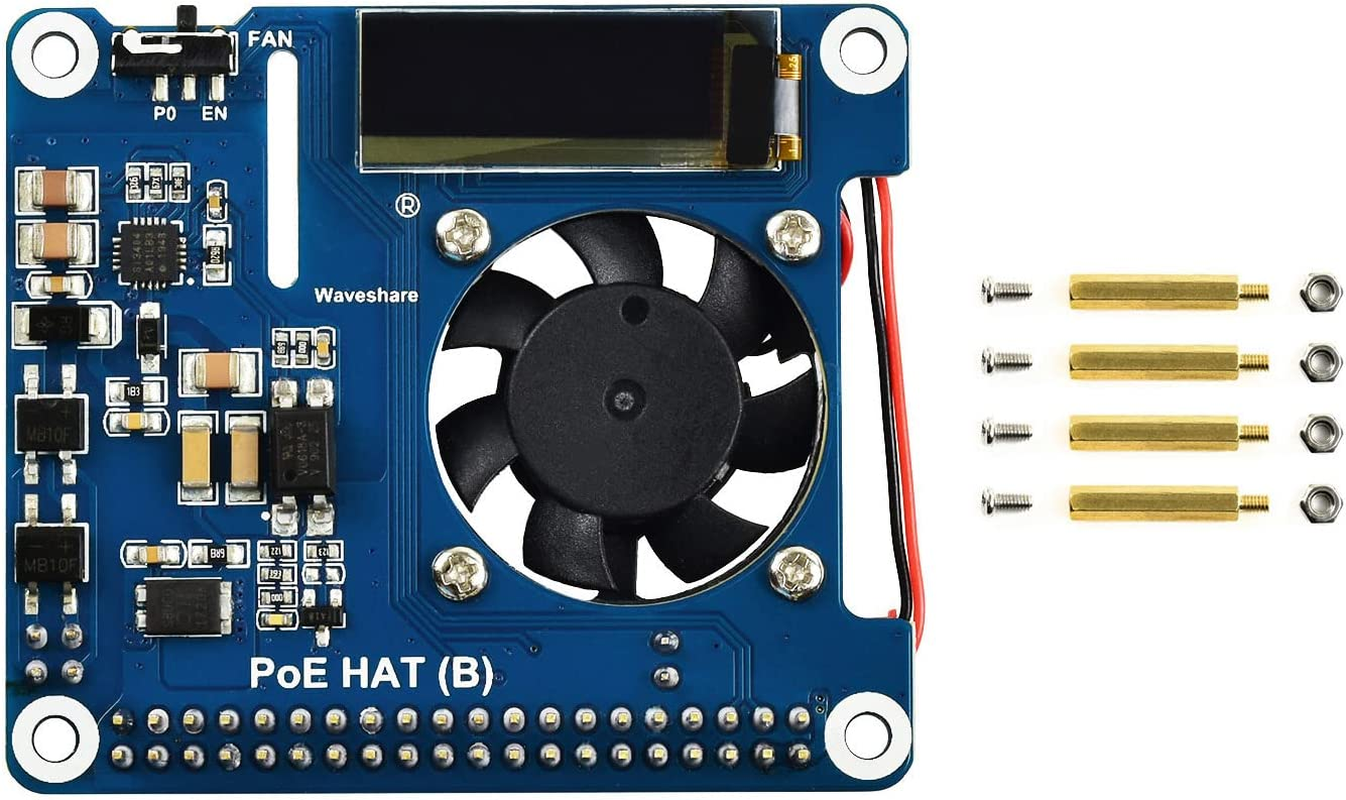

- Mounting Hardware: PoE HAT (B), Standoffs pack
- Has Programmable Buttons: No
- Compatible Devices: Raspberry Pi 3B+, Raspberry Pi 4B
- Processor Type: Cortex
