Digital AC Power Tester, Multifunction AC Current Voltage Amperage Power Energy Panel Meter Digital Display Ammeter Voltmeter Multimeter for Construction Factory Workshop

Digital AC Power Tester, Multifunction AC Current Voltage Amperage Power Energy Panel Meter Digital Display Ammeter Voltmeter Multimeter for Construction Factory Workshop

Brand: Haofy
3.3
A$27.70
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • 【Measurement Function】This power monitor is powerful and can measure multiple electrical parameters such as voltage, current, active power, energy, frequency, power factor, etc.
  • 【Preset Function】This digital power meter has an overload alarm function and a power alarm threshold preset function, which can set the power alarm threshold.
  • 【Data Function】This AC power meter supports saving data when the power is off, and supports using the key to reset the energy, making it more convenient to use.
  • 【Backlight Control】Short press the key to turn on or off the backlight, the backlight has memory function, it can store the on or off state when power off.
  • 【After-sales Service】If you have any questions while using this digital AC meter, please feel to us and we will work hard to provide you with a suitable solution.

Appearance and Key Function:

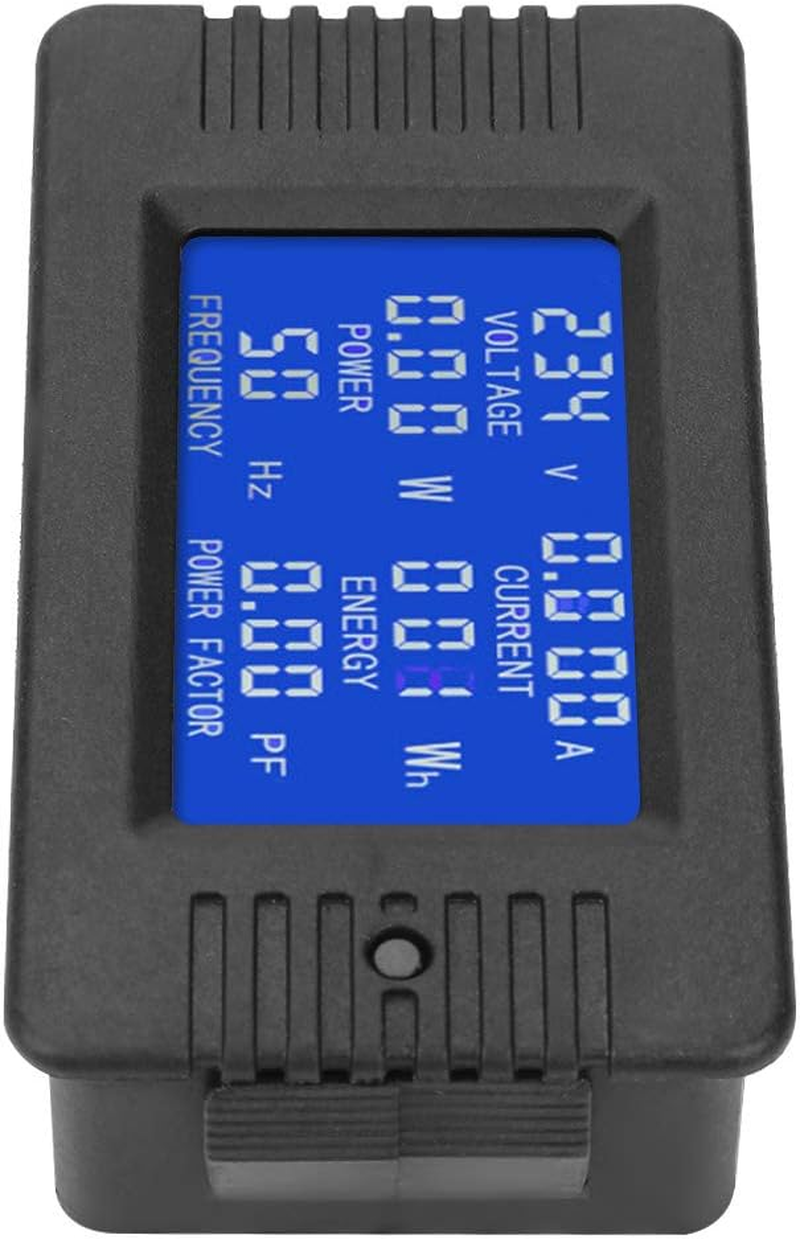

I.Display Interface
Display interface is large-screen LCD, it can display six parameters at the same time.
II.Display format
1. Power: test range: 0~2200W, Starting measure power: 0.2W
＜10W display format:1.00~9.99W
＜100W display format:10.0~99.9W
＜1000W display format:100~999W
≥1000W display format:1.00~2.30kW
2. Energy: test range: 0~999kWh
＜1kWh display format:0~999Wh
＜10kWh display format:1.00~9.99kWh
≥10kWh display format: 10~999kWh
3. Voltage: test range: 80~260V
Display format: 80~260V
4. Current: test range: 0~10A,Starting measure current: 0.001A
Display format: 0.000~10.00
5. Frequency: test range: 45~65Hz
Display format: 45~65Hz
6. Power factor: test range: 0~1PF
Display format: 0.00~1.00PF
Specification:
Working voltage: 80 ~ 260VAC
Test voltage: 80 ~ 260VAC
Current: 10A
Rated power:10A/2200W
Operating frequency: 45-65Hz
Measurement accuracy: 1.0 grade

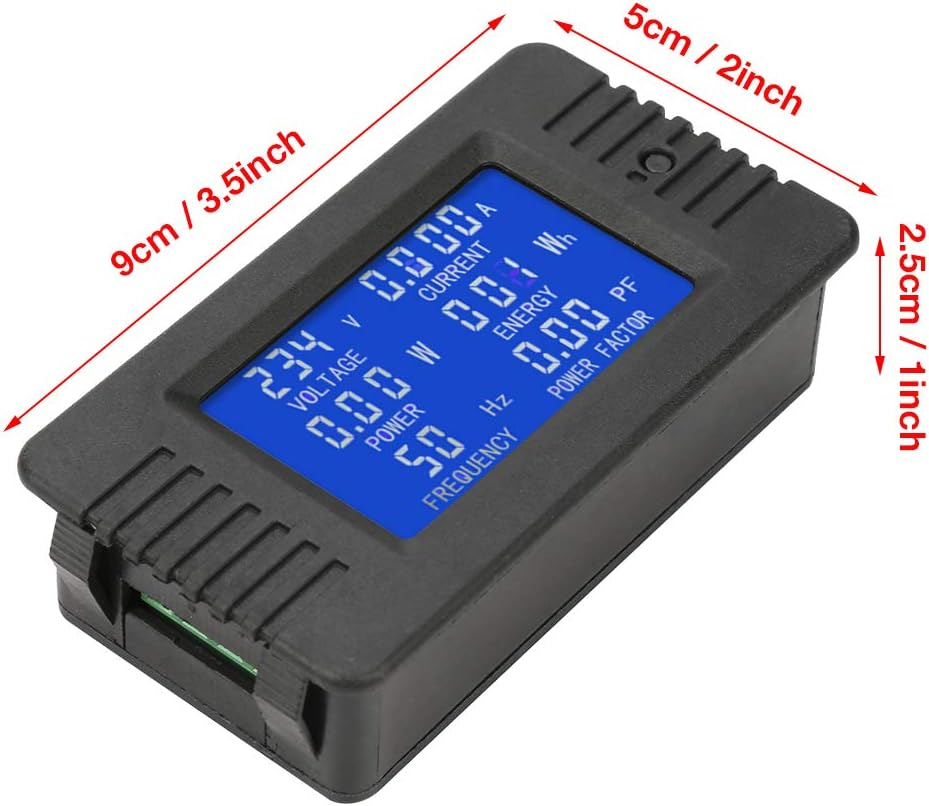

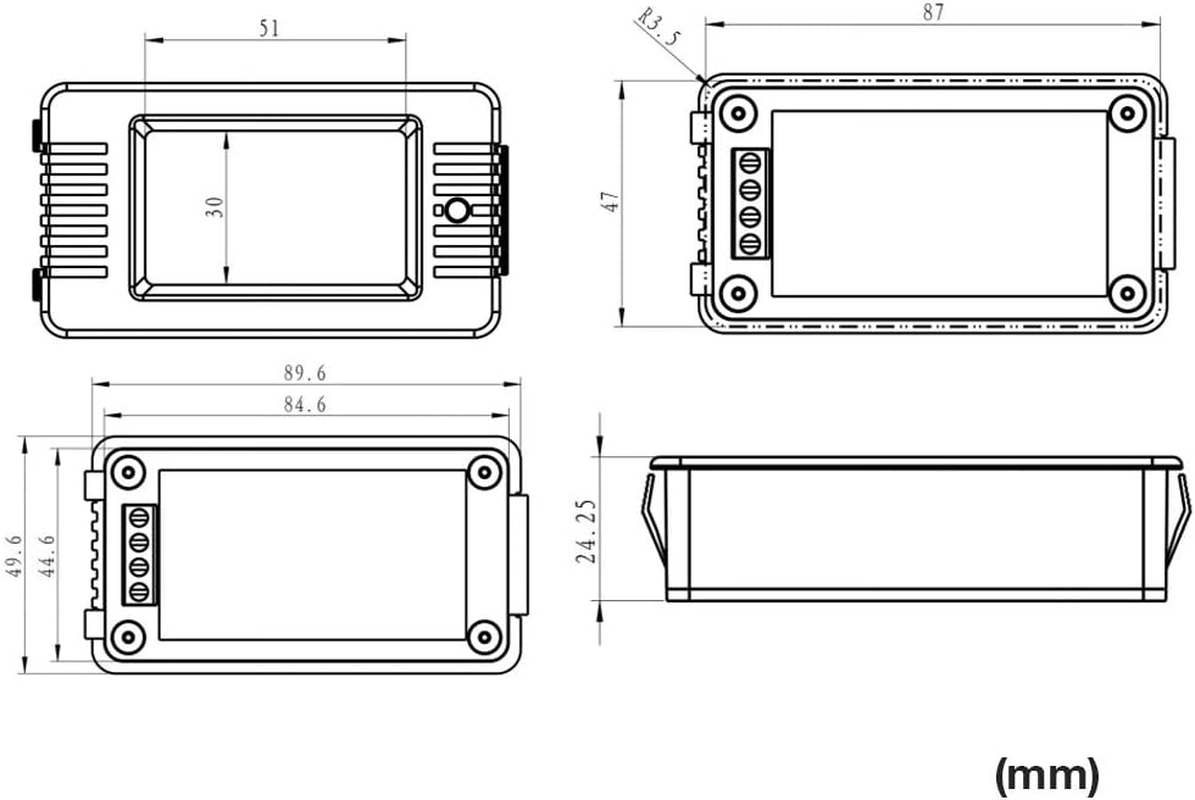

Size: 9*5*2.5cm/3.5*2*1in
Weight: Approx.85g/3oz
Package List:
1 * Digital Meter
Note:
1. This module is suitable for indoor, please do not use outdoor.
2. Applied load should not exceed the rated power.

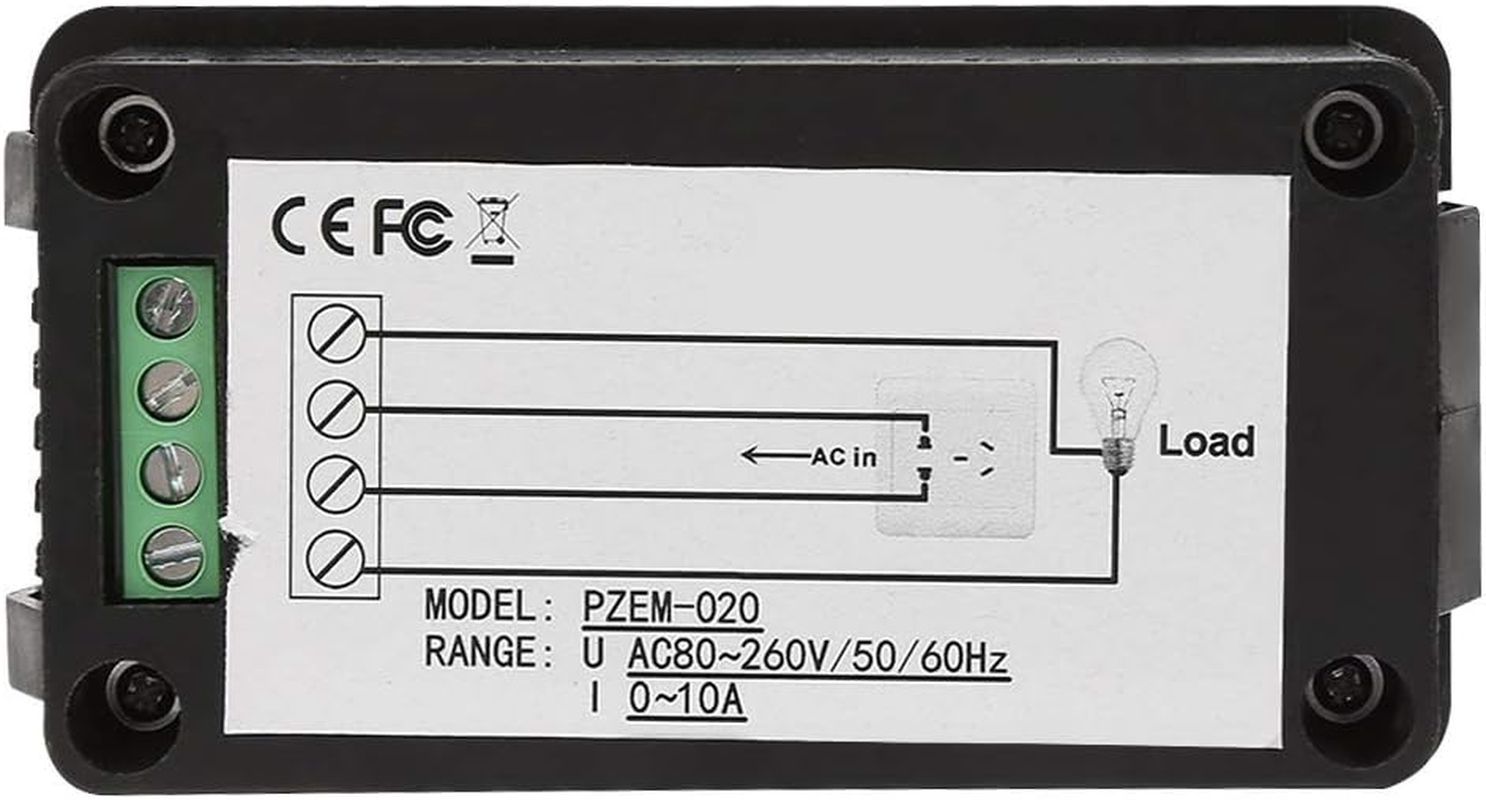

3. Wiring order can't be wrong.

  • Item weight: 0.09 Kilograms
  • Batteries required: No
