Brazed plate heat exchanger 60 plate heat exchanger
Our brand new heat exchanger features a compact and lightweight housing with excellent heat output and 316L stainless steel + 99.9% copper material can ensure long service life. It is therefore perfect for solar heating, heat recovery of oil units, engine cooling, evaporation and condensation, etc.
Main features:

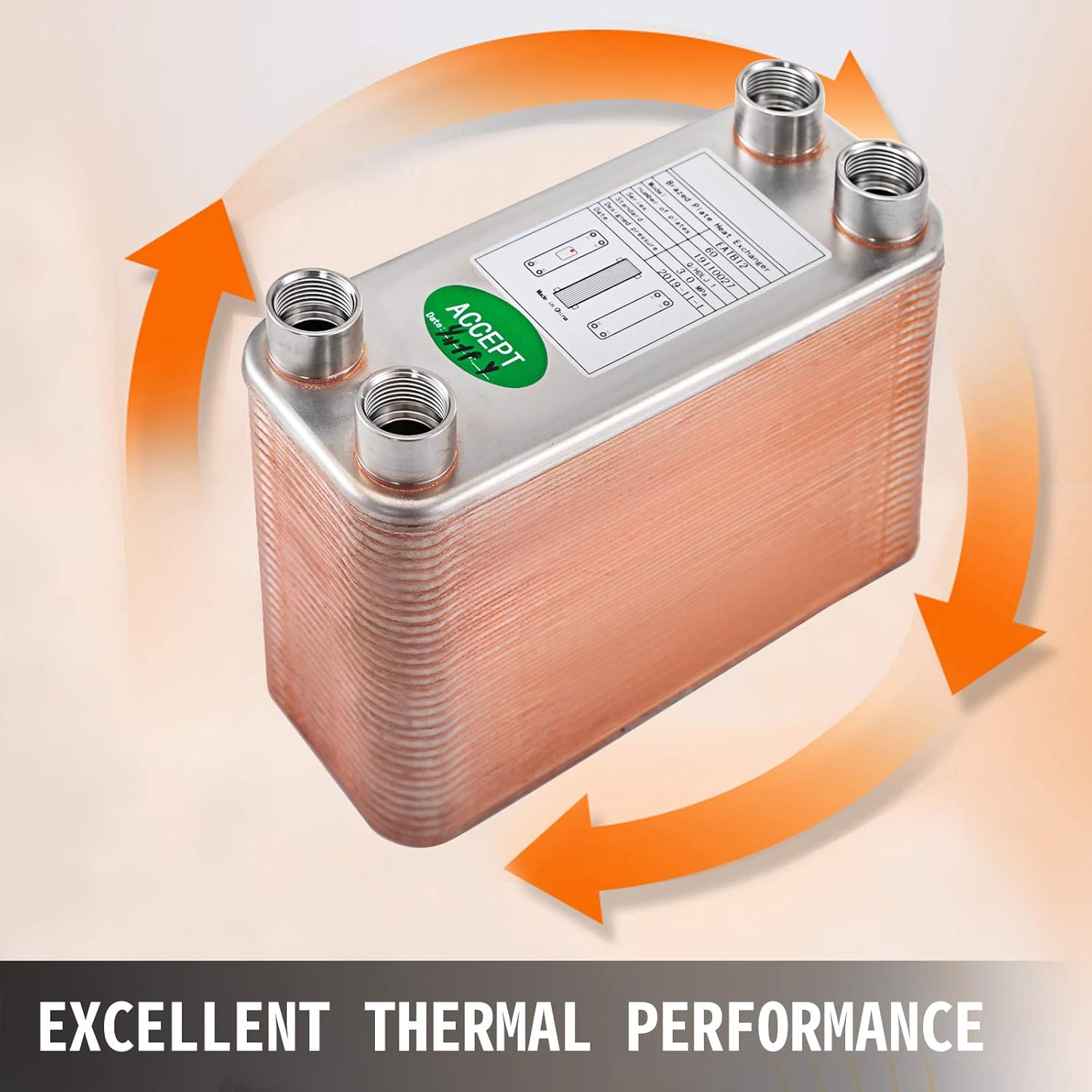

Superior thermal performance
Extremely efficient herringbone construction for maximum heat transfer.

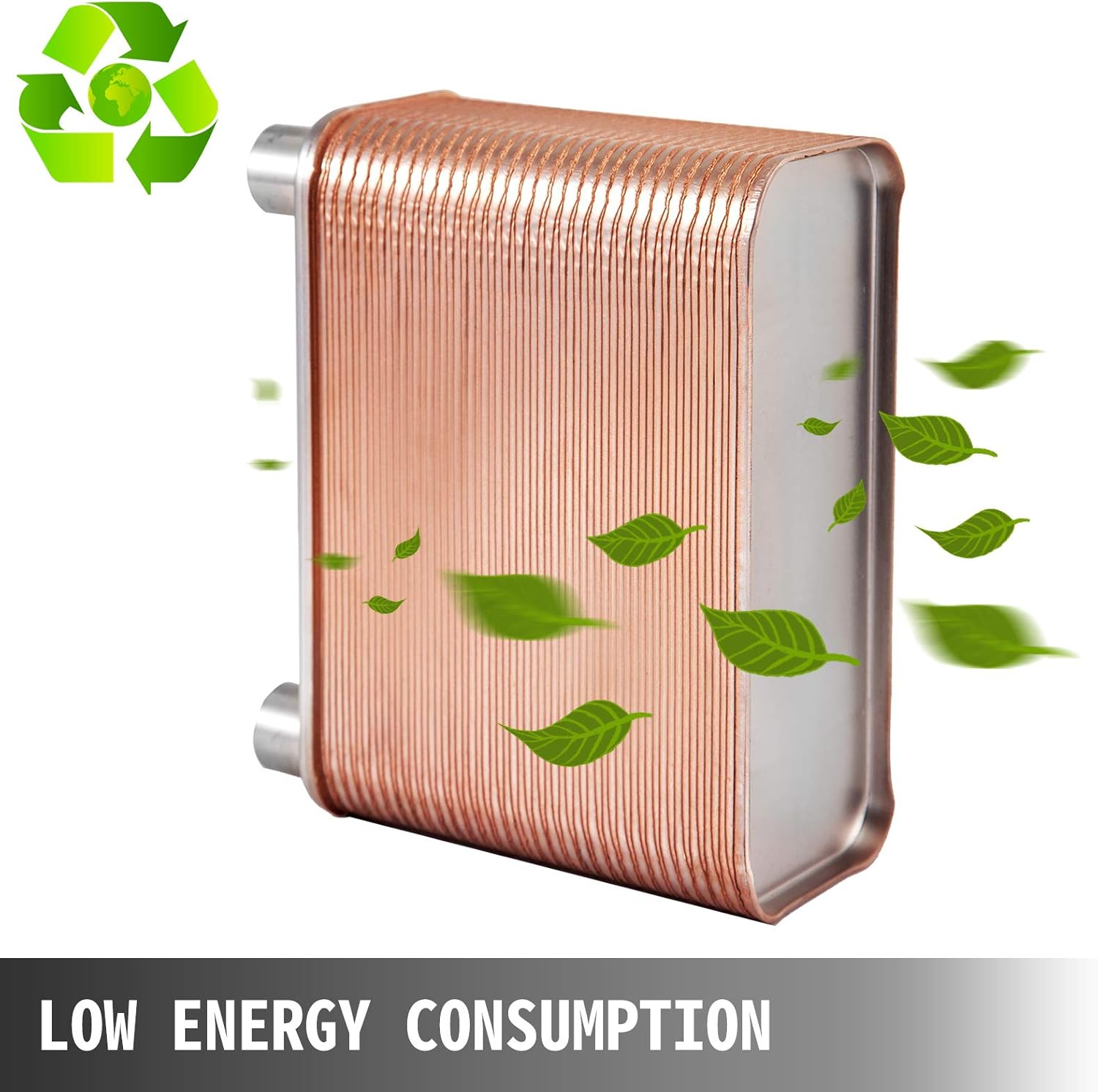

Low energy consumption.
Low energy consumption due to very low pressure drop over the heat exchanger.

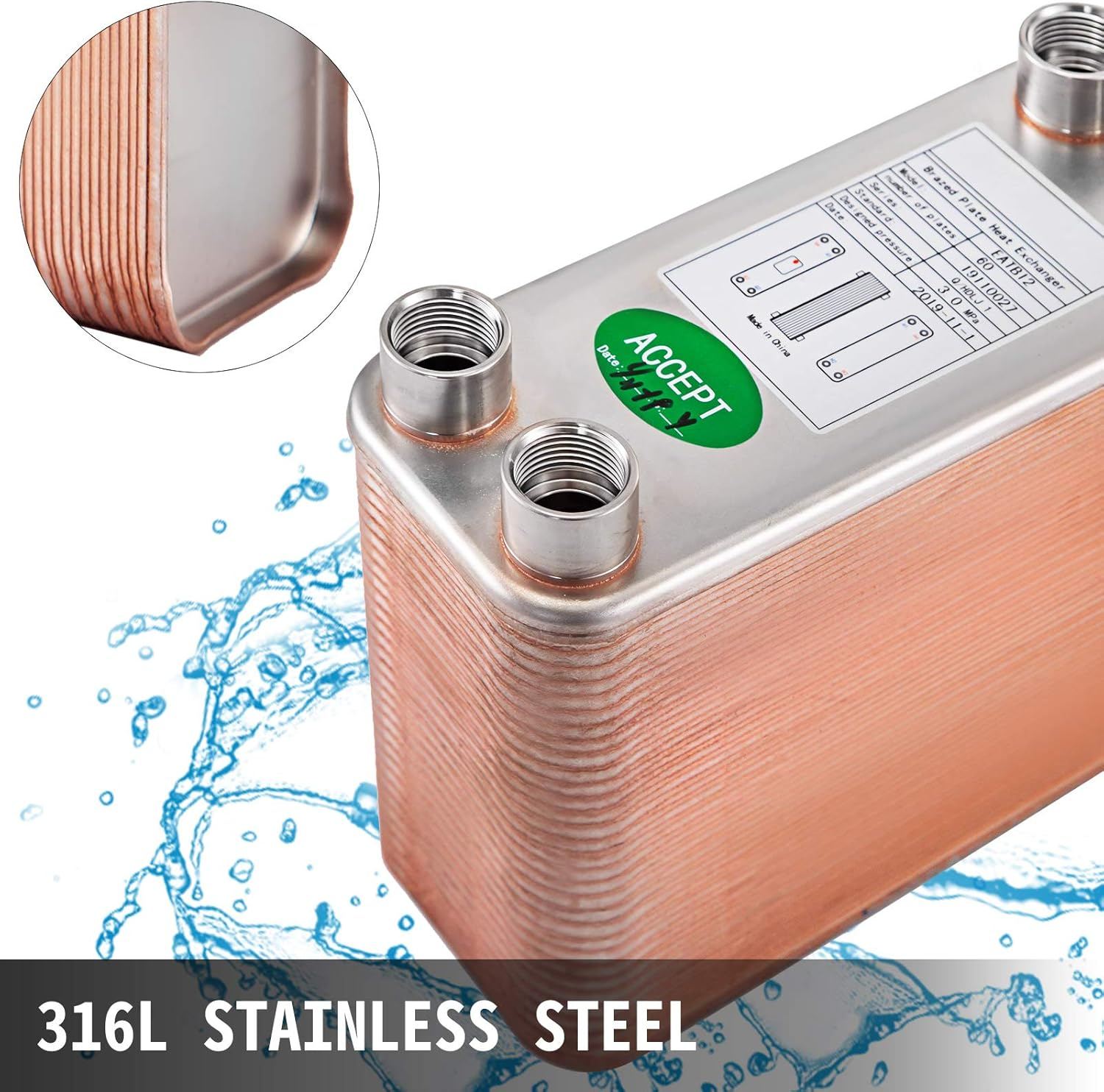

316L stainless steel.
The applied 316L stainless steel is highly corrosion resistant, reliable and durable.
Special FB ports
Four thickened 1/2 inch BSP-FPT ports for easier installation.

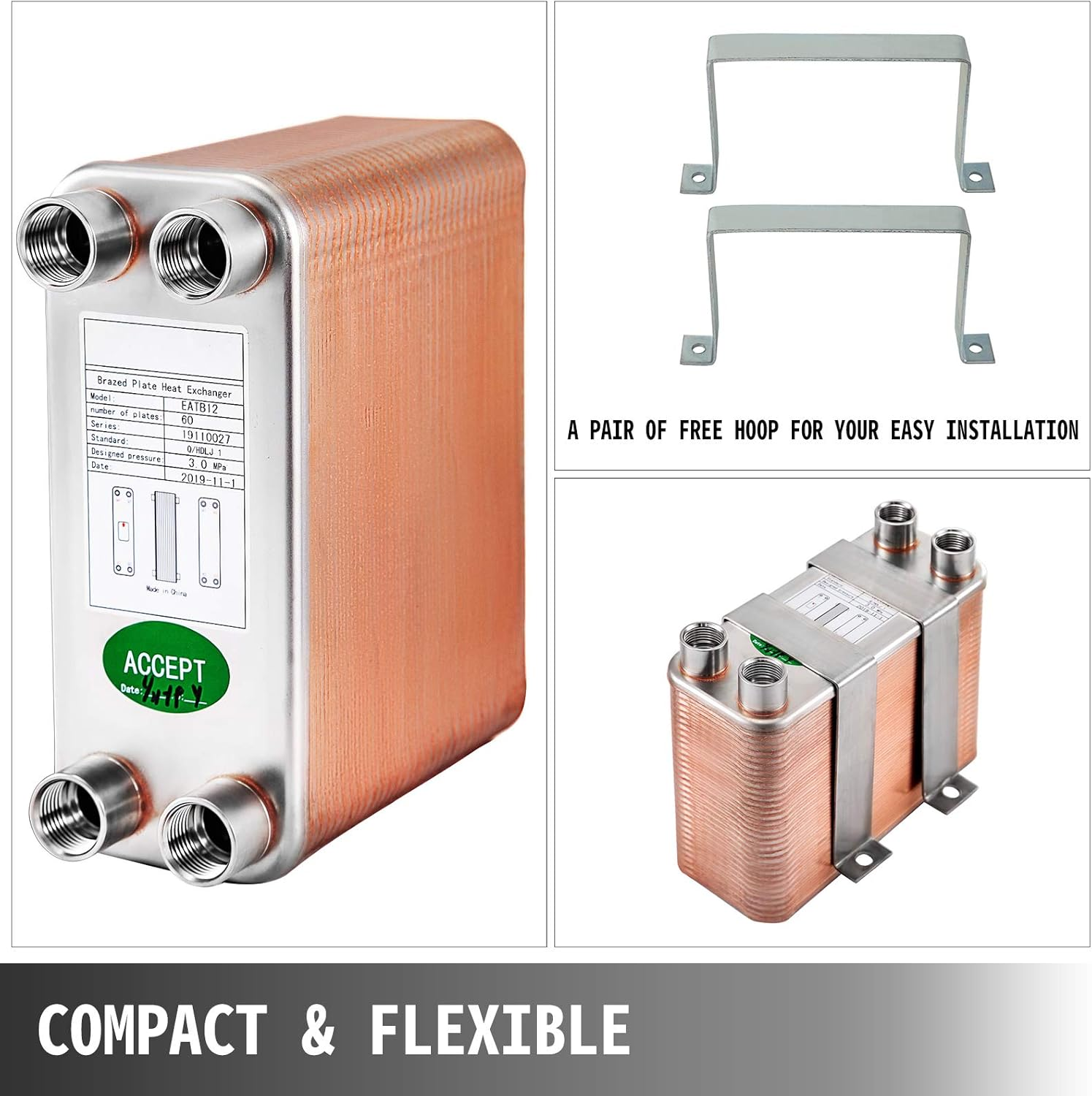

Compact and flexible
The footprint can be only one tenth that of a tube bundle heat exchanger, and due to its compact size, it also offers more freedom in system design.
Wide range of uses:
Suitable for HVAC industry, dairy/food/beverage industry, cooling industry, etc.
Specifications:
Model: B12-60
Material: 316L + 99.9% Copper
Connections: 1/2 inch BSP FPT
Plate quantity: 60
Design pressure (max. ): 3.0 MPa.
Test pressure: (min): 4.5 MPa.
Design temperature (℃): max. +225
Design temperature (℃): Min -196.

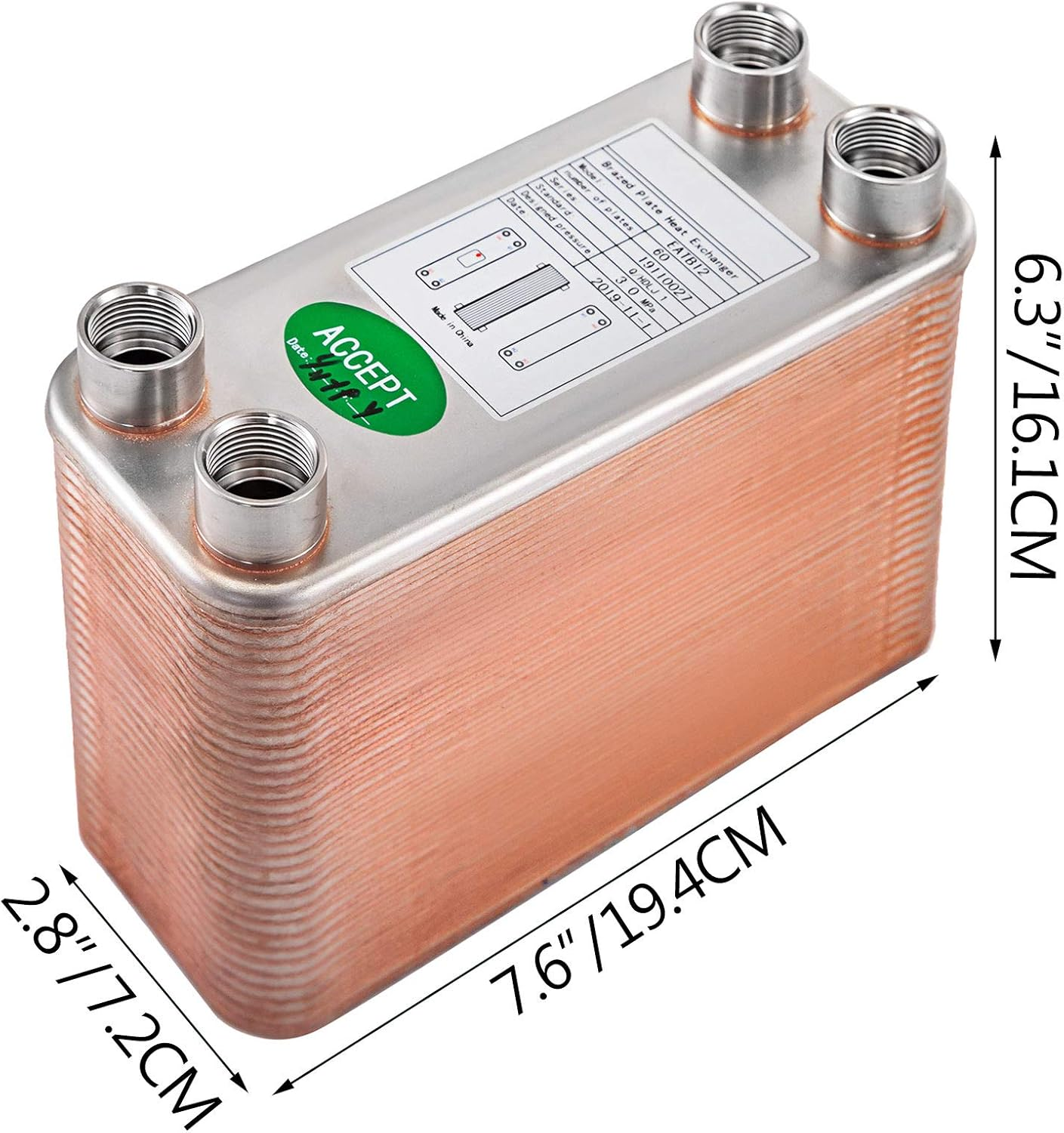

Dimensions: 10 x 5 x 9 inches.

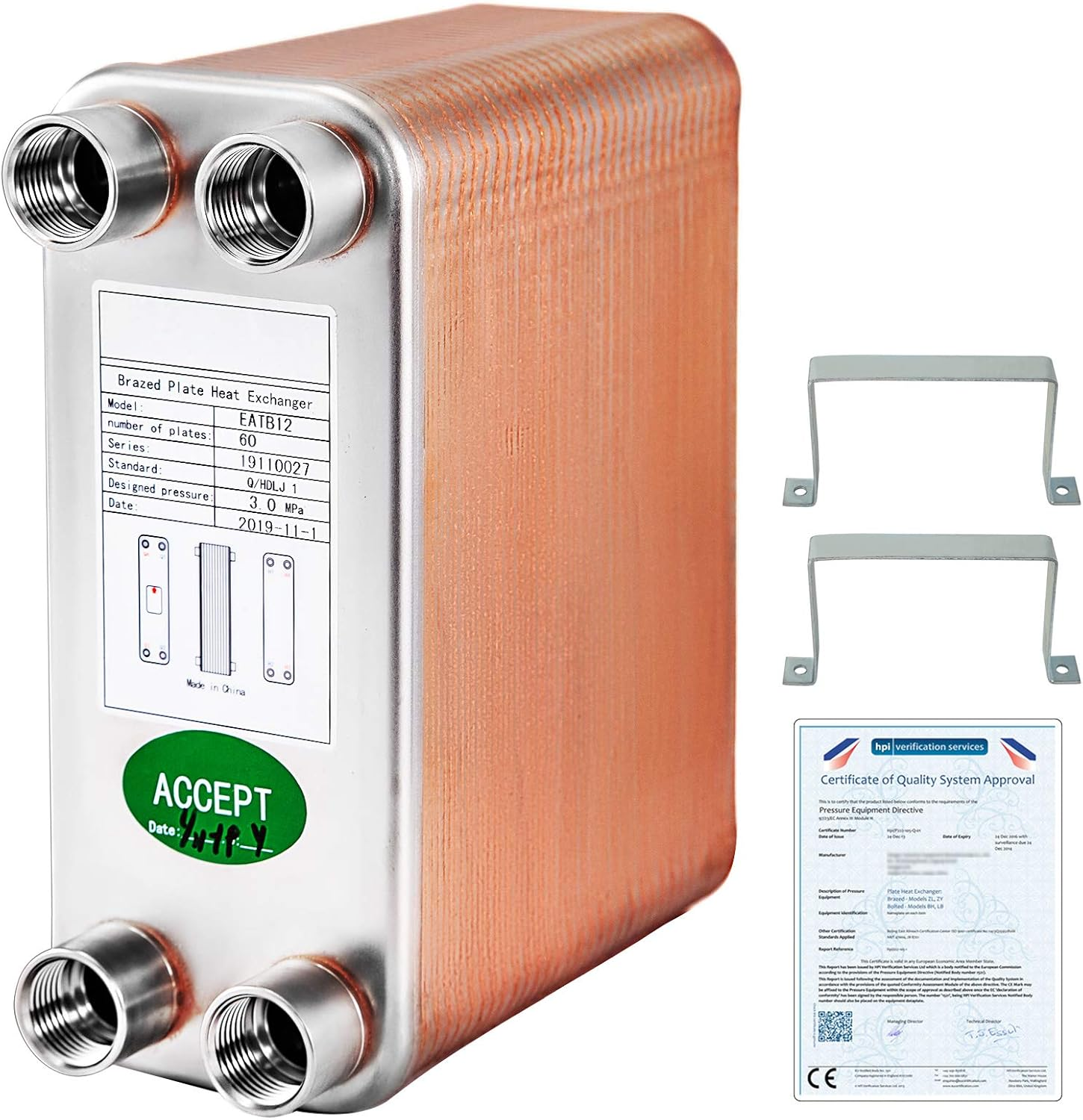

Package contents:
1 x heat exchanger.
1 x pair of tyres.
