4 Inch HDMI LCD IPS Display 800X480 Resolution Resistive Touch Screen HDMI Interface for Raspberry Pi 4B/3B+/3B/2B/B+/A+/Zero W,Support Raspbian/Ubuntu/Kali/Retropie
4 Inch HDMI LCD IPS Display 800X480 Resolution Resistive Touch Screen HDMI Interface for Raspberry Pi 4B/3B+/3B/2B/B+/A+/Zero W,Support Raspbian/Ubuntu/Kali/Retropie
Brand: Waveshare
A$65.10
- 4inch Resistive Touch Screen LCD, HDMI interface, IPS Screen,800x480 high hardware resolution,high quality and perfect displaying from very wide viewing angle

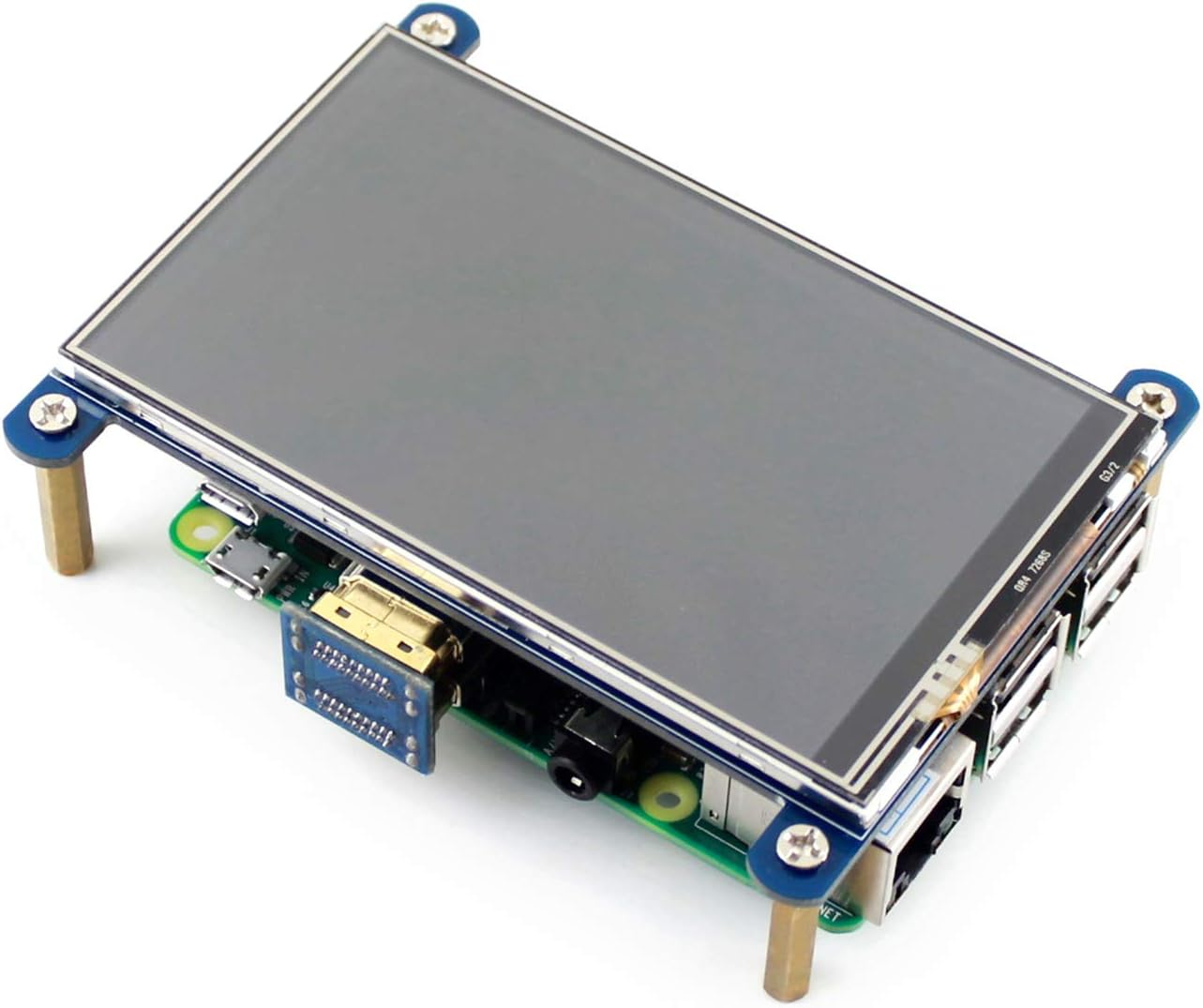

- Designed for Raspberry Pi，Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable)
- Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie) Backlight can be turned off to lower power consumption
- Also works as a computer monitor, in this case, touch panel is unavailable and HDMI cable is required
- HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
800x480, 4inch Resistive Touch Screen LCD, HDMI interface, IPS Screen, Designed for Raspberry Pi
Features
- 800x480 high hardware resolution
- Resistive touch control
- IPS technology, high quality and perfect displaying from very wide viewing angle
- Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable)
- Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie)
- Also works as a computer monitor, in this case, touch panel is unavailable and HDMI cable is required
- HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
- Backlight can be turned off to lower power consumption
Development Resources
https://www.waveshare.com/wiki/4inch_HDMI_LCD

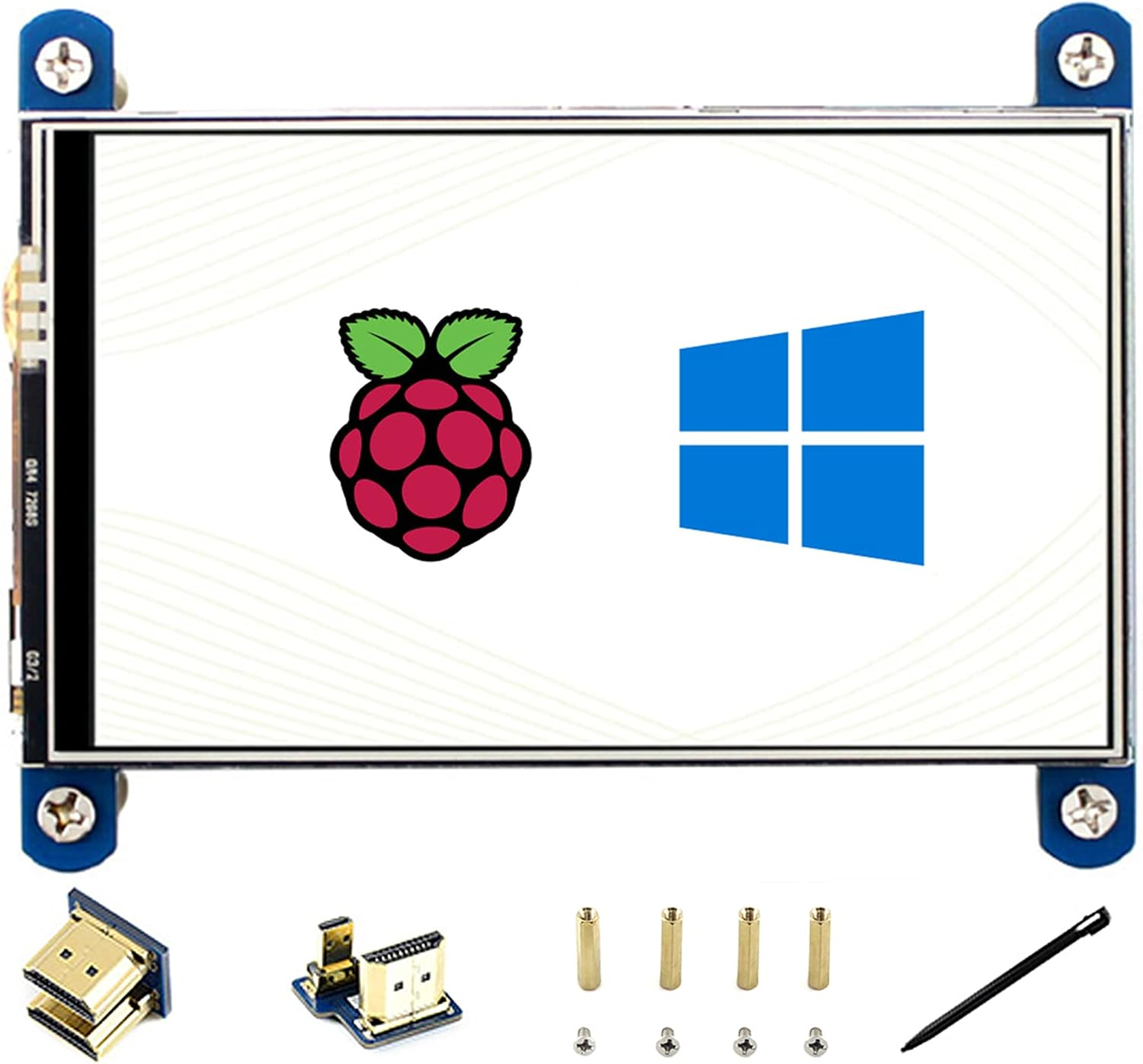

Package Content
1.4inch HDMI LCD IPS screen x 1
2.HDMI connector x 1
3.HDMI to micro HDMI connector x1
4.Touch pen x 1
5.RPi screws pack (4pcs) x 1
6.Quick start sheet x1
Tips
1.If the LCD doesn't work with your Raspbian, Please to use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.However, for the first testing, you may want to use our provided image directly.
- Screen Resolution: 800x480
- Image contrast ratio: 1000:1+
- Viewing angle: 178 Degrees
- Maximum vertical resolution: 480 Pixels
- Colour Screen: Yes
- Special Features: Touchscreen
- Brand: Waveshare
- Aspect Ratio: 16:10
- Model Name: 4inch HDMI LCD IPS Screen
- Hardware Interface: HDMI, Micro-HDMI
- Package Dimensions: 13.72 x 9.91 x 4.32 cm; 136 Grams
- Manufacturer: Waveshare
- Item Model Number: 4inch HDMI LCD IPS Screen
- Mounting type: Panel Mount
- Batteries Included: No
- Batteries Required: No
- Refresh rate: 60 Hz
- Connector Type: HDMI
- Item Weight: 136 g
- Standing screen display size: 4 Inches
- Model: 4inch HDMI LCD IPS Screen
- Resolution: 800 x 480
- Part Number: 4inch HDMI LCD IPS Screen
- Display Type: LCD
- Scanner Resolution: 800x480
- Compatible Devices: Raspberry Pi (except the Pi 1 Model B or Pi Zero)
- Actual viewing angle: 178 Degrees
- Display Technology: LCD
