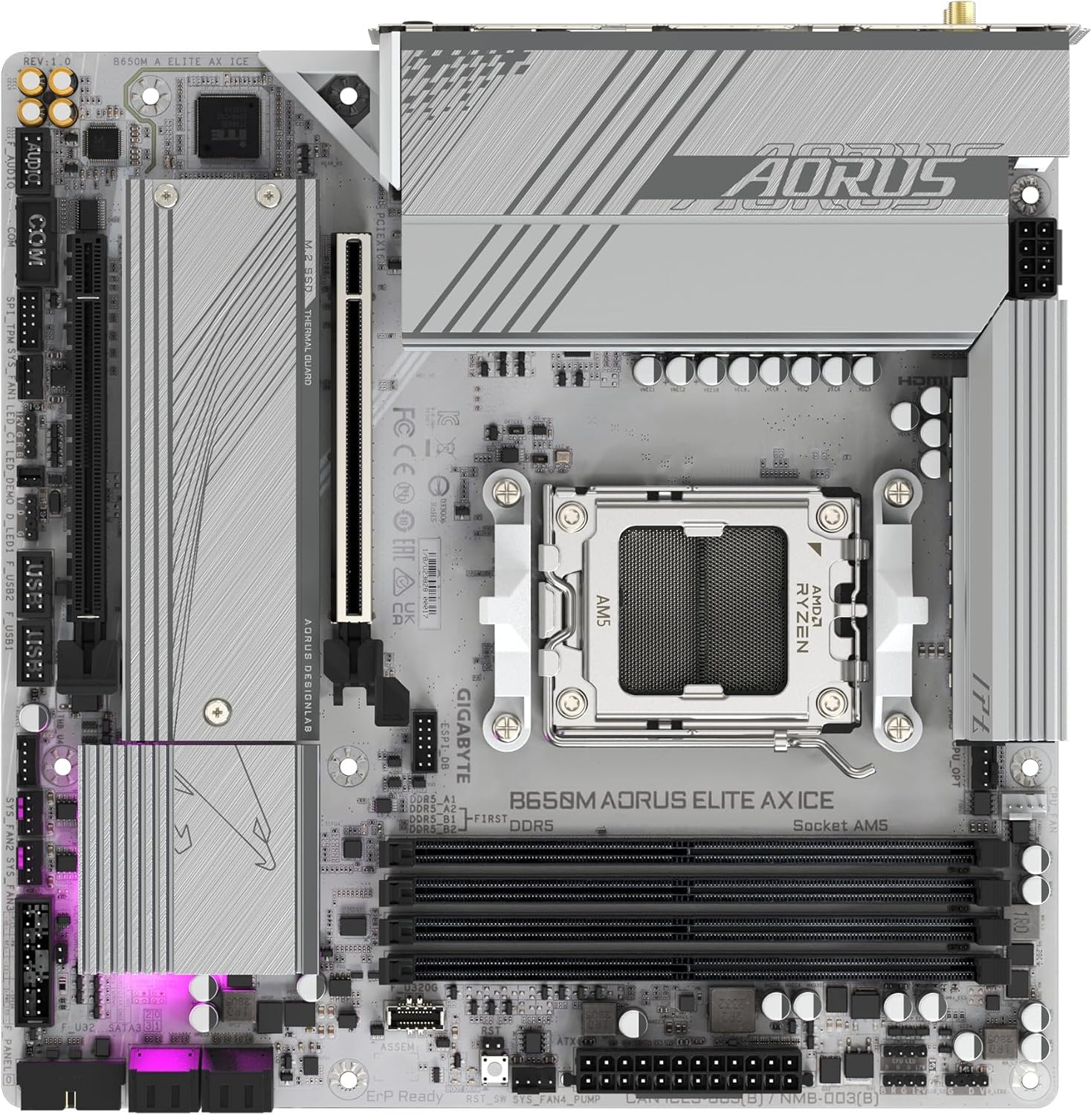

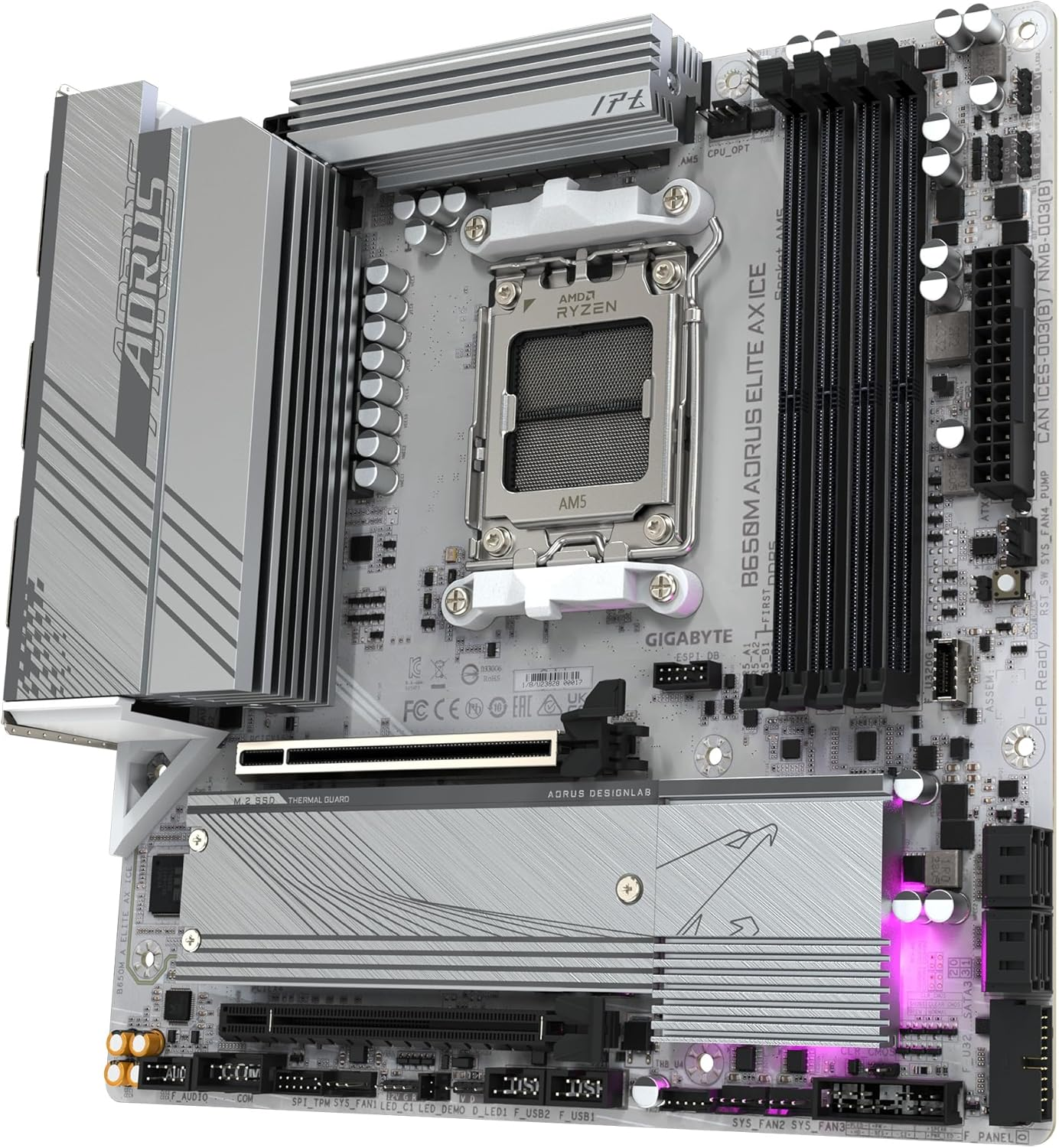

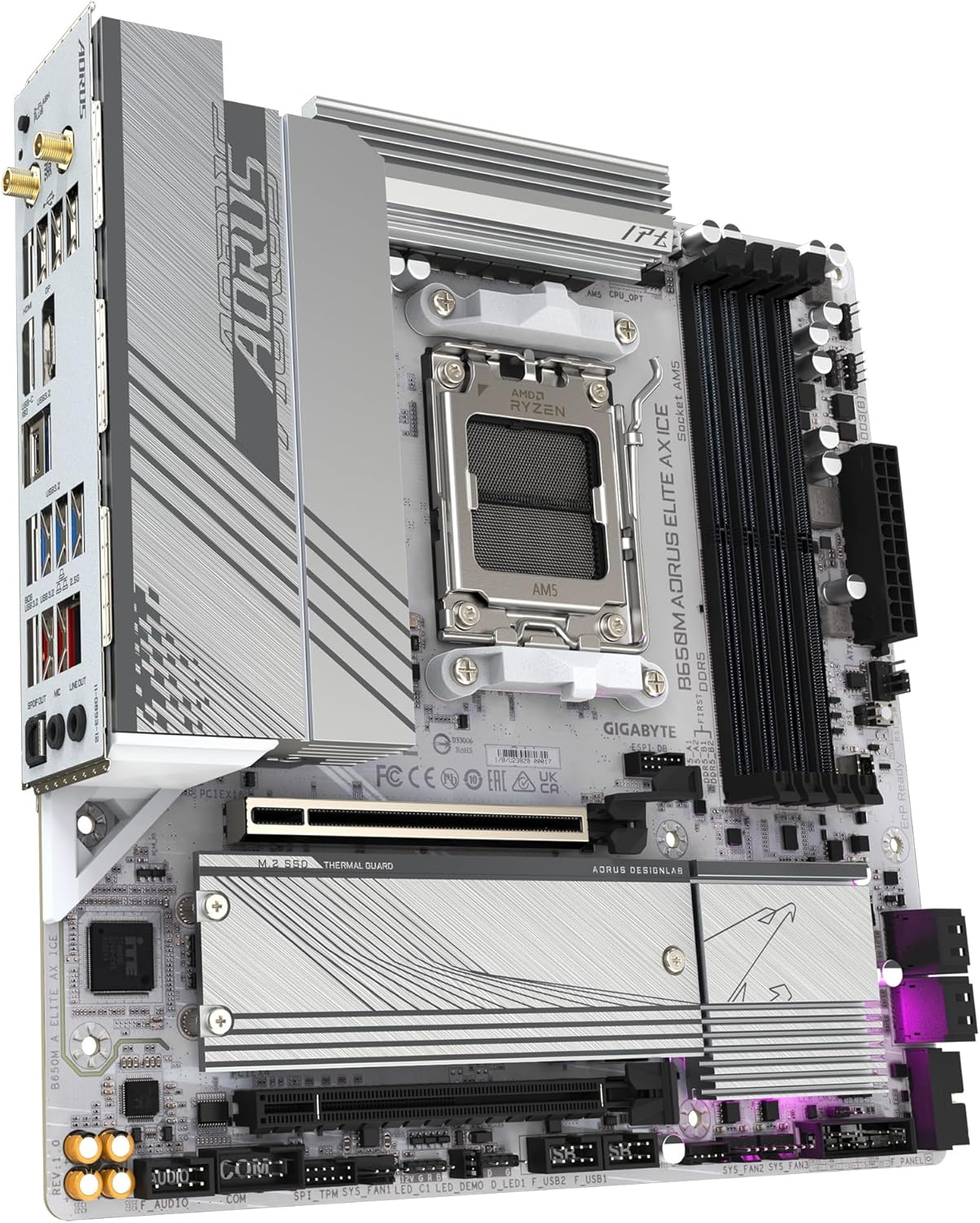

AMD Ryzen 7000 Series CPU Socket AM5 DDR5 Memory Compatible Micro-ATX Gaming Motherboard with White Color for Heatsink and Rear IO Panels Equipped with a high-speed USB port and support PCIe Gen5 SSD.
Form Factor: Micro-ATX (9.6 x 9.6 inches (244 x 244 mm)
Chipset: AMD B650
CPU Socket/Compatible CPU: Socket AM5, Ryzen 7000/8000 series
Power Phase: 12+2+2 60A Dr. MOS Digital Twin Power Phase
Memory Socket: 4x DDR5 UDIMM up to 192GB
Supported Memory: DDR5 4400-8000 XMP3.0/EXPO compatible
Expansion Slots: 2x PCIE x16 (1x PCIE4.0 x16, 1x PCIE4.0 x4)
●Storage: 2x M.2 (1x PCIe5.0x4, 1x PCIe4.0x4), 4x SATA3
Video Output: 1 x Displyay Port (1.4), 1 x HDMI (2.1)

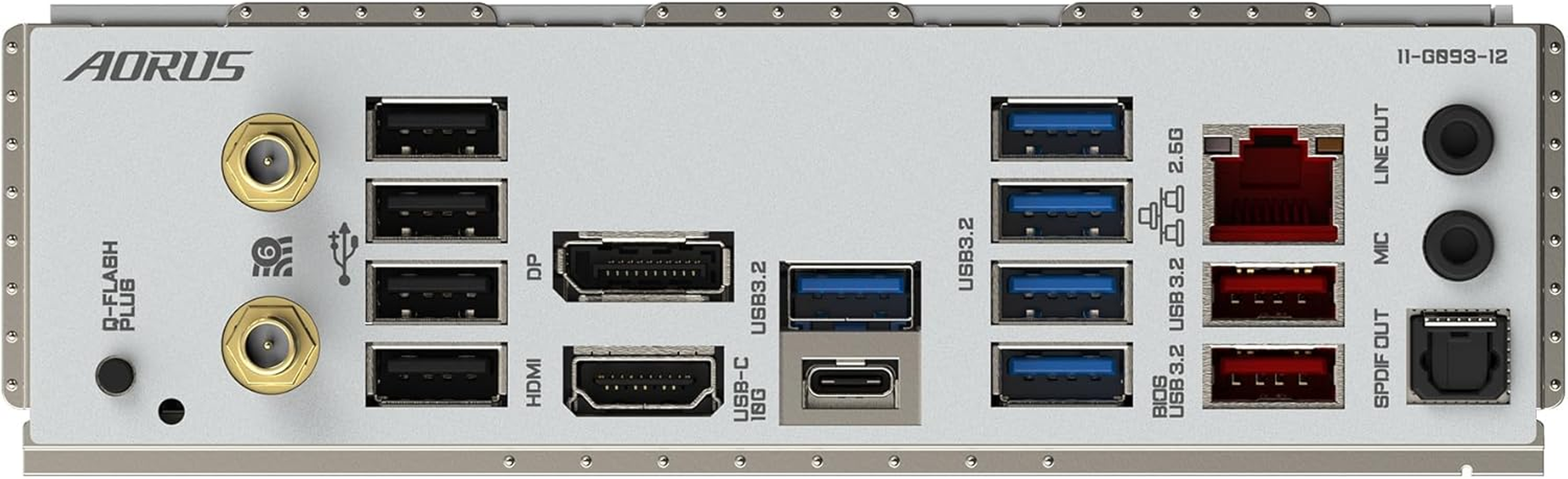

USB (Rear): 1x USB3.2 Gen2 Type-C, 2x USB3.2 Gen2 Type-A, 5x USB3.2 Gen1 Type-A, 4x USB2.0 Type-A
USB (front): 1 x USB3.2 Gen2 x 2 Type-C, 2 x USB3.2 Gen1 Header, 4 x USB2.0 Type-A
Sound: Realtek 7.1ch HD Audio Codec
Network: Wired LAN 1x 2.5GbE LAN, Wireless LAN WiFi 6E, Bluetooth 5.3
Other features and features: White substrate, large heat sink (VRM/M.2), Q-Flash plus
Supported operating systems: Windows 10/11 64-bit
Accessories: Accessory kit, WiFi antenna
