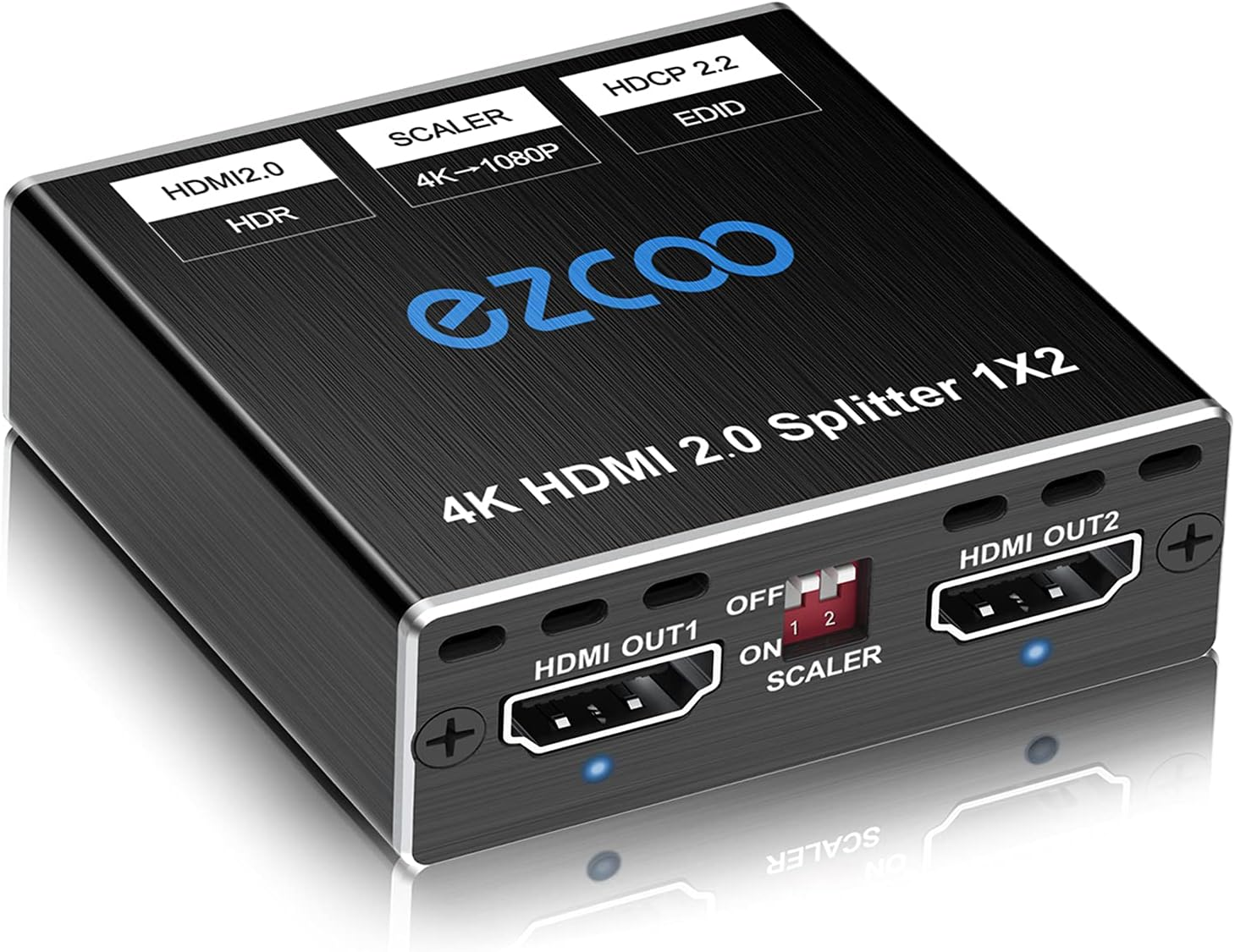

EZ-SP12H2 ezcoo HDMI Splitter 1cm² Output 4K 60Hz 4:4 18Gbps HDR D-o-l-b-y Vision HDCP2.2, Support 4K HDR TV and 1080P Capture Card works synchronously. D-o-l-b-y Atmos and D-o-l-b-y vision work synchronously. Firmware upgrade, HDCP setting via micro USB port (Close to HDMI IN port) Please use HDMI 2.0 AWG26 cable less than 3 m. without arc

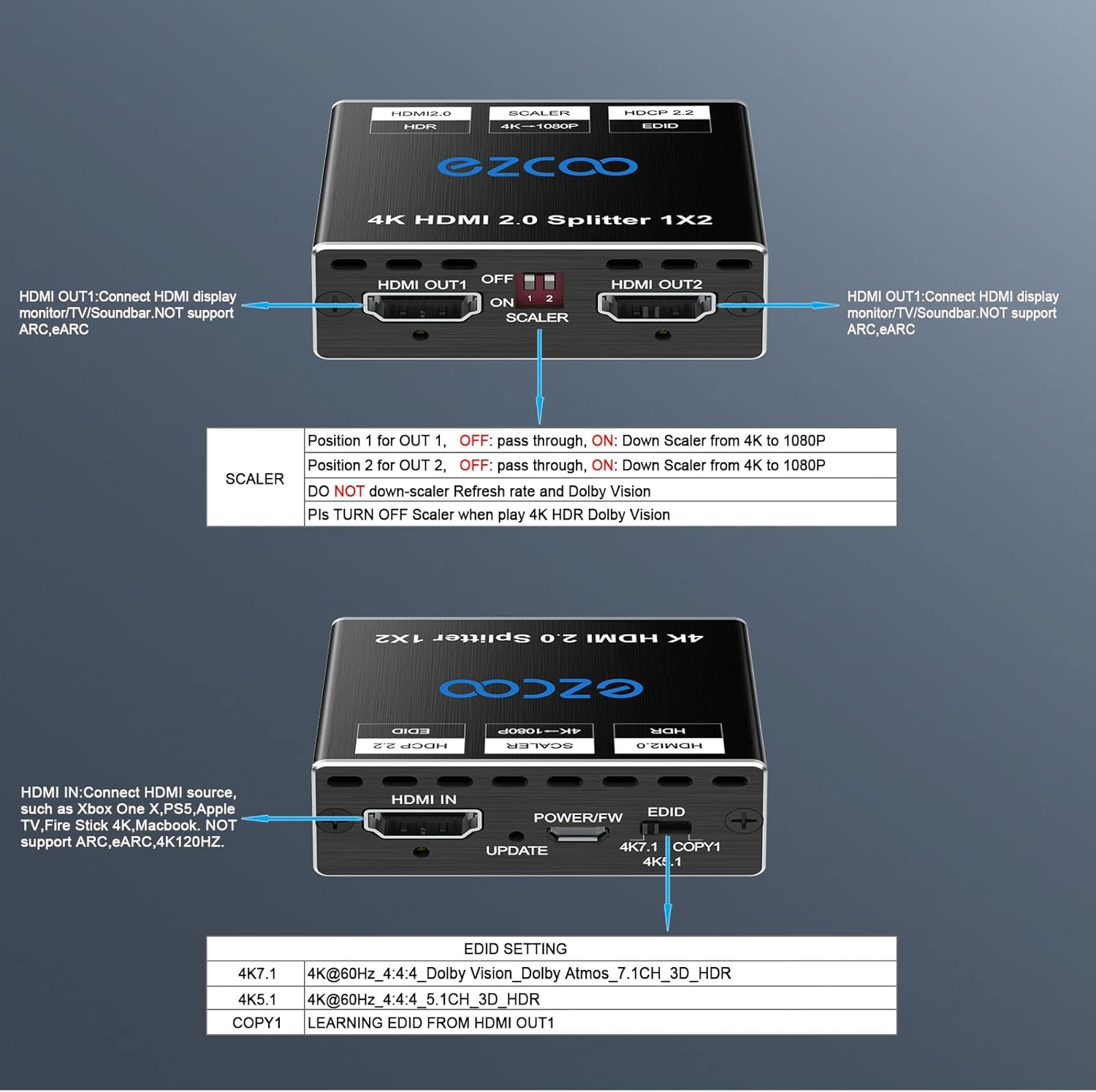

1. For 4K output, please turn off the scaler. Two HDMI outputs can lower the scale independently, one scale button 1; one scale button 2 down 2, both can lower the scale 4K/4K HDR 10 to 1080p 60Hz only, no 3D, no other resolution. No lower scale 4K HDR D-o-l-b-y vision, HDR VRR and refresh rate.
2. To get D-o-l-b-y Atmos, D-o-l-b-y vision synchronously, make sure the TV/receiver supports it. Set EDID to 4K, connect 4K TV to OUT 1 splitter. EDID copies OUT 1 previous
3. Please turn off the scaler when playing 4K HDR D-o-l-b-y vision.
4. For the game user, please set the refresh rate of the graphics card or monitor identical to the refresh rate of the HDMI source, such as B. the 4K 60Hz HDMI source, the monitor should be 1080P 60Hz.
5. HDMI splitter does not extend the screen, just copy/mirror. Without electric arc.
Please check the installation instructions on the product page before using it. Sometimes you just need to change the audio/video settings of the HDMI source to solve the problem.
Package includes:
1 x HDMI Splitter, 1 x Micro USB Cable, 1 x User Manual (English language not guaranteed). English language not guaranteed).
Audio Video
Supports HDCP2.2 HDMI2.0 4K 60Hz 4:4:4 18Gbps 8bit HDR D-o-l-b-y vision
HDMI Audio: D-o-l-b-y Digital 7.1CH, D-o-l-b-y Atmos, DTS:X, D-o-l-b-y TrueHD, DTS-HD Master, LPCM 2.1/5.1/7.1CH
