2-Channel Isolated RS232 Expansion HAT for Raspberry Pi 4B/3B+/3B/2B/B+/A+/Zero/Zero W, SC16IS752+SP3232 Dual Chip Convert SPI to RS232 Data Rate up to 921600Bps Embed Multi Protection Circuits
2-Channel Isolated RS232 Expansion HAT for Raspberry Pi 4B/3B+/3B/2B/B+/A+/Zero/Zero W, SC16IS752+SP3232 Dual Chip Convert SPI to RS232 Data Rate up to 921600Bps Embed Multi Protection Circuits
Brand: Waveshare
A$25.00
- Deliver by--- : 5-16 BUSINESS DAYS after shipping .This is a 2-channel isolated RS232 expansion HAT designed for Raspberry Pi, adopts the SC16IS752+SP3232 solution, with embedded protection circuits such as power supply isolation, ADI magnetical isolation, and TVS diode, etc.
- Features 1:Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards. Features 2:Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic.
- Features 3:Onboard LEDs for indicating the power and transceiver status.Breakout SPI control pins, for connecting with host control boards like Arduino
- Adopts SC16IS752+SP3232 dual chip combination, converts SPI to RS232, data rate up to 921600bps UART expansion chip: SC16IS752. RS232 transceiver: SP3232.
- Development Resources: https://www.waveshare.com/wiki/2-CH_RS232_HAT

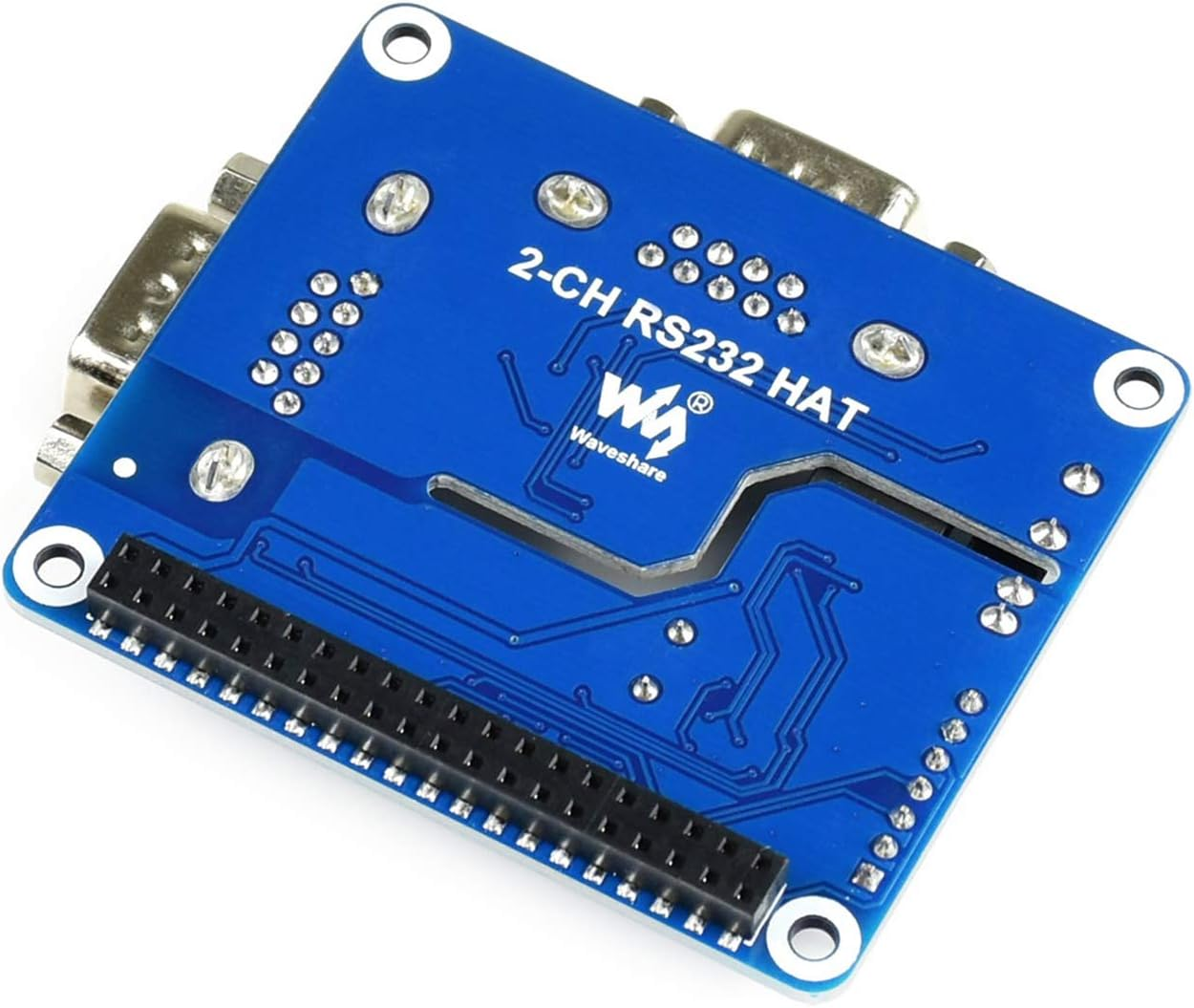

Overview
This is a 2-channel isolated RS232 expansion HAT designed for Raspberry Pi, adopts the SC16IS752+SP3232 solution, with embedded protection circuits such as power supply isolation, ADI magnetical isolation, and TVS diode, etc.
It is easy to control the 2-channel RS232 via SPI interface. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for fields like industrial automation.

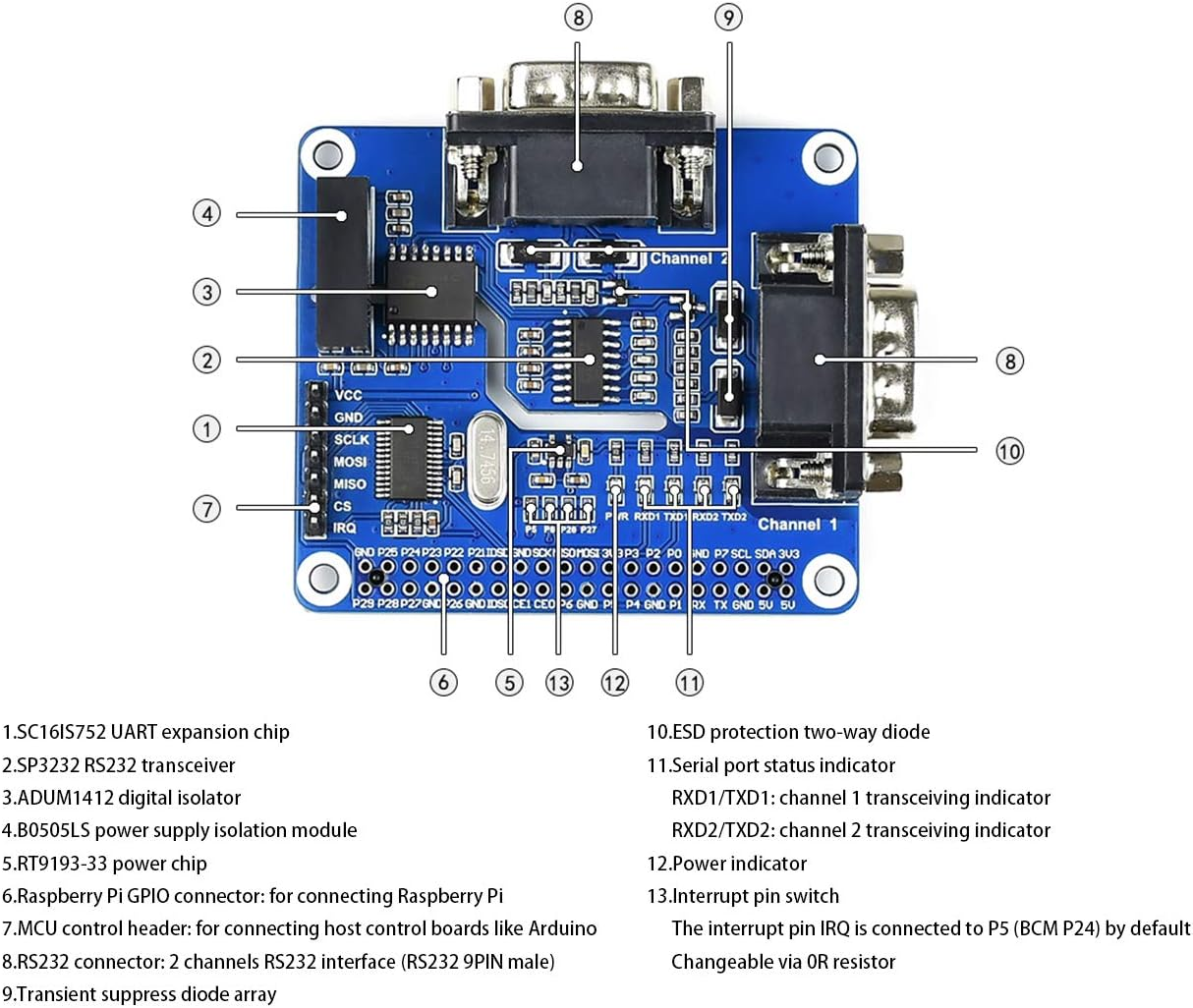

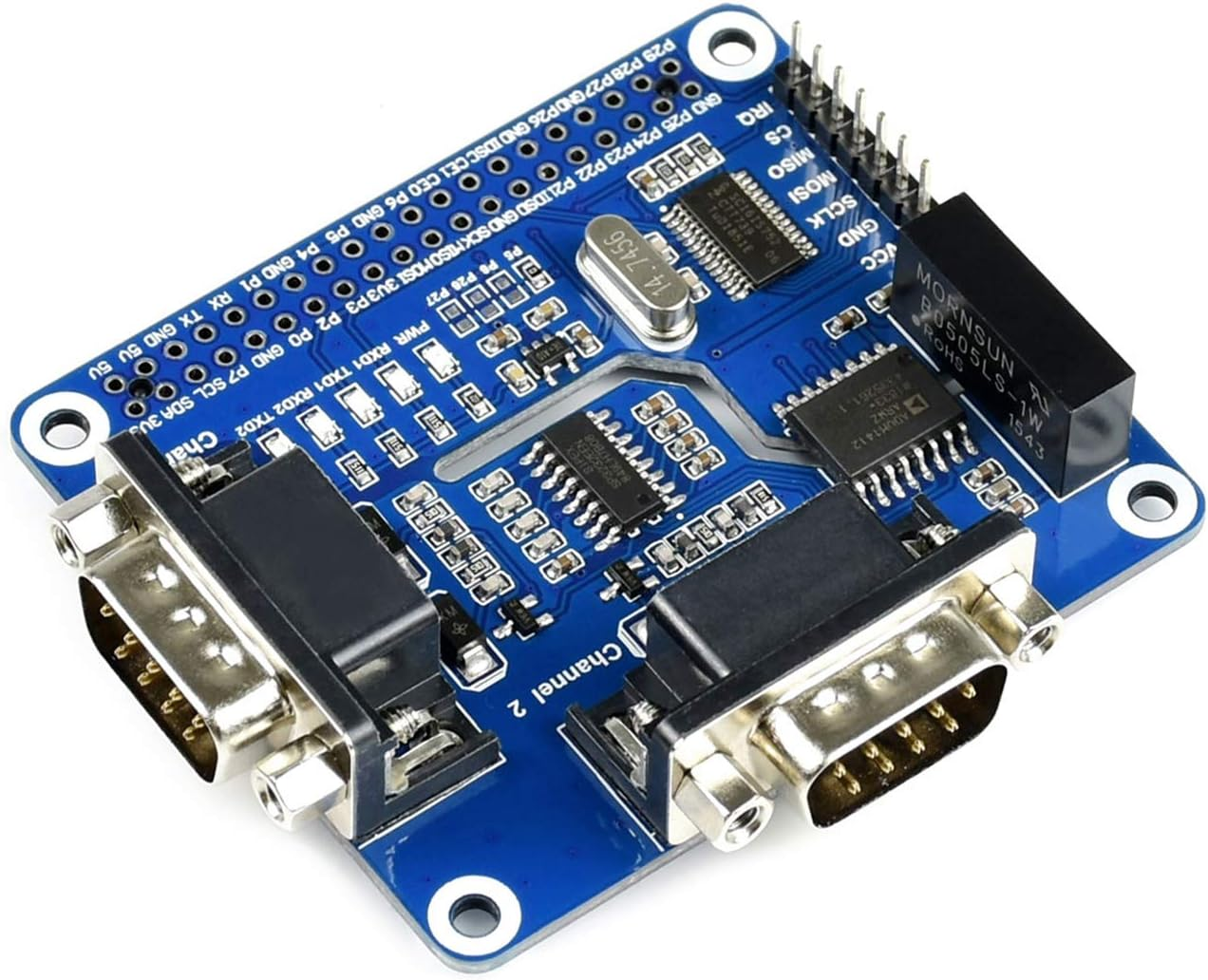

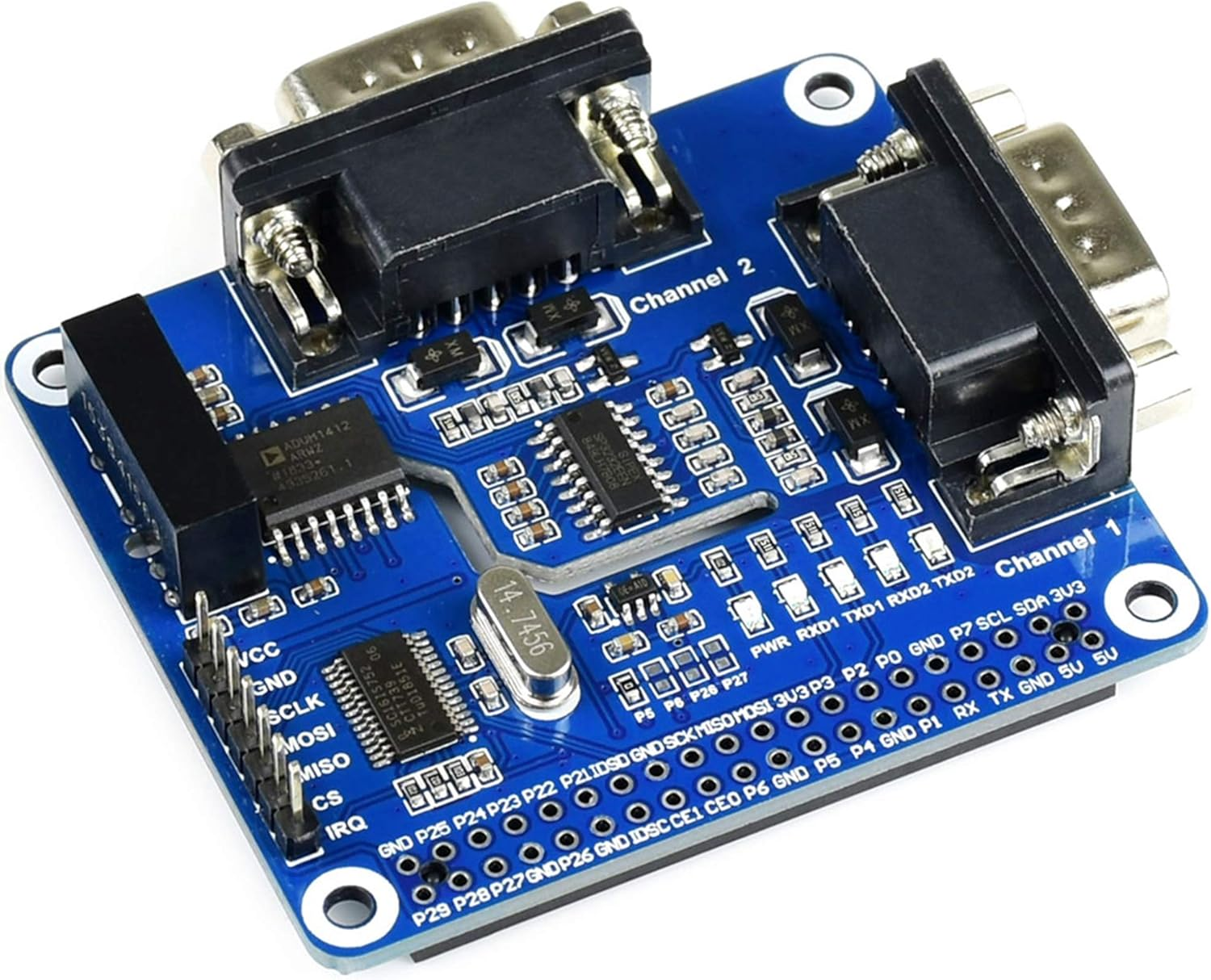

Features
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- Adopts SC16IS752+SP3232 dual chip combination, converts SPI to RS232, data rate up to 921600bps
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic
- Onboard LEDs for indicating the power and transceiver status
- Breakout SPI control pins, for connecting with host control boards like Arduino
- Comes with development resources and manual (examples in C and Python)
- UART expansion chip: SC16IS752
- RS232 transceiver: SP3232
- Communication interface: SPI
- Data rate: 300 ~ 921600 bps
- Operating voltage: 3.3V / 5V

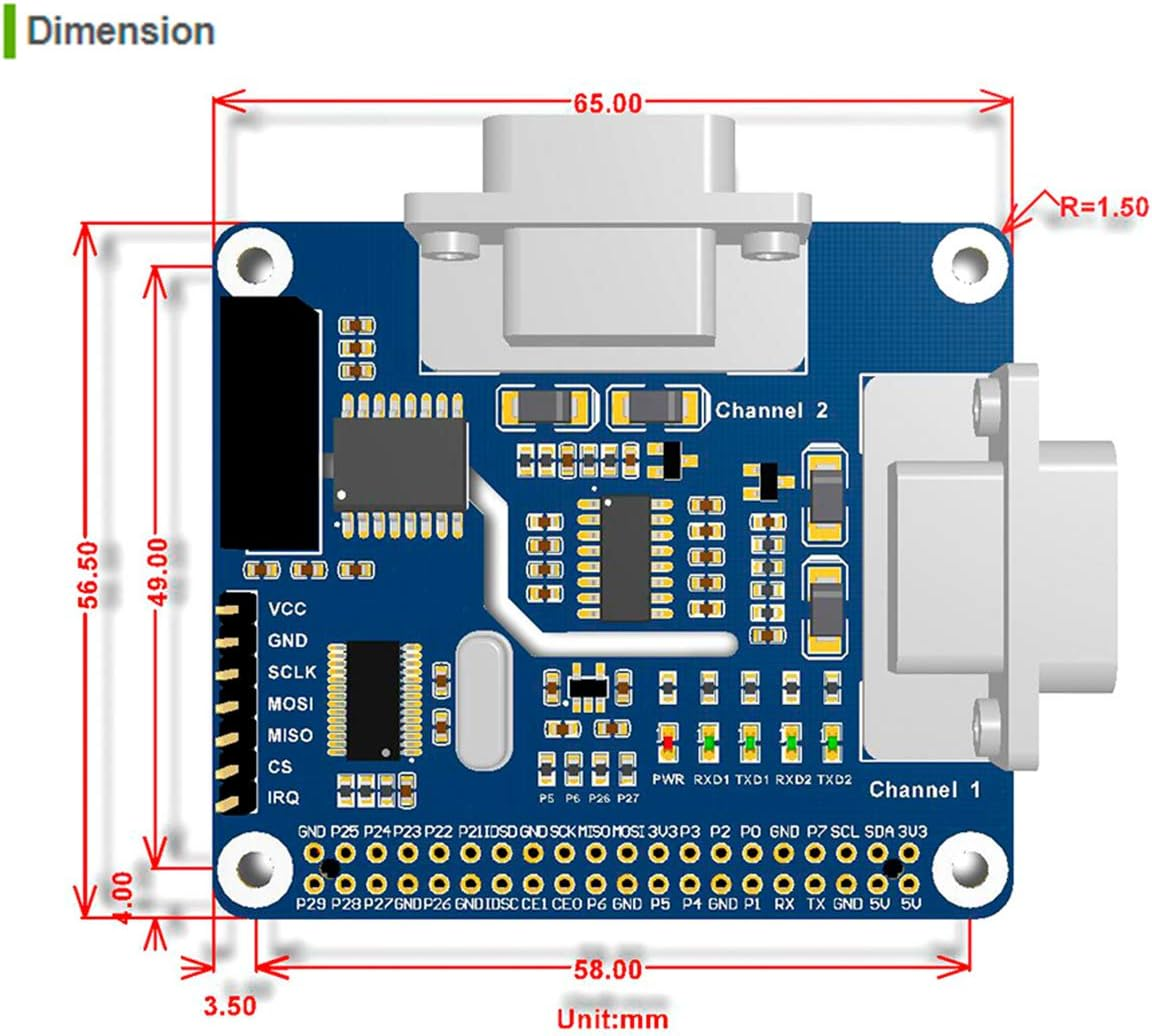

- Dimensions: 65mm × 56.5mm
- Mounting hole size: 3.0mm

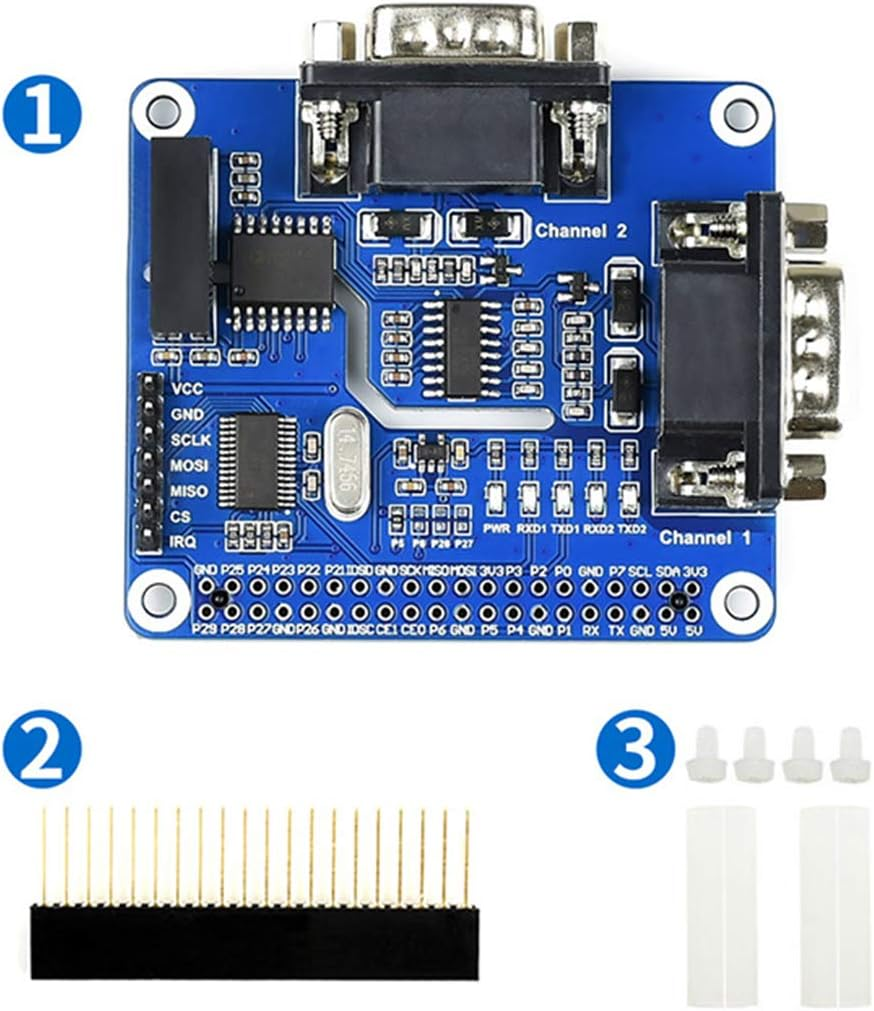

1.2-CH RS232 HAT x1
2.2x20PIN female pinheader x1
3.RPi screws pack (2pcs) x1
Note: this HAT doesn't come with any serial cable, you may also want to pick up the following cables for easy use:
1)Serial Cable Dual Female Crossover: for connecting RS232 devices with male connector, OR for self transceiving test of the HAT's 2 channels RS232
2) Serial Cable Male to Female Straight Through: for connecting RS232 devices with female connector
Note: the Raspberry Pi and serial cables are NOT included.
- Item Model Number: 2-Channel Isolated RS232 HAT-F
- Part Number: 2-Channel Isolated RS232 HAT-F
- Total USB ports: 4
- Operating System: Linux
- Model Name: 2-CH RS232 HAT
- Mounting Hardware: 2-CH RS232 HAT, 2x20PIN female pinheader, RPi screws pack (2pcs)
- Batteries Included: No
- Batteries Required: No
- Brand: Waveshare
- Compatible Devices: Raspberry Pi 4B, Raspberry Pi 3B+, Raspberry Pi 3B, Raspberry Pi 2B, Raspberry Pi B+, Raspberry Pi A+, Raspberry Pi Zero, Raspberry Pi Zero W
- Connector Type: GPIO
- Item Weight: 60 g
- Ram Memory Technology: LPDDR
- Processor Count: 1
- Model: 2-Channel Isolated RS232 HAT-F
- Processor Brand: Broadcom
- Package Dimensions: 12.3 x 4 x 3.2 cm; 60 Grams
- Manufacturer: Waveshare
