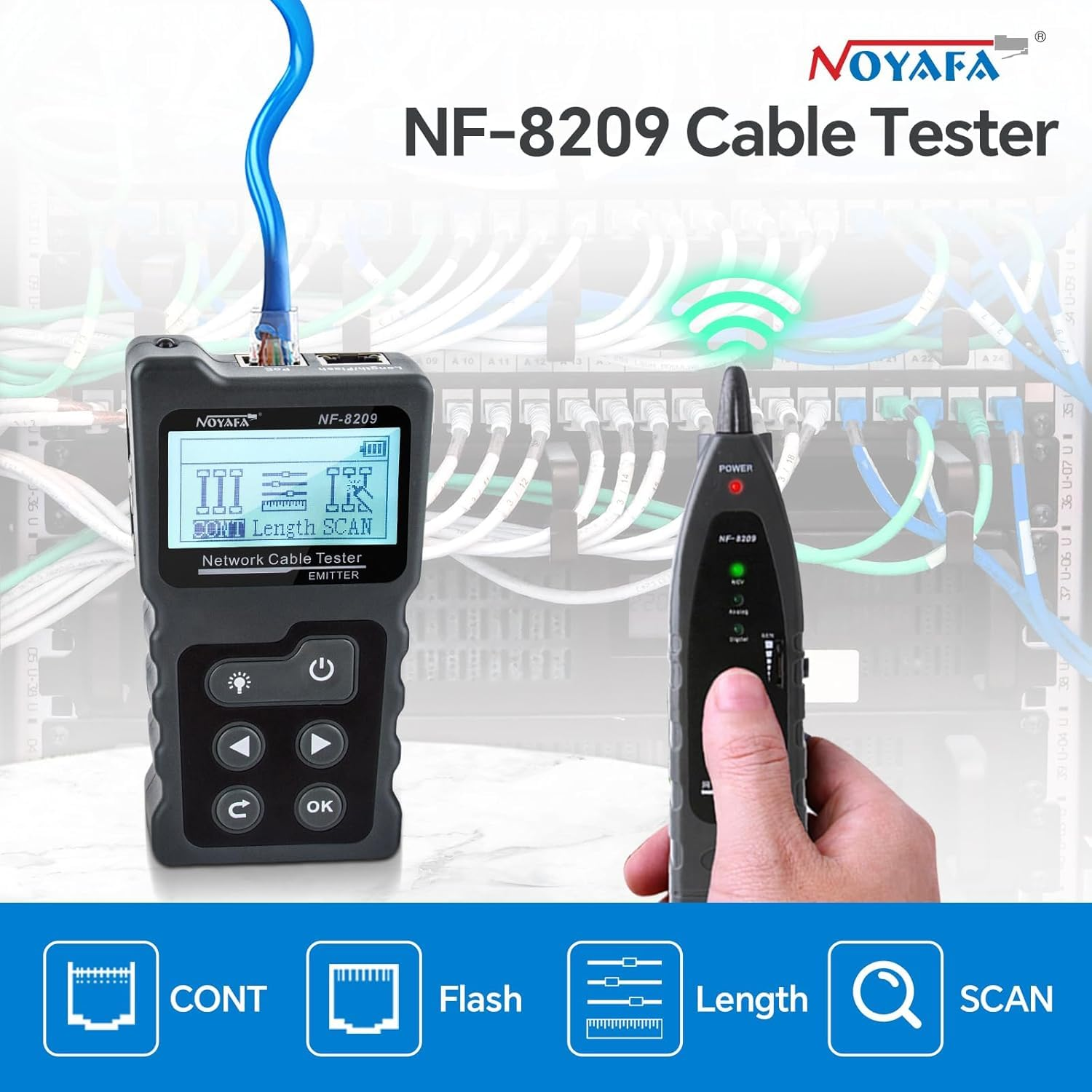

NOYAFA Network Cable Tester for LAN CAT5 CAT6, Ethernet Wire Tracker Network Scan Tool with Poe Testing, Length Test, NCV& Lamp.

NOYAFA Network Cable Tester for LAN CAT5 CAT6, Ethernet Wire Tracker Network Scan Tool with Poe Testing, Length Test, NCV& Lamp.

Brand: NOYAFA
3.9
A$139.80
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

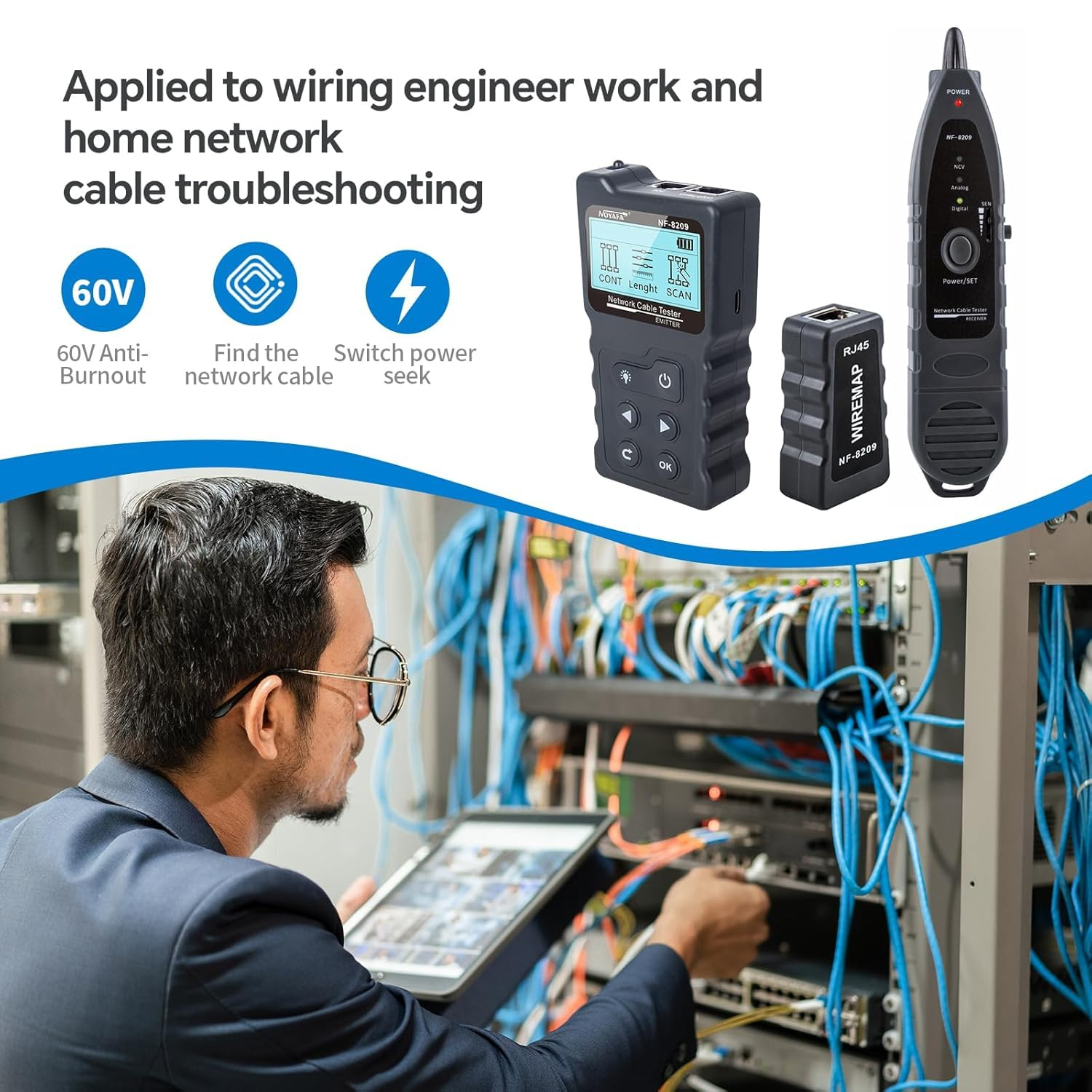

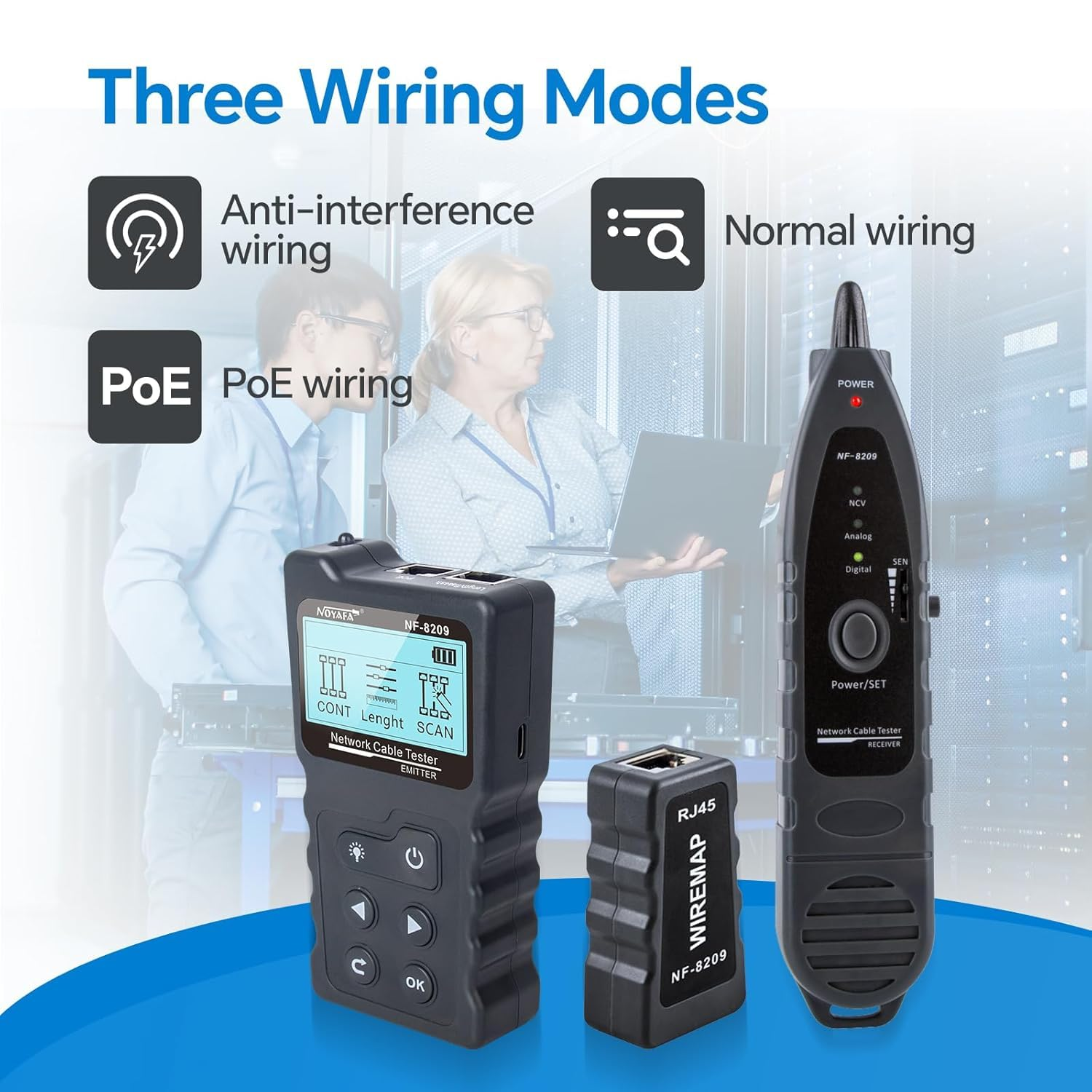

  • 1.NF-8209 is a new generation to offer AC filter and analog signaling all in one network toner and probe. It has three modes for options to track cable like AC filter mode, analog mode and PoE mode.
  • 2.It includes cable length measurement , cable faults testing, PoE testing, hub blink and NCV function, all these makes it a must-tool for cabling engineers.
  • 3.Identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard).Locate network port by the flashing port light on Hub / Switch. Available to 10M/100M Hub/ switch.
  • 4.Measure cable length and locate fault distance accurately for lan cable. the range is 200m.That means it's equipped with the most powerful cable location technologies for any work environment.
  • 5.Test physical status for STP, UTP lan cable. Detect AC voltage presence (50V-1000V).

Product Description

  • Brand Name : NOYAFA
  • racking Type : PoE, RJ45 Cable
  • ther Function : Lighting
  • ain Function : Detecting PoE voltage, current, power, PSE standards Power supply modes, Verify RJ45 cables
  • NF-8209 is a new generation to offer AC filter and analog signaling all in one network toner and probe. It has three modes for options to track cable like AC filter mode, analog mode and PoE mode. That means it’s equipped with the most powerful cable location technologies for any work environment. Also, it includes cable length measurement , cable faults testing, PoE testing, hub blink and NCV function, all these makes it a must-tool for cabling engineers.

CONT-Test open, short, cross,ect for STP, UTP cable Connect one end of cable to “CONT" port of tranmistter onthe left side, the other end to the RJ45 port of remote,Press “OK” to start testing

Cable length testing accuracy can be up to 98% and 200 m

Kind reminds when measuring cable length 1. the lan cable to be tested must be de-energized 2.disconnect the cable at the far end, no remoteno other devices connected! 3.The range must be 2.5m~500m, otherwiseit would be display 0 meter.

It can test the information of standard PoE device, such as POE voltage, power supply polarity, power supply mode and also the type of PSE(af or at standard).

Connect cable to “Length/Flash" port on the transmitter, then choose “ Flash" function on the main menu to start testing,the port on the router (or switch)and the indicator on the“Length / Flash” port will flash.

Accurate electricity measurement, safer to use

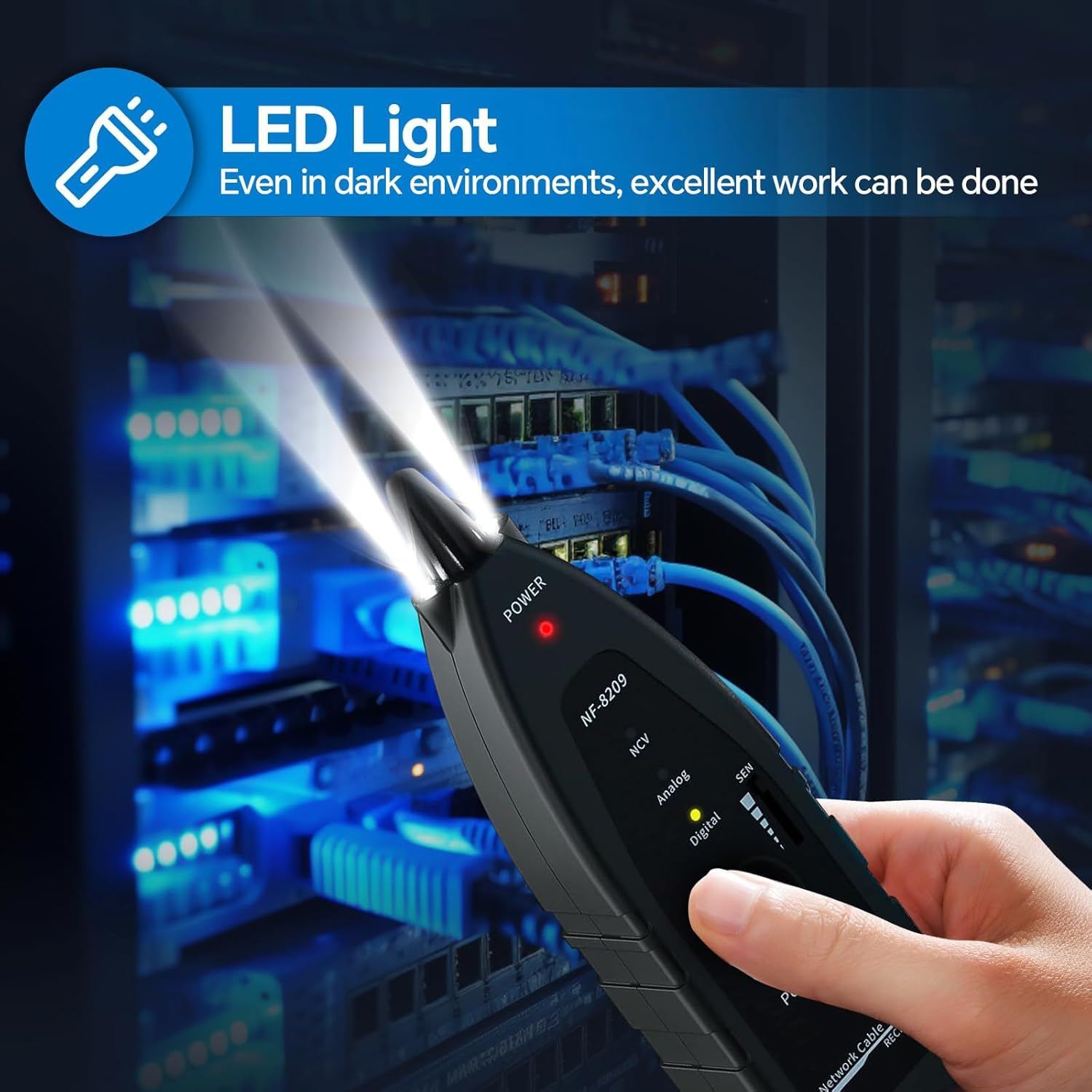

EMITTER RECEIVER All have lighting function. can solve the trouble of dark work

Connect the cable to be tested to “SCAN” port of tranmistteron the left side, enter“SCAN” on the main menu, press ok to choose scan mode you prefer.

Only if a cable exsits short circuit, no matter it exsits cross.breakage or not,the testing result will only display “Short”information.lf it doesn't exsit short circuit, then it woulddisplay what actually it is.

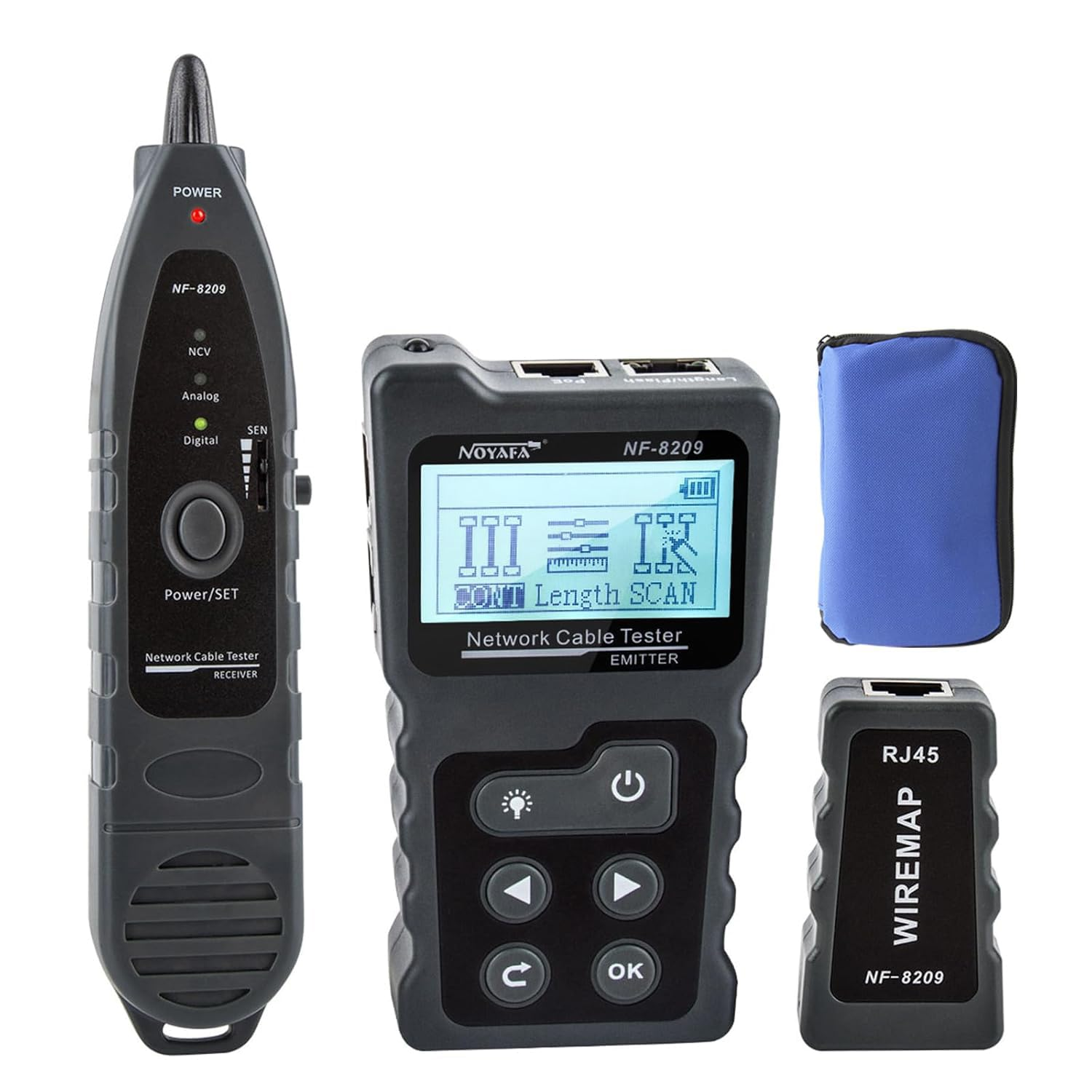

Transmitter

Length/Cable type CAT5、CAT6 (STP & UTP)
Length/Test range 2~200m
Length/Accuracy ±1.6m
Length/Breakage location Yes
Scan/Max. signal voltage 8Vp-p
Scan/Frequency 130KHz
Scan/Max range 600m
POE/Test range DC 5~60V standard / non-standard PoE switch
POE/Voltage display Yes
POE/PSE type IEE​E 802.3af/at
LCD display 128*64 Dot-matrix with backlight
Power supply AAA*3
Low battary warning 3.7V
Auto-off time 15min、30min、60min、OFF
Voltage protection DC48V 5mA
Max working current <150mA

Receiver

Sentivity adjustable Yes
AC Voltage detecting Yes
Lamp Yes
Battary type 9V*1
Low battary warning 6± 0.5V
Max working current <100mA
Remote/Wiremap Port RJ45
Remote/Voltage protection DC48V 5mA
  • Item Weight: 420 g
  • Item Model Number: NF-8209
  • Product dimensions: 12.7 x 8.89 x 22.86 cm; 420 Grams
  • Batteries: 1 Lithium Metal batteries required.
  • Manufacturer: NOYAFA
