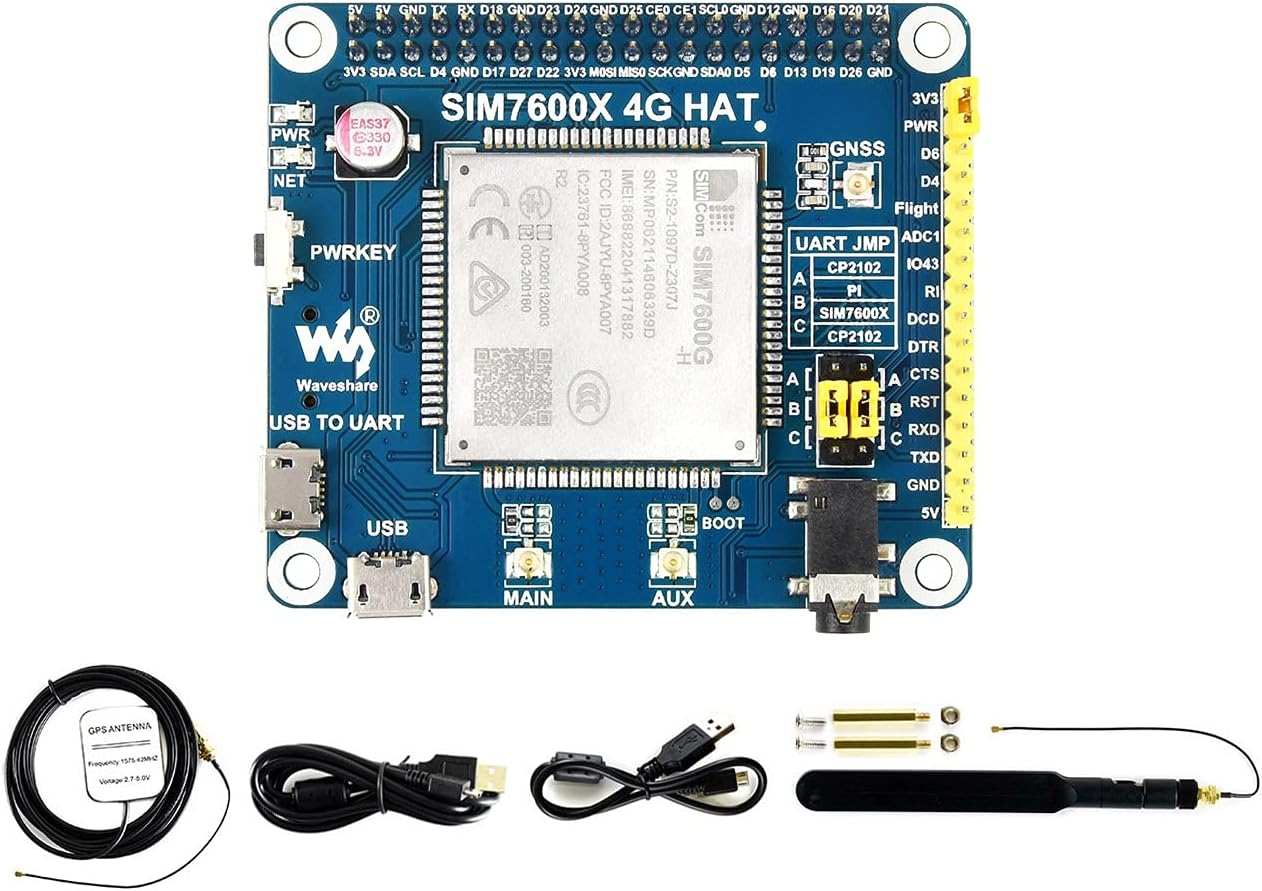

Waveshare 4G/3G/2G/GSM/GPRS/GNSS HAT

Waveshare 4G/3G/2G/GSM/GPRS/GNSS HAT

Brand: Waveshare
5.0
A$146.85
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

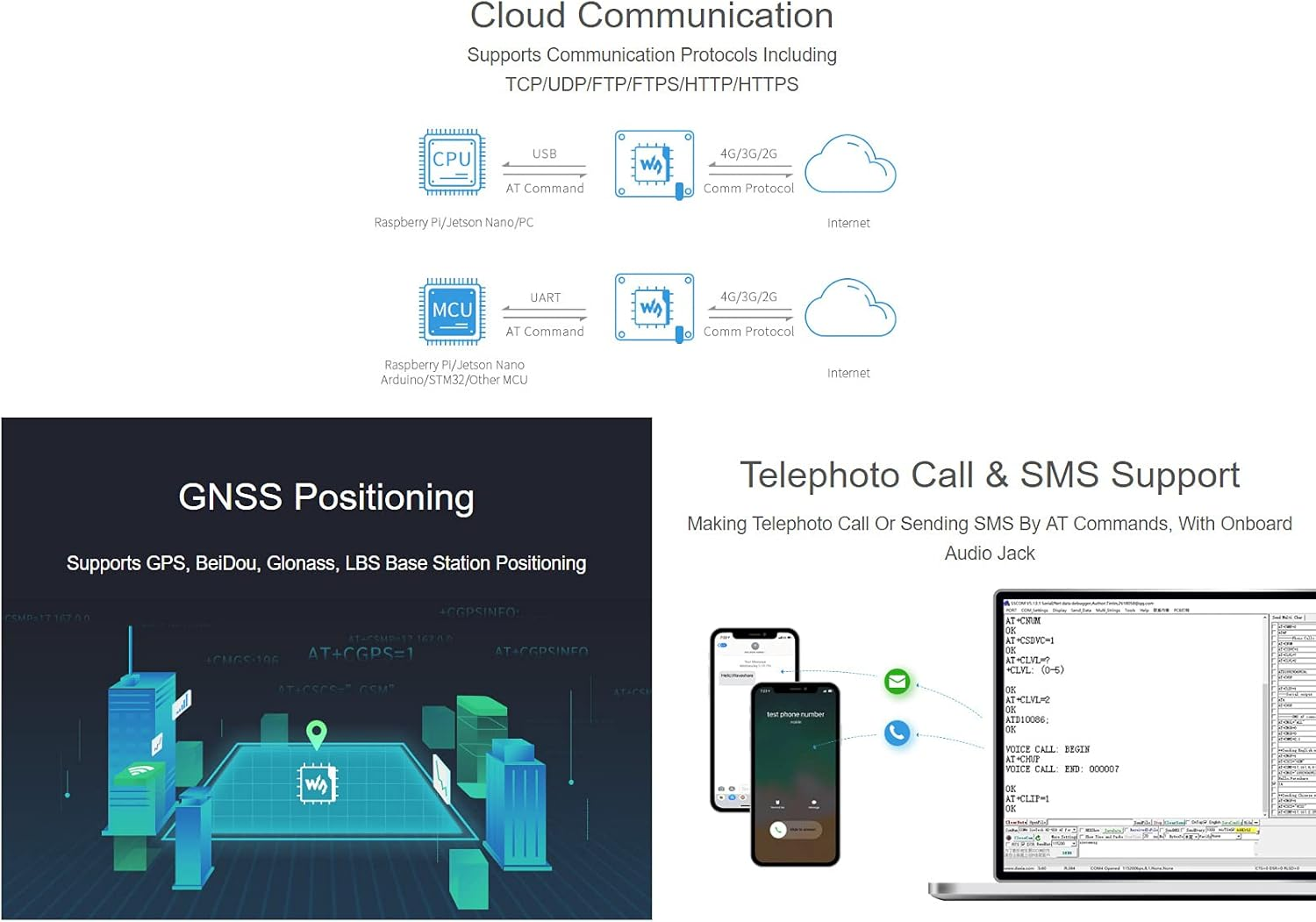

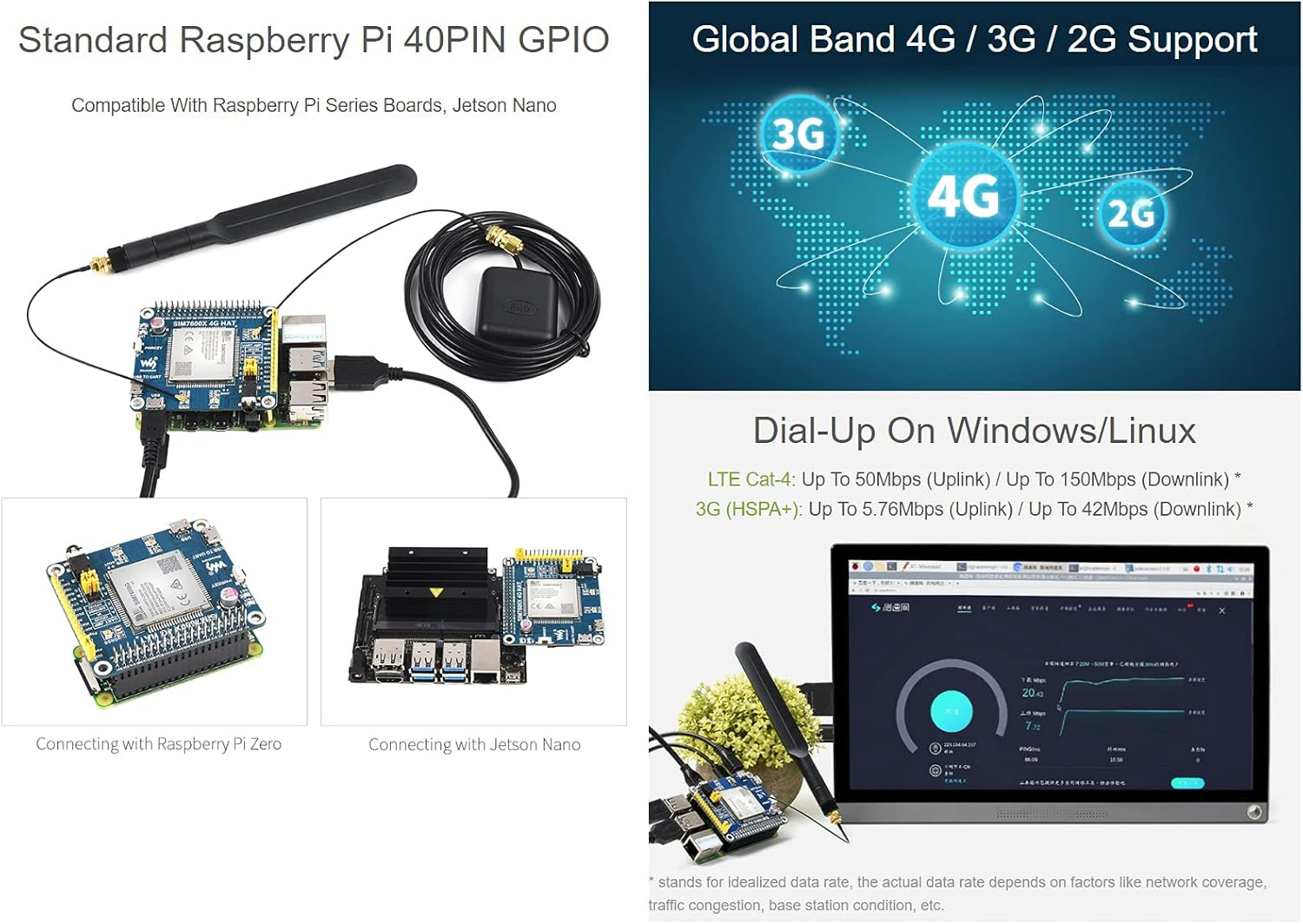

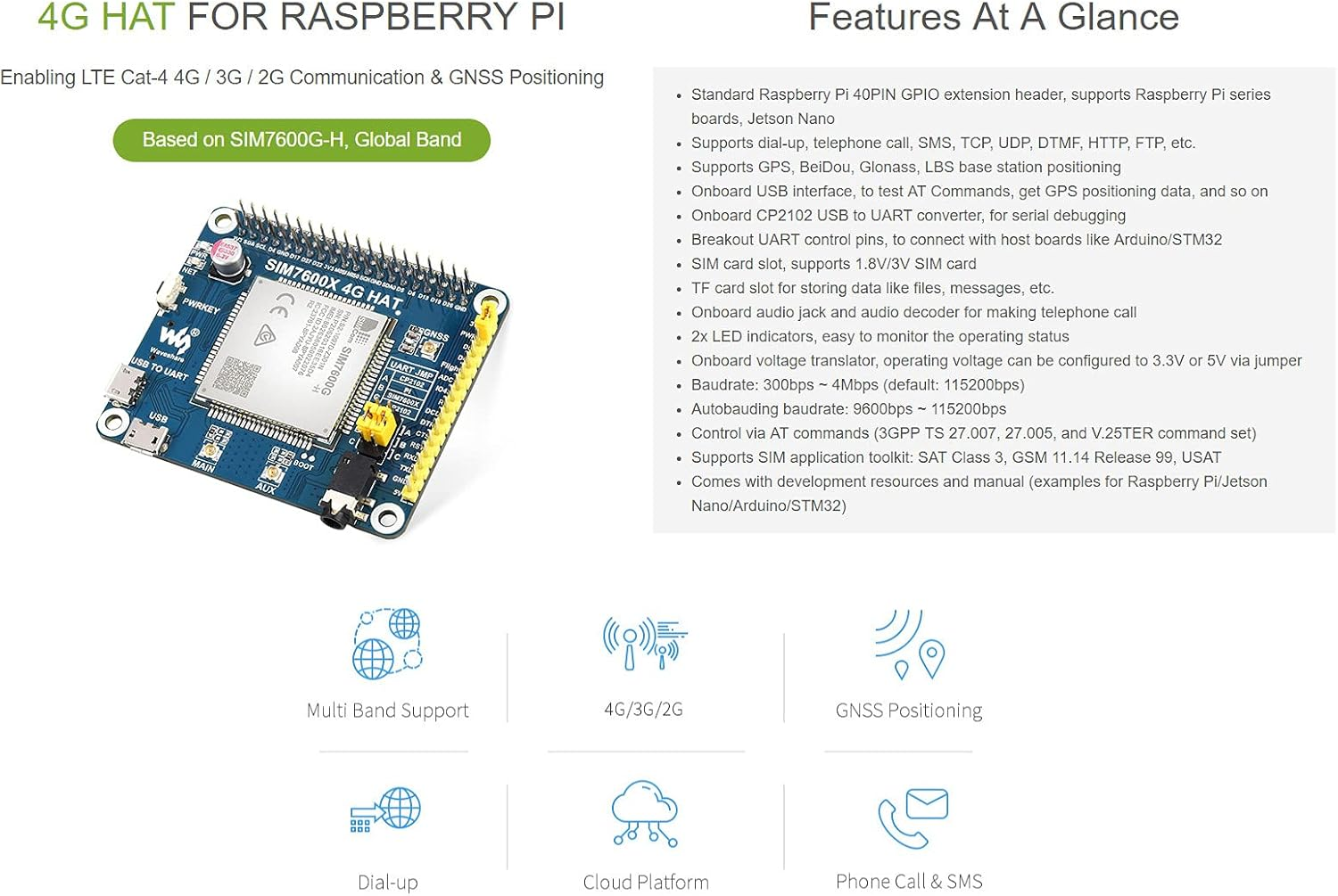

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc. Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning

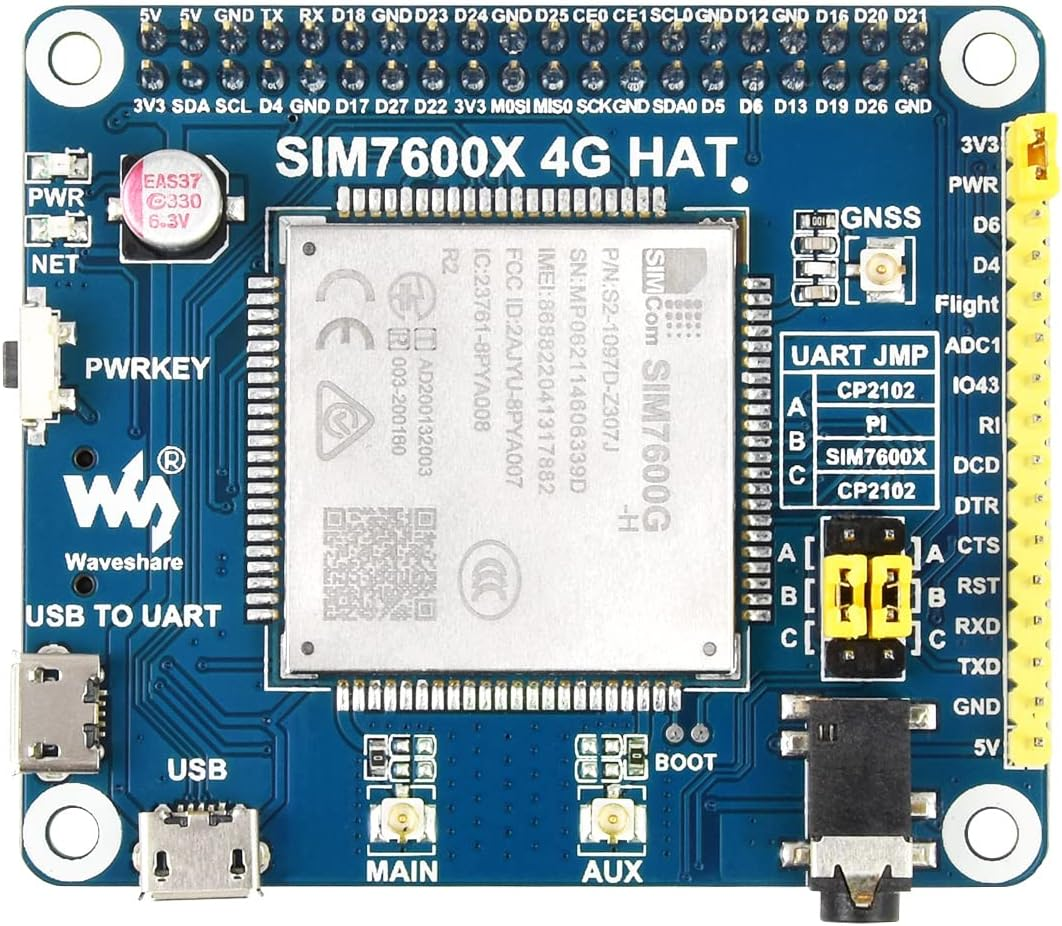

  • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on Onboard CP2102 USB to UART converter, for serial debugging Breakout UART control pins, to connect with host boards like Arduino/STM32
  • SIM card slot, supports 1.8V/3V SIM card TF card slot for storing data like files, messages, etc. Onboard audio jack and audio decoder for making telephone call
  • 2x LED indicators, easy to monitor the operating status Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper Baudrate: 300bps ~ 4Mbps (default: 115200bps)
  • Autobauding baudrate: 9600bps ~ 115200bps Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)

SIM7600G-H 4G HAT

  • Item Model Number: SIM7600G-H 4G HAT
  • Part Number: SIM7600G-H 4G HAT
  • Operating System: Raspberry Pi OS
  • Country/Region of origin: China
  • Batteries Included: No
  • Batteries Required: No
  • Memory Storage Capacity: 1 TB
  • Brand: Waveshare
  • Ram Memory Installed Size: 4 GB
  • Connector Type: GPIO, USB
  • Wireless Type: 802.11b
  • Item Weight: 10 g
  • Human interface input: Dial
  • Ram Memory Technology: DDR4
  • Processor Count: 1
  • Model: SIM7600G-H 4G HAT
  • Hardware Interface: USB
  • Processor Brand: VIA
  • Package Dimensions: 15.8 x 10.6 x 4.9 cm; 10 Grams
  • Manufacturer: Waveshare
