Product description
Specifications:
Product Name: Automatic Shut-Off Valve
Material: Food Grade POM
Size:76x43mm/2.99x1.69Inch
Interface Specification: 6.4mm/ 1/4Inch
Weight: 61.9 g
Color: White
Quantity:1 PC
Features:
Card-free design.
Double gasket design.
Design of extraneous extension and internal support structure.
Deep insertion design.
Multi - jaw, jaw one - time molding design.

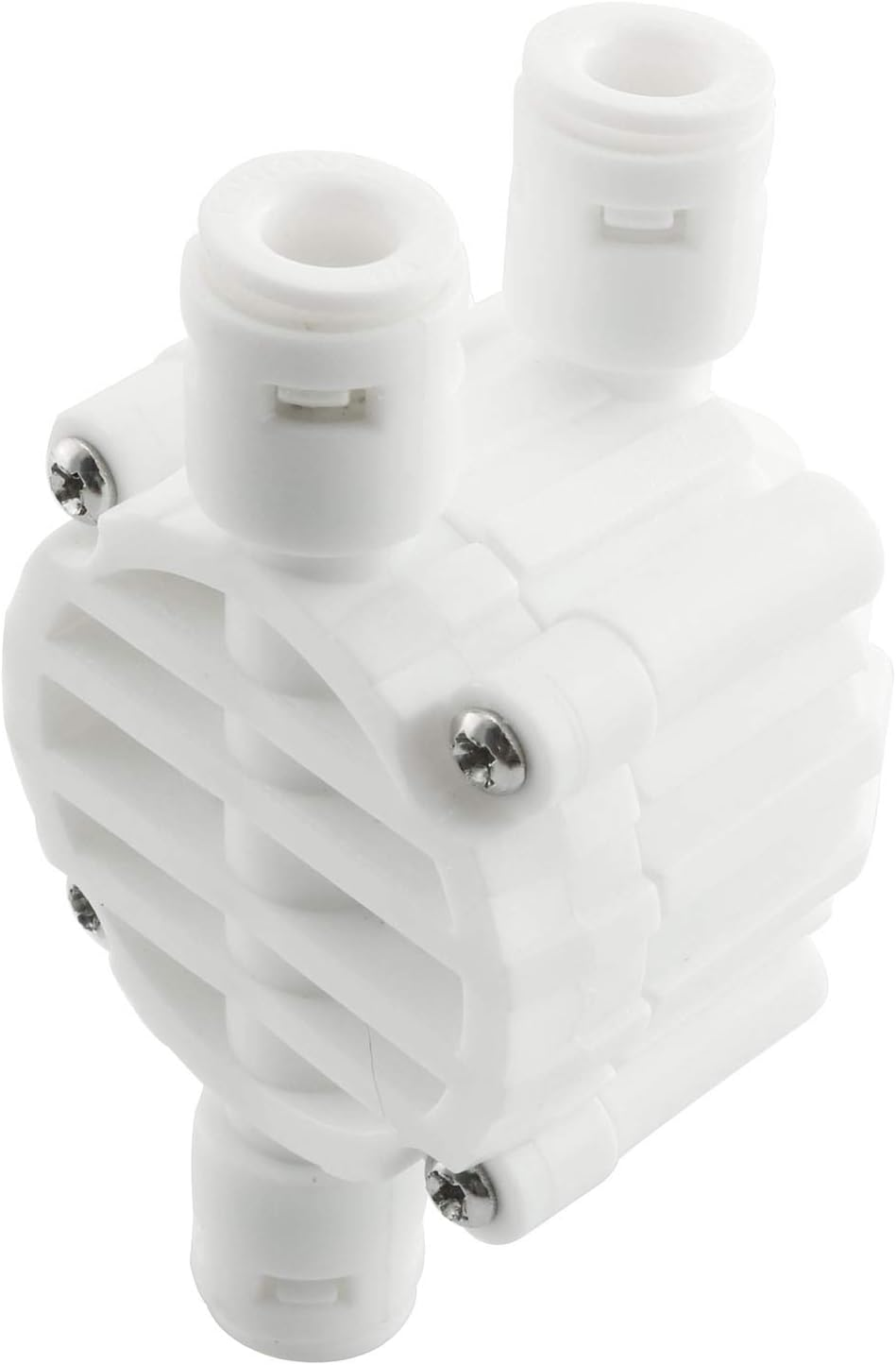

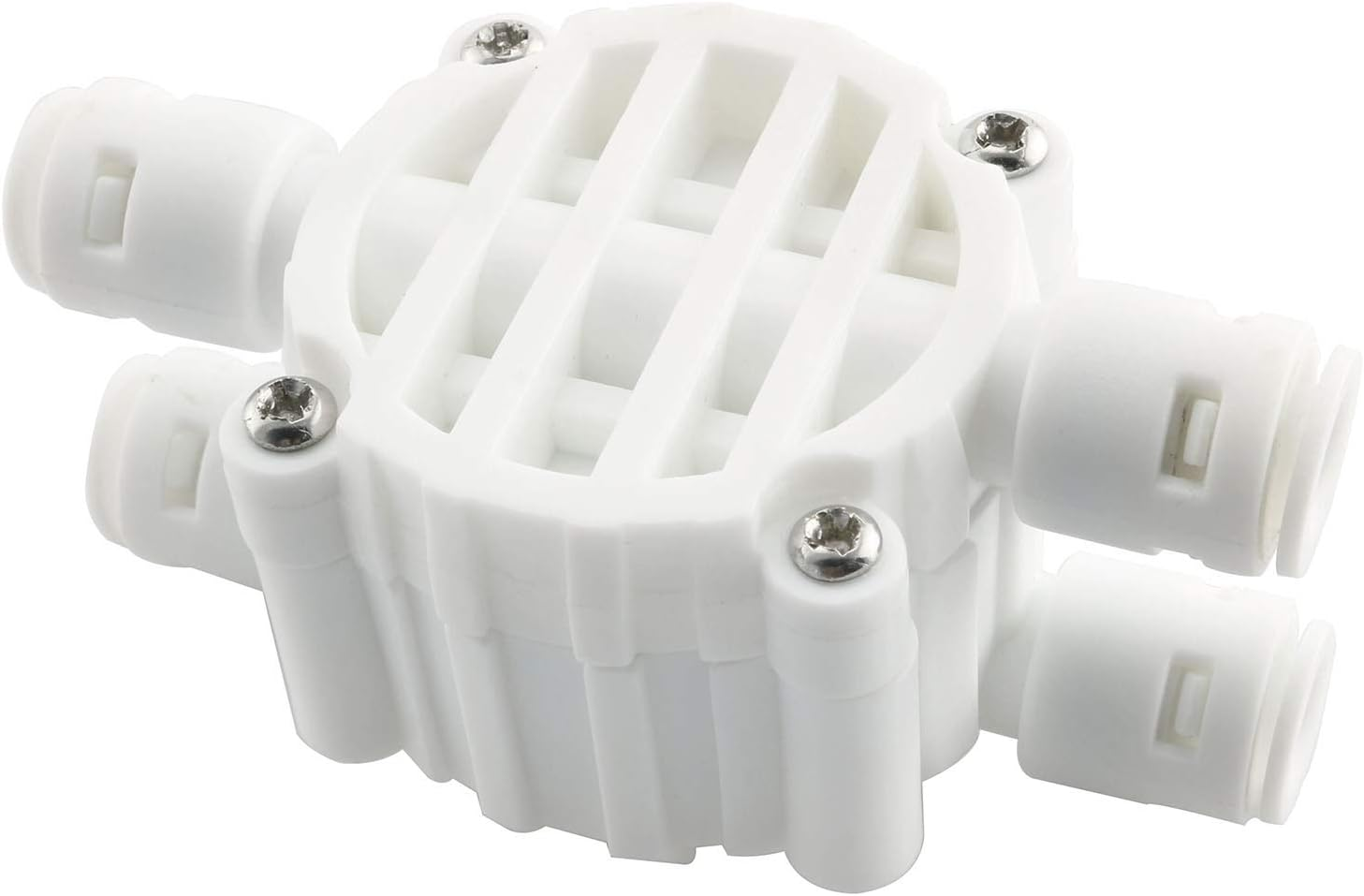

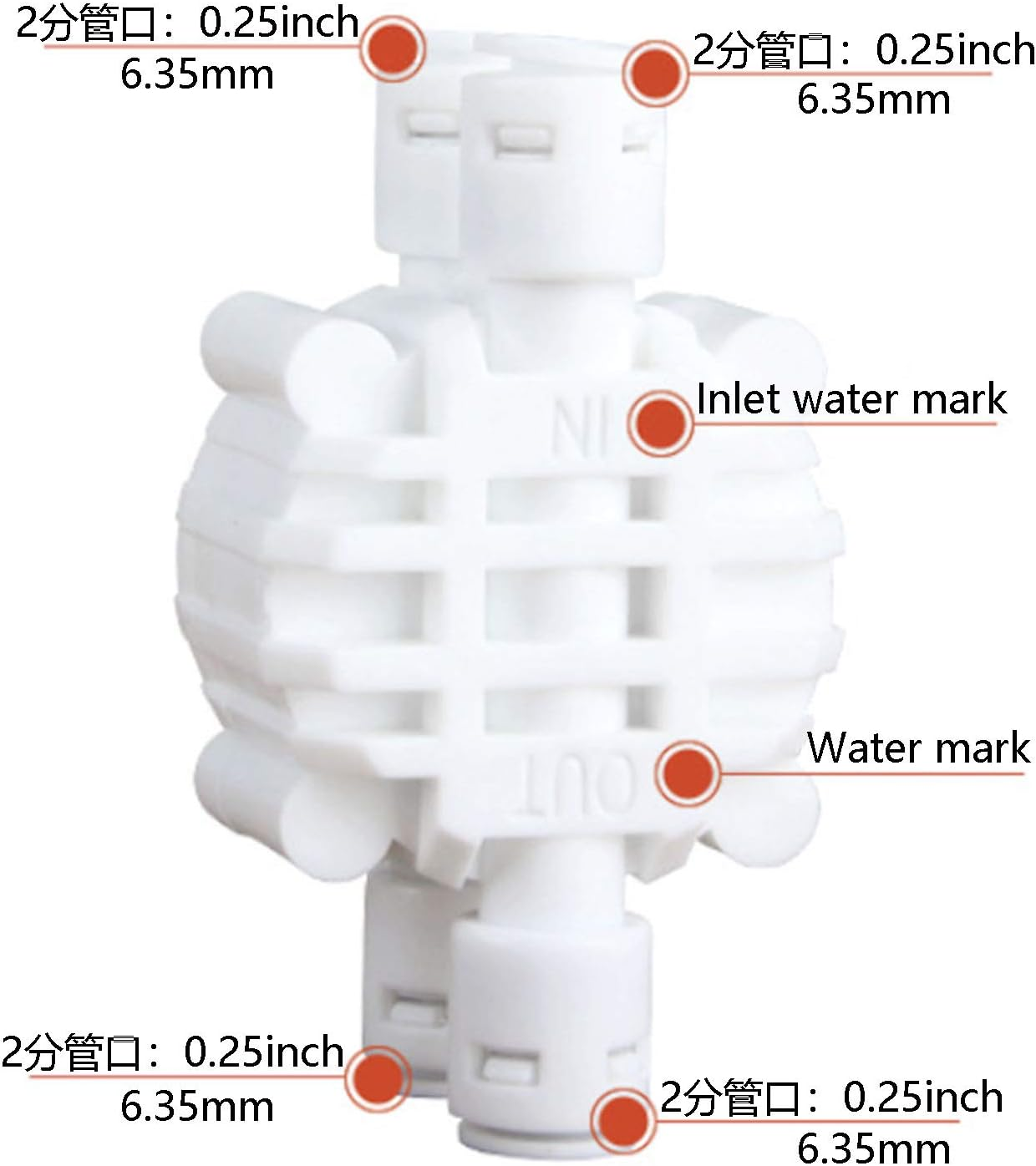

Automatic Shut-off Valve with Quick Connection. This a replacement part for a standard Reverse Osmosis (RO) System. All tube connections are 1/4" with "in" and "out" labeled on the top.
Installation method:
1. Cut flat PE pipe with a pipe cutter.
2. PE pipe is inserted to the end when it is inserted into 15mm. Calibration can be done in the corresponding position of the pipe to check whether it is inserted to the end.
3. There is no card design in the joint, so it can be installed and inserted directly. Press and hold the clasp to remove it easily.
