Power Circuit Probe Kit, Autel Powerscan PS100 Electrical System Circuit Tester Auto Diagnostics Tool for 12V/24V Car Test Light and Voltmeter
Power Circuit Probe Kit, Autel Powerscan PS100 Electrical System Circuit Tester Auto Diagnostics Tool for 12V/24V Car Test Light and Voltmeter
Brand: Autel
A$183.75

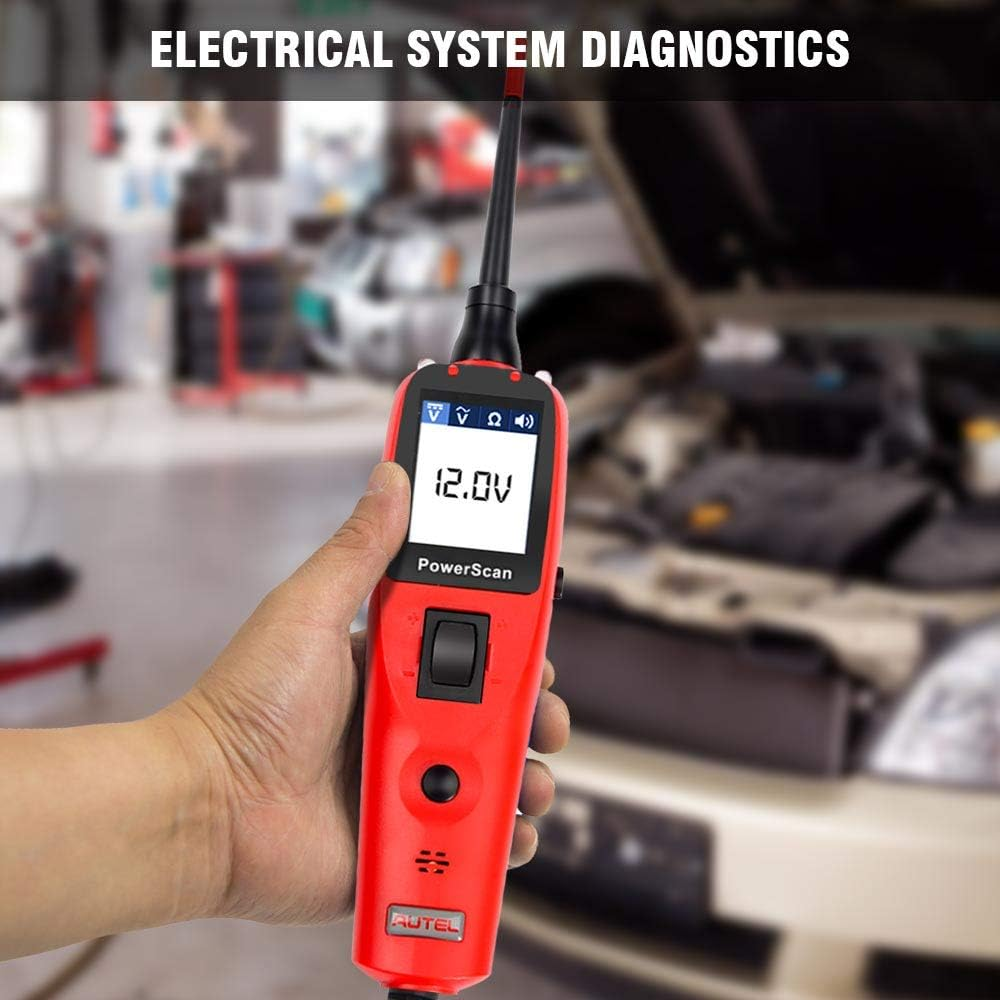

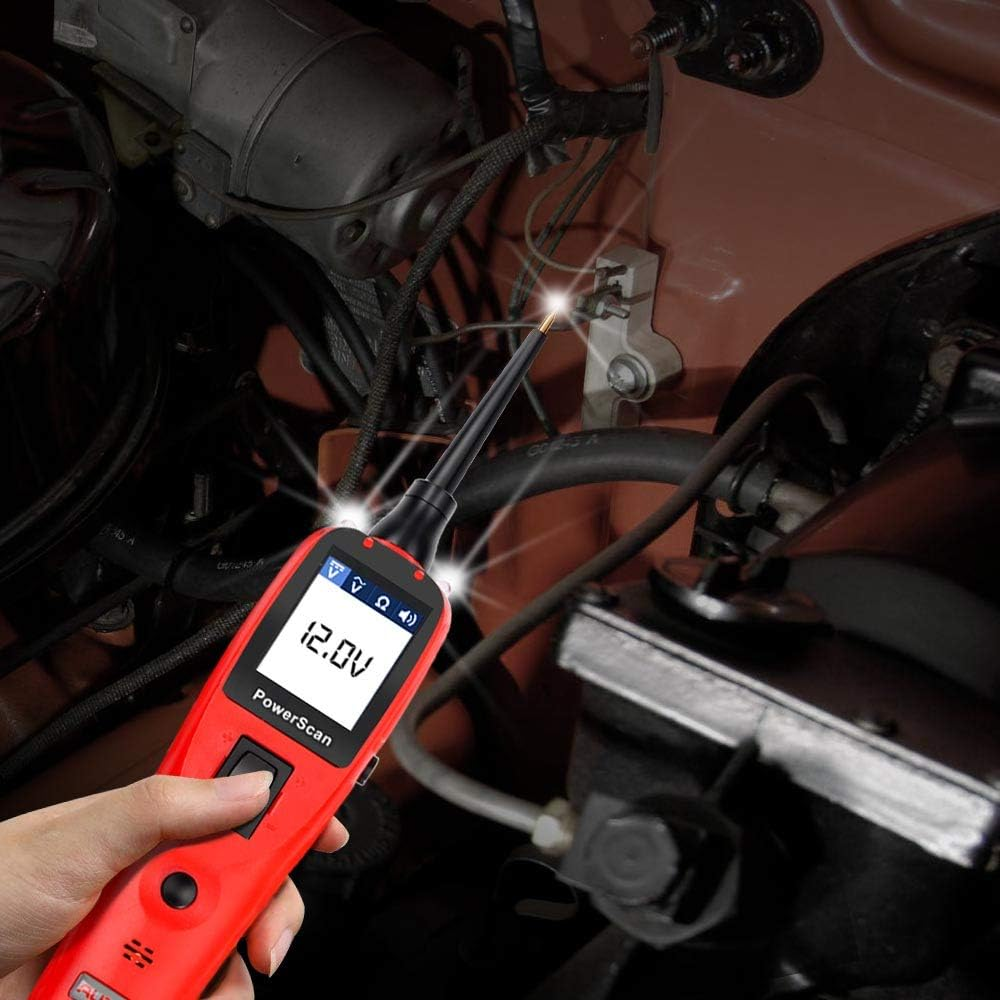

- ★ Autel PowerScan PS100 is the best electrical tester for Reducing Diagnostic Time in All 6-30Volt vehicle electrical systems. It’s the most revolutionary circuit tester to date. Allowing users to check circuitry in One Single Step. An absolute must for every technician looking for a fast and accurate solution to electrical system diagnostics.

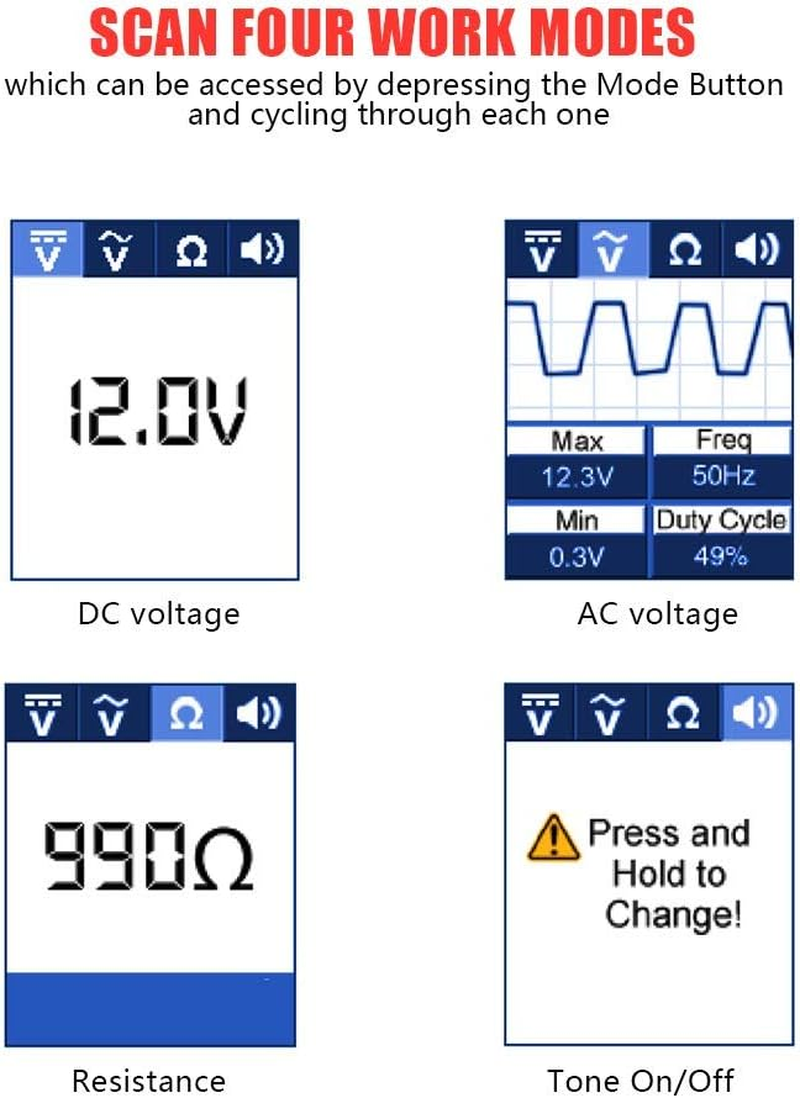

- ★ Easy to read AVOmeter allows you to read voltage, current and resistance at the fingertip. Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation.
- ★ It can Follow and Locate short circuits without wasting fuses. The tool's Long cable allows you to test along the entire length of the vehicle without constantly searching for suitable vehicle grounds. 20ft (extendable) cable provides excellent accessibility to test along the vehicle.
- ★ Test for poor ground contacts instantly without performing voltage drop tests. The tool is also short-circuit protected; its internal circuit breaker will trip if it becomes overloaded. Test for continuity with its built-in auxiliary ground lead.
- ★ It can Determine at a glance if a circuit is positive, negative, or open without having to reconnect clips from one battery pole to another. By depressing the power switch, conduct a positive or negative battery current to the probe tip for testing the function of an electrical component without the use of jumper wires.
Features:
★ Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation.
★ Easy to read AVOmeter allows you to read voltage, current and resistance at the fingertip.
★ With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc.
★ Simultaneously uses the hot lead and the ground lead to activate components right in your hand.
★ Instantly identifies positive, negative and open circuits.
★ Tests for bad ground contacts instantly, allowing you to follow and locate shorts fast without wasting fuses.
★ Instantly checks continuity of switches, relays and diodes.
★ Circuit breaker protected.
★ Built-in Flashlight enables you to work in the dark.
★ Audio tone indicator allows for no-look menu scrolling once users are familiar with menu tone assignment.
★ 20ft (extendable) cable provides excellent accessibility to test.
★ Extremely easy to use and highly reliable.
Specifications:
Display: TFT color display (160 x 128 dpi)
Operating Temperature: 0 to 60°C (32 to 140°F)
External Power:12.0 or 24.0 V power provided via vehicle battery

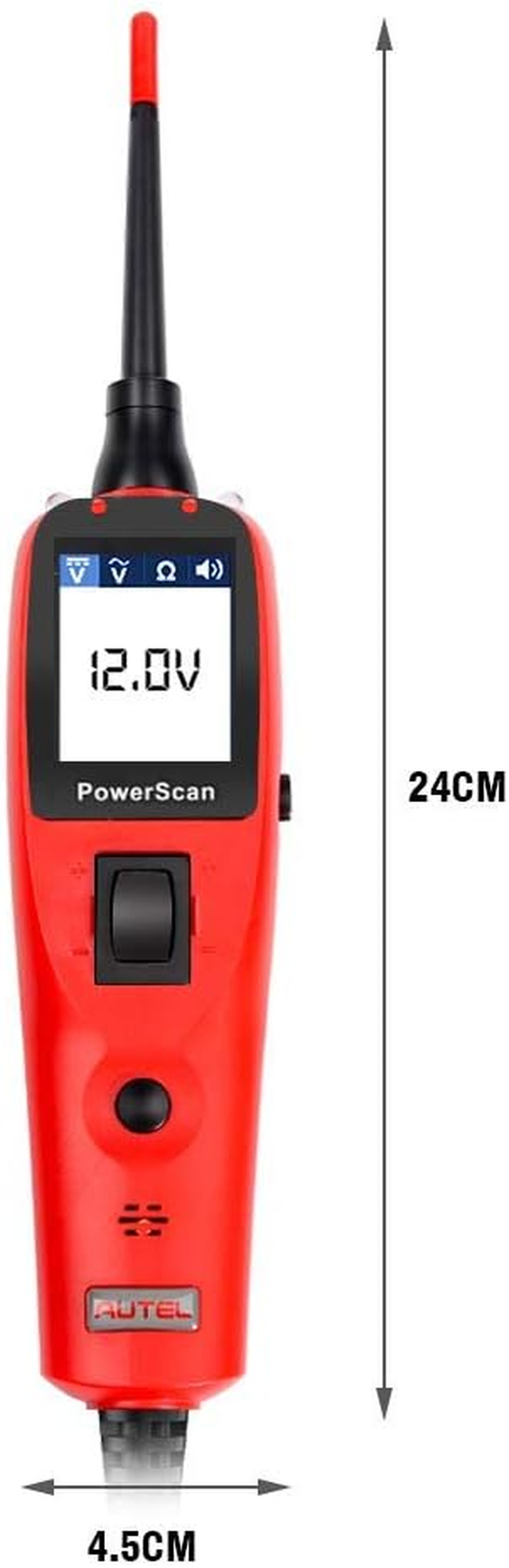

Length\Width\Height: 126mm(4.96")\46.5mm(1.83")\35mm(1.38")
NW: 0.105kg (0.23lb),GW: 0.726 kg(1.6lb)

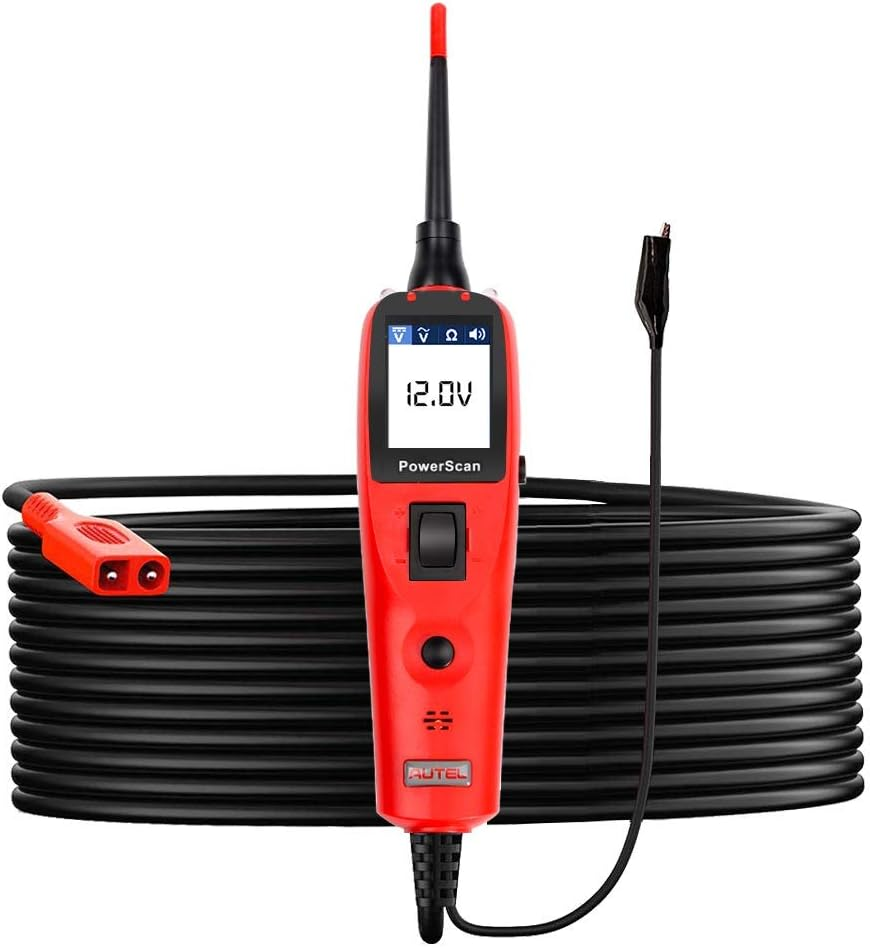

Package including:
1 × PowerScan PS100
1 × Rugged blow molded case
1 × 20ft. extension cable
1 × Probe tip
1 × Battery hookup clips
1 × Cigarette lighter adapter
1 × User's Manual
- Item Package Quantity: 1
- Style: Modern
- Display Style: TFT color display (160 x 128 dpi)
- Material: ABS
- Batteries Required?: No
- Item Weight: 105 g
- Batteries Included?: No
- Package Dimensions: 25.3 x 19.1 x 9.6 cm; 105 Grams
- Manufacturer: SHGROUP
