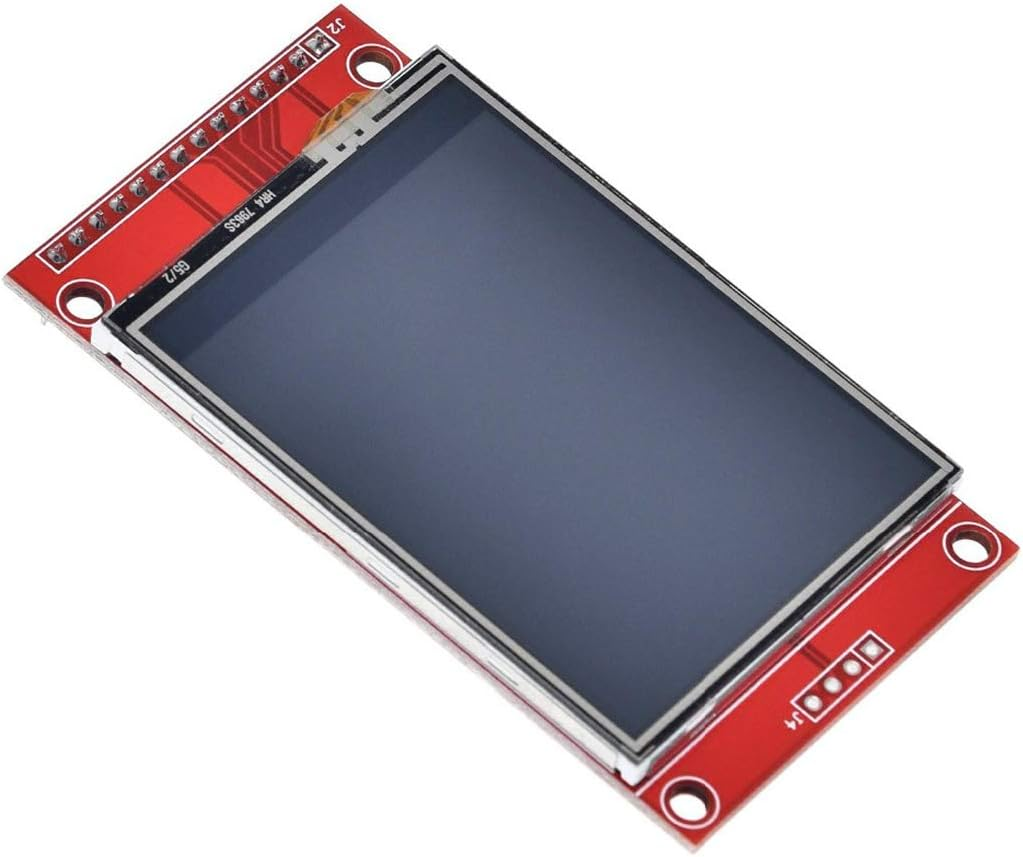

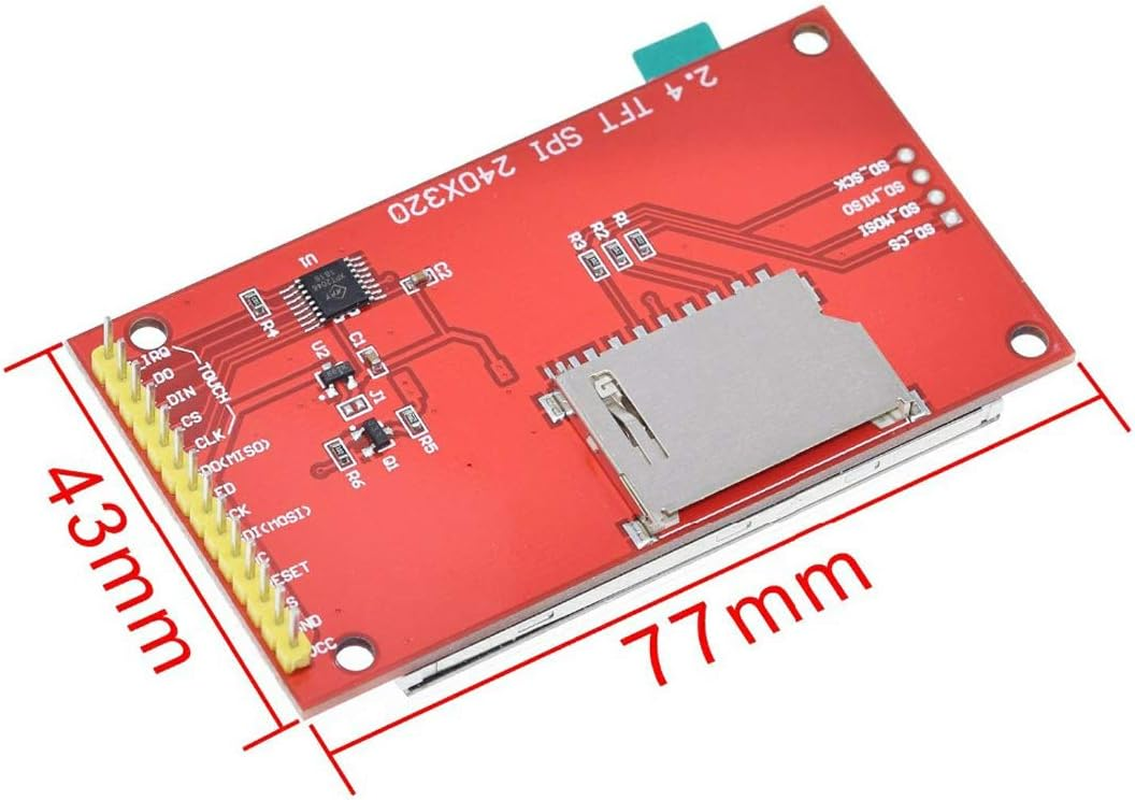

Hiletgo 2.4" SPI TFT LCD Display 2.4 Inch ILI9341 Touch Panel LCD ILI9341 240X320 5V 3.3V
Hiletgo 2.4" SPI TFT LCD Display 2.4 Inch ILI9341 Touch Panel LCD ILI9341 240X320 5V 3.3V
Brand: HiLetgo
A$38.50
- Type: without touch panel
- Size:2.4" SPI Serial

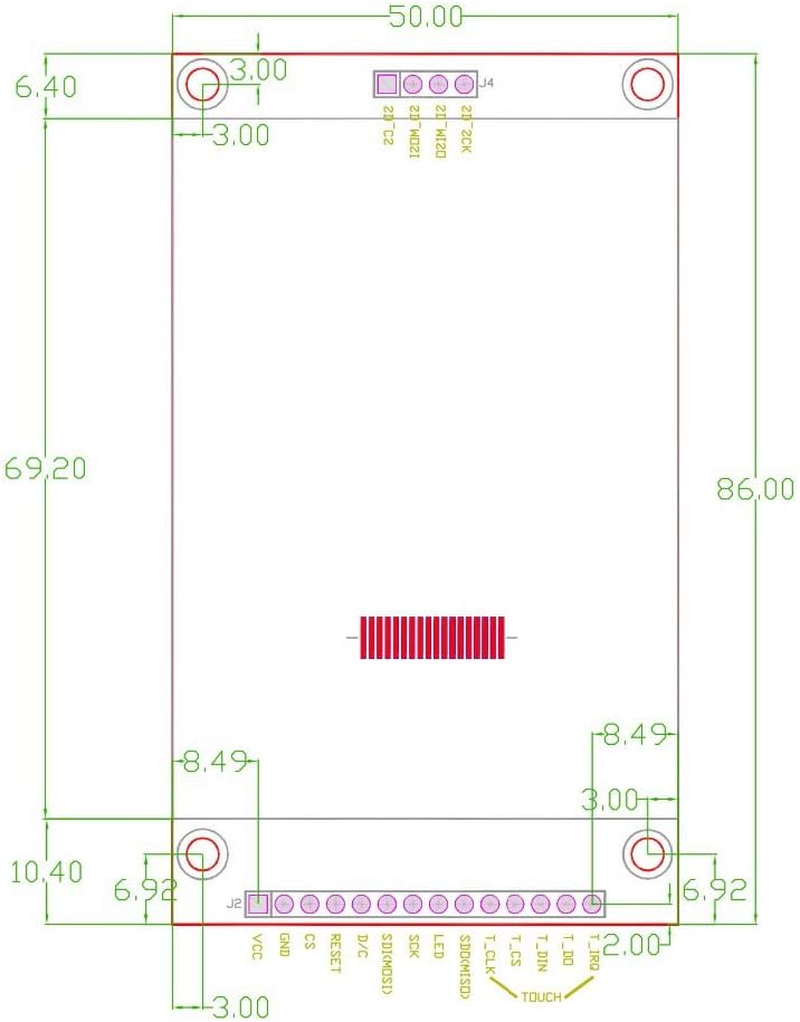

- Display area:36.72(W)X48.96(H)mm
- Driver element: a-Si TFT active matrix
- Driver IC: ILI9341
HiLetgo 2.4" SPI TFT LCD Display 2.4 Inch ILI9341 Touch Panel LCD ILI9341 240x320 5V 3.3V
Description:

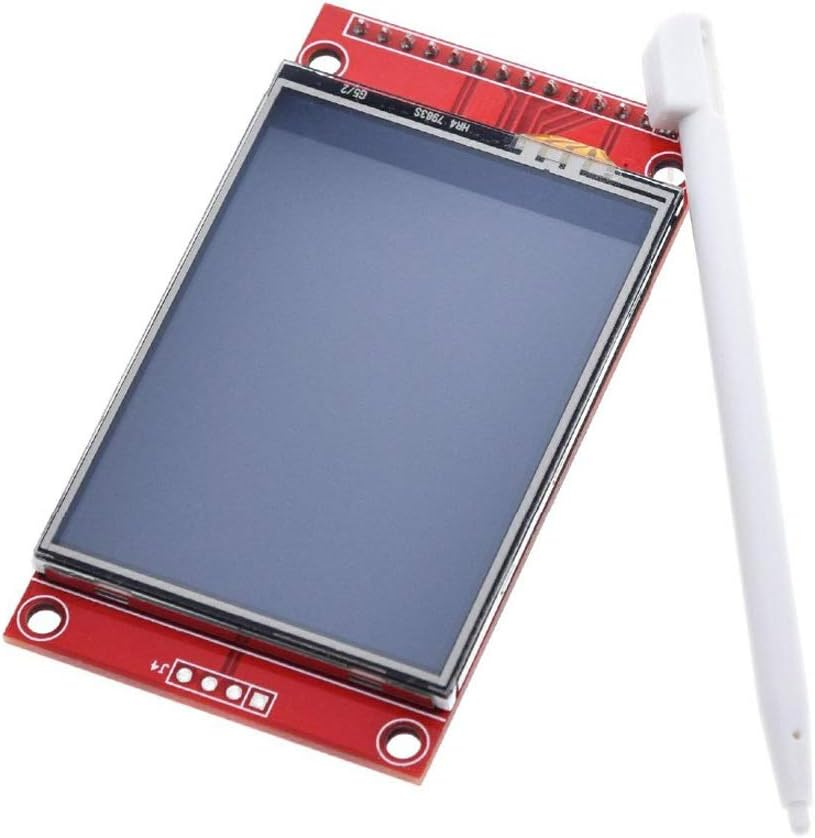

Type: touch panel
Size:2.4" SPI Serial
Display area:36.72(W)X48.96(H)mm
Driver element: a-Si TFT active matrix
Pixel arrangement: RGB vertical stripe
Driver IC: ILI9341
Backlight: White LED
Viewing Direction: 6 o`clock
Color Depth: 262K/65K
Resolution (dots): 240RGB*320Dots
5V compatible, use with 3.3V or 5V logic
Need at least 4 IOs from your MCU

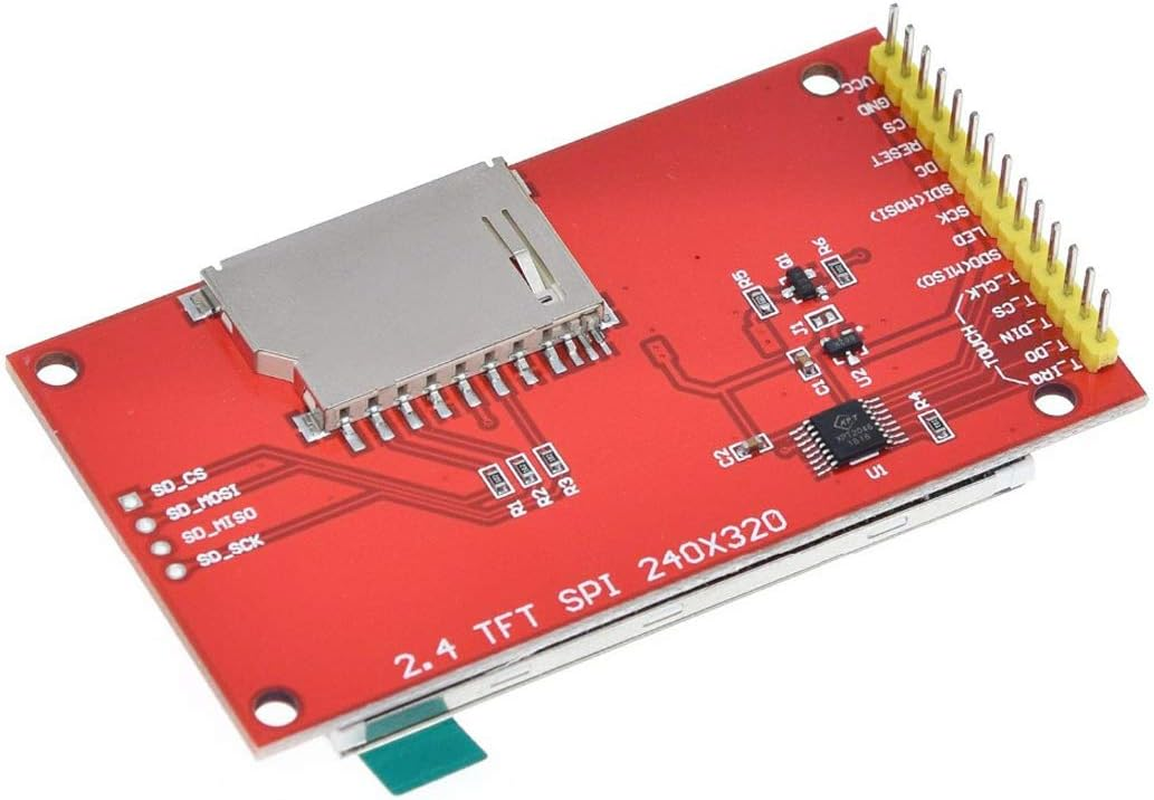

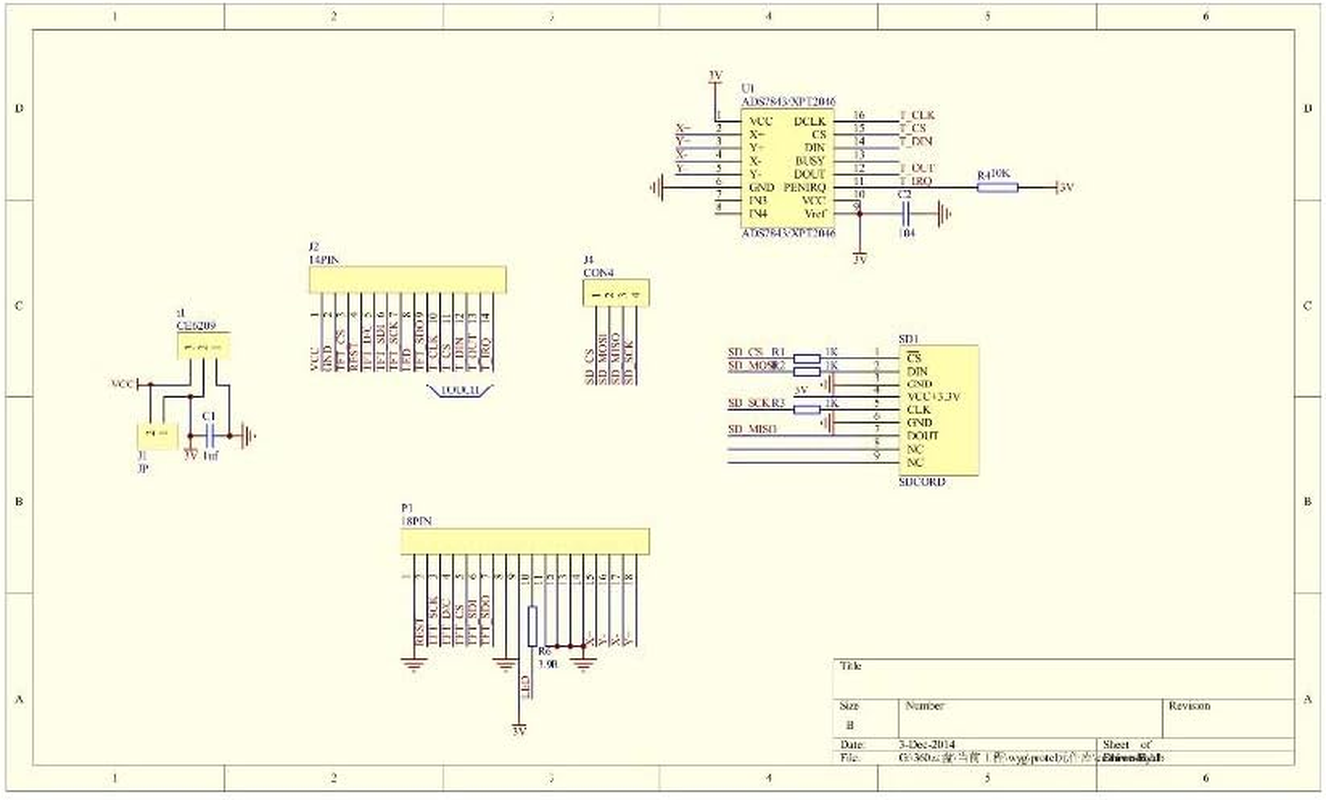

With PCB plate (including power supply IC, SD), compatible with 5110 interface
Package includes:
1 * 2.4" SPI TFT LCD Display 2.4 Inch Touch Panel LCD ILI9341 240x320 5V/3.3V
- Screen Resolution: 320 x 240
- Image contrast ratio: High
- Material Type: copper
- Viewing angle: 170 Degrees
- Colour Screen: Yes
- Aspect Ratio: 1.33:1
- Brand: HiLetgo
- Image brightness: m2
- Model Name: 3-01-1432-US
- Response Time: 8 Milliseconds
- Hardware Interface: Secure Digital Card
- Manufacturer: HiLetgo
- Item Model Number: 3-01-1432-US
- Mounting type: Panel Mount
- Batteries Included: No
- Batteries Required: No
- Refresh rate: 60.0
- Connector Type: DisplayPort
- Item Weight: 45 g
- Human interface input: Touchscreen
- Standing screen display size: 2.4 Inches
- Special Features: Touchscreen
- Resolution: 320 x 240
- Model: 3-01-1432-US
- Display Type: LED
- Mounting Hardware: PCB
- Scanner Resolution: QXGA
- Compatible Devices: Laptop
- Actual viewing angle: 150 Degrees
- Voltage: 5 Volts
- Display Technology: LED
