Witmotion WT901C-485 Mpu9250 High-Precision Gyro+Accelerometer+Angle+Magnetometer,9-Axis Digital Compass (Kalman Filtering, Modbus),Triple-Axis Tilt Angle Inclinometer for Pc/Arduino/Raspberry Pi

Witmotion WT901C-485 Mpu9250 High-Precision Gyro+Accelerometer+Angle+Magnetometer,9-Axis Digital Compass (Kalman Filtering, Modbus),Triple-Axis Tilt Angle Inclinometer for Pc/Arduino/Raspberry Pi

Brand: WITMOTION
3.2
A$45.15
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • 【 High Performance 】Rock-solid data output: RS485 Modbus Pitch Roll Yaw (X Y Z axis) Acceleration + Angular Velocity + Angle + Magnetic Field
  • 【 Robust Design 】X, Y-axis: 0.05° (Static) , X, Y-axis: 0.1° (Dynamic), Long term measurement, Support multi-connection up to 128units simultaneously via WITMOTION PC software or other MCU
  • 【 WITMOTION Advantage 】8-year Professional Attitude Measuring Solution Provider, sensors integrated R&D dynamic fusion algorithm and Kalman Filtering ensuring stable data output and excellent bias stability, low noise level, increasing measurement accuracy
  • 【 Worry-free Support 】12-month warranty, lifetime friendly customer service by WitMotion team. Option 1. The tutorial link is printed on the guiding card inside the package. Option 2. search wit-motion(dot)com and download the complete tutorial. Option 3. contact us if you need any help, support (at) wit-motion (dot) com
  • 【 What You Get 】1 x WitMotion WT901CRS485 Modbus Accelerometer sensor+ 1* 4-PIN Dupont cable +1 x Welcome guide

Product Description

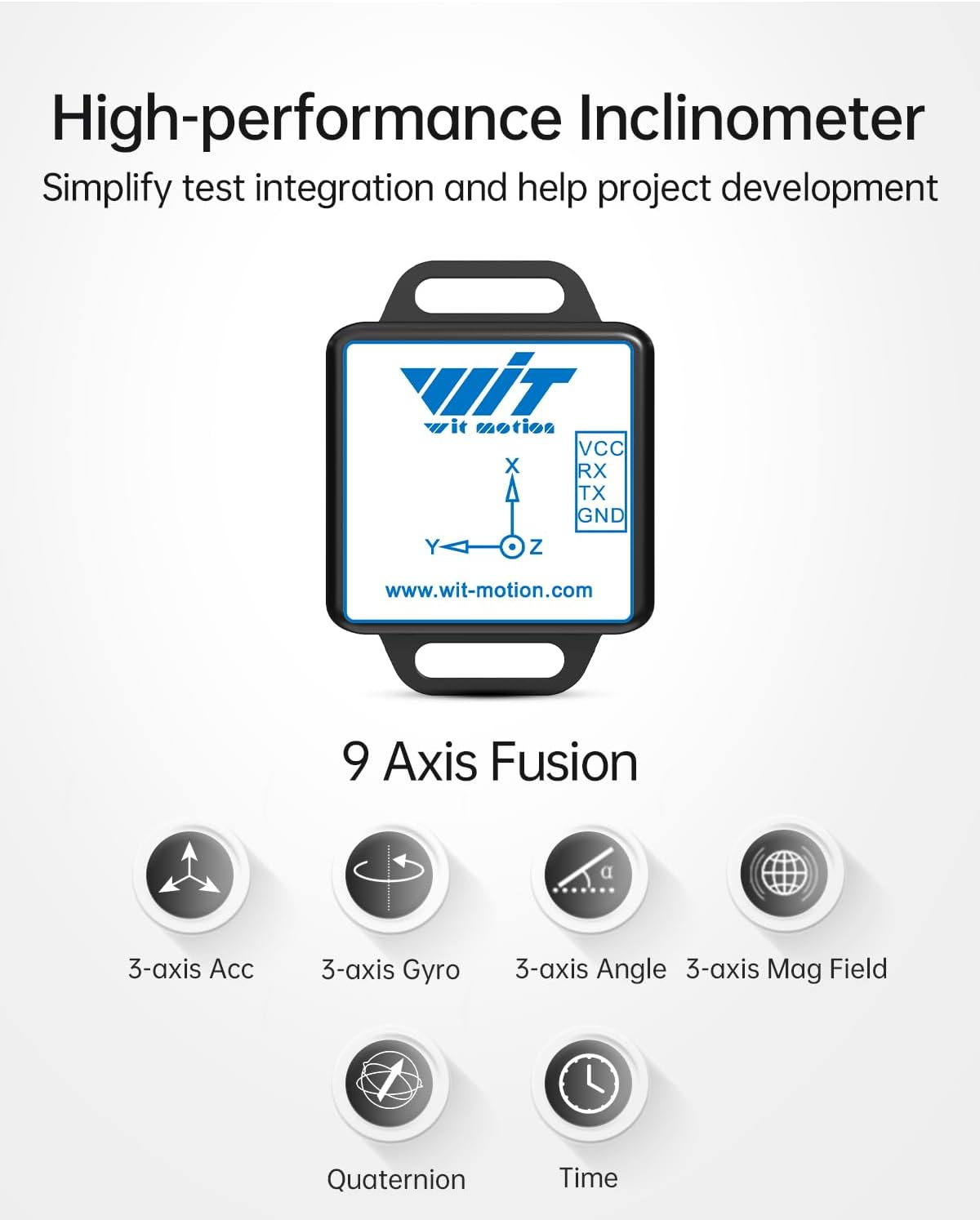

The Superiority of AHRS IMU High Precision Sensor

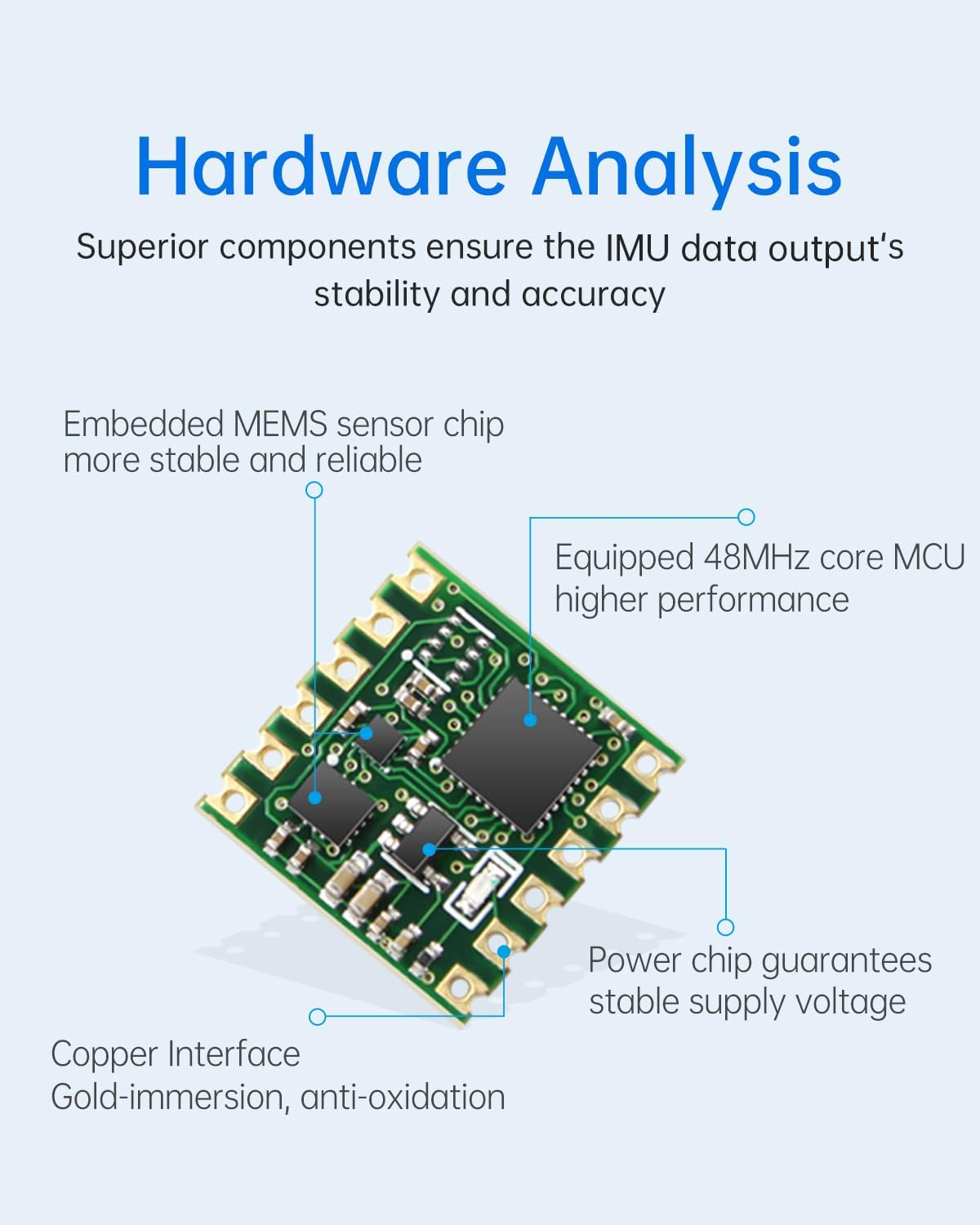

WT901C scientific name is the AHRS IMU sensor. A sensor measures 3-axis angle, angular velocity, acceleration, magnetic field. WitMotion WT901C integrates a high-precision gyroscope, accelerometer, and geomagnetic field sensor, and adopts a high-performance microprocessor, advanced dynamics fusion algorithm, and Kalman dynamic filtering algorithm to quickly analyze the module's current real-time motion posture.

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

video

Merchant video

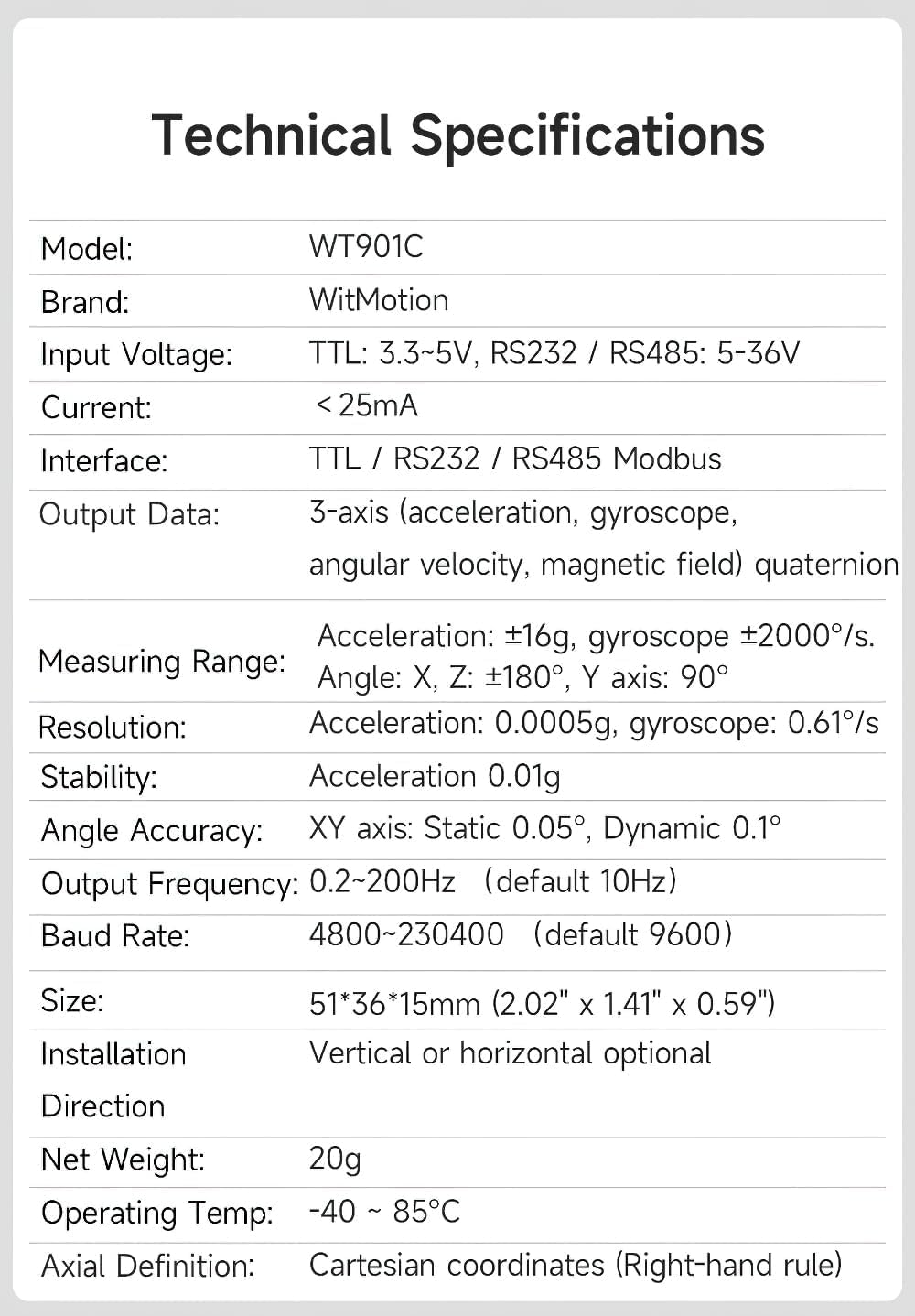

Current Working current(5V): 5.7mA; Dormancy current(5V): 0.5mA
Working Temperature -40℃ ~ +85℃
Data output frequency 0.2Hz~200Hz （Bandwidth: 5-256Hz）
Interface Support TTL(B07TGHYHRS)/ RS232(B07THJCTQ6) /RS485(B07THJCTQ6) {Note: Only TTL interface can be used with Android phones; RS485 supports multiple connections}
Baud Rate 4800-230400bps
Baud Rate 9600Hz (default)
Output Content 3-axis (Acceleration+Angle+Angular Velocity+Magnetic Field)+quaternion+port status+on-chip time
Range Acceleration (±16g), Gyroscope (±2000°/s), Magnet Field (±2Gauss), Angle (X, Z-axis: ±180°, Y ±90°)
Resolution Acceleration (0.0005(g/LSB)), Gyroscope (0.061(°/s)/LSB), Magnet Field (0.0667mG/LSB), Angle (0.0055°/LSB)
Angle Accuracy X, Y-axis: 0.2° (Static) , X, Y-axis: 0.1° (Dynamic) (after calibrated), Z-axis: 1°(without magnetic field interference)
Note It is required to calibrate and keep the sensor at least 20cm away from the stuff like metal that may create magnetic field interference
Battery 5V-36V
Size 36.1mm*51.5mm*15mm
Sample Code Provided sample codes including STM32, C++, C#, Python,Arduino, ROS, Paspberry and Matlab

WITMOTION Industrial-Grade Attitude Sensor Series

Add to Cart
Add to Cart
Customer Reviews
4.0 out of 5 stars 6
3.8 out of 5 stars 159
—
3.8 out of 5 stars 2
—
Price
$43.00$43.00 — $52.00$52.00 — —
Interface
RS232 interface TTL, BLE5.0 RS485 TTL TTL
Compatibility
Windows PC Android/iOS phone, Windows PC Windows PC Windows PC Android phone, Windows PC
Input Voltage
5-36V 3.3-5V, in-built battery 5-36V 5-36V 3.3-5V
3-Axis Acceleration
✔ ✔ ✔ ✔ ✔
3-Axis Angular velocity
✔ ✔ ✔ ✔ ✔
3-Axis Angle
✔ ✔ ✔ ✔ ✔
3-Axis Magnetic Field
✔ ✔ ✔ ✔ ✔
Aluminum case, IP68 waterproof
✘ ✘ ✔ ✔ ✘
Output Frequency
0.1HZ--200HZ 0.1HZ--200HZ 0.1HZ--100HZ 0.1HZ--200HZ 0.1HZ--200HZ
Main Features
Cost-effective AHRS IMU sensor Bluetooth range 50 meters Industrial Vibration Sensor Industrial-Grade Accuracy Inertial Navigation IMU
  • Batteries Required: No
  • Brand: WITMOTION
  • Item Weight: 50 g
  • Voltage: 3.3 Volts
  • Package Dimensions: 7.6 x 7.4 x 2.2 cm; 50 Grams
  • Manufacturer: WitMotion
