FEATURES
Quantitative control
Controller will turn off the solenoid valve automatically when flow reach to the setting value you desire
Monitor flow rate
Display the REAL-TIME volume of liquid which passes per minute
Work with all hall effect flow sensor
It can work various different flow sensor through adjust the K value
Volume unit
Display Liter or Gallon
Water meter
DFC15 can be used to measure the volume of water
Adjustable accuracy
Calibrate the accuracy through adjust the K parameter
Temperature monitor
Come with temperature sensor, it can measure liquid temperature

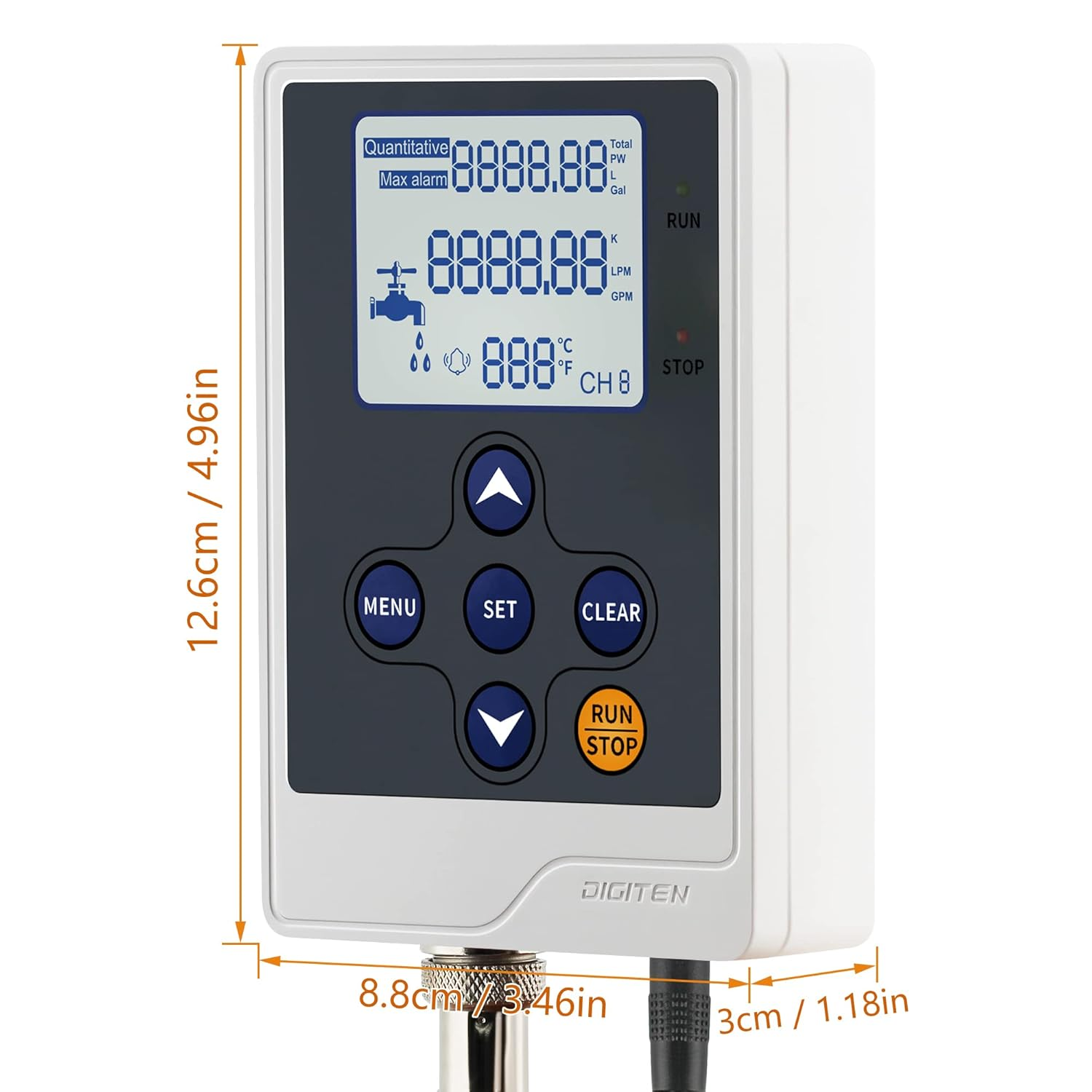

Easy-to-Read Front-Panel Liquid Crystal Display
Displays the flow total volume, flow rated and sensed temperature clearly; custom icons on the display indicate the controller working status at a glance
TECHNICAL SPECIFICATIONS
Controller Power Requirement: 12VDC
Power Adapter: Input: 100-240VAC, Output: 12VDC, max 2A
Adapter lead length: 1m
Measuring Accuracy: ±1%
Output for Solenoid valve: 12VDC
Temperature Sensor: 0-120℃/32-212℉, NTC3950, Accuracy: ±1℃/±1℉ thread: M8
Max Total Volume : 999999 G/L
Quantitative Range: 1-9999 G/L
Flow range:1-30L/min
Cable Length : 1m
Operation Environment: Temperature: 0-50℃/32-122℉ Relative Humidity: <85%

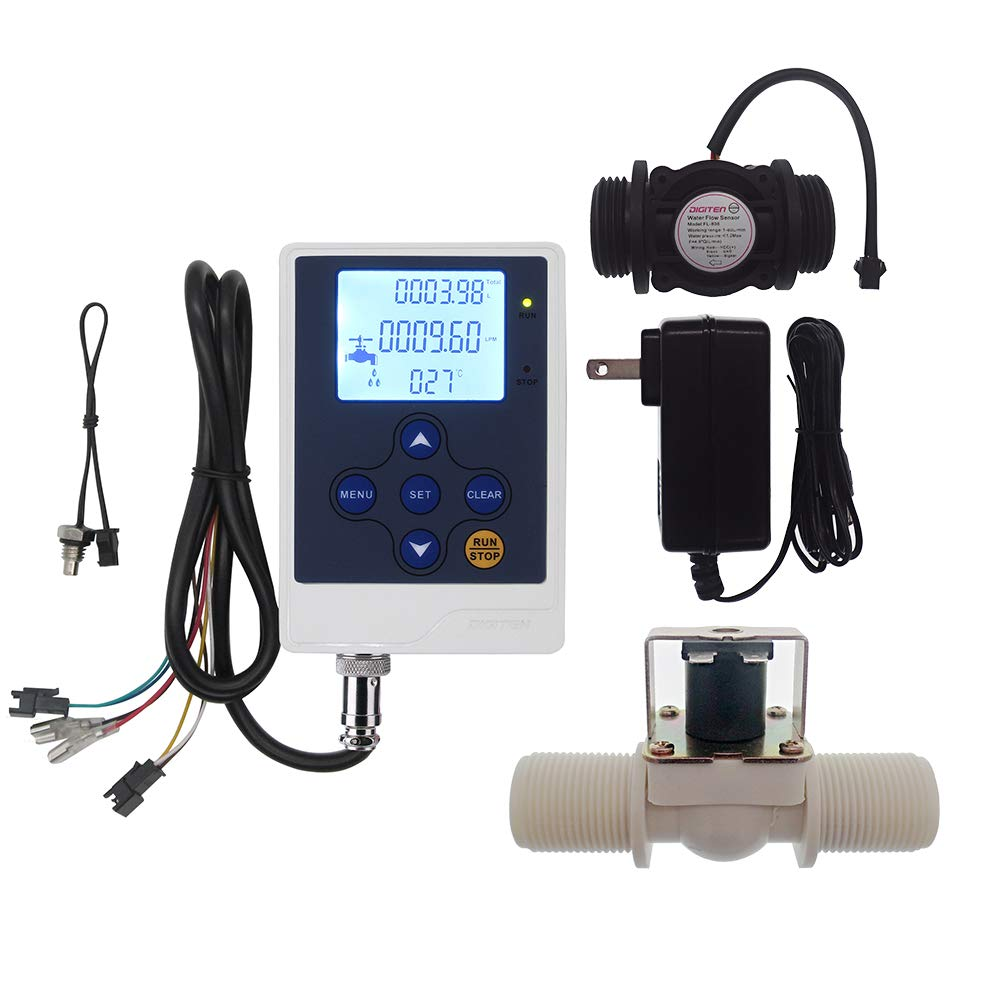

Packaging include
1 x DFC15 controller

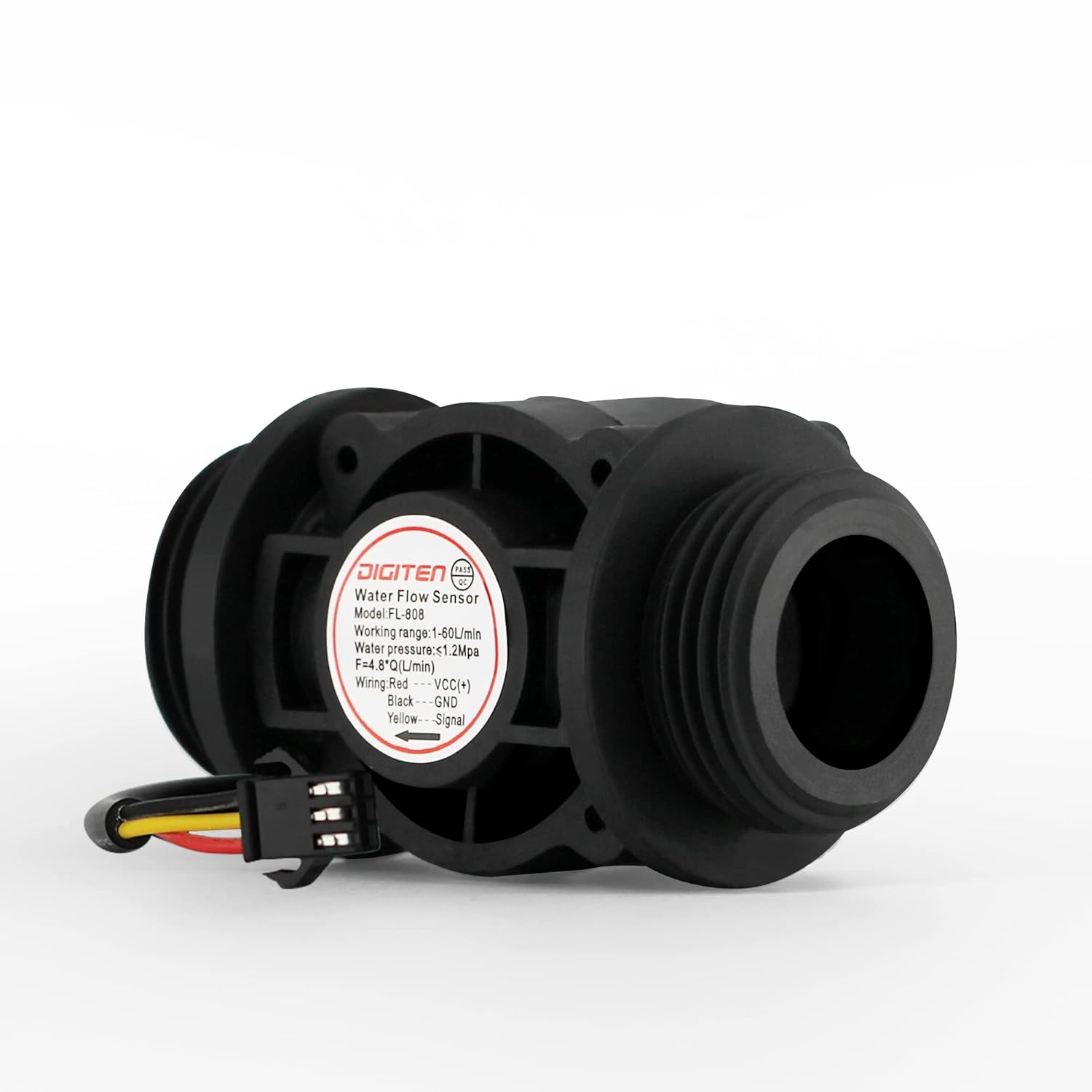

1 x G1" flow sensor

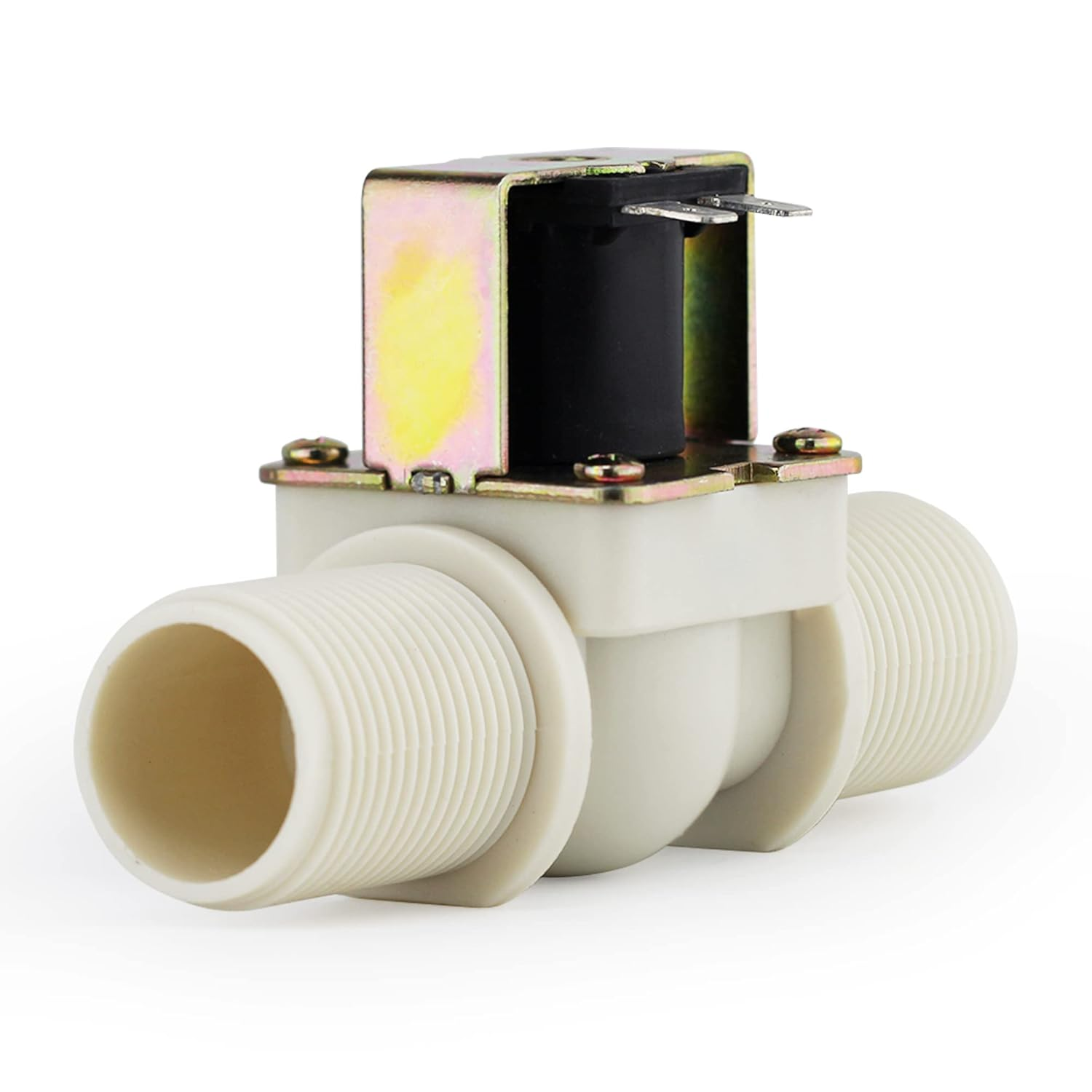

1 x G1" solenoid valve

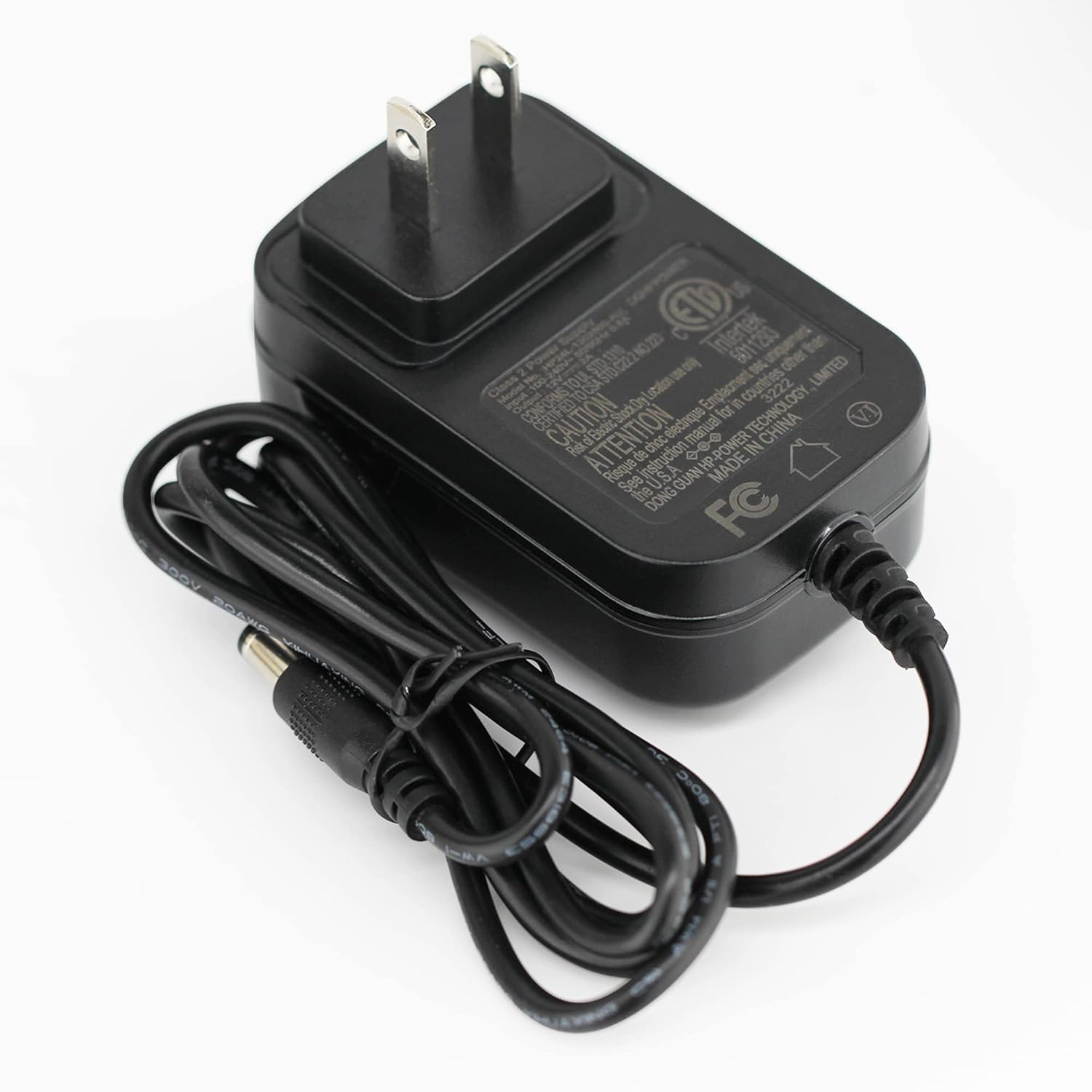

1 x AC100-240V power adapter
1 x Temperature sensor
1 x Instruction
