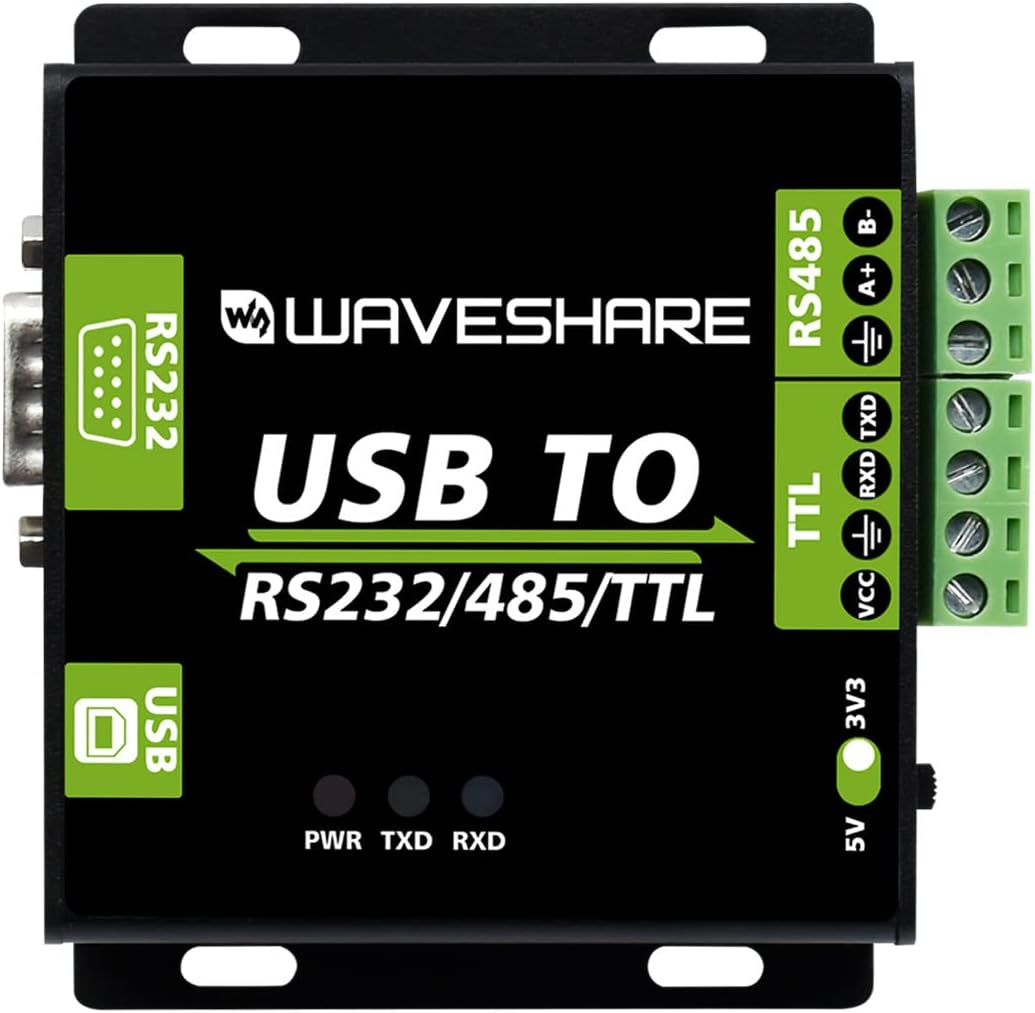

Waveshare USB to RS232 / RS485 / TTL Industrial Isolated Converter with Original FT232RL Embedded Protection Circuits and Aluminium Alloy Enclosure for Industrial Control Equipments

Waveshare USB to RS232 / RS485 / TTL Industrial Isolated Converter with Original FT232RL Embedded Protection Circuits and Aluminium Alloy Enclosure for Industrial Control Equipments

Brand: Waveshare
4.8
A$52.50
Availability:
  • In Stock
  • This is an industrial USB to RS232/485/TTL isolated converter with original FT232RL inside. It features embedded protection circuits such as power isolation ADI magnetical isolation and TVS diode etc. What's more the USB TO RS232/485/TTL comes with an aluminium alloy enclosure make it solid and durable to work.
  • The USB TO RS232/485/TTL is very easy to use fully automatic transceiving without delay. Due to its fast communication stability reliability and safety it is an ideal choice for industrial control equipments and/or applications with high communication requirement.
  • Fully automatic transceiver circuit with no delay ensures the USB port communicates with different interfaces fastly and stably without interfering each other
  • Onboard unibody power supply isolation provides stable isolated voltage needs no extra power supply for the isolated terminal
  • High quality USB-B and RS232 connectors smoothly plug/pull

Product Description

Same Module on another listing,(amazon.com.au/dp/B0BKKL321W?ref=myi_title_dp) Sometimes there will be stocks shipped faster by Amazon

Options for controller now: FT232RL or CH343G, This USB TO RS232/485/TTL adopts FT232RL. For CH343G, please refer to USB TO RS232/485/TTL (B)

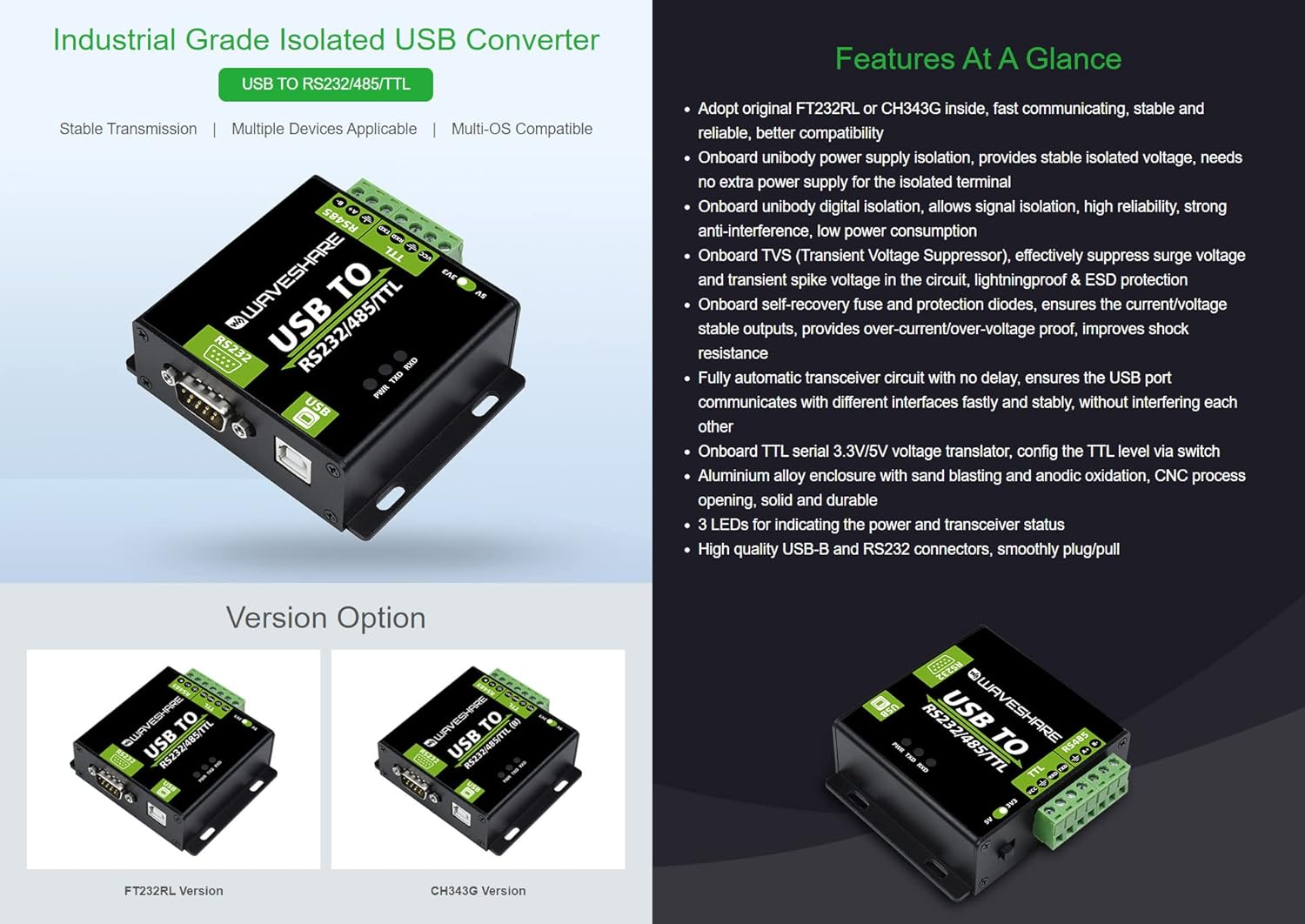

Features At A Glance:

  • Adopt original FT232RL or CH343G inside, fast communicating, stable and reliable, better compatibility
  • Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
  • Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
  • Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
  • Fully automatic transceiver circuit with no delay, ensures the USB port communicates with different interfaces fastly and stably, without interfering each other
  • Onboard TTL serial 3.3V/5V voltage translator, config the TTL level via switch
  • Aluminium alloy enclosure with sand blasting and anodic oxidation, CNC process opening, solid and durable
  • 3 LEDs for indicating the power and transceiver status
  • High quality USB-B and RS232 connectors, smoothly plug/pull
  • User Manual: waveshare.com/wiki/USB_TO_RS232/485/TTL?amazon

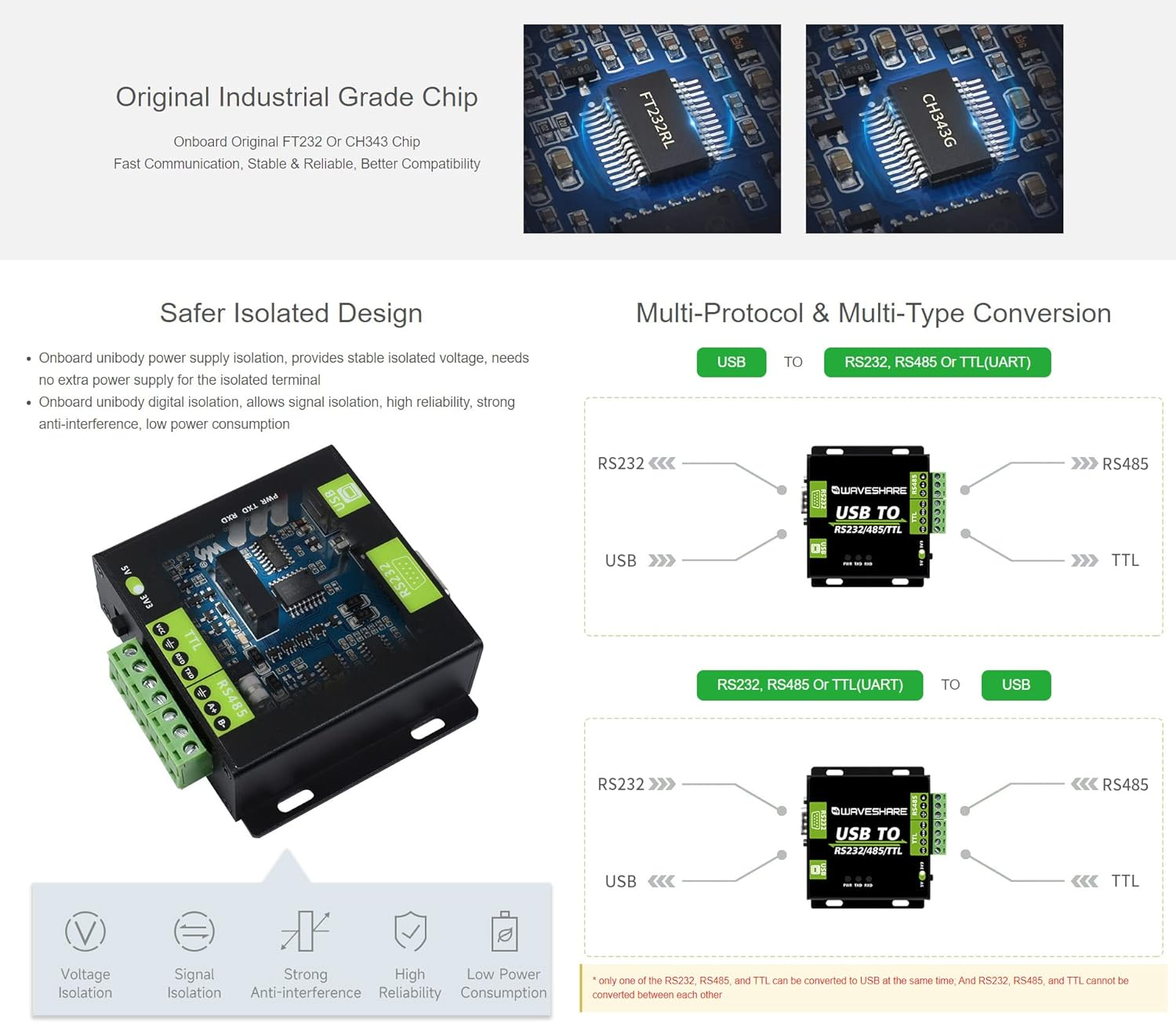

Safer Isolated Design

  • Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
  • Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption

Multi System Support

Supports Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7, Etc.

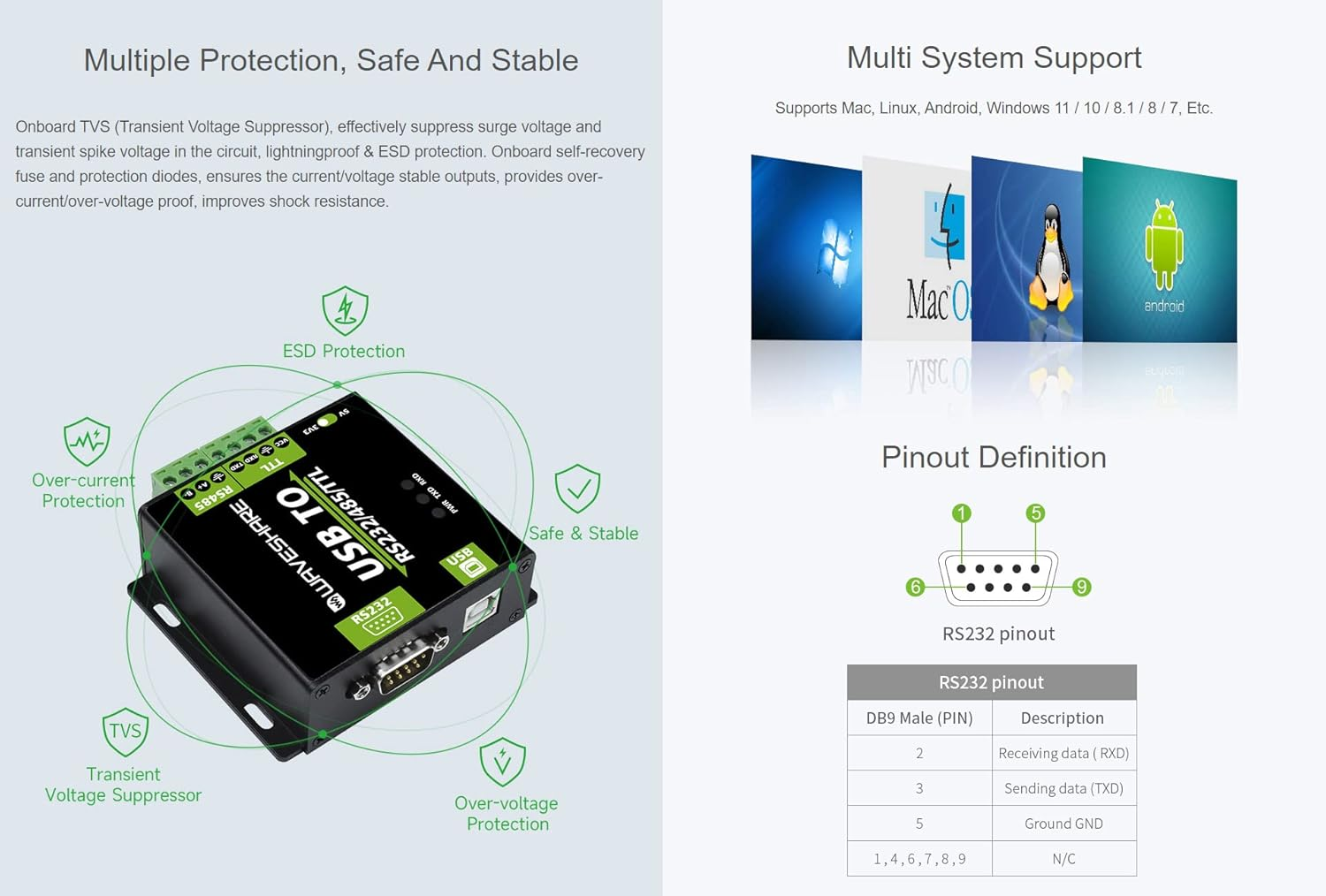

Pinout Definition

Aluminium Alloy Enclosure

Aluminium Alloy Enclosure With Sand Blasting And Anodic Oxidation Solid And Durable, Fashion And Good Hand Feeling

The same USB TO RS232/485/TTL on another listing, generally it will be shipped much faster: amazon.com.au/dp/B0BKKL321W?ref=myi_title_dp

  • Item Model Number: USB TO RS232/485/TTL
  • Part Number: USB TO RS232/485/TTL
  • Number of Ports: 2
  • Country/Region of origin: China
  • Batteries Included: No
  • Batteries Required: No
  • Memory Storage Capacity: 8 GB
  • Brand: Waveshare
  • Compatible Devices: Industrial Control Equipment, PLCs, Sensors, Devices with RS232, RS485, or TTL communication
  • Item Weight: 50 g
  • Graphics Card Interface: Integrated
  • Voltage: 1 Volts
  • Has Auto Focus: No
  • Model: USB TO RS232/485/TTL
  • Hardware Interface: USB
  • Is discontinued by manufacturer: No
  • Package Dimensions: 15.7 x 11.5 x 3.5 cm; 50 Grams
  • Has Programmable Buttons: No
  • Manufacturer: Waveshare
