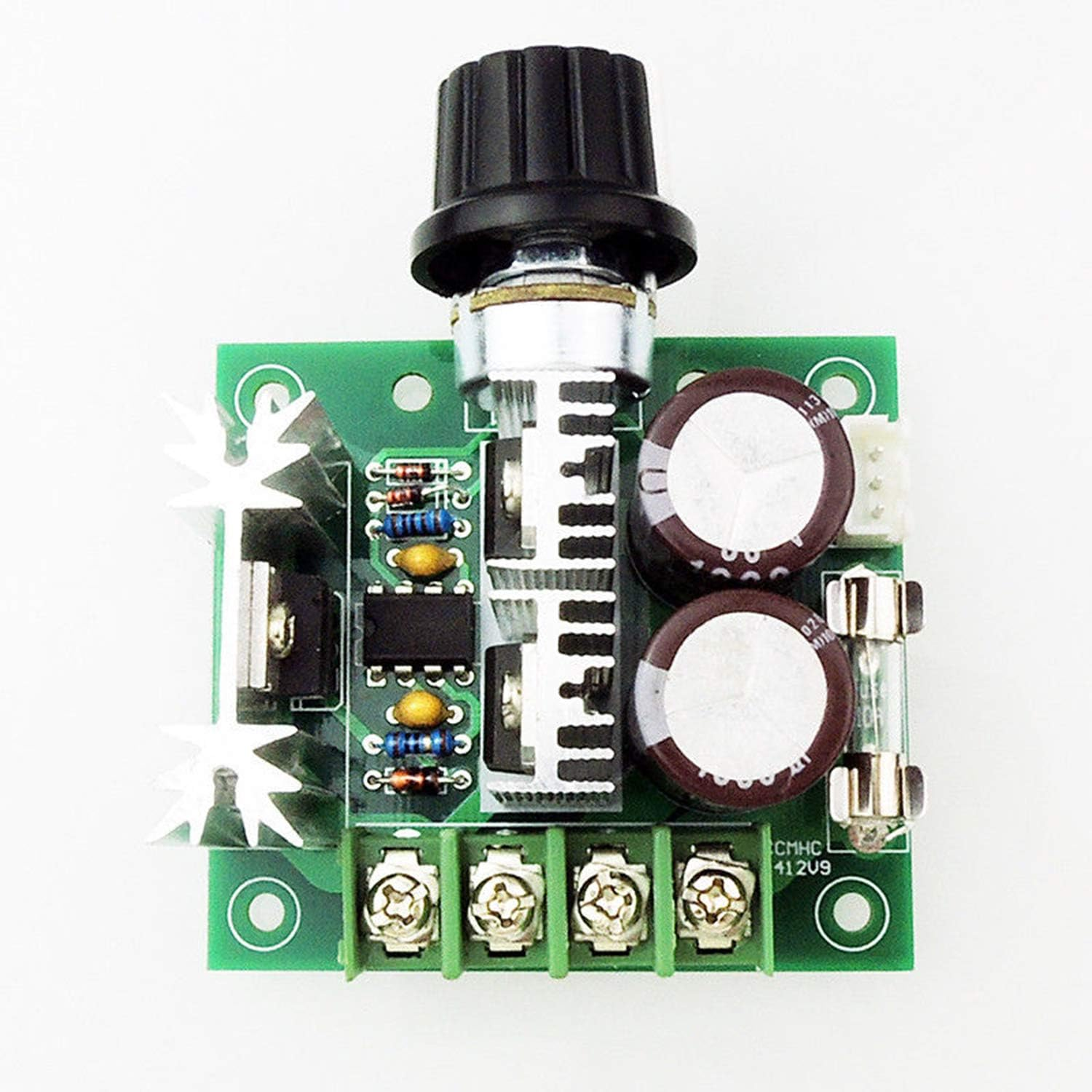

Greartisan 12V-40V 10A DC Motor Speed Controller PWM Variable Speed Regulator Governor Switch CCMHCN with Speed Control Knob

Greartisan 12V-40V 10A DC Motor Speed Controller PWM Variable Speed Regulator Governor Switch CCMHCN with Speed Control Knob

Brand: Greartisan
5.0
A$17.85
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • Military grade board for PCB!
  • All chips are made of advanced materials, rather than being dismantled or refurbished.
  • Adopting 50V 1000uF large capacitance,with power supply reverse polarity protection, over-voltage protection funcion.
  • The power tube uses IRF3205, which is absolutely necessary to carry your motor. (Parameter drain current Id max value: 82A; Max voltage Vds: 75V; ON resistance, Rds(on): 0.013ohm).
  • The terminal uses 8500 high-current terminals, labeled 300V 20A!

Descprition:
Model: CCMHC
Knob Potentiometer: Resistance Value B100K; Trepanning 8mm
Work Voltage: DC 12V-40V
Output Voltage: Approx.0%-100% of Input Voltage
Control Power: 12V*8A=96W,24V*8A=192W,......40V*8A=320W
Rated Current: 8A
Max Current: 10A
Quiescent Current: 0.02A (Standby)
Speed Range: 10%-100%
PWM Frequency: 13kHz
PWM Pulse Width Speed Range: 10%-100%
Power Range: 0.01-400W
Fuse Wire: 5x20mm 10A
Module Size: 60*55*28mm
Weight: 66g
 Packages:
1 x DC Motor Speed Controller
PLEASE NOTE:

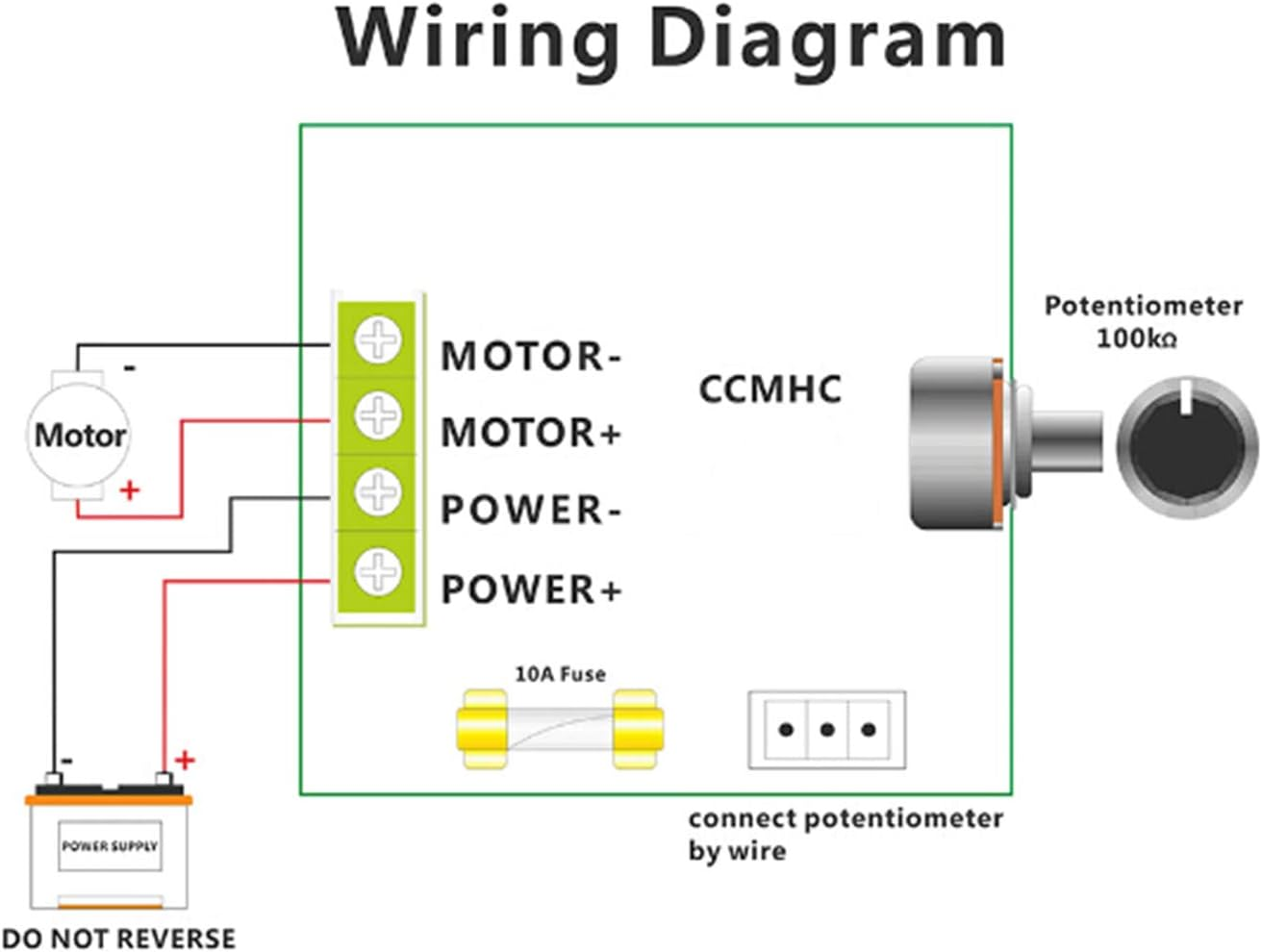

1.DC power supply polarity can not be inversed, otherwise is may damage speeder.
2.If need the forward and reverse function, customer can connect the positive and negative switch.
3.Reserved lead type knob interface, if use lead type knob, it need to dismantle the fixed potentiometer first. Suitable for DC motor speed control etc.
4.Not suitable for AC power supply.

  • Item Model Number: Greartisan
  • Part Number: Greartisan
  • Batteries Required?: No
  • Item Package Quantity: 1
  • Material: Metal
  • Package Dimensions: 15.24 x 10.16 x 2.54 cm; 45 Grams
  • Item Weight: 45 g
  • Batteries Included?: No
  • Size: DC 12-40V 10A
  • Is discontinued by manufacturer: No
  • Size Name: DC 12-40V 10A
  • Manufacturer: Greartisan
