ALITOVE WS2812B WS2811 WS2815 LED Controller Music Sync Bluetooth App Control by Ios Android for WS2812 WS2813 SK6812 WS2801 Dream Color Addressable LED Strip Matrix Panel Pixel Light, Mic/Aux Input

ALITOVE WS2812B WS2811 WS2815 LED Controller Music Sync Bluetooth App Control by Ios Android for WS2812 WS2813 SK6812 WS2801 Dream Color Addressable LED Strip Matrix Panel Pixel Light, Mic/Aux Input

Brand: ALITOVE
3.5
A$33.60
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • 【Sound / music activated controller】With this music controller, your LED lights can change colors and running speed automatically base on music rhythm. It has 30 kinds of music-sync spectrum effects color modes for LED matrix and 18 kinds music-sync color effects for LED Strip. The colors of falling dot and lights column is adjustable. （Please play the video to watch color effects ）

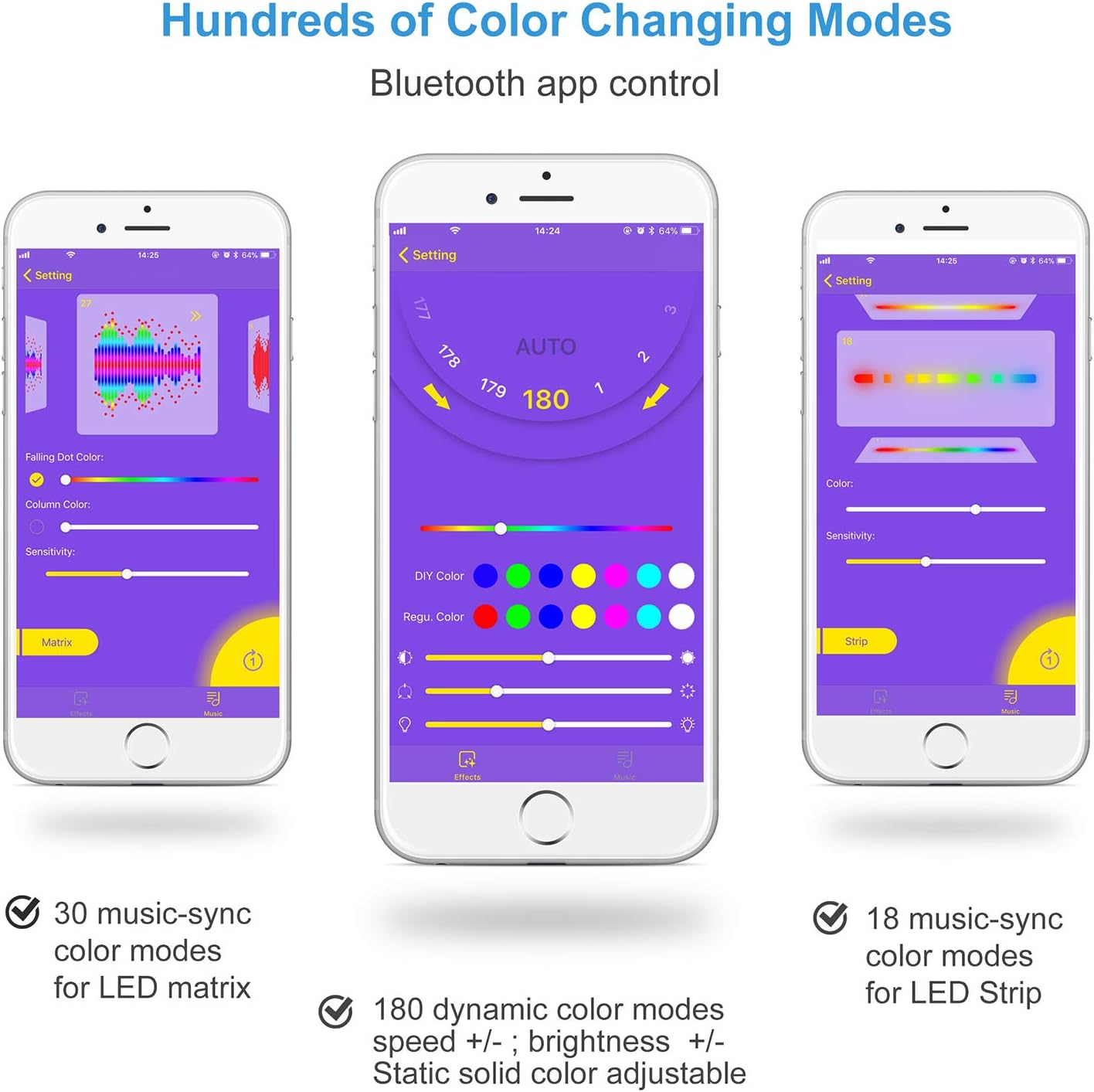

  • 【Rich non-music color modes】It also has 180 kinds of dynamaic color changing modes, tons of static solid colors such as red blue pink etc, which are vivid and beautiful. Color hue, brightness and speed are adjustable. When you connect SK6812-RGBW LEDs, the white channel can be adjusted individually.

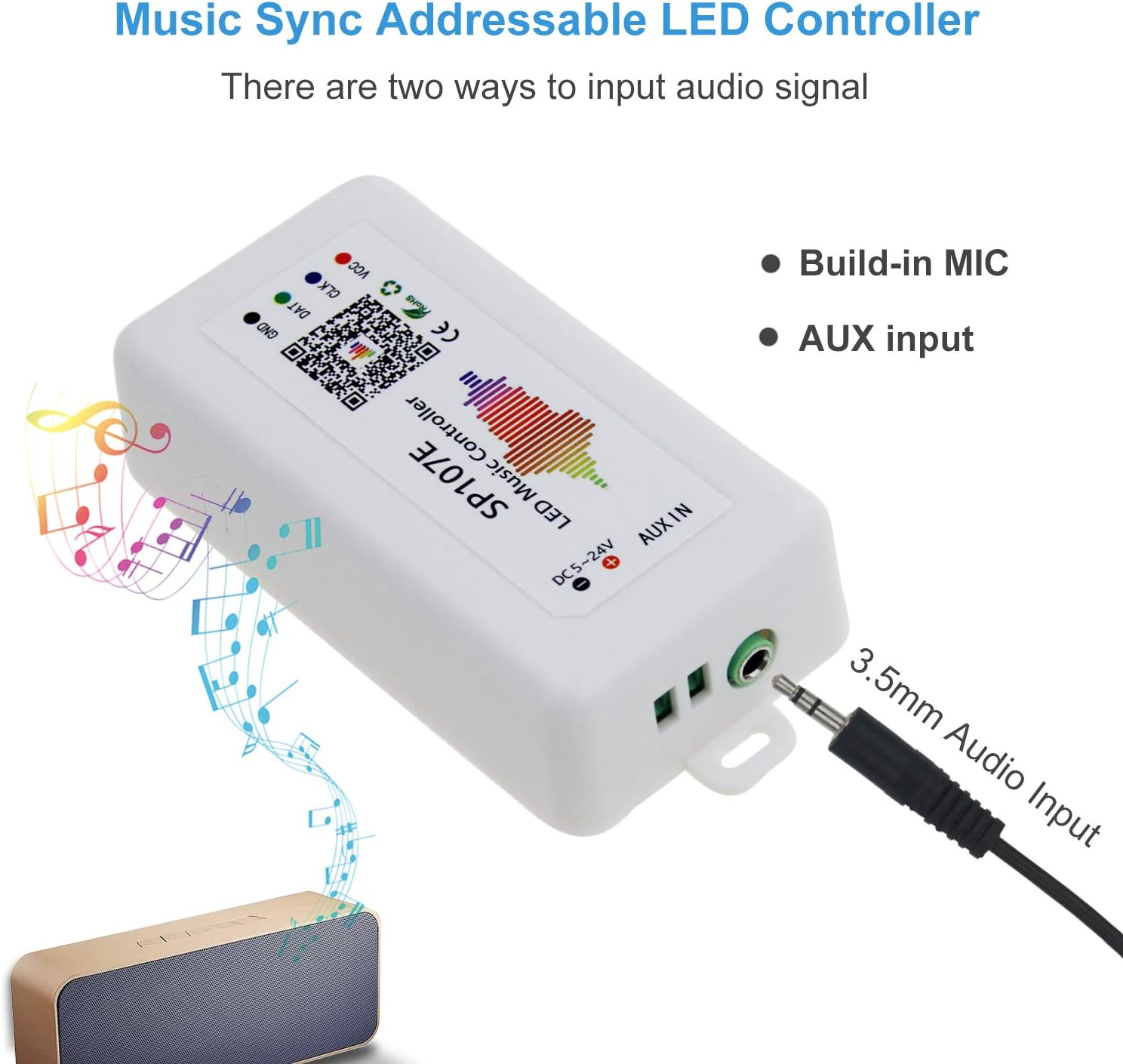

  • 【Build-in microphone and AUX IN】A high sensitivity mic is built in the controller, it will capter any audio signal and activate your LED lights. If the music is input via AUX IN port, the controller can only reactive to the music you input and exclude noise outside. Sound sensitivity adjustment is a big plus.
  • 【Control pixels number is adjustable】The controller can control up to 960 LED pixels in total. You can set up number of segments and pixels number of each segment according to the LED pixels array of your lights. This feature is perfect for LED matrix. After setting up the correct numbers, the spectrum color effects can be completely displayed, not partially displayed.

Product Description

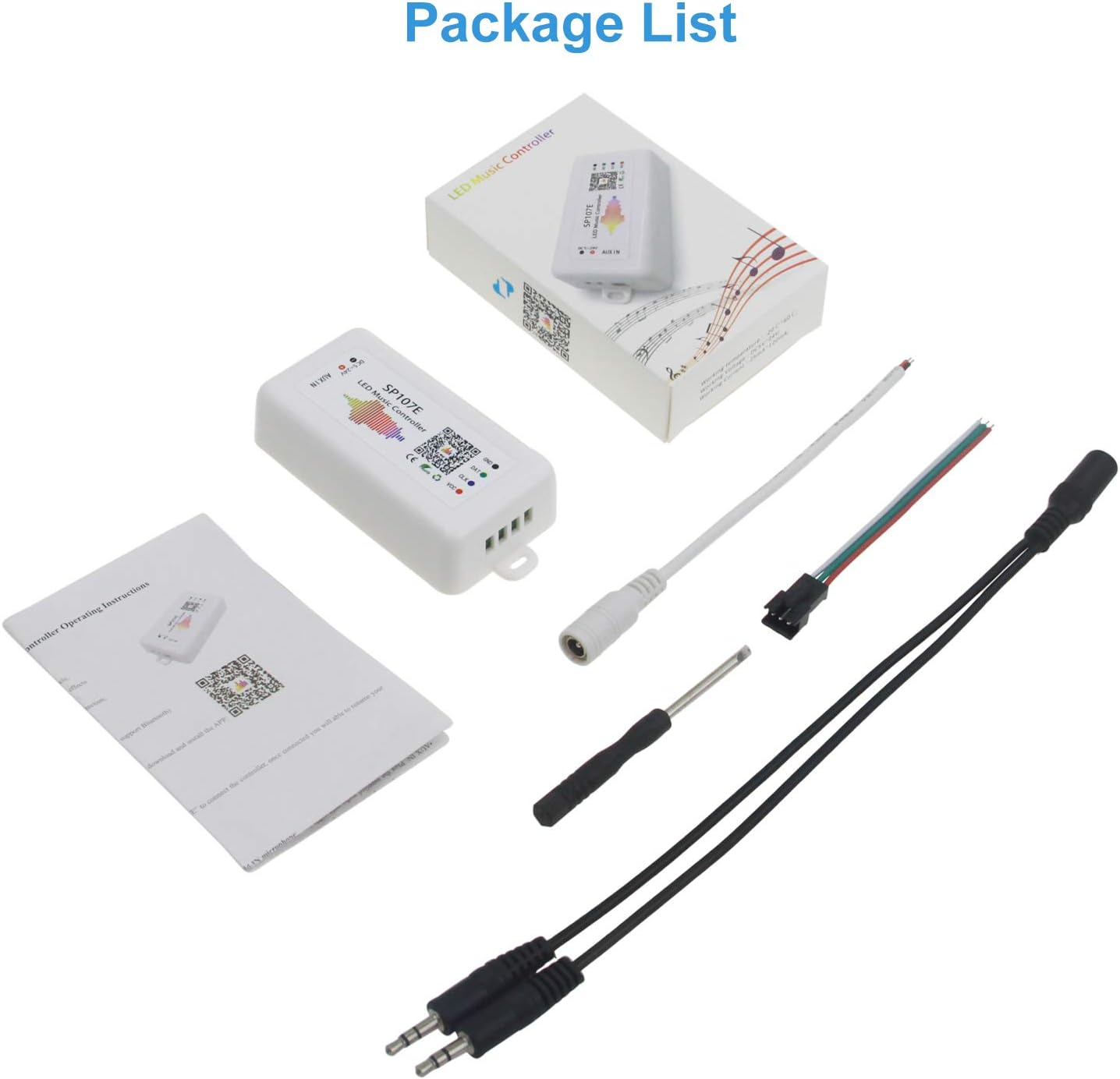

Package List
  • 1x SP107E music controller
  • 1x 3pin JST connector
  • 1x Female DC connector
  • 1x 1 to 2 Audio cable
  • 1x Mini screw driver
  • 1x User manual
  • IOS Ver. 10.0 or later
  • Android Ver. 4.4 or later
  • Bluetooth Ver 4.0 or later

Product Parameter

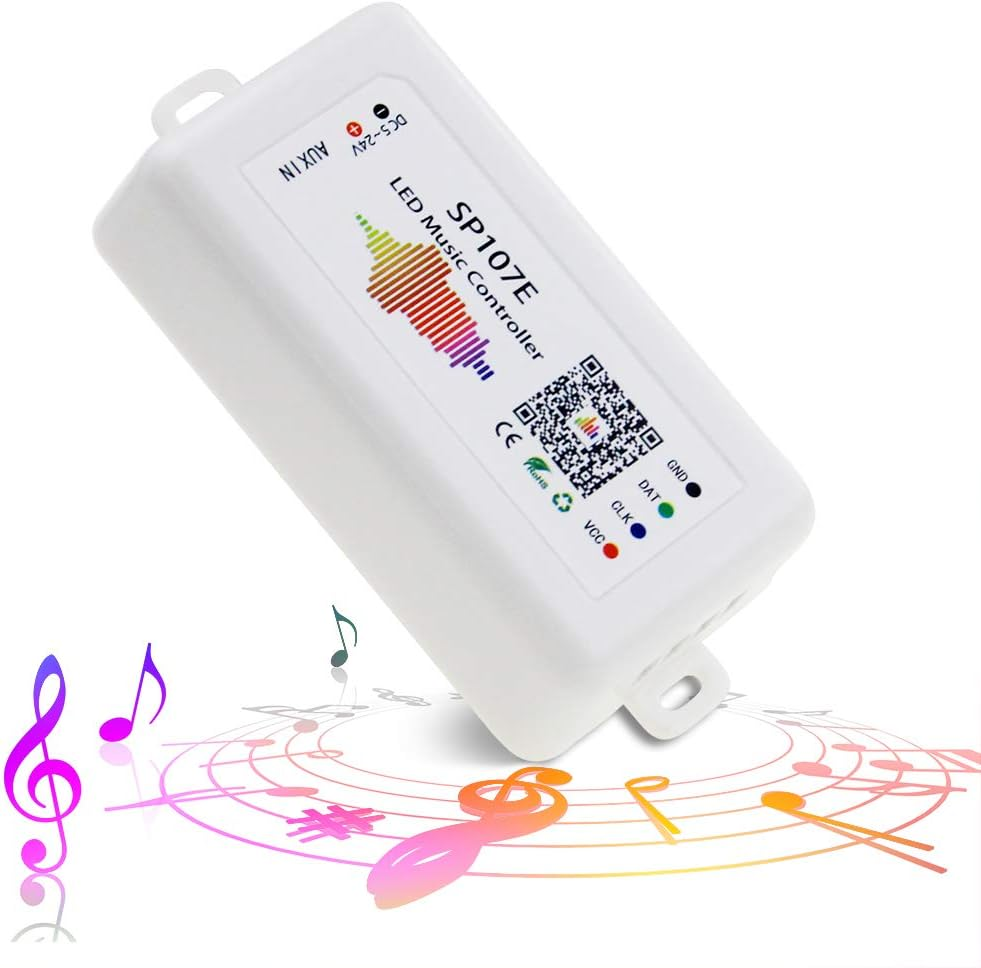

  • Name: ALITOVE SP107E Addressable LED Music Controller
  • Working voltage: DC5V~24V
  • Remote distance: 20 Meters
  • Control up to 960 Pixels
  • Working temperature : -20℃~60℃
  • Product size: 85mm*45mm*22mm
  • Sync to the Rythm of music
  • IOS & Android App Control via Bluetooth
  • 30 music-sync color modes for LED matrix
  • 18 music-sync color modes for LED Strip
  • 180 non-music dynamaic color changing modes
  • Color & Brightness Adjustable
  • Support 29 LED Driver ICs
  • User-friendly Design

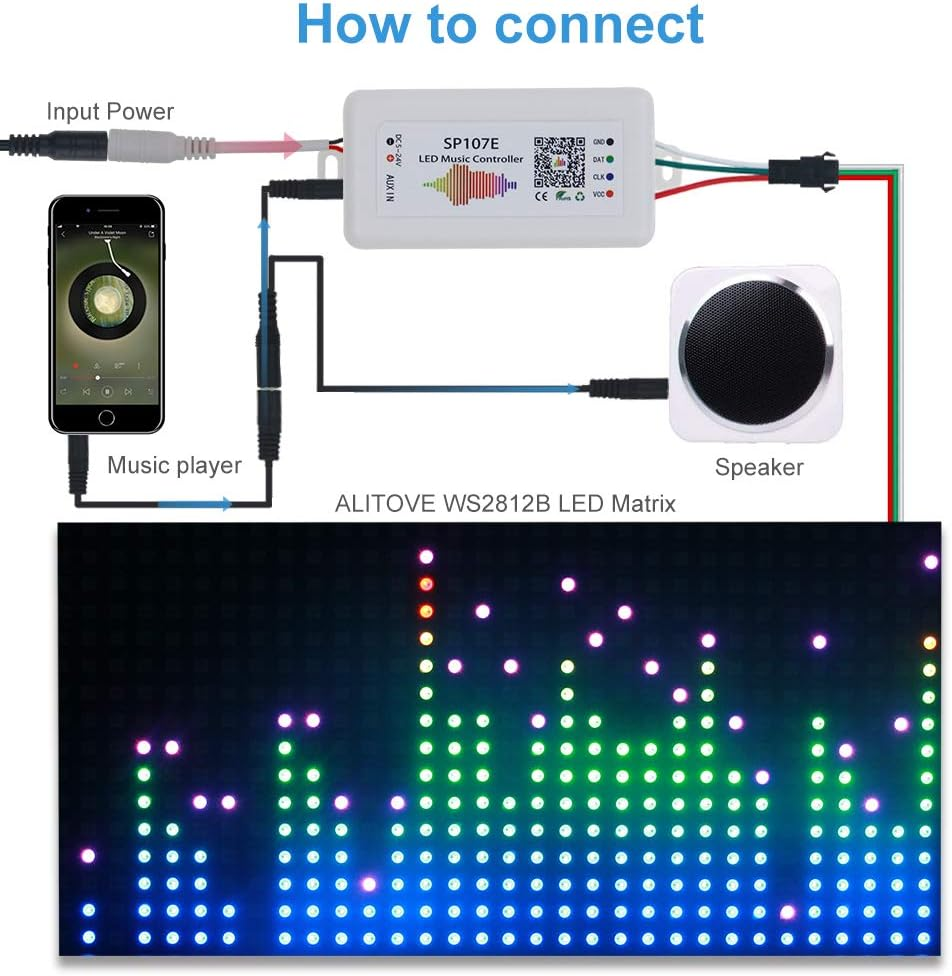

  1. It can support WS2812B and WS2813 but there is no option on the setting page. Please choose WS2811 when connect it to WS2812B and WS2813. When connecting WS2813 LED strip, please connect Bi wire to GND port.
  2. It's not compatible with Samsung Phone.
  3. The controller cannot regulate the output voltage at the VCC. That means the output voltage of your power supply must be the same as the work voltage of your led lights. If your lights need 5V input, please use a 5V power supply, never use 12V or 24V power supply.
  4. The controller only supports LED lights with smart IC. It cannot support ordinary RGB/RGBW LED strip without IC.
  5. Please use a power supply not a battery to power the controller. The output power of power supply must be more than the max power of led light.
  6. Please read the user manual to learn how to connect to WiFi and LED strip. You can download the user manual in "Technical Specification" column of this page.

Part of the color effects that the controller can display

  • Colour: Blue,Pink,Red,White
  • Power Source: Battery Powered
  • Wattage: 50 watts
  • Material Type: Plastic
  • Item Weight: 80 g
  • Voltage: 24 Volts
  • Product dimensions: 10 x 7 x 3 cm; 80 Grams
  • Style Name: Bluetooth Music Controller
  • Size: 1 Count (Pack of 1)
