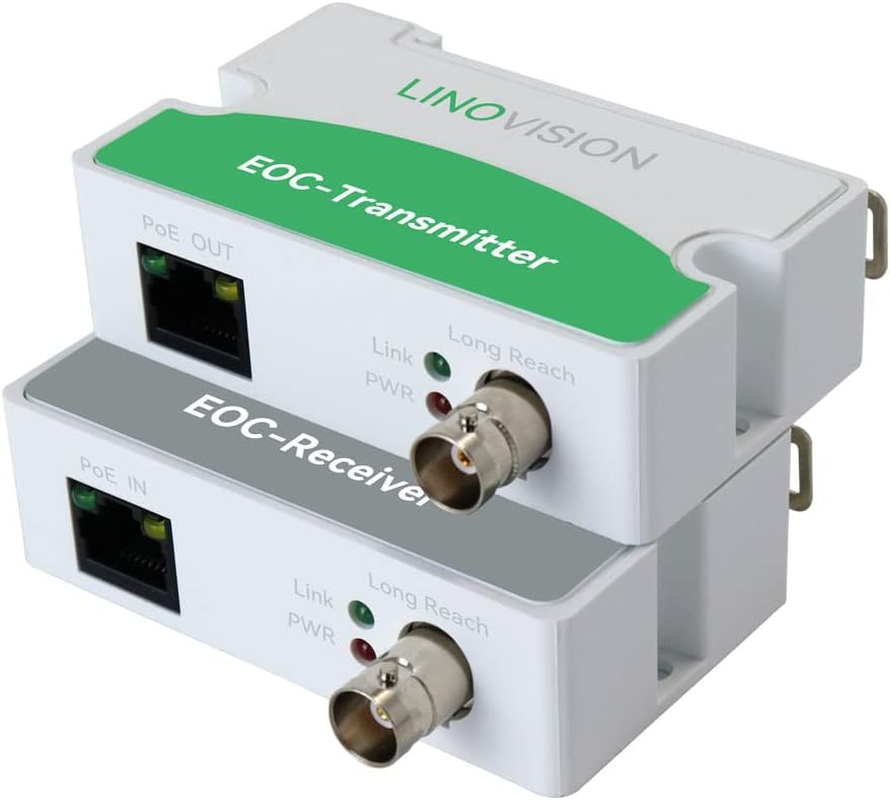

LINOVISION POE over Coax EOC Converter IP over Coax Max 3000Ft Power and Data Transmission over Regular RG59 Coaxial Cable for Upgrading Analog Surveillance System to IP Surveillance System
LINOVISION POE over Coax EOC Converter IP over Coax Max 3000Ft Power and Data Transmission over Regular RG59 Coaxial Cable for Upgrading Analog Surveillance System to IP Surveillance System
Brand: LINOVISION
A$121.80
- 【PoE & IP OVER COAX CONVERTER】LINOVISION’s POE IP Over Coax converter can be used to upgrade analog system to IP surveillance system while using existing coaxial cable. Compatible with RG59, RG6, RG11 cables. Supports POE standards 802.3af (PoE) and 802.3at (PoE+). EOC Receiver MUST be powered by POE switch or POE injector while Transmitter should be connected with POE devices or NON-POE devices
- 【POE & IP OVER TWIST PAIR CONVERTER】 Each pair of EOC(Ethernet over Coax) Converter is equipped with 2 BNC to Twist Pair connectors, which enables POE over Twist Pair transmission. 100Mbps bandwidth over 330ft regular twist pair cables while 10Mbps over 1485ft for both POE or NON-POE devices. It’s ideal for the CCTV system in elevator cart.
- 【INDUSTRIAL DESIGN WITH BUILT-IN HEAT SINK】Industrial design, with built-in heat sink, ensure super reliability and hassle free transmission. Indoor use ONLY. Plug-and-play, configuration free, makes installation simplest. Small design (3.1"x2.0"x0.9") and light weight.

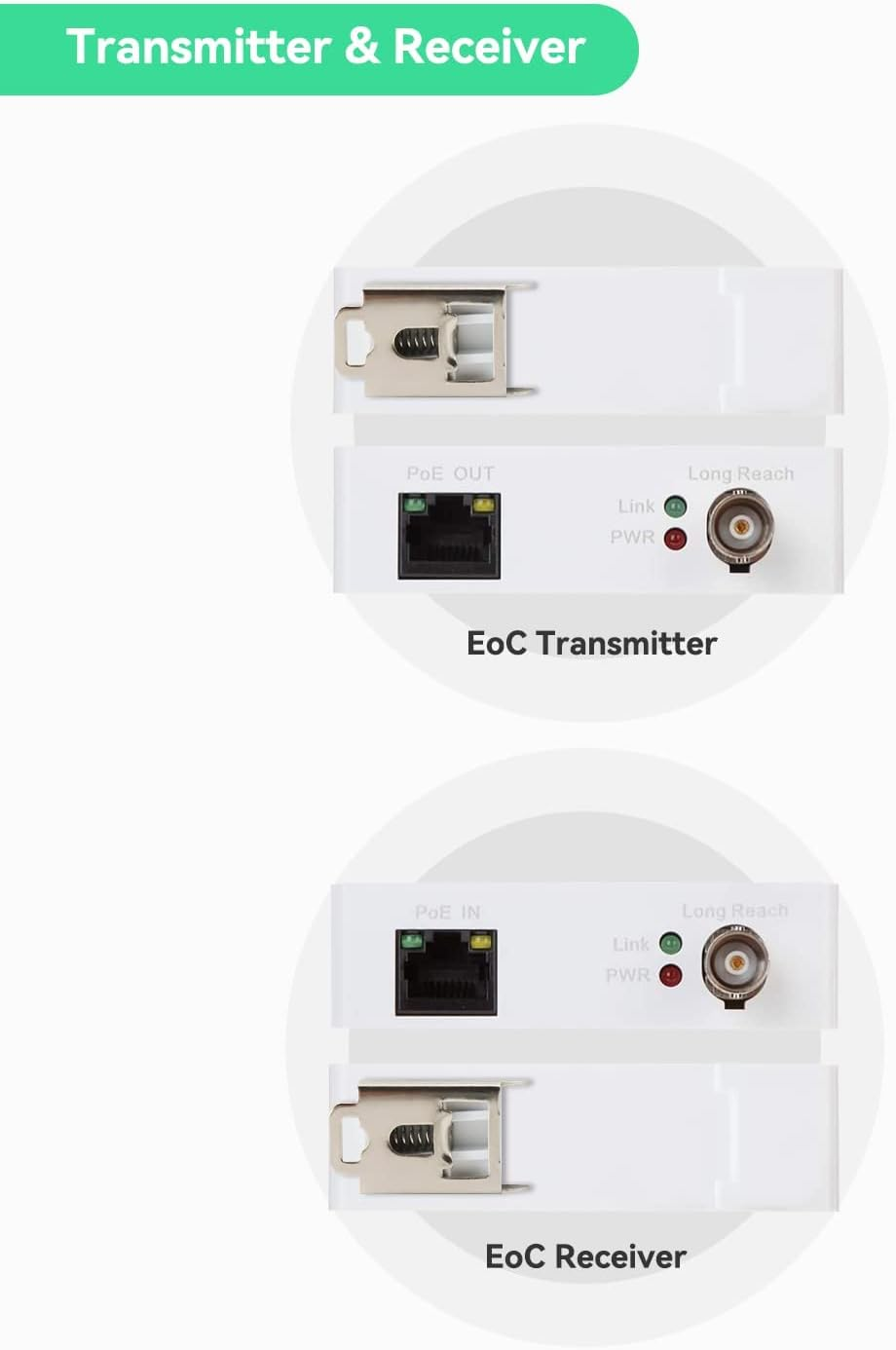

- 【POINT TO POINT CONNECTION ONLY】Act as MoCA (Multimedia over Coax) in point-to-point connection, transmit video/audio/data/control signal over coaxial cable, so as being used with twist pair. EOC Receiver should be powered by POE switch or POE injector while Transmitter should be connected with POE devices or NON-POE devices.

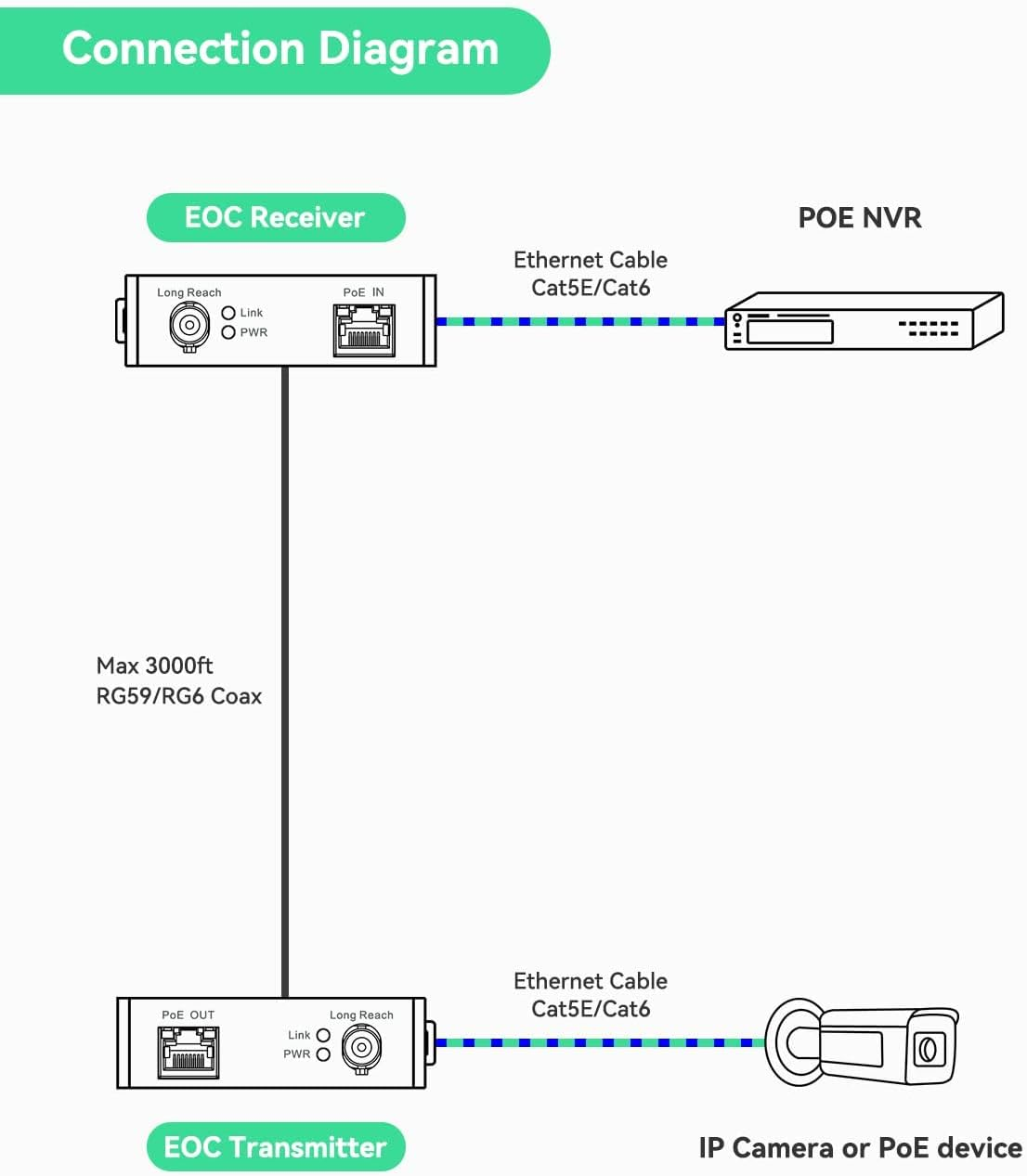

- 【PLUG-N-PLAY】The installation is very easy and no configuration or expertise is required. Just plug the EOC Receiver to an POE switch or POE injector, and then connect to EOC Transmitter via Coaxial cable or twist pair cable. IP camera or VoIP phone will then get POE power and data transmission from this EOC Transmitter
- 【NOTIFICATION】 For multiple PoE over coax cables application in one system, it is recommended to use EOC-Switch KIT to avoid potential signal interference.
Product Description
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.
LINOVISION EOC&POE converter transmits IP Video & Audio & Data & POE Power over coax cable.Upgrade traditional analogue video surveillance system to IP surveillance system without replacing coaxial cable. It is working with POE IP camera, POE Wi-FiAP, VoIPphone, etc.Plug-and-play.Configuration free.
Unique Features Compared with Competitors

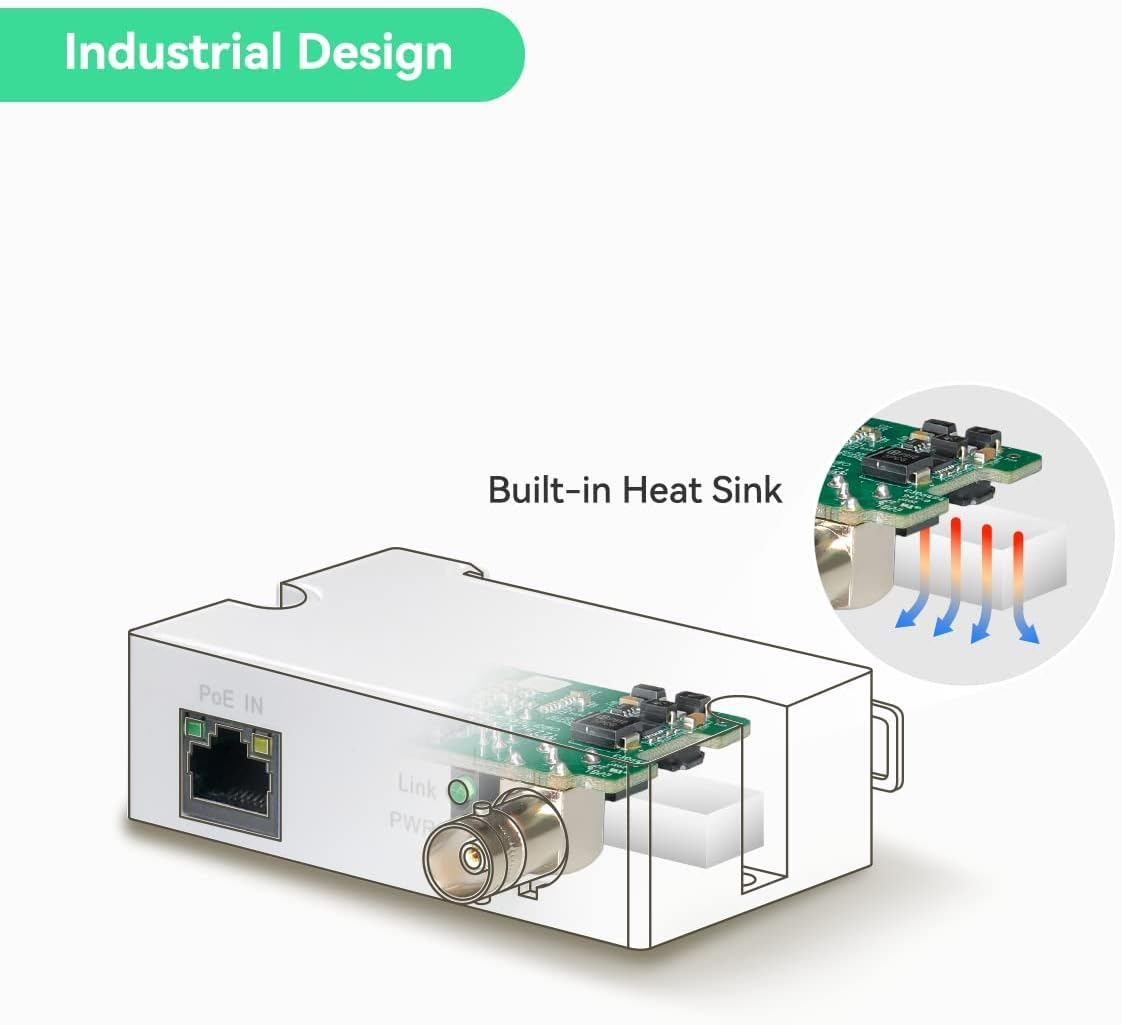

Industrial design
Industrial design, with built-in heat sink Ensure super reliability and hassle-free transmission.
POE power + Data transmission
It can Provide power to remote POE device with max. 30W and no local DC power adapter is required. （Note: The POE OUT Port only support PoE Mode A）
Transmission Performance
Compatible to IEEE802.3af/IEEE802.3at POE protocol, max21W POE load capacity in 100m(330ft), or 11W POE load capacity in 300m(1000ft).
DIN-Rail Installation

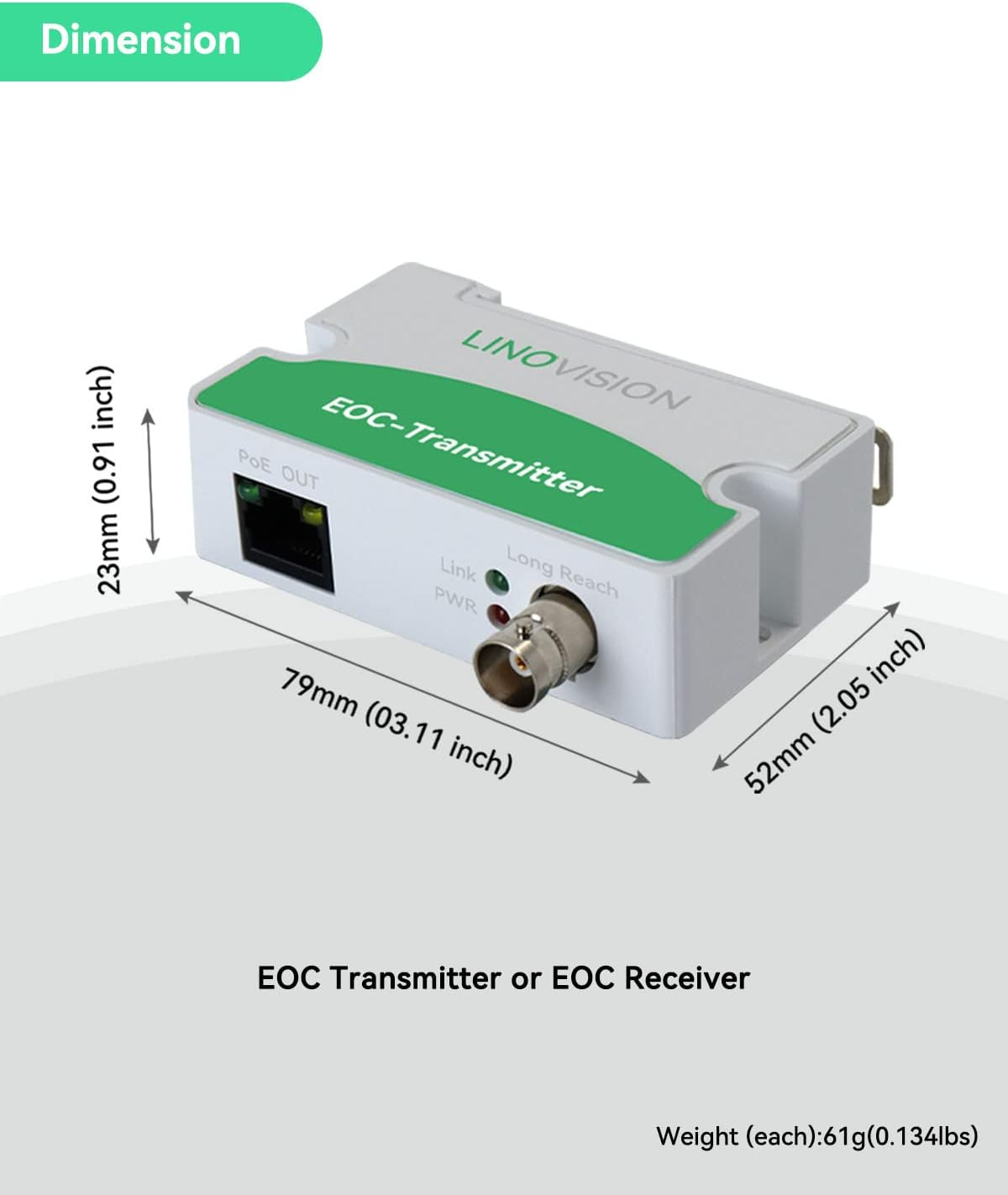

DIN-Rail Installation. Plug-and-play, configuration free, makes installation simplest. Small design (3.1"x2.0"x0.9") and light weight.
General EOC Applications
Application in Elevator
It can transmit POE power and IP data over coaxial or twist pair cable. One passive EOC-transmitter will be put inside the elevator cart to feed camera or signal board, and one EOC-receiver will be in the control room, powered by POE switch/POE injector/POE NVR.
-
Why my POE device is offline when working with our EOC (IP Over Coax) Converter?
Several main reasons are as follow:
1.Reverse connection
2.Point-to-point coax cable direct connection ONLY
3.Insufficient load capacity: Suggest 802.3at (PoE+)
4. No power supply
-
What kind of cables can be connected between EOC transmitter and EOC receiver?
It can transmitter ethernet data and POE power over coaxial cables, twist pair cables, power cables, video cables or almost any two-pin cables.
-
Do EOC Receiver & EOC Transmitter need power?
They do not need extra power. Just connect as the connection pictures have shown.
-
Will this work for extending connectivity between a router and an Ethernet switch? Or extending WIFI?
Yes. But you need a POE injector in EOC receiver side to provide power to EOC receiver and EOC transmitter. It is recommended to use 56V 30w POE injector.
-
Can multiple devices be connected via single coaxial cable?
Yes. The connection will be multiple device → NVR/POE switch/WI-FI AP → EOC Transmitter → Coaxial cable ->EOC Receiver → POE NVR/POE Switch/POE Injector with internet.
| Input | POE Standard |
| IEEE802.3af/IEEE802.3at | √ |
| Port Supports POE over Coax | √ |
| Power Budget | / |
| Compatible Cable | RG59/RG6 Coax+Twist Pair Cable |
| Longest Transmission Distance | 3000ft |
| Plug&Play | √ |
| Package | 1*EOC-Converter |
- Country/Region of origin: China
- Product dimensions: 7.87 x 5.08 x 2.29 cm; 250 Grams
- Is discontinued by manufacturer: No
- Special Features: Waterproof
- Size Name: 1 pack
- Brand: LINOVISION
- Hardware Interface: Ethernet
- Manufacturer: LINOVISION
- Item Model Number: Conv-EOC
- Data Link Protocol: IEEE 802.3at, Ethernet, IEEE 802.3af
- Batteries Included: No
- Batteries Required: No
- Connector Type: Power over Ethernet
- Item Weight: 250 g
- Has Auto Focus: No
- Model: Conv-EOC
- Type of cable or wire: Ethernet
- Part Number: EOC Converter
- Data Transfer Rate: 100 Megabits Per Second
- Number of items: 1
- Has Programmable Buttons: No
- Compatible Devices: Camera, Smartphone
- Wattage: 11 watts
