Features:
2.4GHz, Max. 3000mW output power;
Aluminum-alloy case by CNC, anti-interference;
Small size, Safe & Power saving;
Full kit, easy to install;
For house, office, UAV, IP cameras, RC equipment
Technical specifications
SKU: 0305SH100023
Model: SH24BTA-N
P/N: 24BTAN24014
Barcode: 6958917600827
Operating range: 2400~2500MHz
Channel width: 20Mhz&40Mhz
Supported standards: IEEE 802.11b/g/n
Operation mode: Bi-directional, half-duplex, time division duplex

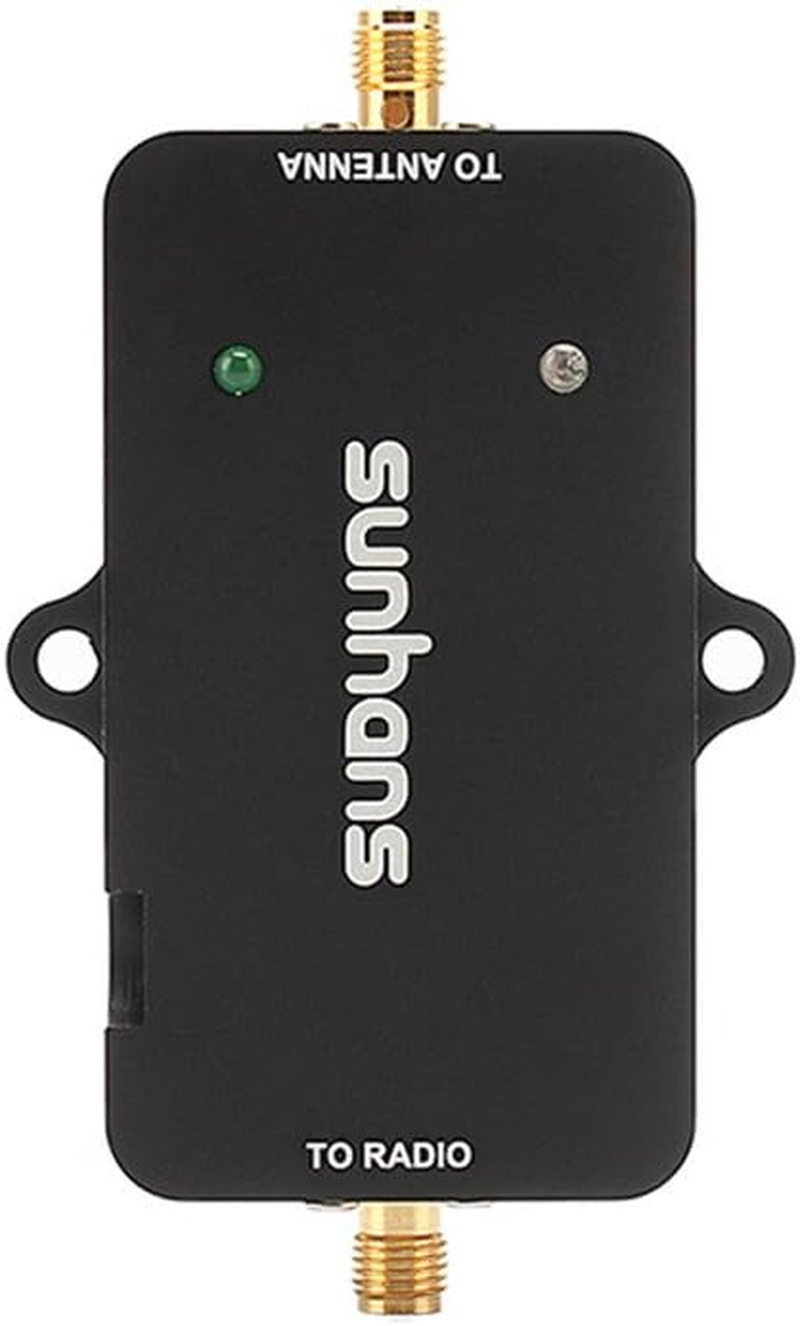

Connector type: To radio SMA female (hole inside). To antenna RP-SMA male (pin inside)
Output power: 3000mW (35dBm)
Input power: 0 ~ 20dBm
Transmit gain: 15 - 18dB
Receiver gain: is less than or equal to 12dB
Noise figure: = 3.5dB typical
Frequency response: + 1dB over operating range
Power adapter: 12V/2A DC, 100~240V
Operating temperature: -20 C to +70 degrees C degrees
Operating humidity: Up to 75% relative humidity
Material: Cast aluminum
LED light: Power status LED and activity status LED
Booster weight: 94g
Booster size: 8.4 x 4.7 x 1.7cm
Package weight: 380g
Package size: 21.3 x 13.5 x 5cm

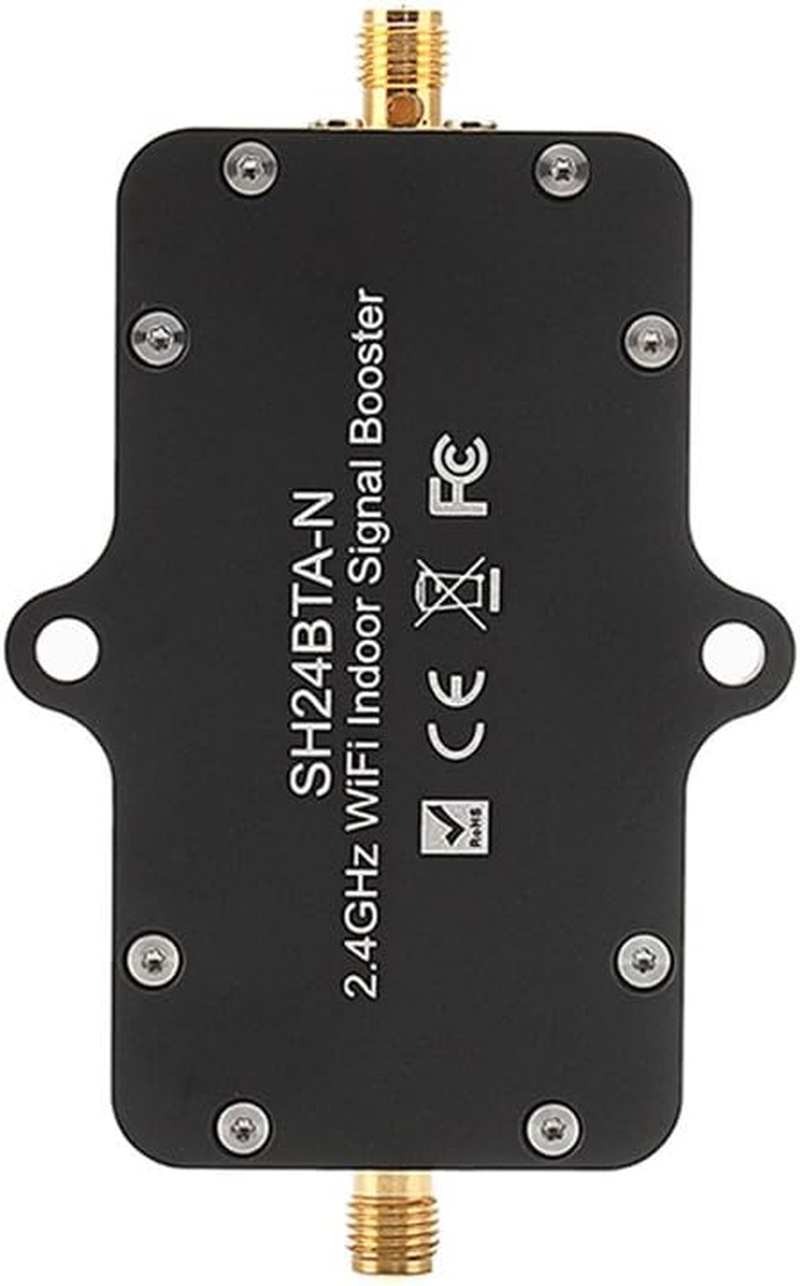

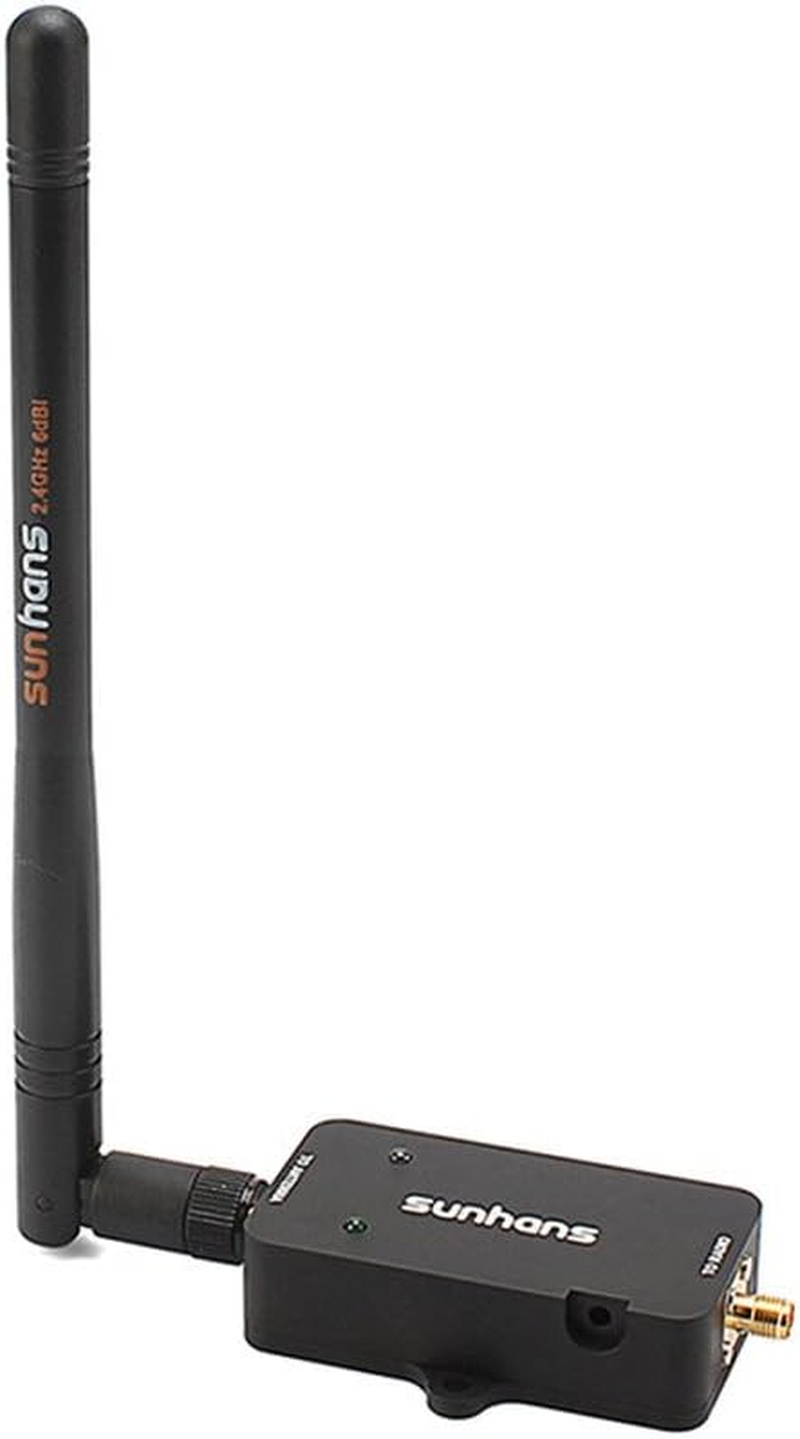

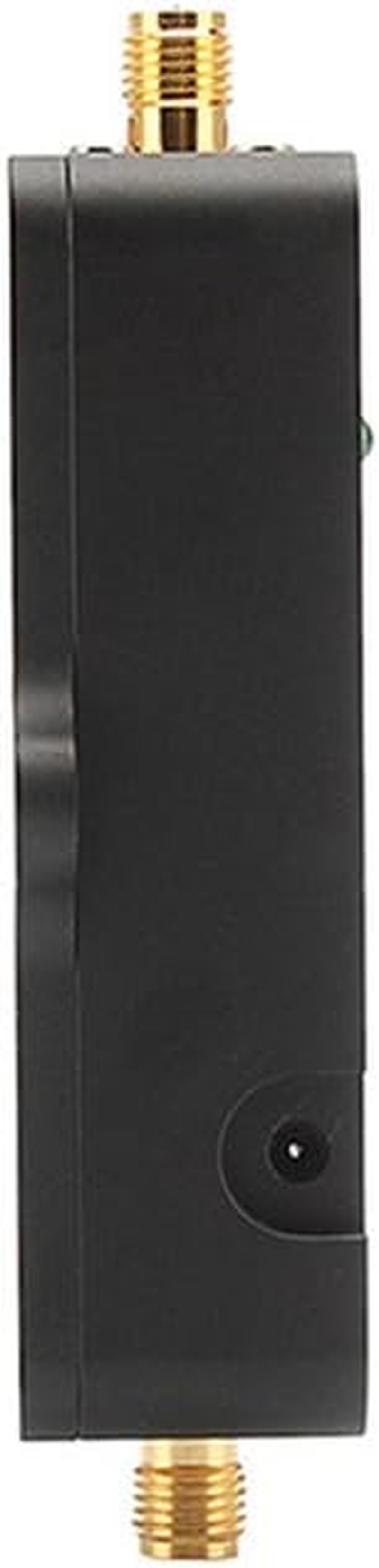

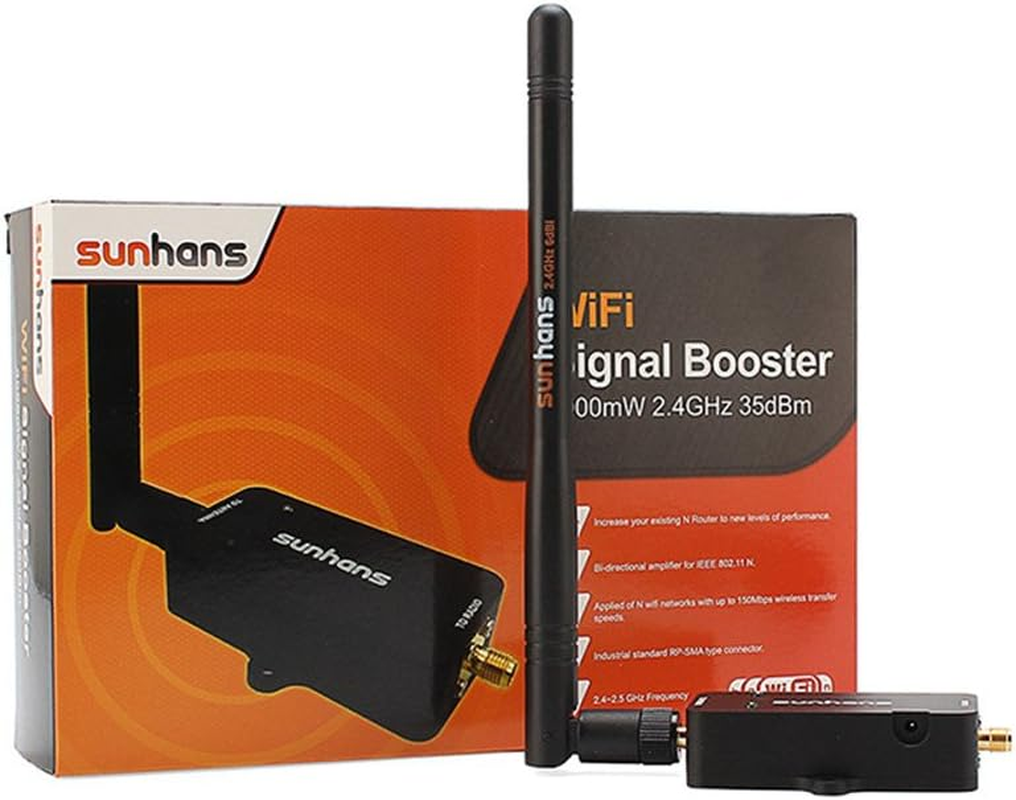

Package Included:
1 x SH24BTA-N Wifi Signal Booster
1 x RG316 cable with SMA connectors (20cm)
1 x 6dBi omni antenna
1 x power supply
1 x user manual
Attention:
The power amplifier is not suitable for use in high power devices
Use

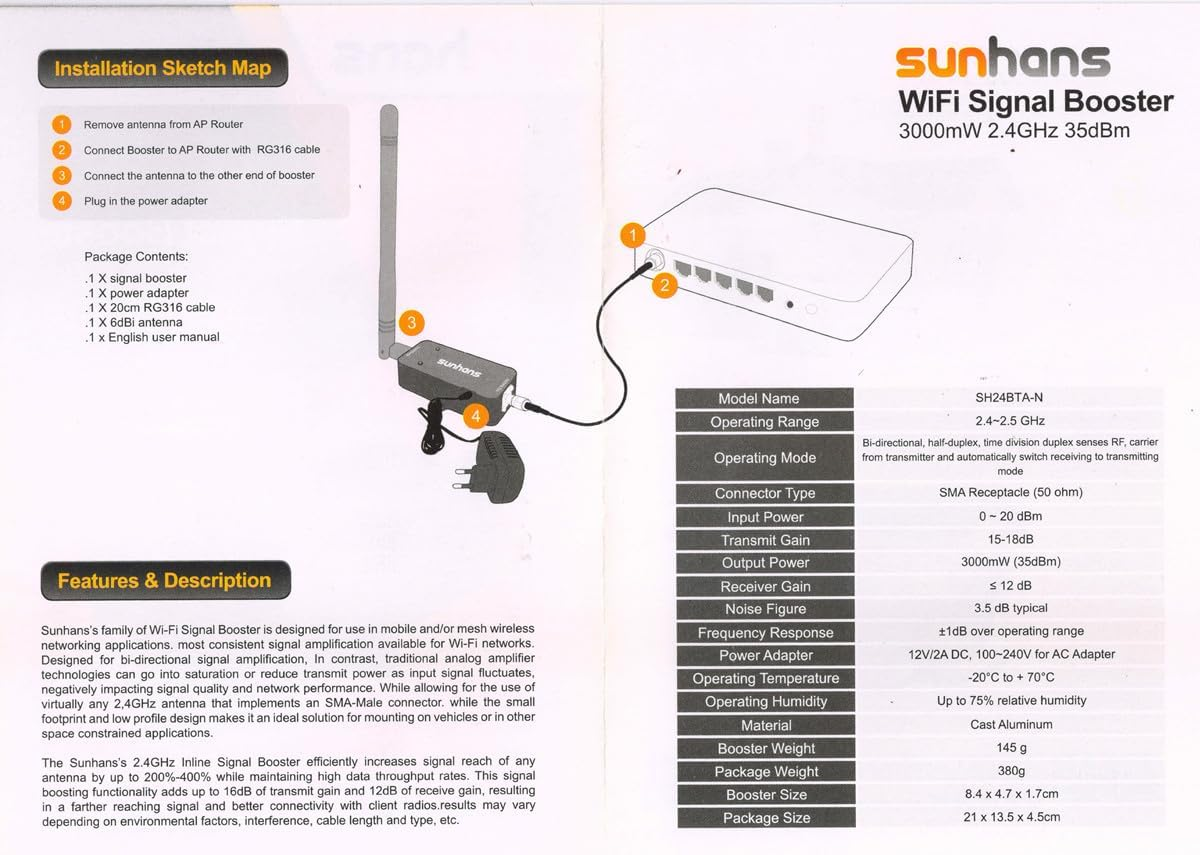

Step 01: Remove the Antenna from the Wireless Router (Access Point).
Step 02: Use this cable (RG316) to connect Amplifier 'input' port with router 'output' port: note that cable is in standard spec.
Step 03: Connect the antenna with 'output' port of Amplifier.
Step 04: Power the amplifier with the matching source adapter: DC 12V.
