Overview:
Smartrayc DM556S Digital 2-phase Stepper drive is based on TI’s 32-bit DSP platform and integrated with the micro-stepping technology and the auto tuning of power-up parameters. With the features of low noise, low vibration, low heating and high-speed high torque output, it is suitable for most stepper motors.
Key Features:
* Anti-Resonance provides optimal torque and nulls mid-range instability
* Motor auto-identification and parameter auto-configuration when power on, offer optimal responses with different motors
* Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
* 16 Pulse/Rev: 400-25600
* Soft-start with no “jump” when powered on
* 8 selectable peak current including 1.40A to 5.60A
* Pulse input frequency up to 200 KHz, TTL compatible and optically isolated input
* Automatic idle-current reduction
* Suitable for 2-phase and 4-phase motors

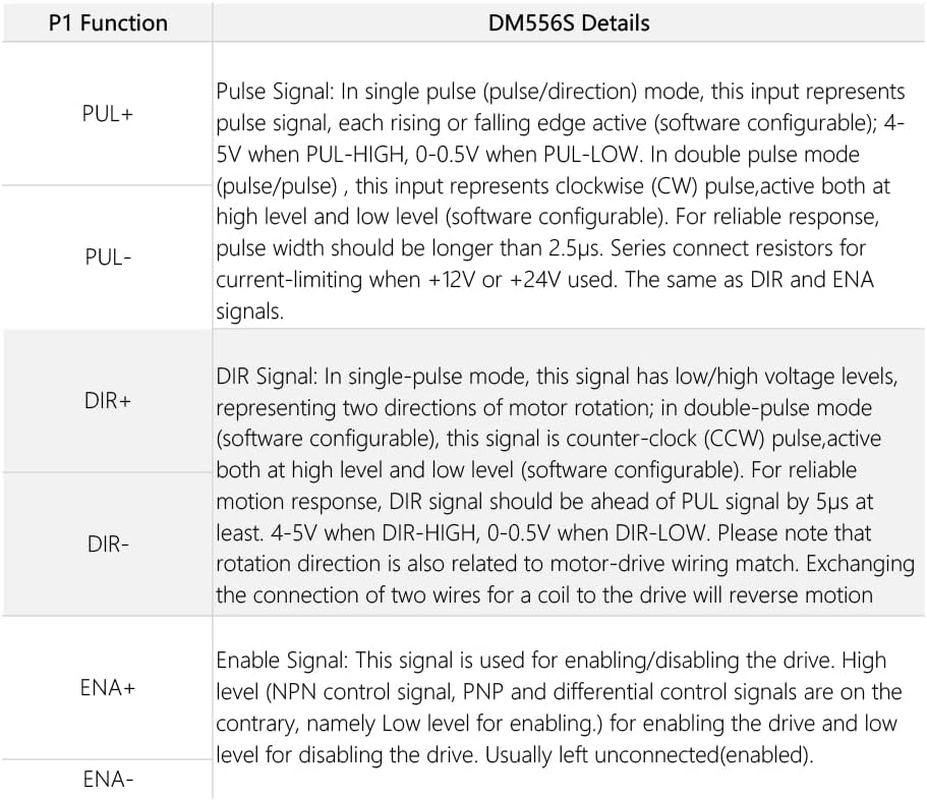

* Support PUL/DIR mode
* Over-voltage and over-current protections
Electrical Specifications:
* Output Peak Current: 1.4~5.6A (4.0 RMS)
* Input Voltage: +18~50VDC (Typical 36VDC)
* Logic Signal Current: 7~16mA (Typical 10mA)
* Pulse Input Frequency: 0~200kHz
* Pulse Width: 2.5μS
* Cooling: Natural Cooling or Forced cooling
* Environment: Avoid dust, oil fog and corrosive gases
* Operating Temperature: -10℃~45℃
* Vibration: 10-55Hz / 0.15mm
* Weight: Approx.270g (9.8oz)
Packing List:
1 x Stepper Motor Driver DM556S
