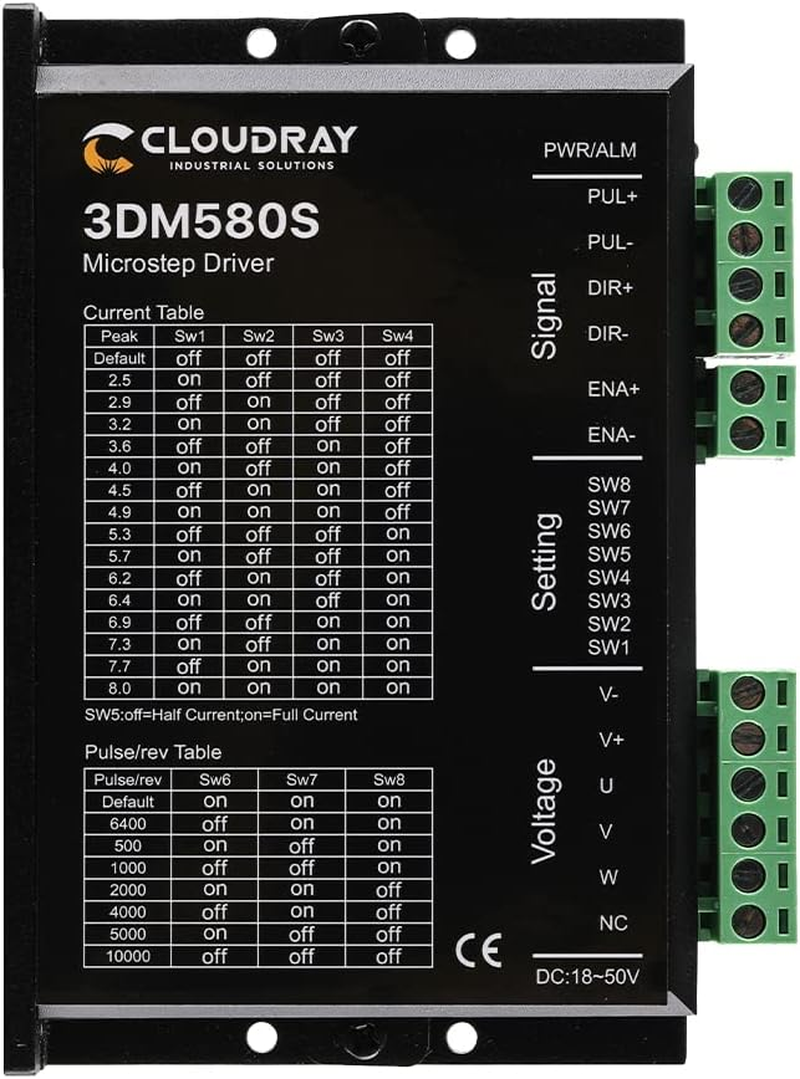

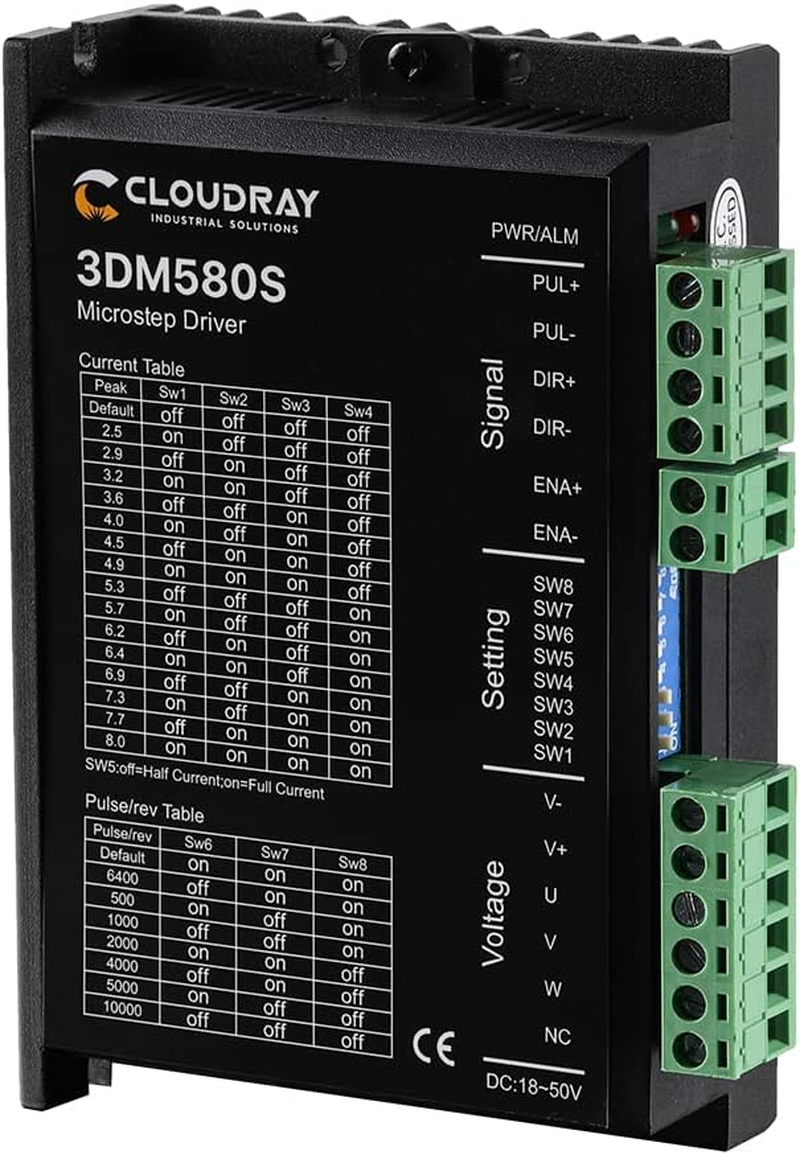

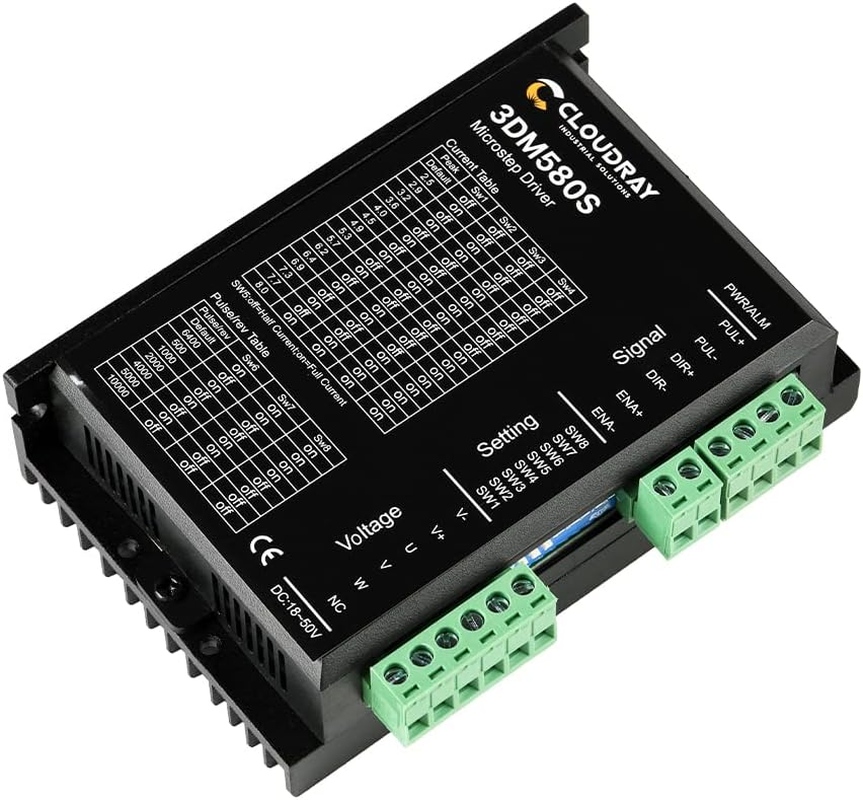

Cloudray 3-Phase Stepper Motor Driver 3DM580S 1.0-8.0A 18-50VDC for CNC Nema 17, 23, 24 and 34 Stepper Motor

Cloudray 3-Phase Stepper Motor Driver 3DM580S 1.0-8.0A 18-50VDC for CNC Nema 17, 23, 24 and 34 Stepper Motor

Brand: Cloudray
5.0
A$139.80
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • Extra-low motor noise offers excellent quietness.
  • Industrial-grade Stepper Driver.
  • Suit for 3-Phase Nema 17, 23 and 34 Stepper Motor.
  • Output Current: 1.0 ~ 8.0A, Supply Voltage: 18 ~ 50VDC.
  • Application areas: engraving machine, filature, wire-stripping machine, marking machine, cutting machine, die bonder, plotter, numerical control machine, automatic assembly equipment etc.

Product Description

Features

Extra-low motor noise offers excellent quietness

Anti-Resonance, provides optimum torque and nulls mid-range instability.

Auto-configuration technology ,offers optimunm responses with different motors.

Microstep Resolutions Programmable

Automatic Idle0current Reduction

Supports PUL/DIR and CW/CCW Modes

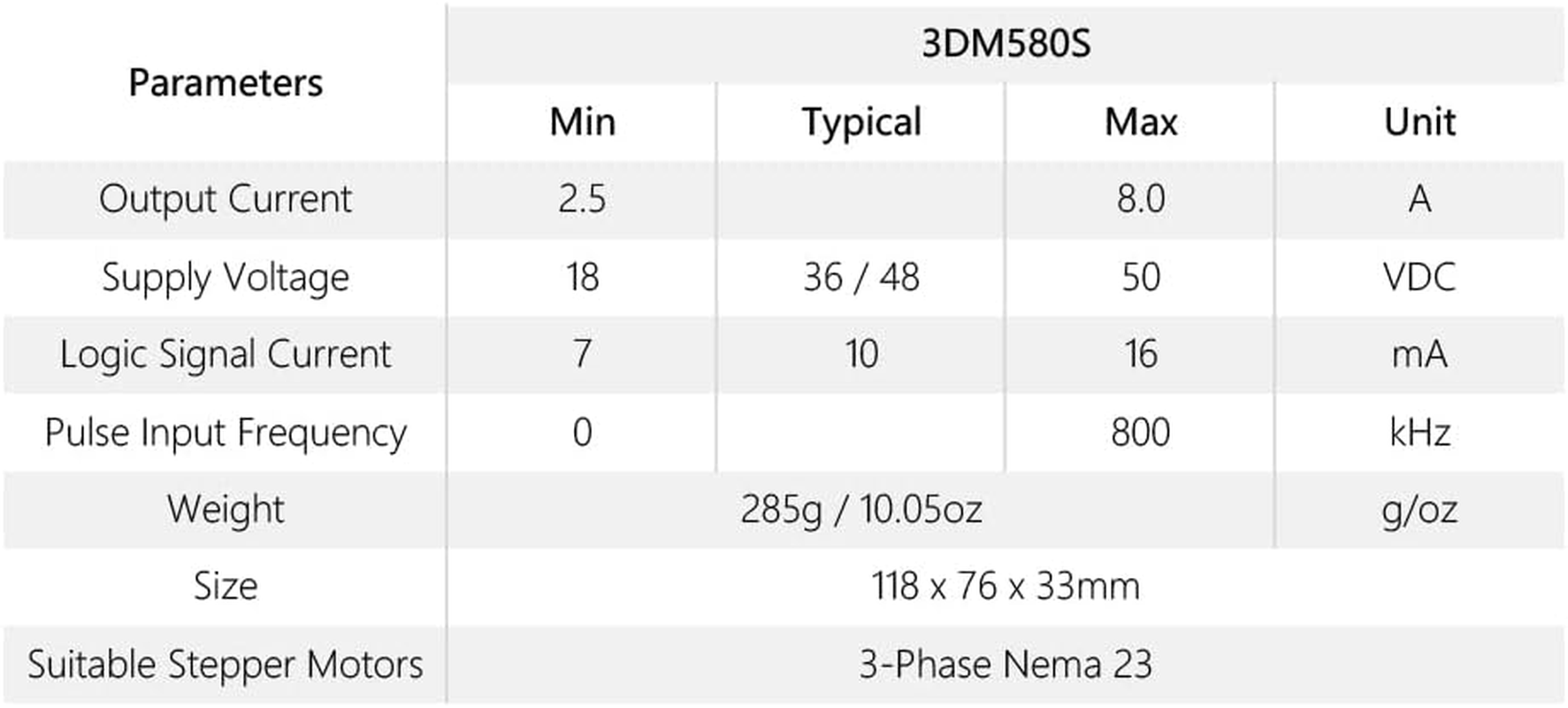

Specifications (3DM580S)

Output Current 2.5~8.0A
Supply Voltage 18~50 VDC (36/48 VDC Recommended)
Logic Signal Current 7~16 (Typical 10mA)
Pulse Input Frequency 0~800kHz
Weight 285g / 10.05oz
Size 118 * 76 * 33mm (4.6*2.9*1.3 inch)
Suitable Stepper Motors 3-Phase Nema 23

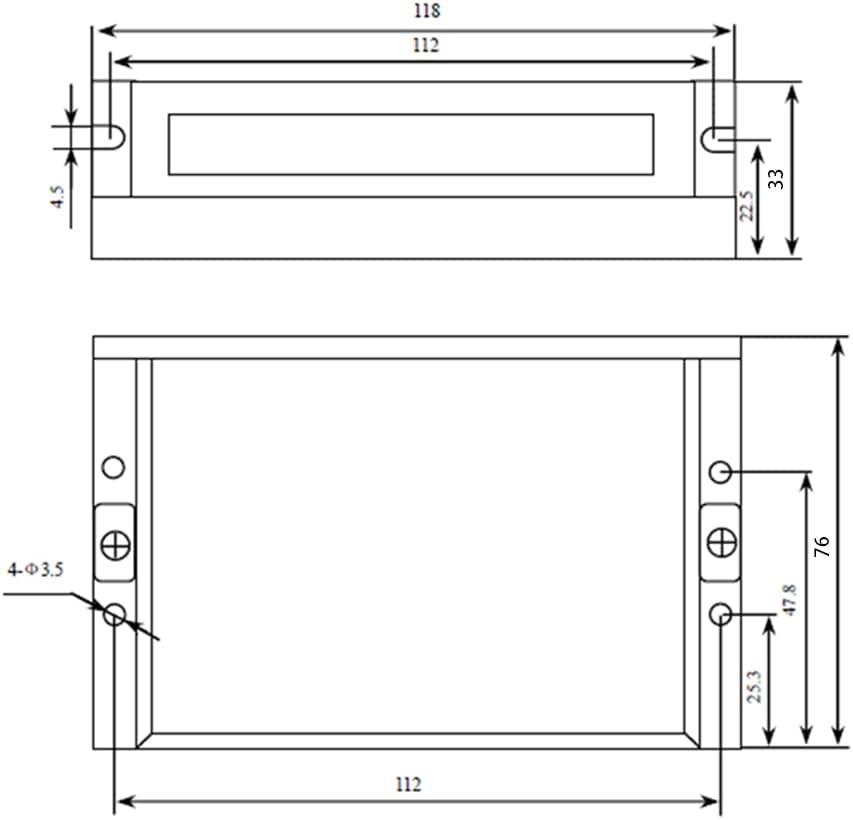

Mechanical Specifications (unit :mm /inch）

Connections

Pin Assignment and Description

P2 Function (3DM580S)

+VDC : Power Supply, 18~50 VDC, Including Voltage Fluctuation and EMF Voltage

GND : Power Ground

U: Motor Phase U ; V :Motor Phase U W : Motor Phase W

P1 Function (3DM580S)

  • Item Model Number: 3DM580S
  • Brand: Cloudray
  • Manufacturer Part Number: SMD10SR3DM580S
  • Item Weight: 280 g
  • Voltage: 50 Volts
  • Model: cnc
  • Is discontinued by manufacturer: No
  • Product dimensions: 7.6 x 11.8 x 3.3 cm; 280 Grams
  • Manufacturer: Cloudray
