  • Extra-low motor noise offers excellent quietness.
  • Industrial-grade Stepper Driver.
  • Suit for 2-Phase Nema 34 Stepper Motor
  • Suit for 2-Phase Nema 34 Stepper Motor
  • Application areas: engraving machine, filature, wire-stripping machine, marking machine, cutting machine, die bonder, plotter, numerical control machine, automatic assembly equipment etc.

Product Description

Features

Extra-low motor noise offers excellent quietness

Anti-Resonance, provides optimum torque and nulls mid-range instability

Auto-configuration technology ,offers optimunm responses with different motors

Microstep Resolutions Programmable

Power Voltagge up to 80VAC / 100 VDC

Output Current Programmable(2.0~6.0A)

Pulse Input Frequency up to 200KHz

Automatic Idle-current Reduction

Supports PUL/DIR and CW/CCW Modes

Specifications (DM860S)

Output Current 2.0~6.0A
Supply Voltage 24~100 VDC/18~80 VAC
Logic Signal Current 7~16 (Typical 10mA)
Pulse Input Frequency 0~800kHz
Weight 580g (20.46oz)
Size 5.9*3.8*2.0 inch
Suitable Stepper Motors Nema 34

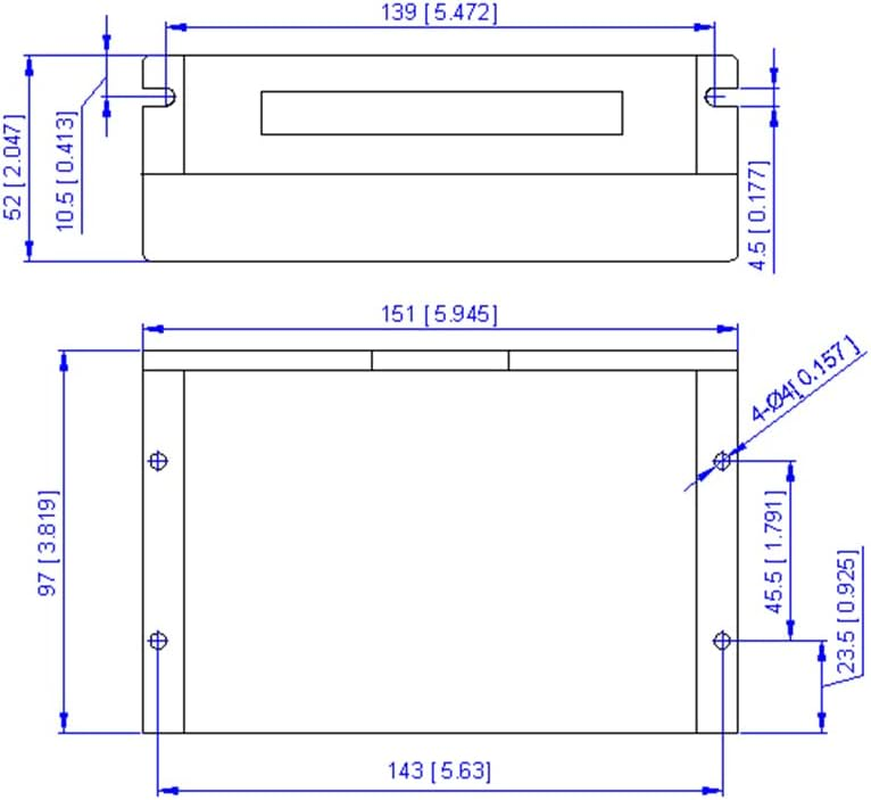

Mechanical Specifications (unit :mm /inch）

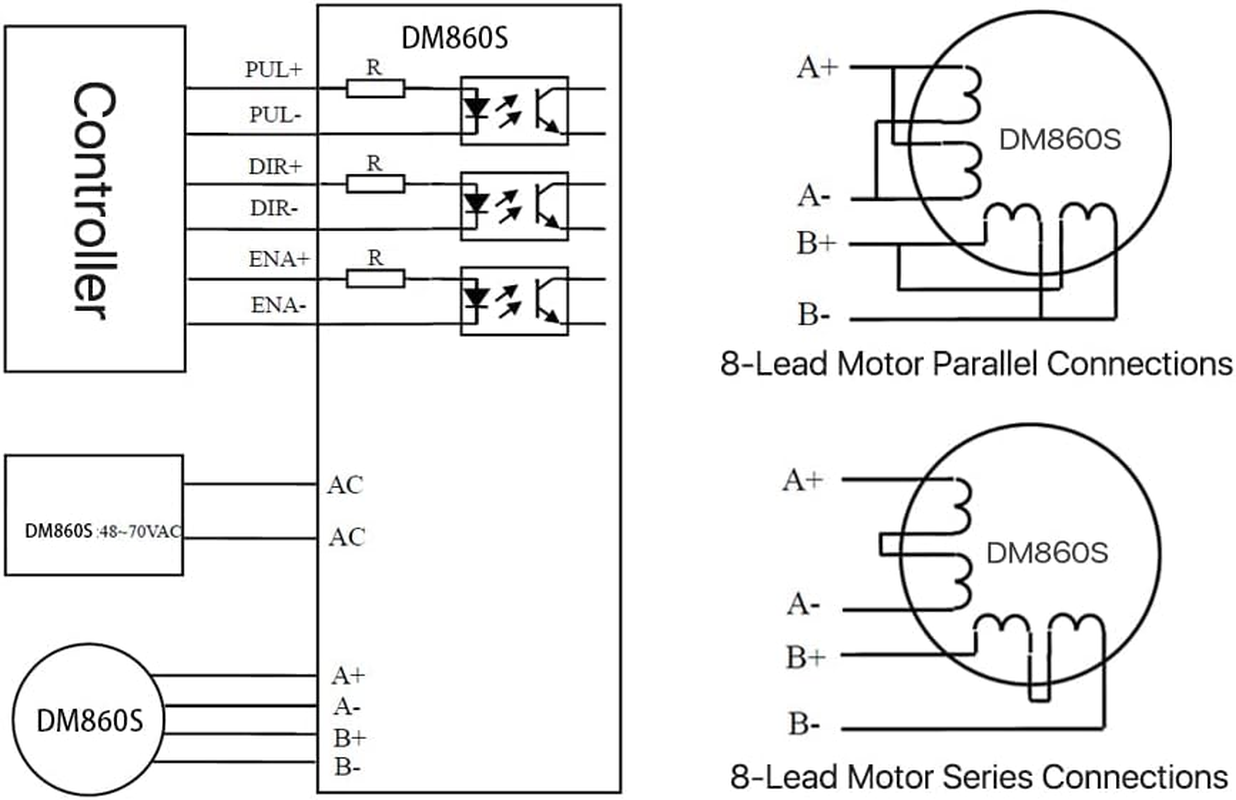

Connections

Pin Assignment and Description

P2 Function (DM860S)

+VDC : Power Supply, 18~50 VDC, Including Voltage Fluctuation and EMF Voltage

GND : Power Ground

U: Motor Phase U ; V :Motor Phase U W : Motor Phase W

P1 Function (DM860S)

  • Item Model Number: DM542S
  • Brand: Cloudray
  • Manufacturer Part Number: SMD10SRDM860C
  • Item Weight: 580 g
  • Voltage: 80 Volts
  • Is discontinued by manufacturer: No
  • Product dimensions: 20 x 10.5 x 12.5 cm; 580 Grams
  • Manufacturer: Cloudray
