ITEQ 8-Piece Brake Lining Thickness Metric & SAE Gauge Steel Construction
ITEQ 8-Piece Brake Lining Thickness Metric & SAE Gauge Steel Construction
Brand: ITEQ
A$13.65
- Color coded gauge to identify Metric & SAE thickness level ranges for brake lining inspection
- The brake measuring tool set can be used to quickly gauge any vehicle including trucks and heavy duty transportation
- Set of 8 gauges denoting 3 thickness levels: Green, Yellow & Red, which indentify if the brakes are still good (Green), should be serviced (Yellow) and must be serviced (Red)
- Each gauge blade has both Metric & SAE: 3 green (12, 10, 8 mm & 0.4724, 0.3937, 0.3150 inch), 3 yellow (6, 5, 4 mm & 0.2362, 0.1969, 0.1575 inch), and 2 red (3, 2 mm & 0.1181, 0.0787 inch)
- Constructed out of steel with powder coat riveted together for extra strength and durability
Product Description
ITEQ Brake Lining Thickness Gauge 8 Piece SAE & Metric Steel Constructions

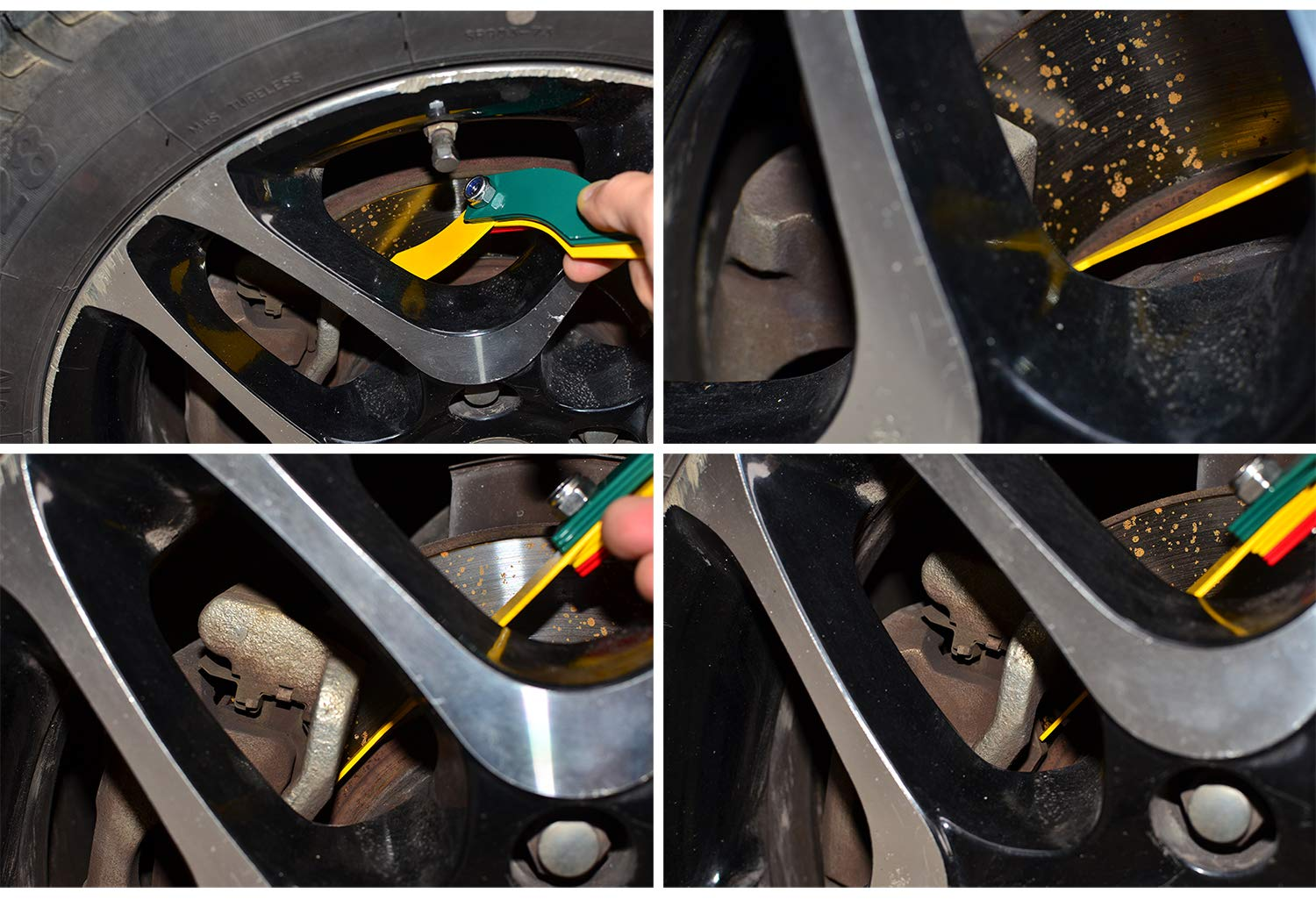

The ITEQ Brake Lining Thickness Gauge Tool is a device that allows you to identify how much friction material is still available on the disc brake pad or brake shoe and determine whether the brake lining needs to be replaced.
It is not meant to serve as a precision measuring instrument, but rather as an indicator and visual aid in quickly determining how much brake pad is left.
Using this tool a technician or service advisor can make a recommendation to the customer about when they feel it may be necessary to replace their brake linings.
Metal Construction
Constructed out of steel with powder coat riveted together for extra strength and durability
Why We Need to Check the Brake Linings Thickness Regularly?
A brake lining is a friction material bonded to the steel brake shoes or pads. As the brake lining wears down, the brake may chatter, squeak or squeal. Left unattended, the brake lining will continue to wear until the rivets begin to eat into the rotor or drum and generate for a costly brake repair. And more seriously, it may couse a driving accident.
To check the brake linings regularly is a must-to-do job, which will not only protect your vehicle but also keep you and your family safer.
- Help you to know the brake linings condistion of your car
- Keep your vehicle away from unnecessary costly repair
- Keep you and your family in safe driving

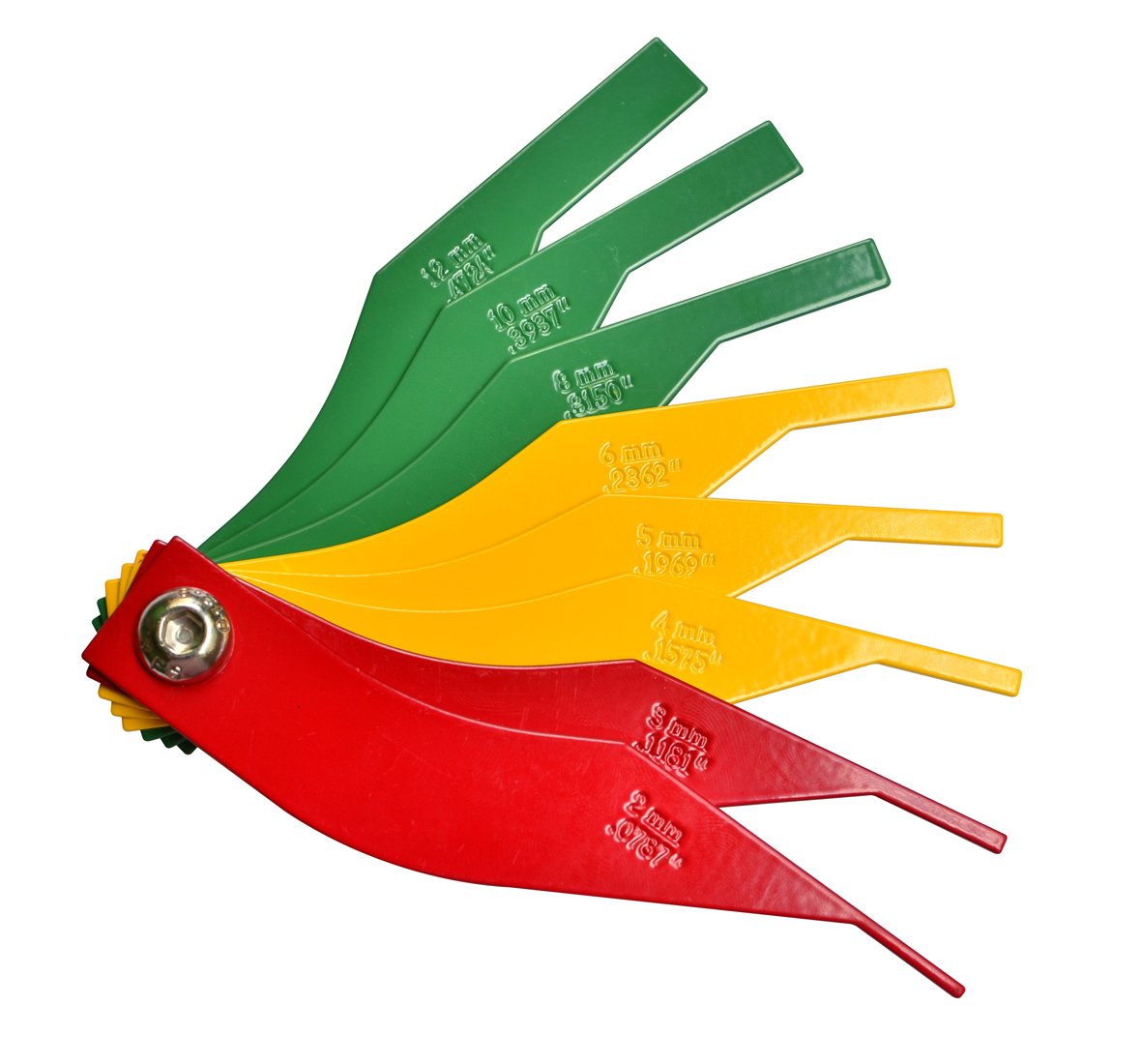

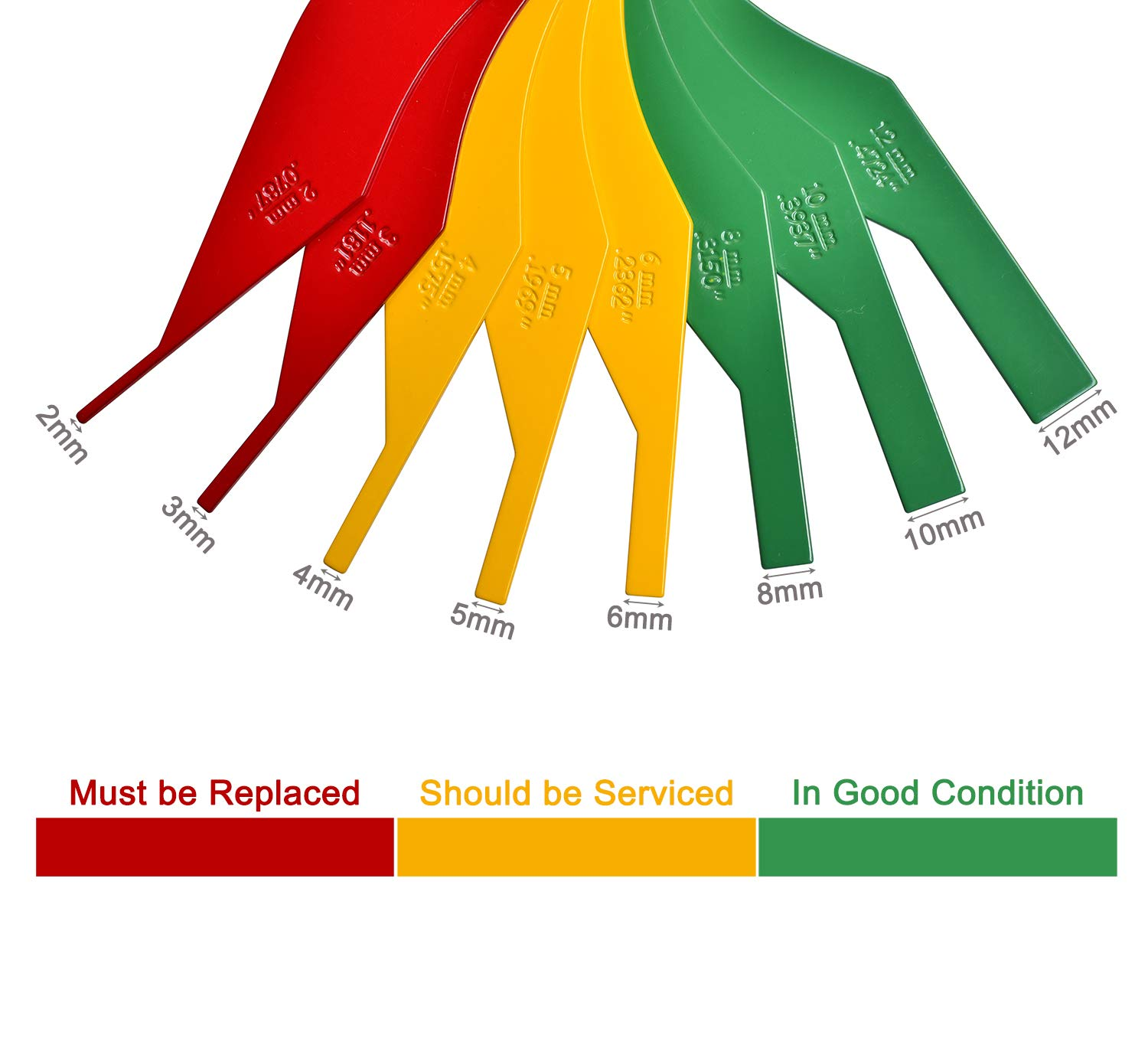

8 Pieces of Color Coded Blades in SAE & Metric
Green: In Good Condition
- 0.4724inch / 12mm
- 0.3937inch / 10mm
- 0.3150inch / 8mm
Yellow: Should be Serviced
- 0.2362inch / 6mm
- 0.1969inch / 5mm
- 0.1575inch / 4mm
Red: Must be Serviced
- 0.1181inch / 3mm
- 0.0787inch / 2mm
Organized Screw Nut
Organized, rotatable and portable
Mounted in one set
Mounted in one tool set, never lose it
Releasable Screw nut
Releasable for easy use
Metal Construction
Constructed of metal for durable
Package
Coming with an appropriate packed box, which is available as a gift for family menbers and friends, to show them your loving care.
- Item Model Number: 8542041409

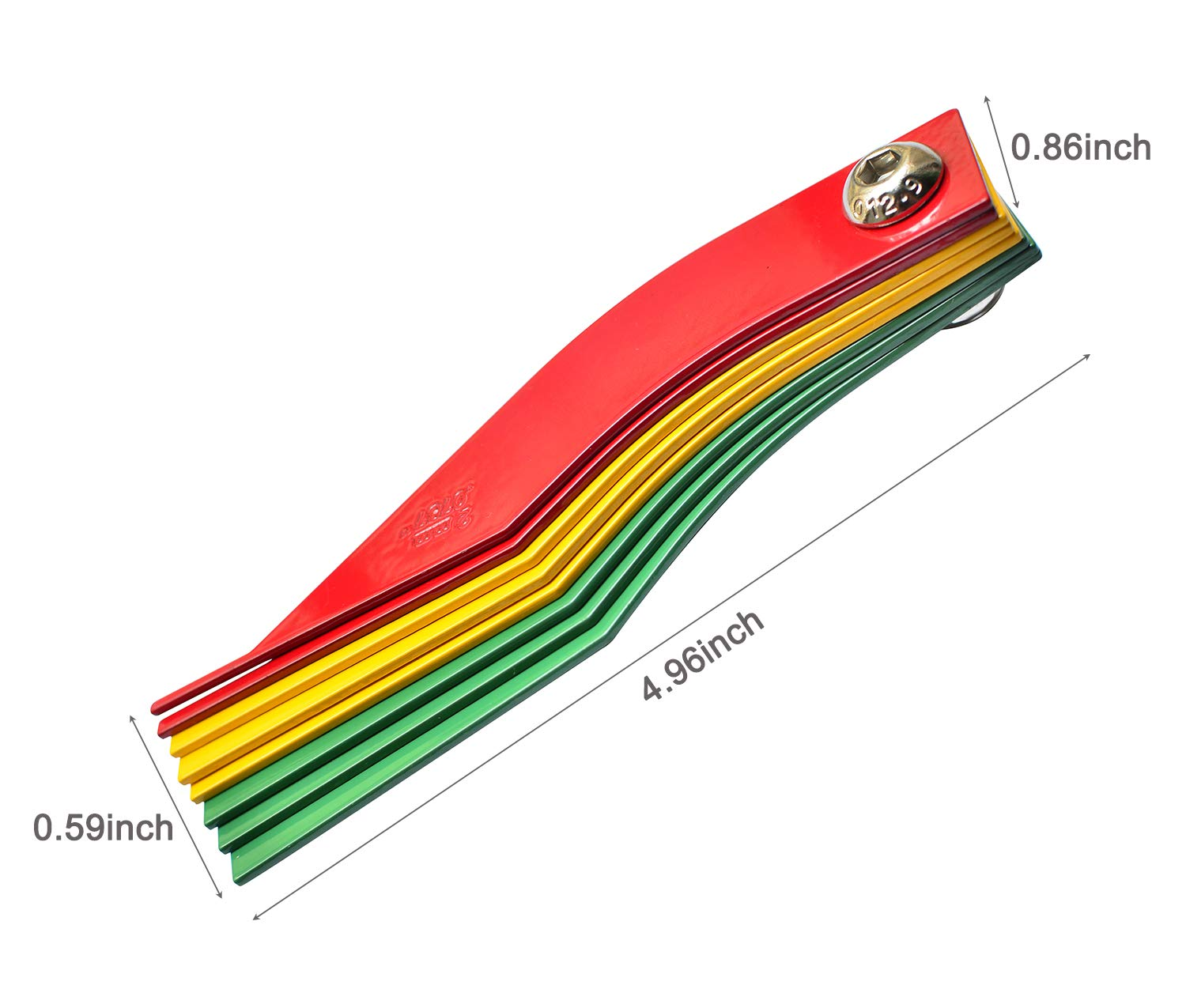

- Product dimensions: 13 x 1.2 x 2.2 cm; 150 Grams
- Is discontinued by manufacturer: No
- Manufacturer: ITEQ
