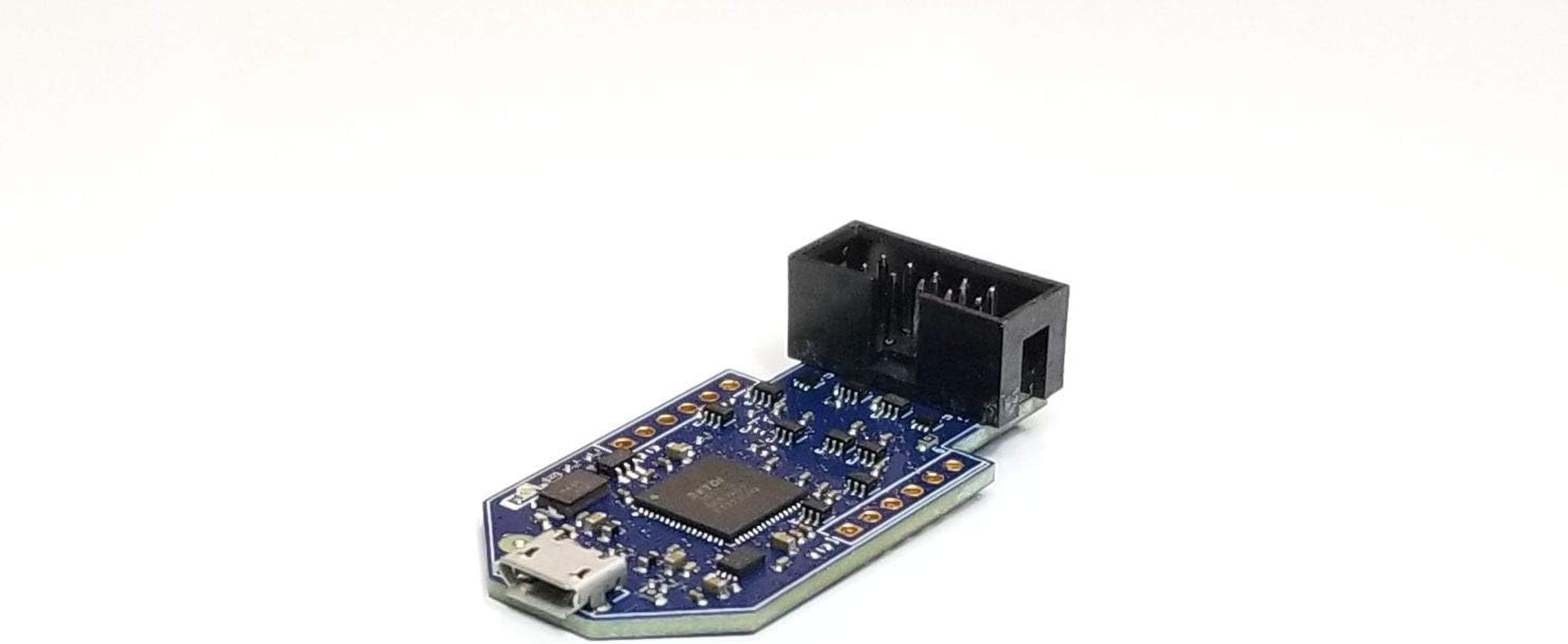

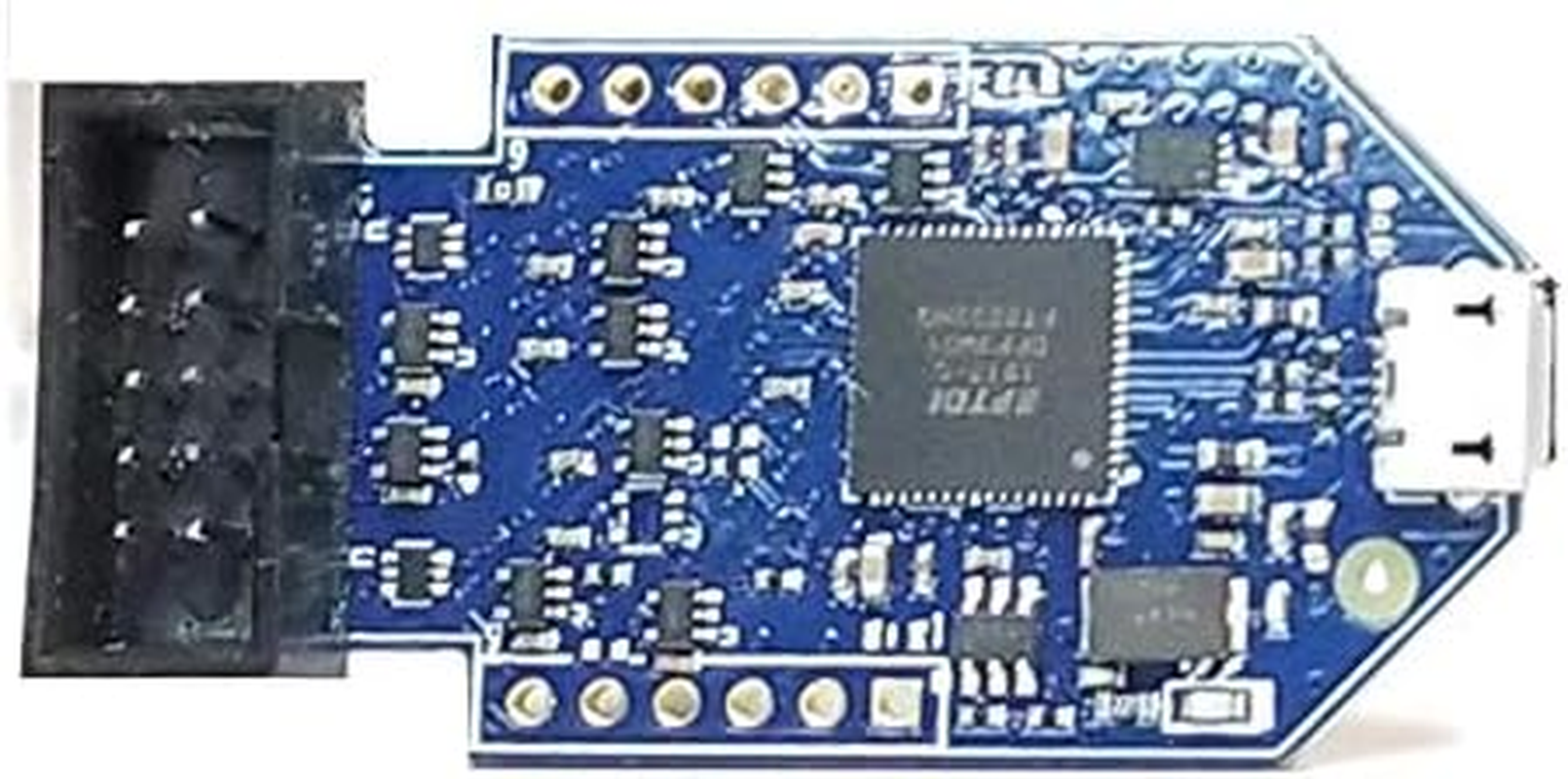

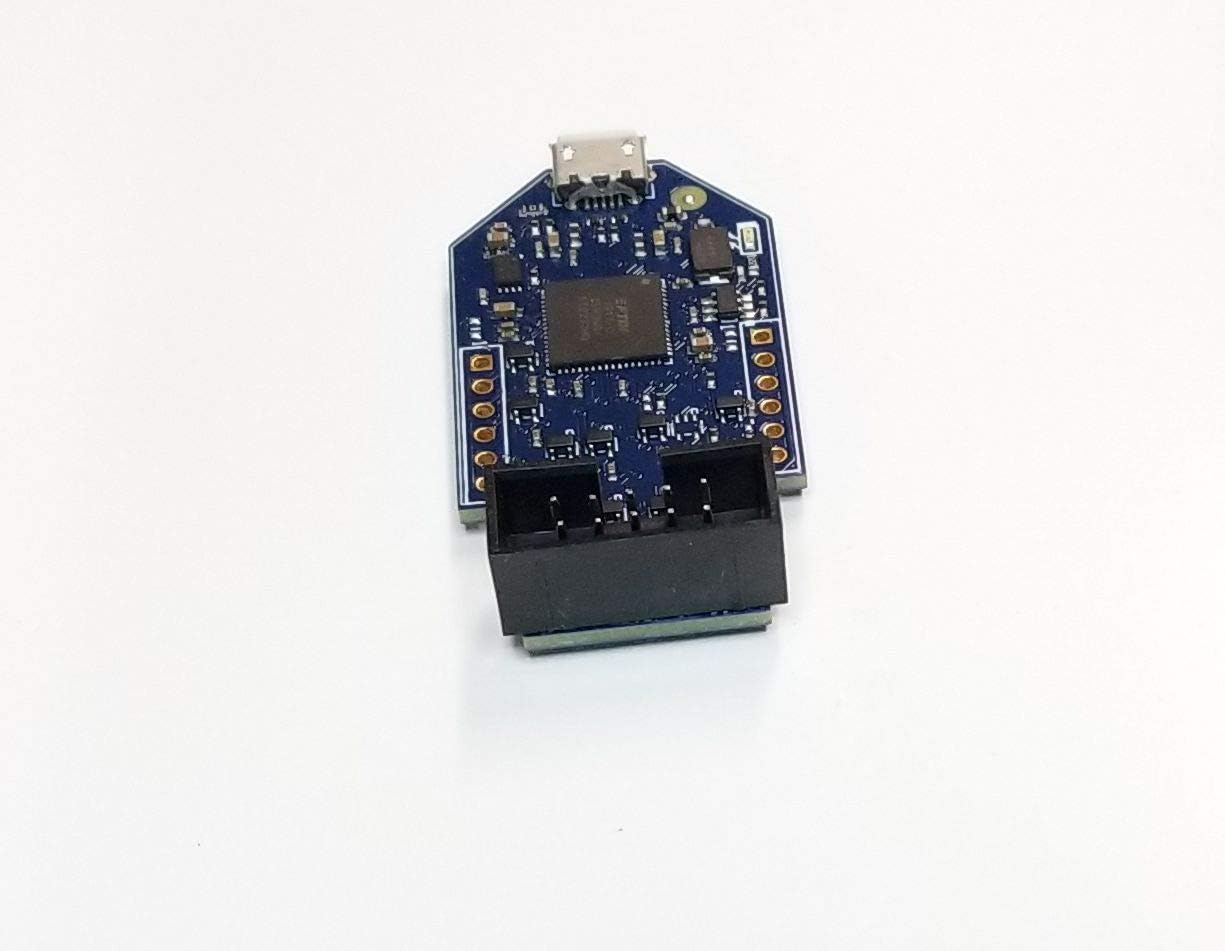

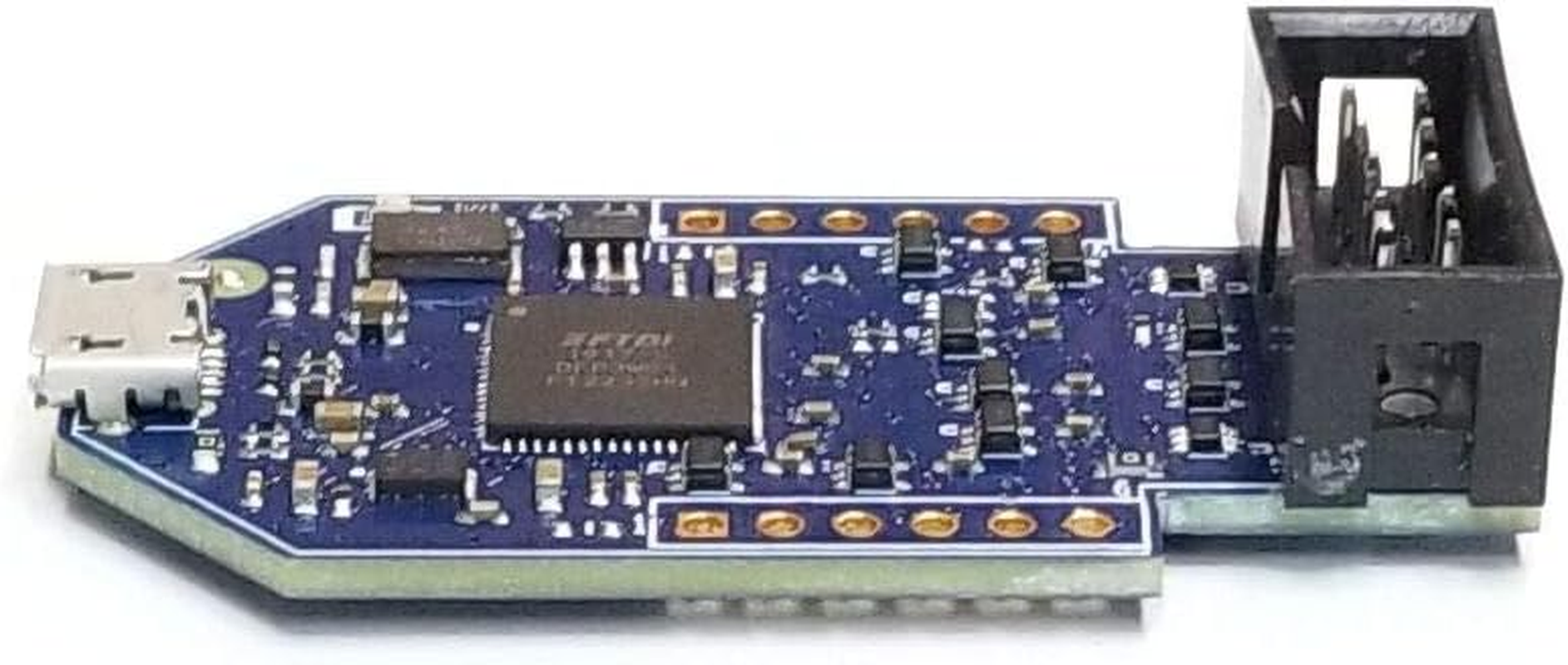

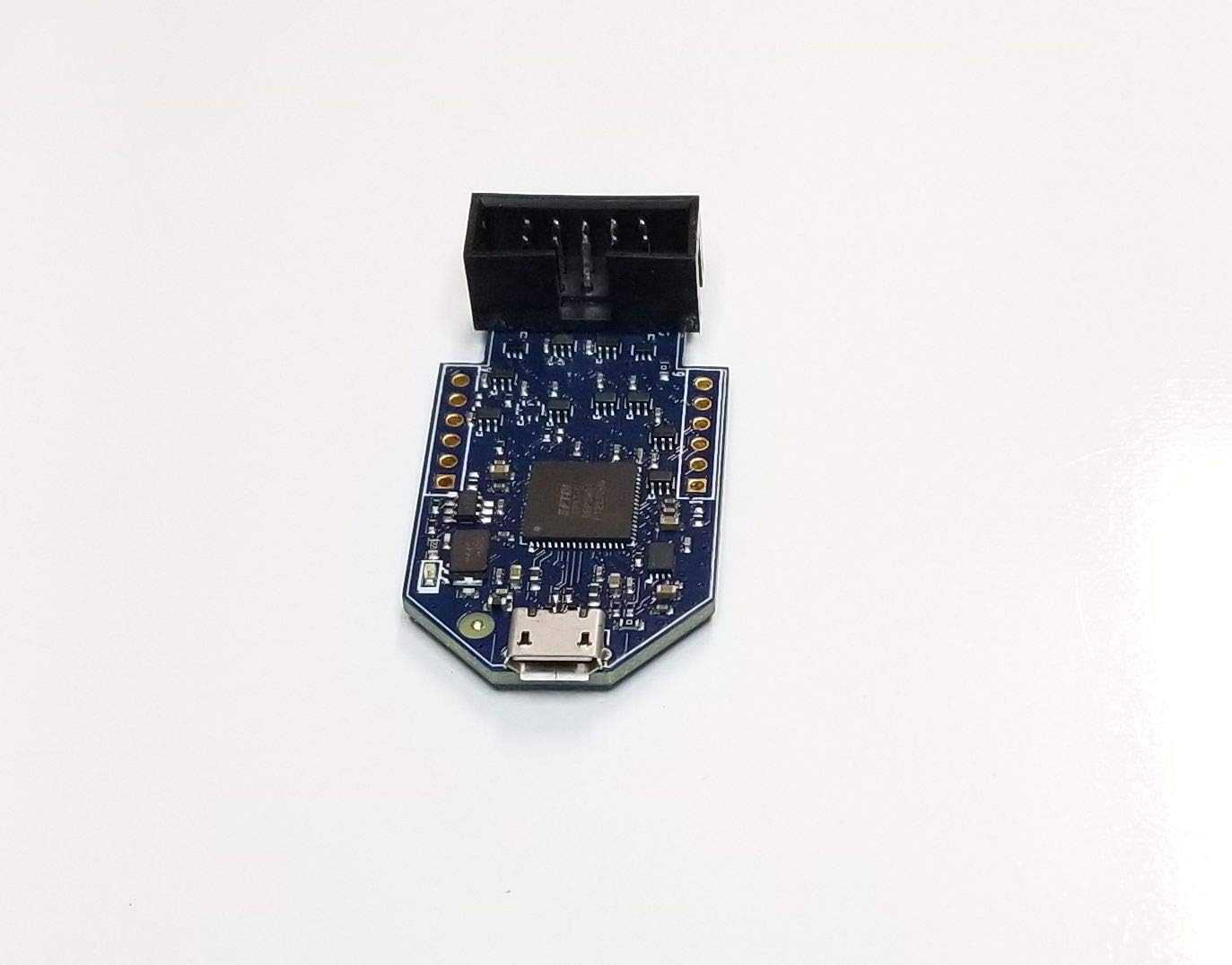

Earth People Technology JTAG Blaster - Intel/Altera FPGA CPLD JTAG Programmer
Earth People Technology JTAG Blaster - Intel/Altera FPGA CPLD JTAG Programmer
Brand: Earth People Technology
A$31.50
- Programs Intel/Altera MAX II, MAX V, MAX10, Cyclon III, Cyclone IV, Cyclone V, Cyclone 10, Stratix IV, Stratix V devices
- Programs JTAG, AS and PS modes
- 10 pin header with Altera Standard pinout
- Connect LED indicates USB Enumeration
- Ultra Small footprint
This Product is Designed, Assembled, and Distributed in the USA.
JTAG Blaster Programmer

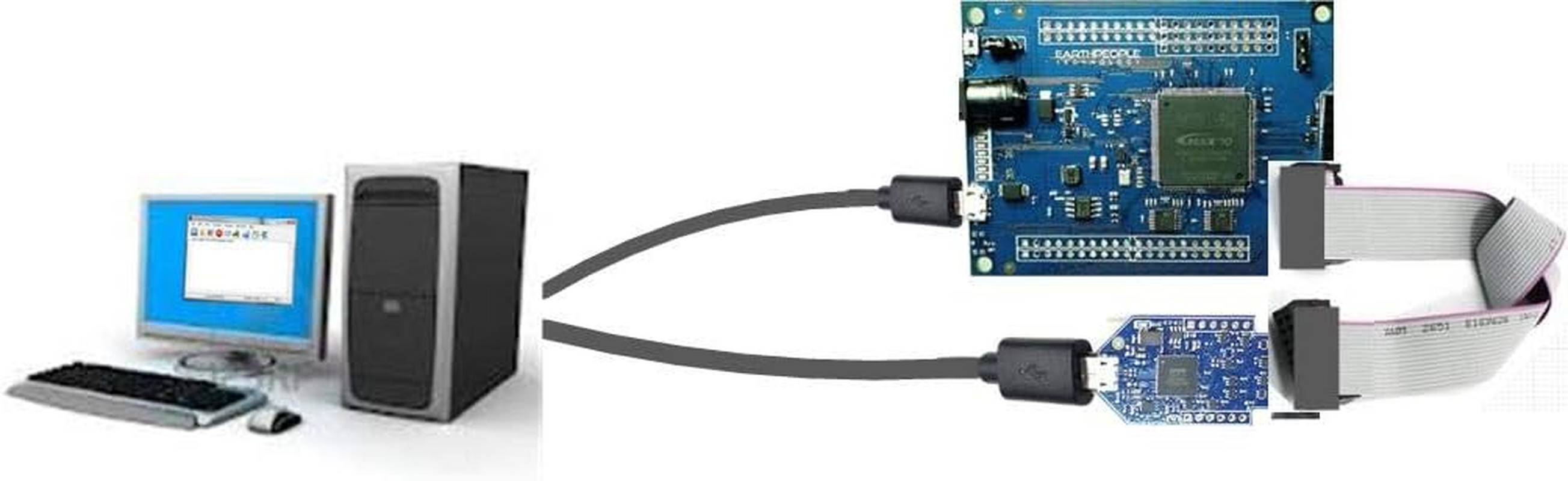

JTAG Blaster Provides JTAG connectivity for Intel/Altera devices such
as FPGAs and CPLDs. Includes Micro-B USB connector to attach
directly to USB 2.0 Port. The 10 Pin Header is pin for pin compatible
with Intel/Altera USB Blaster.
The JTAG Blaster uses the Target VCC to adjust its Input/Output operation voltage.
This allows the device to be compatible with chips from 1.8V to 5V.
Only requires 5mA from Target VCC.
- Item Model Number: EPT-2232H-SP-S1
- Part Number: EPT-2232H-SP-S1
- Total USB ports: 2
- Processor Count: 1
- Batteries Included: No
- Batteries Required: No
- Brand: Earth People Technology
- Compatible Devices: Intel/Altera FPGA and CPLD devices (specifically: MAX II, MAX V, MAX10, Cyclone III, Cyclone IV, Cyclone V, Cyclone 10, Stratix IV, Stratix V)
- Connector Type: USB
- Item Weight: 56.6 g
- Colour Screen: No
- Model Name: EPT-2232H-SP-S1
- Includes remote: No
- Model: EPT-2232H-SP-S1
- Hardware Interface: USB
- Is discontinued by manufacturer: No
- Product dimensions: 4.7 x 2.41 x 1.02 cm; 56.7 Grams
- Manufacturer: Earth People Technology
