LCR Meter Digital Capacitance Inductance Resistance Tester with Battery Crocodile Clip Bag LCR Tester Measuring Meter

LCR Meter Digital Capacitance Inductance Resistance Tester with Battery Crocodile Clip Bag LCR Tester Measuring Meter

Brand: Proster
4.8
A$72.80
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • LCR meter inductance, capacity and resistance meter, it is a special digital instrument that is easy to use, the reading accuracy degree is higher with liquid crystal display 3 1/2.

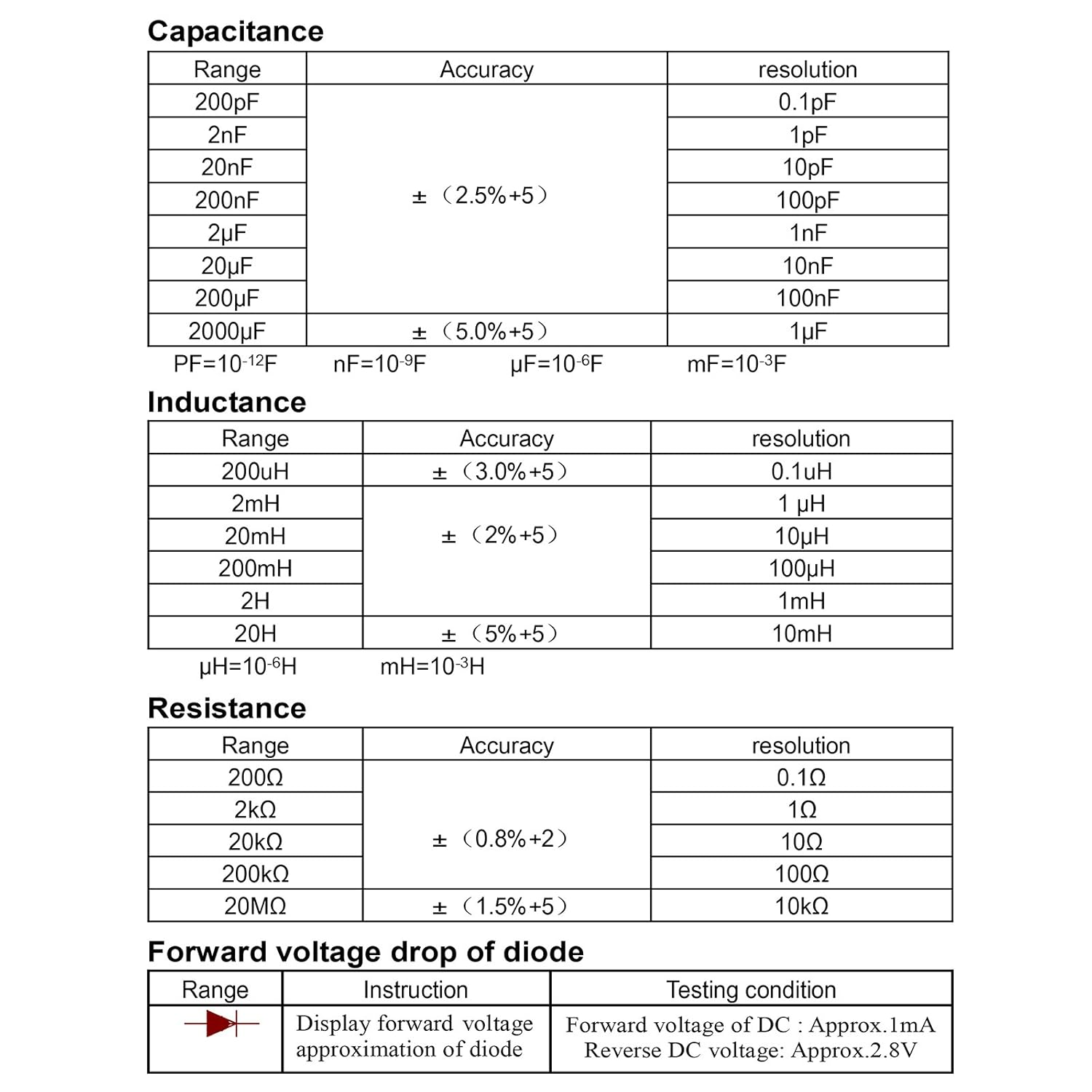

  • High accuracy: (inductance) measuring accuracy up to ± (2% + 5); (capacity) measuring accuracy up to ± (2% + 5); forward voltage drop of diode: display forward voltage drop of diode; forward voltage drop of diode; forward voltage of DC: approx. 1mA; DC voltage backward: approx. 2.8V

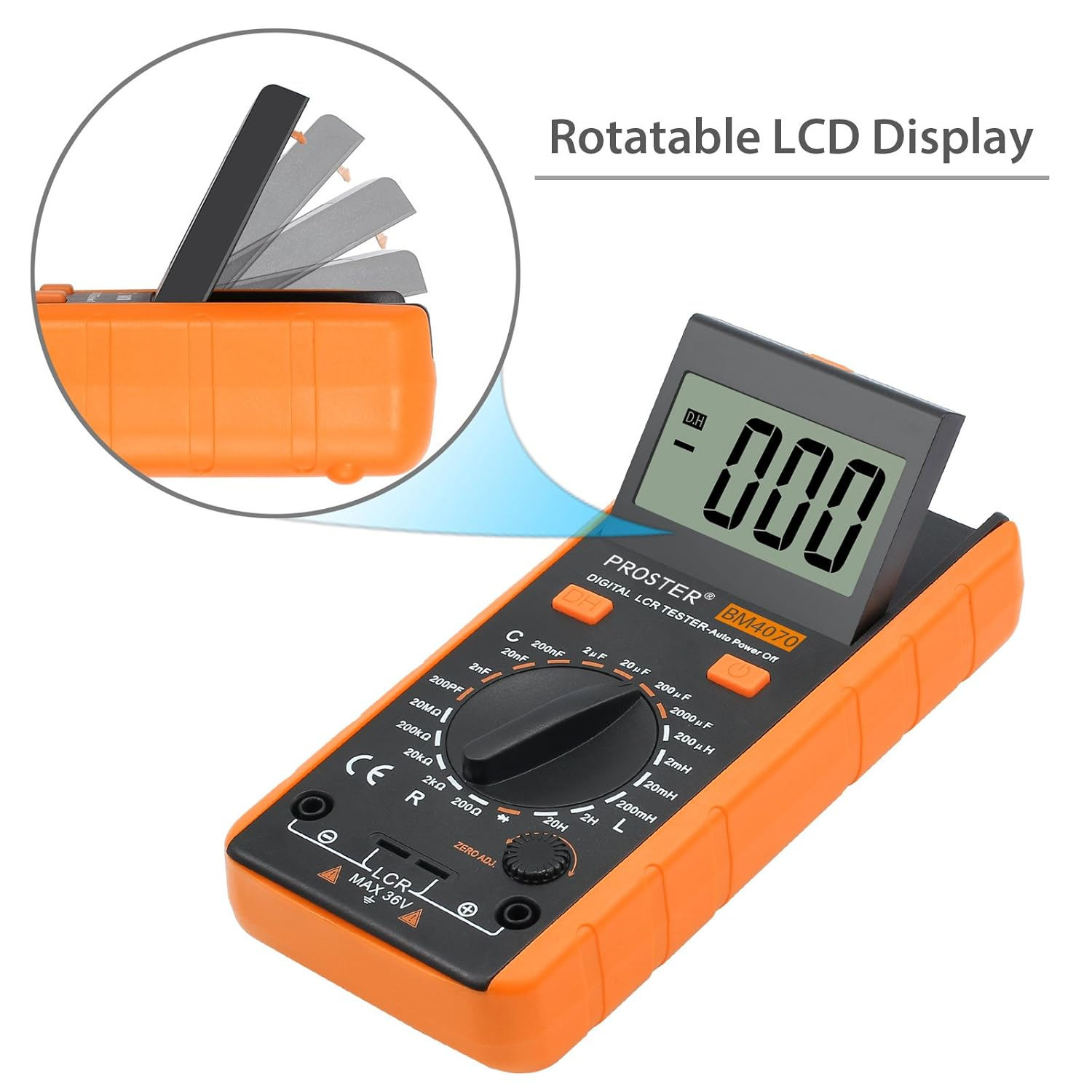

  • Rotating LCD display: multi-angle adjustment for easy reading. There is no need to hold testers during measurement, more convenient operation.
  • Multi-function: automatic power off; data hold function; ZERO ADJ (for diode).

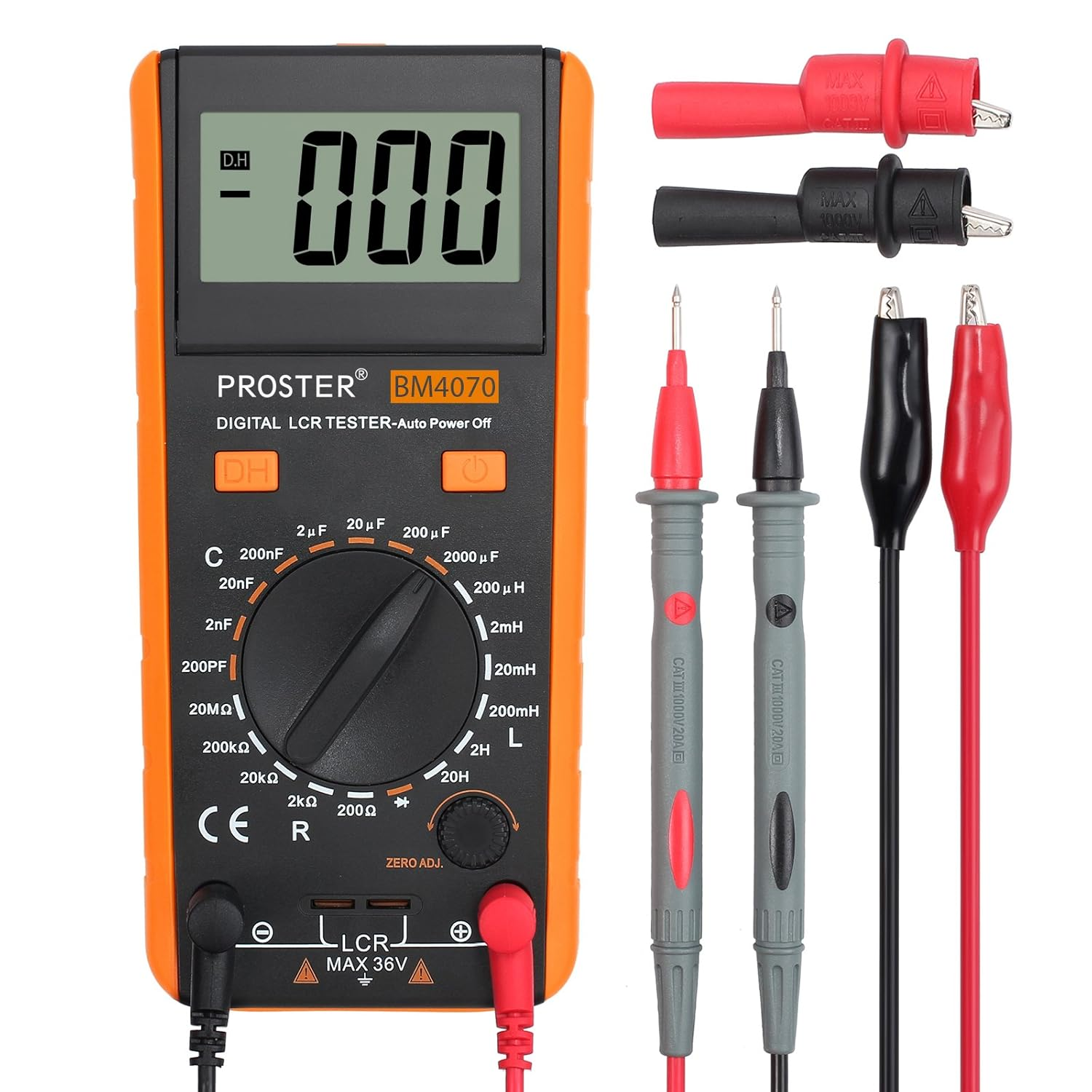

  • Two test leads: the black pin is connected to the negative pole and the red test lead is connected to the positive pole.

Description:
It has a double integral A/D converter core and a large integrated circuit that makes the meter an excellent performance instrument for users.

Features:
1. Display: LCD
2. Largest display value: 1999 (3 1/2).
3. Measurement method: double integral A/D conversion.
4. Sampling rate: 3 times per second.
5. Range exceeding: "1" at the highest point
6. Automatic shut-off and data hold function.
7. Working temperature: 0°C to 40°C.
8. Storage temperature: -10°C to 50°C.
9. Power: one 9 V laminated battery (6F22).

Specifications:
Accuracy: ± (% read + digits).
Ambient temperature: 23°C ± 5°C, relative humidity: <75%.

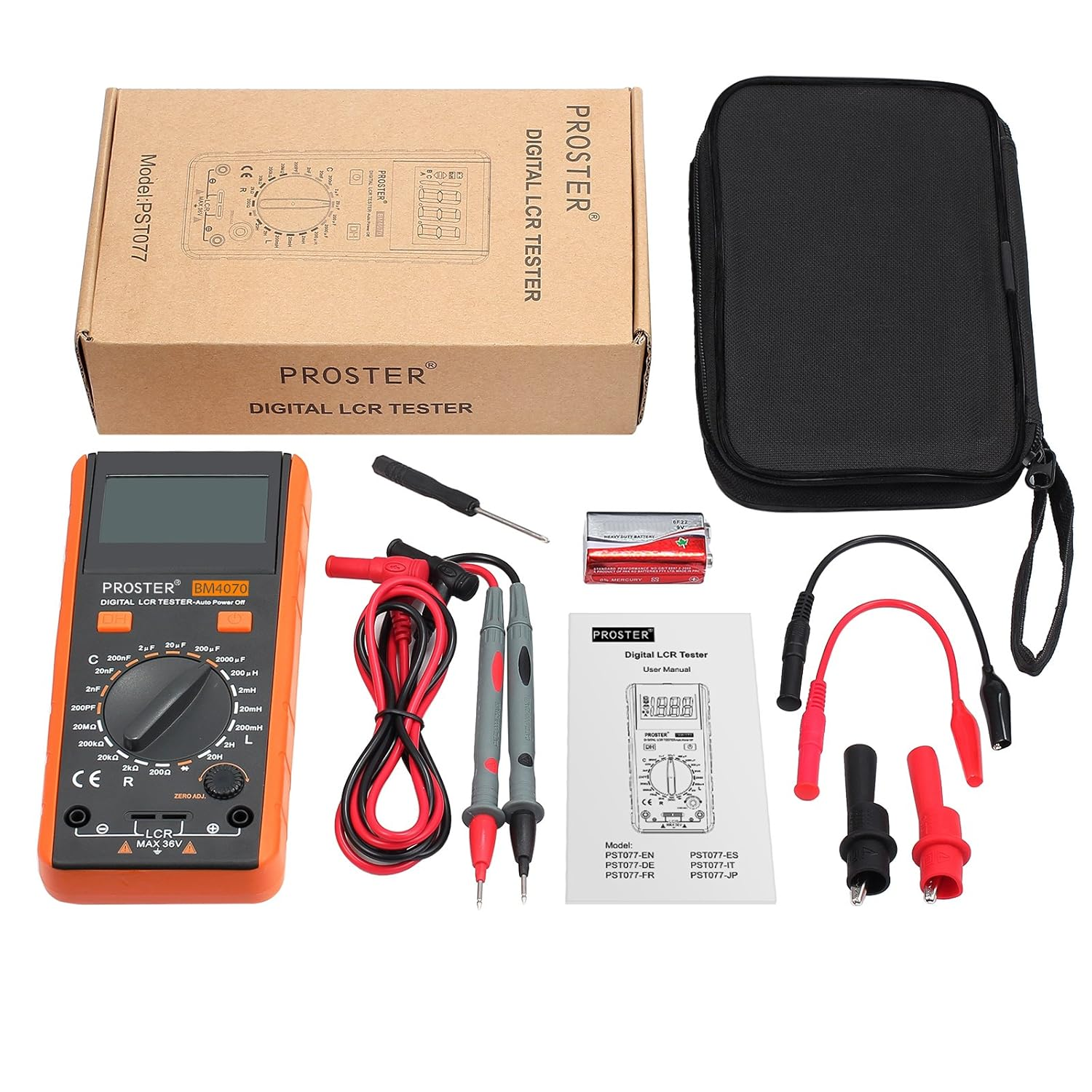

Box contents:
1 x LCR meter.
1 x pair of crocodile clips.
1 x 9 V battery.
1 x user manual.
1 x portable bag.

  • Item Model Number: TOPPST077
  • Colour Name: orange
  • Item Weight: 600 g
  • Batteries: 1 9V batteries required.
  • Is discontinued by manufacturer: No
  • Package Dimensions: 21.6 x 16.5 x 5.9 cm; 600 Grams
  • Manufacturer: Proster
