Fenix LD15R 500 Lumen Right-Angled Rechargeable LED Torch

Fenix LD15R Angled Flashlight

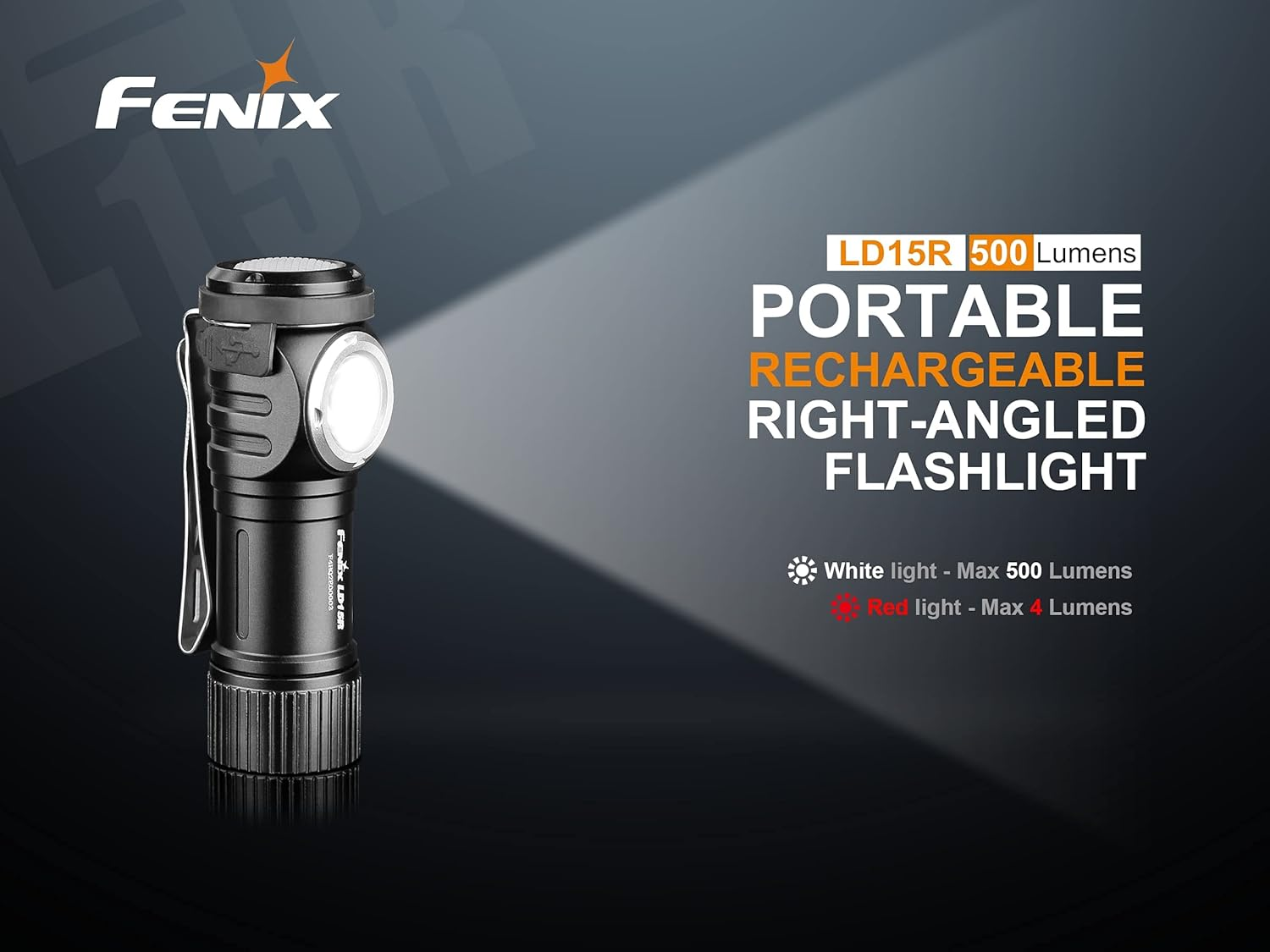

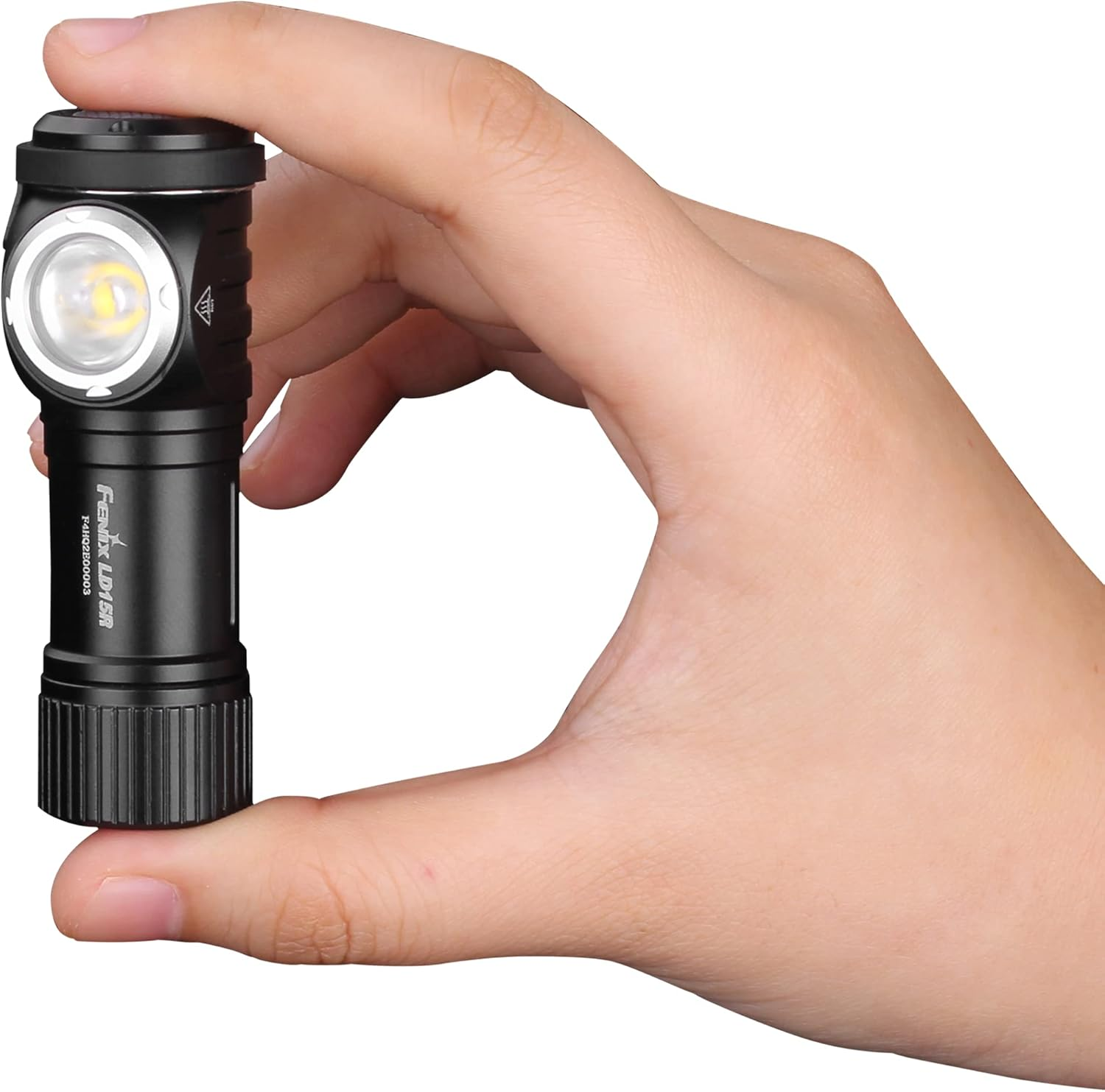

Compact angled flashlight Fenix LD15R with 500 lumens in two light modes. The flashlight offers a charging function via USB port. A diode indicator provides information about the battery status.

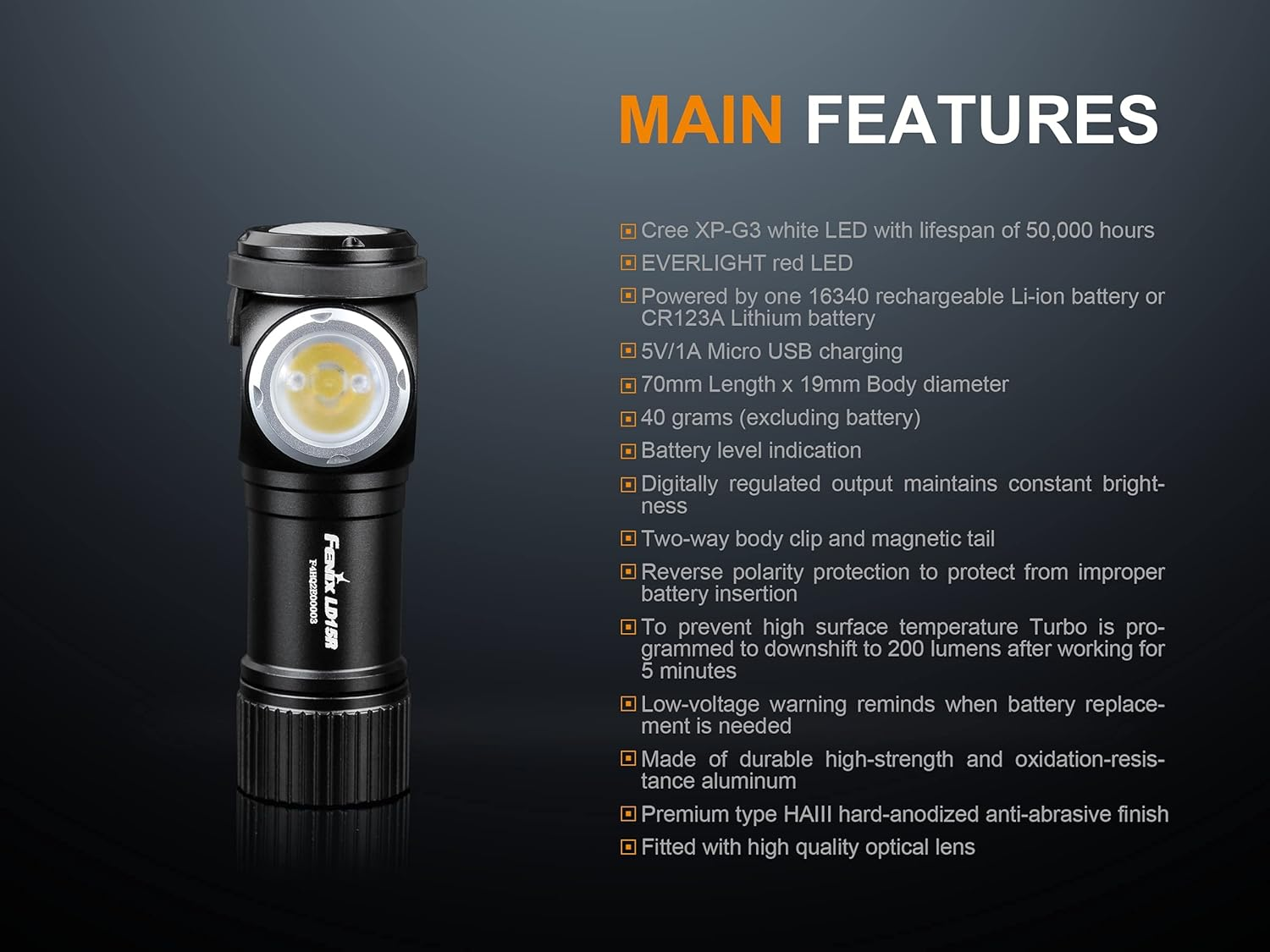

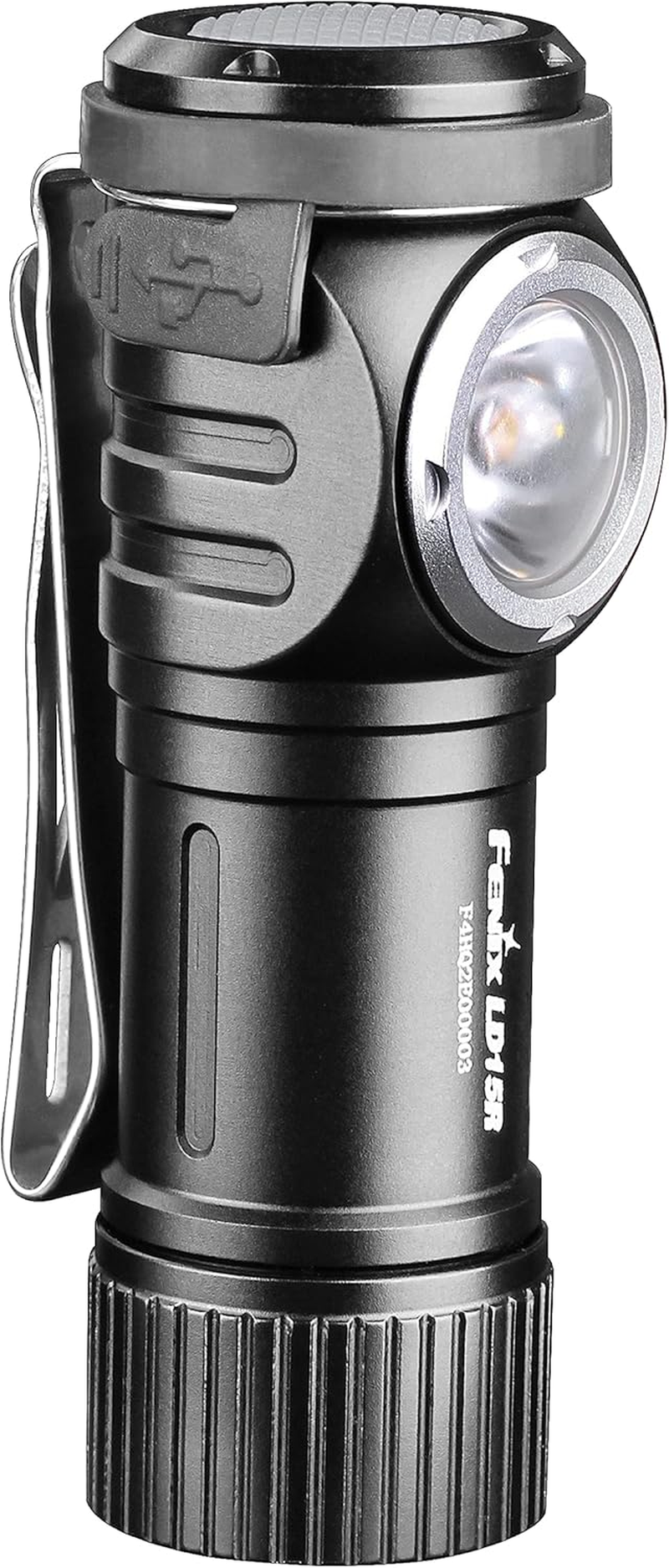

The design of the Fenix LD15R follows the angled flashlights used by the US Army since the 1970s. The flashlight housing, which meets the IP68 standard, is made of lightweight yet durable aircraft aluminum. Specially designed ribbing on the head of the flashlight removes excess heat from the reflector. A metal clip allows you to clip the flashlight to your pants or backpack. Thanks to the built-in magnet, the flashlight can be easily attached to a metal surface. The light source is two diodes: a white Cree XP-G3 diode and a red Everlight. Thanks to this solution we can use strong white light (4 modes) or dim red light (3 modes). Only one button is used to operate the flashlight.

FENIX LD15R ANGLED FLASHLIGHT

Brightness/Lumens Outputs

The Fenix LD15R USB rechargeable right angle flashlight is exceedingly useful in any scenario. It offers both white and red beams of light, and operates with the assistance of one 16340 rechargeable lithium ion battery, also compatible with a cold-resistant CR123A battery. Boasting a max output of 500 lumens and beam distance of 278.9 ft (85 m), this Fenix LD15R right-angle flashlight offers four white and three red light output levels, along with Micro USB charging, battery level indication, a two-way body clip, and a magnetic tail. All in all, the LD15R is a great aid for repair work, outdoor activities, and daily use.

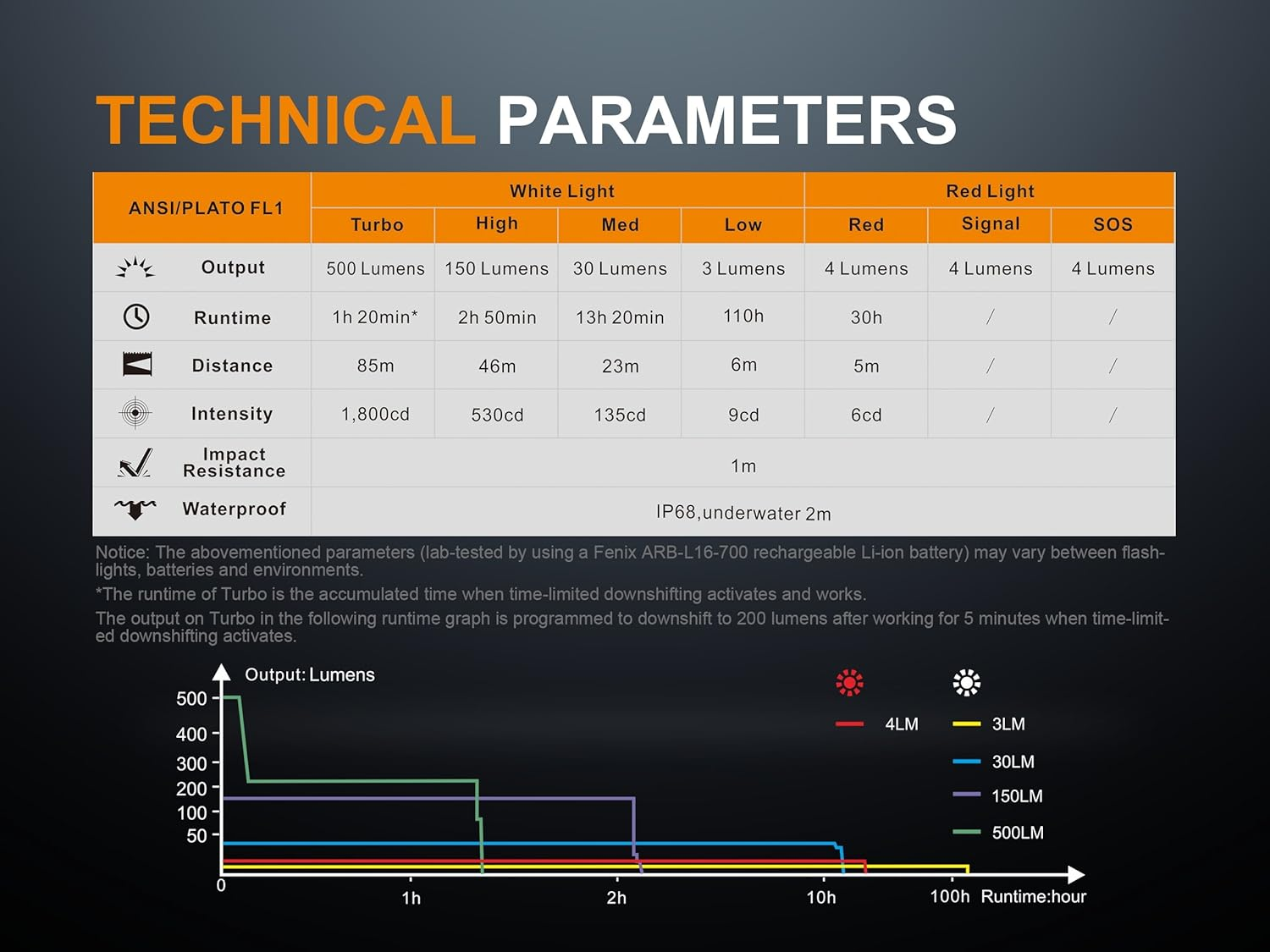

Brightness Outputs (White Light):

• Turbo 500 Lumens - 1.33 Hours (Turbo will drop to 200 Lumens after 5 Minutes of Continuous Use)
• High 150 Lumens - 2.83 Hours
• Medium 30 Lumens - 13.33 Hours
• Low 3 Lumens - 110 Hours

Brightness Outputs (Red Light):

• High 4 Lumens - 30 Hours
• Signal 4 Lumens
• SOS 4 Lumens

Fenix LD15R Rechargeable LED Flashlight Features

Fenix LD15R Light Operation

The Fenix LD15R right-angled rechargeable torch is perfect for mechanics, tradesmen, and others who need a powerful EDC flashlight. Featuring 500 bright white lumens, a maximum runtime of up to 110 hours, and multiple red outputs this light can be used for a variety of tasks. The LD15R is powered by the included 16340 Lithium-Ion battery.

ON/OFF

Press and hold the top switch on the rechargeable LD15R for 0.5 seconds to turn on the light on the last used output with the light switched off. With the light turned on, press and hold the top switch for 0.5 seconds to turn off the light.

Fenix LD15R Output Selection

With the rechargeable LD15R switched onto white light mode, single-click the top switch to cycle through Low→Med→High→Turbo.

With the rechargeable LD15R switched onto red light mode, single-click the top switch to cycle through Red→Signal Light→SOS.

Fenix LD15R Mode Switching

Press and hold the top switch on the rechargeable LD15R while in the white light mode for 1.2 seconds to enter red light mode.

Press and hold the top switch on the rechargeable LD15R while in the red light mode for 1.2 seconds to enter white light mode.
