Uni-T UT181A RMS Datalogging Multimeter

Uni-T UT181A RMS Datalogging Multimeter

Brand: UNI-T
4.9
A$628.95
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • Digital multimeter with trend capture
  • Dual temperature measurement, and more
  • With the help of the datalogging
  • Display them on a trend graph for long term monitoring

Product Description

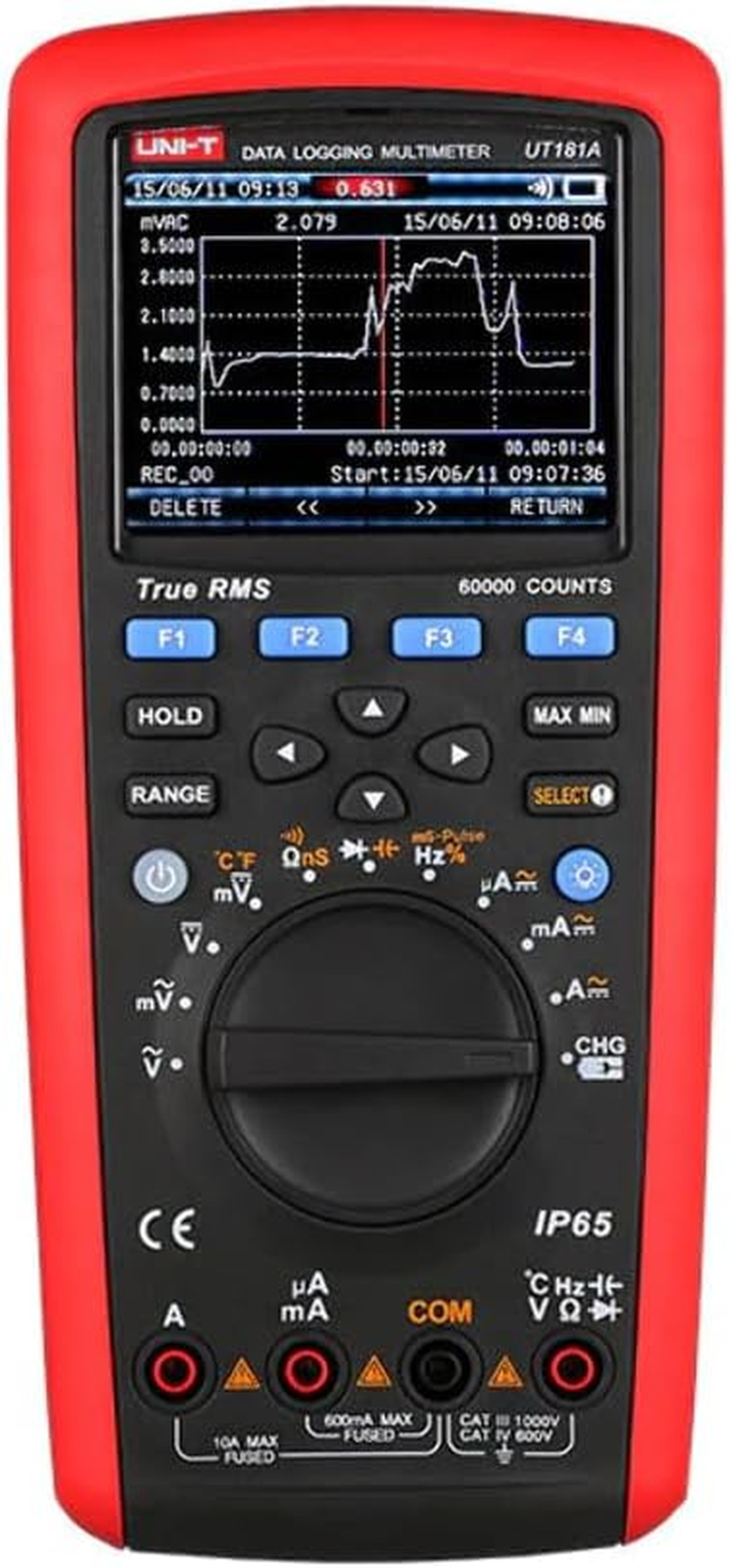

UT181A True RMS Datalogging Multimeter.

UT181A True RMS Datalogging Multimeter.

UT181A is a digital multimeter with trend capture, true RMS, low pass filter, nS conductance, dual temperature measurement, and more. With the help of the datalogging feature, users can store up to 20000 sets of measurement data and display them on a trend graph for long term monitoring.

Main Features

  • Trend capture . Data logging: 20000
  • Data comparison . 3.5-inch 64k color TFT LCD
  • Dual temperature measurement . Low pass filter
  • 2200mAh Li-ion battery . Real time and date . Peak hold

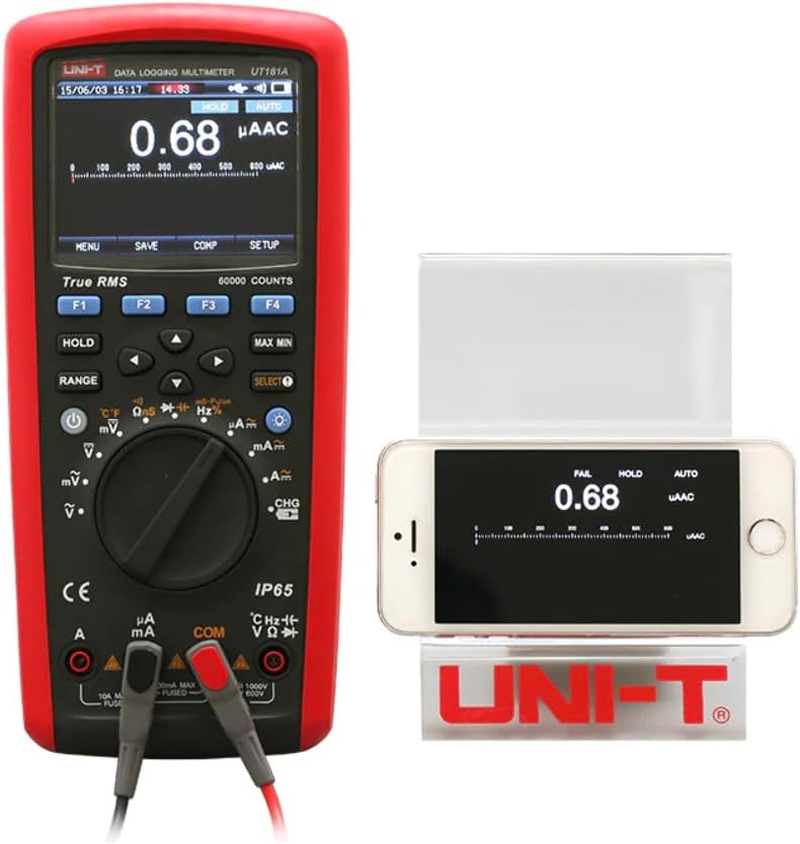

  • Bluetooth/APP .USB interface cable /PC software CD . IP65

Tech. Spec

DC voltage (V) 1000V ±(0.025%+5)
AC voltage (V) 1000V ±(0.3%+30)
DC current (A) 10A ±(0.08%+10)
AC current (A) 10A ±(0.6%+20)
Resistance (Ω) 60MΩ ±(0.05%+2)
Admittance (nS) 60nS ±(2%+10)
Capacitance (F) 60mF ±(2%+5)
Frequency (Hz) 10Hz~60MHz ±(0.01%+5)
Temperature (°C) -40°C~1000°C ±(1%+30)
Display count 　 60000
Bandwidth (Hz) 100kHz
Input impedance for DCV ≥10MΩ
Power Li-ion battery: 7.4V 2200mAh
Product size 225mm x 103mm x 59mm
Standard accessories Battery, test leads, temperature adaptor socket, point contact temperature probes, power adaptor socket, power adaptor, PC software CD, USB interface cable
  • Item Weight: 638.6 Grams
  • Power Source: Battery Powered
  • Brand Name: UNI-T
  • Item Dimensions: 22.5 x 10.3 x 5.9 centimetres
  • Color: Multicolour
  • Measurement Type: Multimeter
  • Model Number: UT181A
  • Global Trade Identification Number: 06935750518113
  • Maximum Operating Voltage: 1000 Volts
  • Style Name: Modern
  • Manufacturer: Uni-T
