ELEGOO 5 Sets 28BYJ-48 ULN2003 5V Stepper Motor + ULN2003 Driver Board for Arduino
ELEGOO 5 Sets 28BYJ-48 ULN2003 5V Stepper Motor + ULN2003 Driver Board for Arduino
Brand: ELEGOO
A$23.75
- Stepper motor with a standard interface, when used directly pluggable

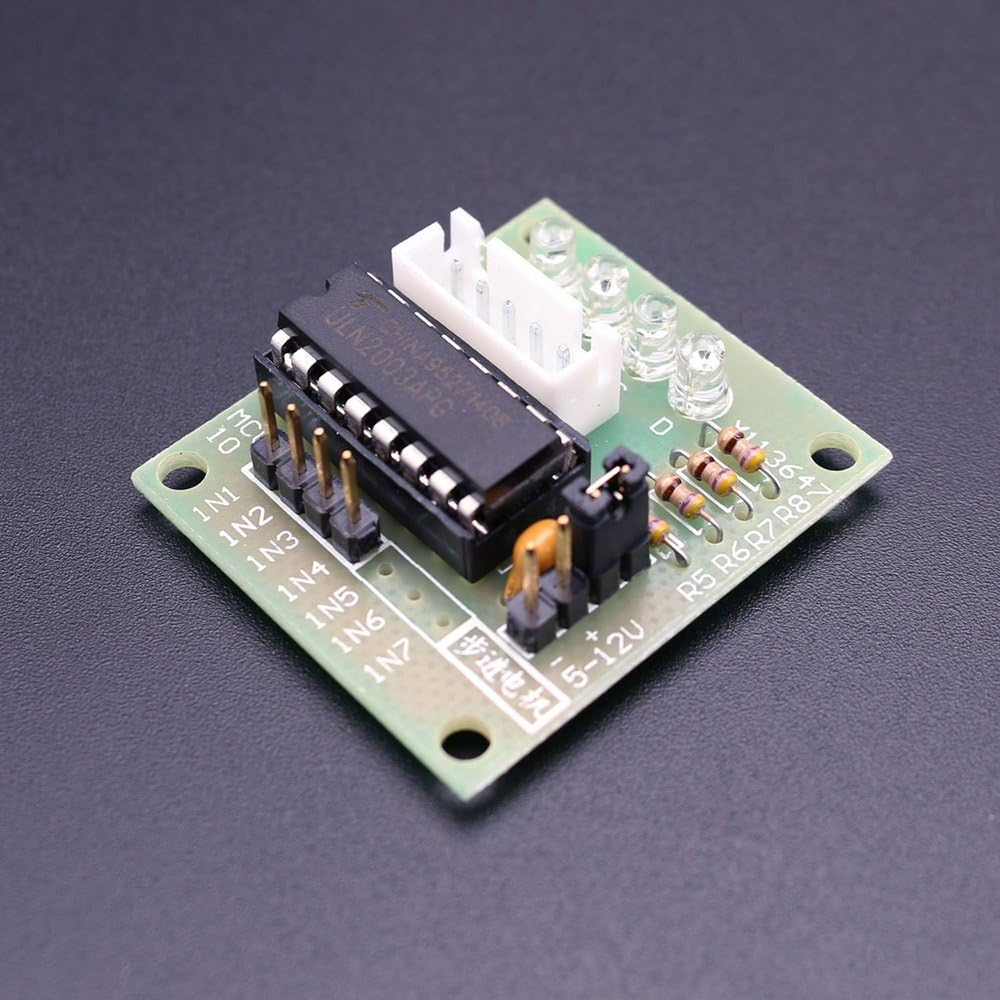

- A, B, C, D four-phase LED indicates the status of the stepper motor work
- 5 line 4 phase can be used for ordinary ULN2003 chip driver, connect to the 2 phase , support the development board，With convenient use, direct docking
- Drive Module Board Size(in): 1.37*1.18*0.6 ; Stepper Motor diameter: 1.06 (in); Stepper Motor lines: 9.45 (in)

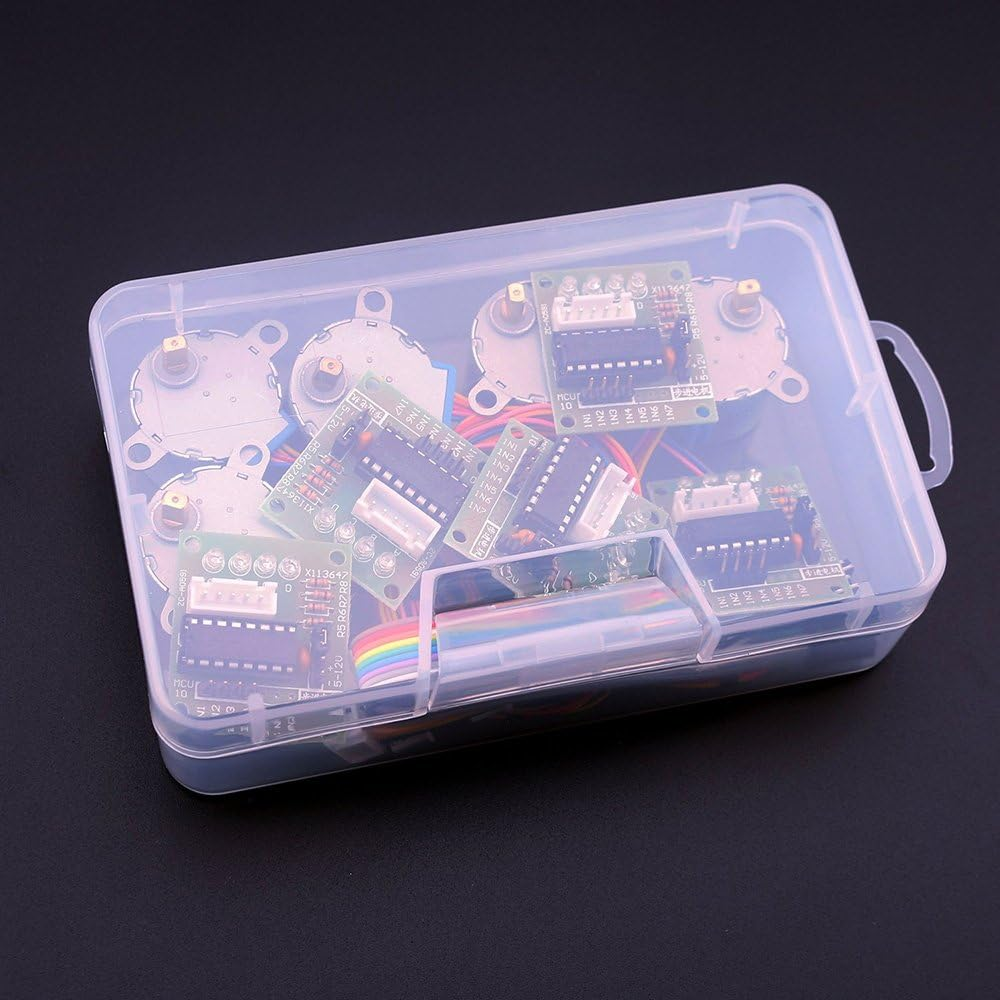

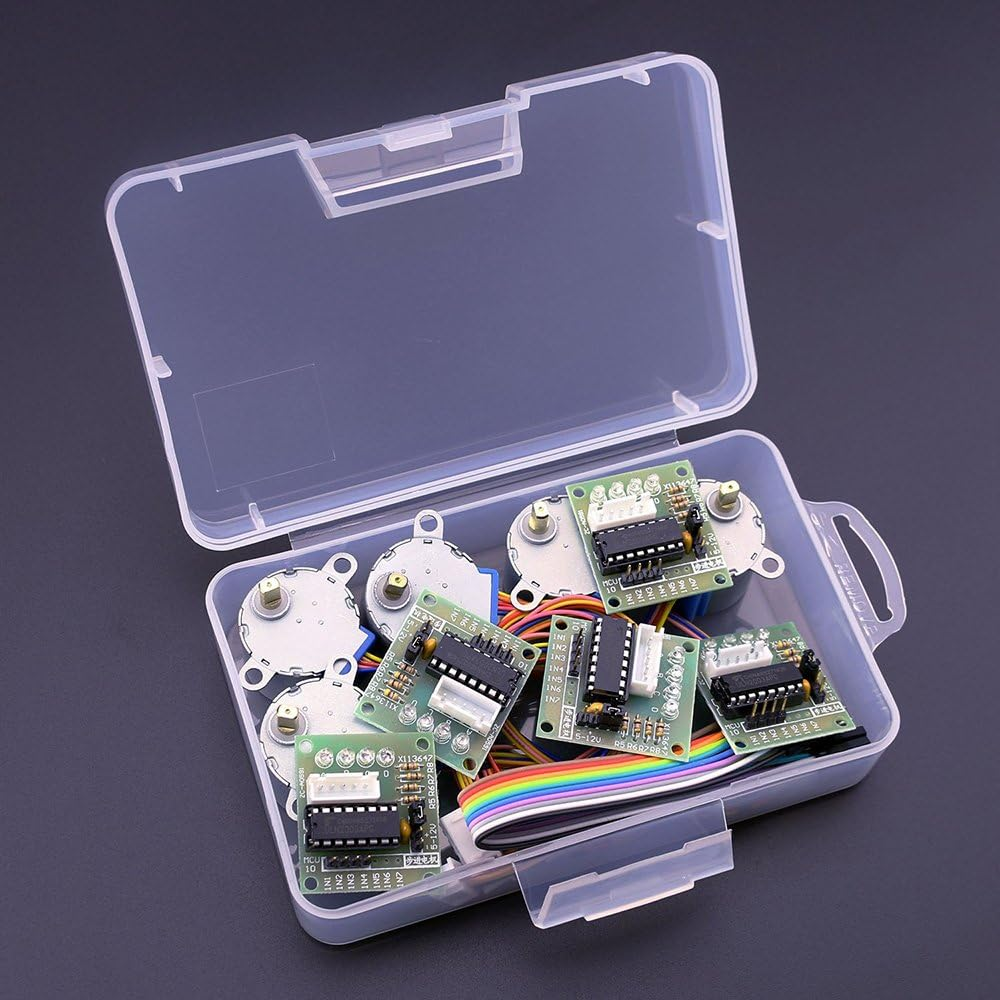

- Great packing in a box : 5 set Uln2003 Stepper Motor + Driver Board (with a little gift)
Specification
- A, B, C, D four-phase LED indicates the status of the stepper motor work.
- Stepper motor with a standard interface, when used directly pluggable.
- 5 line 4 phase can be used for ordinary ULN2003 chip driver, connect to the 2 phase, support the development board, with convenient use, direct docking.

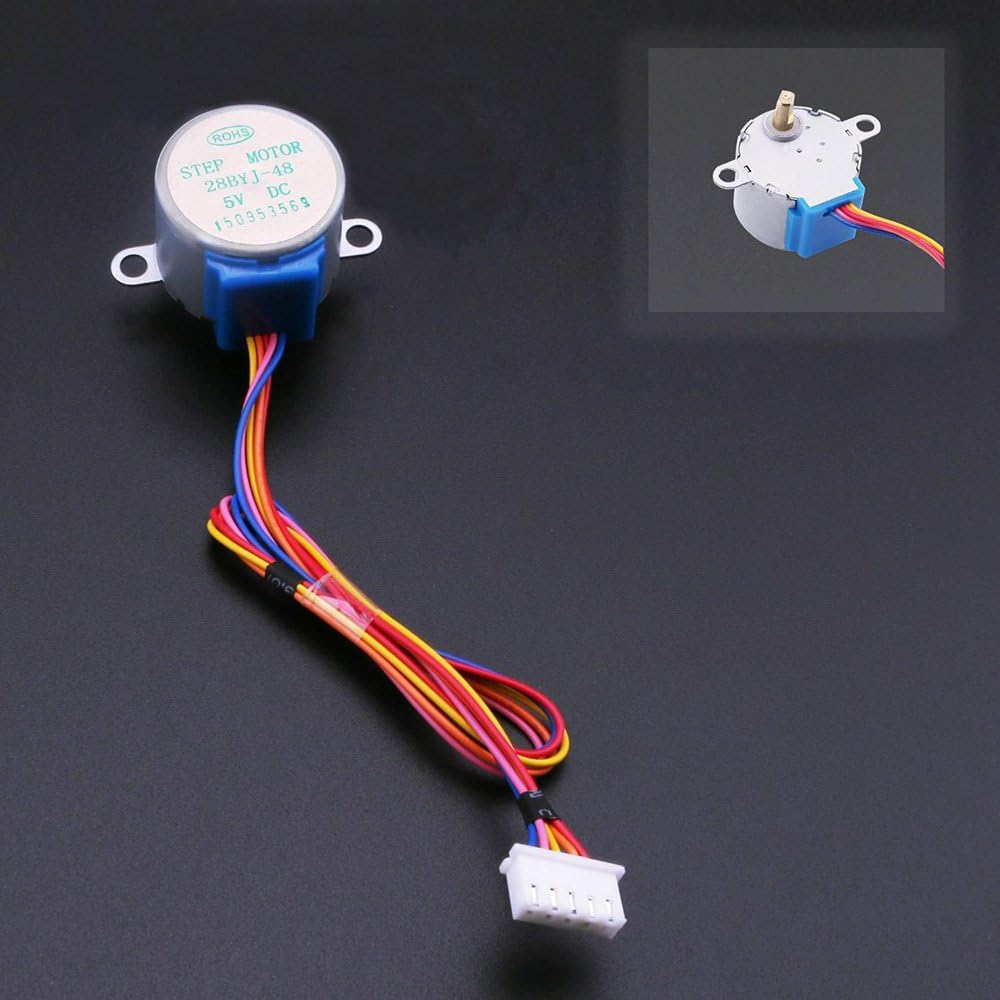

- Rated Voltage: DC5V 4-phase
- Insulation Resistance: >10MΩ (500V)
- Dielectric Strength: 600V AC / 1mA / 1s
- Step angle: 5.625 x 1/64
- DC Resistance: 200Ω±7% (25C)
- Reduction ratio: 1/64
- Insulation Grade: A
- No-load Pull in Frequency: >600Hz
- No-load Pull out Frequency: >1000Hz
- Pull in Torque: >34.3mN.m(120Hz)
- Detent Torque: >34.3mN.m
- Temperature Rise: <40K(120Hz)
- Item Model Number: AU-EL-SM-003
- Operating System: Windows
- Optical Drive Type: /
- Series: AU-EL-SM-003
- Brand: ELEGOO
- RAM: /
- Processor: core_i5_9500
- Card Description: Integrated
- Hard Drive: /
- Hard Drive Interface: SCSI
- Processor brand: /
- Package Dimensions: 16.3 x 10.3 x 4.5 cm; 290 Grams
