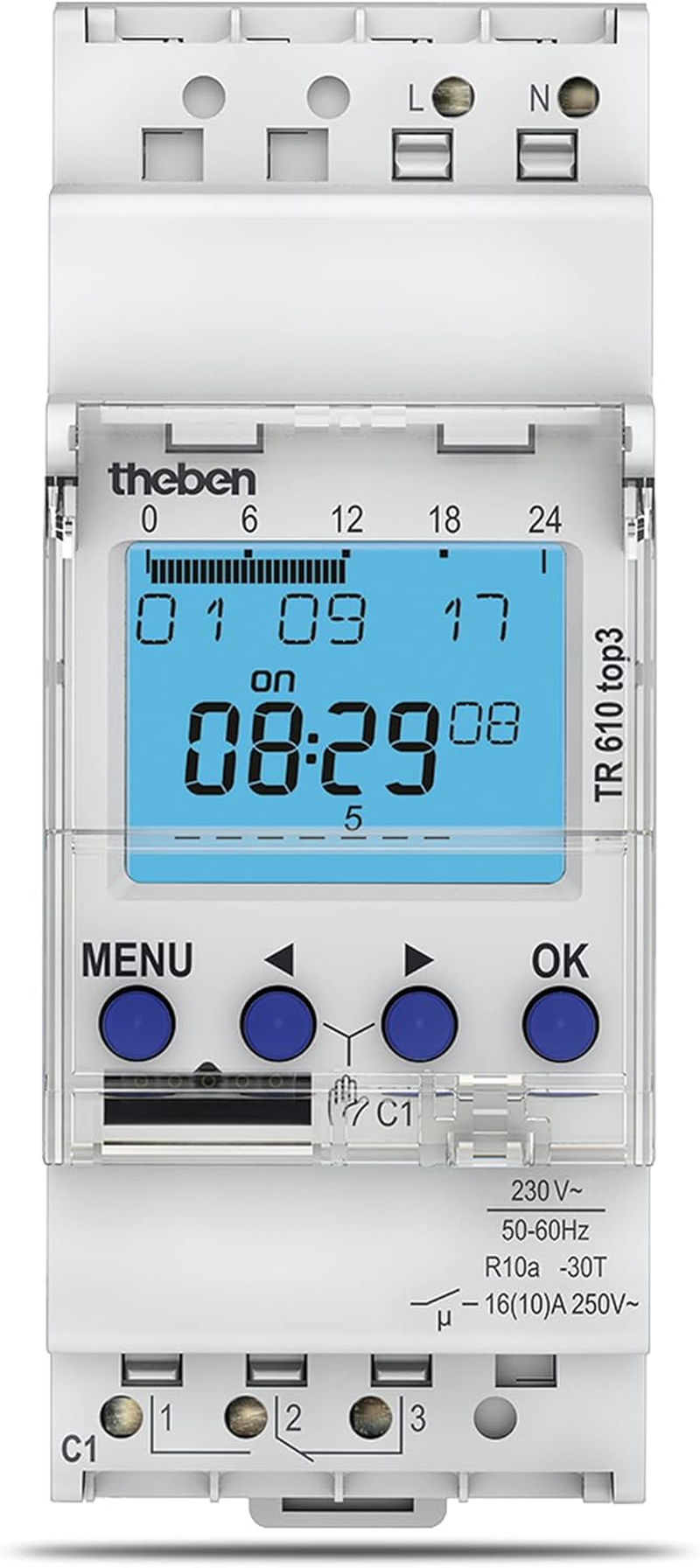

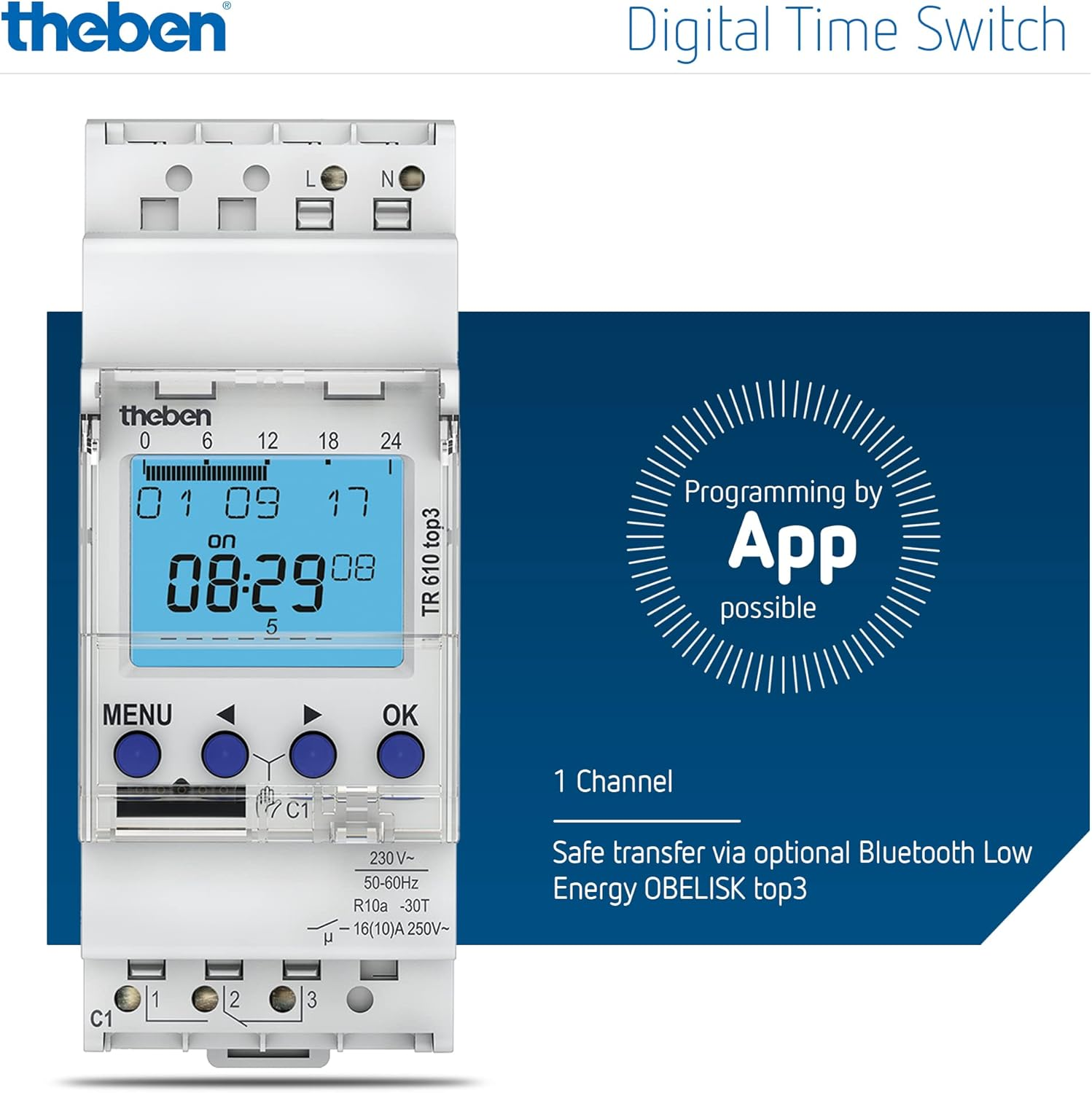

Theben 6100130 TR 610 Top3 - Digital, 1 Channel Time Switch with Weekly Program, App Programmable, Perfect for LED, DIN Rail, Timer
Theben 6100130 TR 610 Top3 - Digital, 1 Channel Time Switch with Weekly Program, App Programmable, Perfect for LED, DIN Rail, Timer
Brand: Theben
A$214.40
- Program the TR610 top3 digital 1-channel timer with a weekly program the way you want it: on a PC and laptop, via app on a tablet or smartphone and directly on the device
- Use the TR 610 top3 digital time switches with 56 memory spaces very flexibly for time-controlled switching of street lighting, shop window or advertising lighting, for light control in and around public buildings and parking garages as well as for school bells and ventilation systems, pumps and fountains.

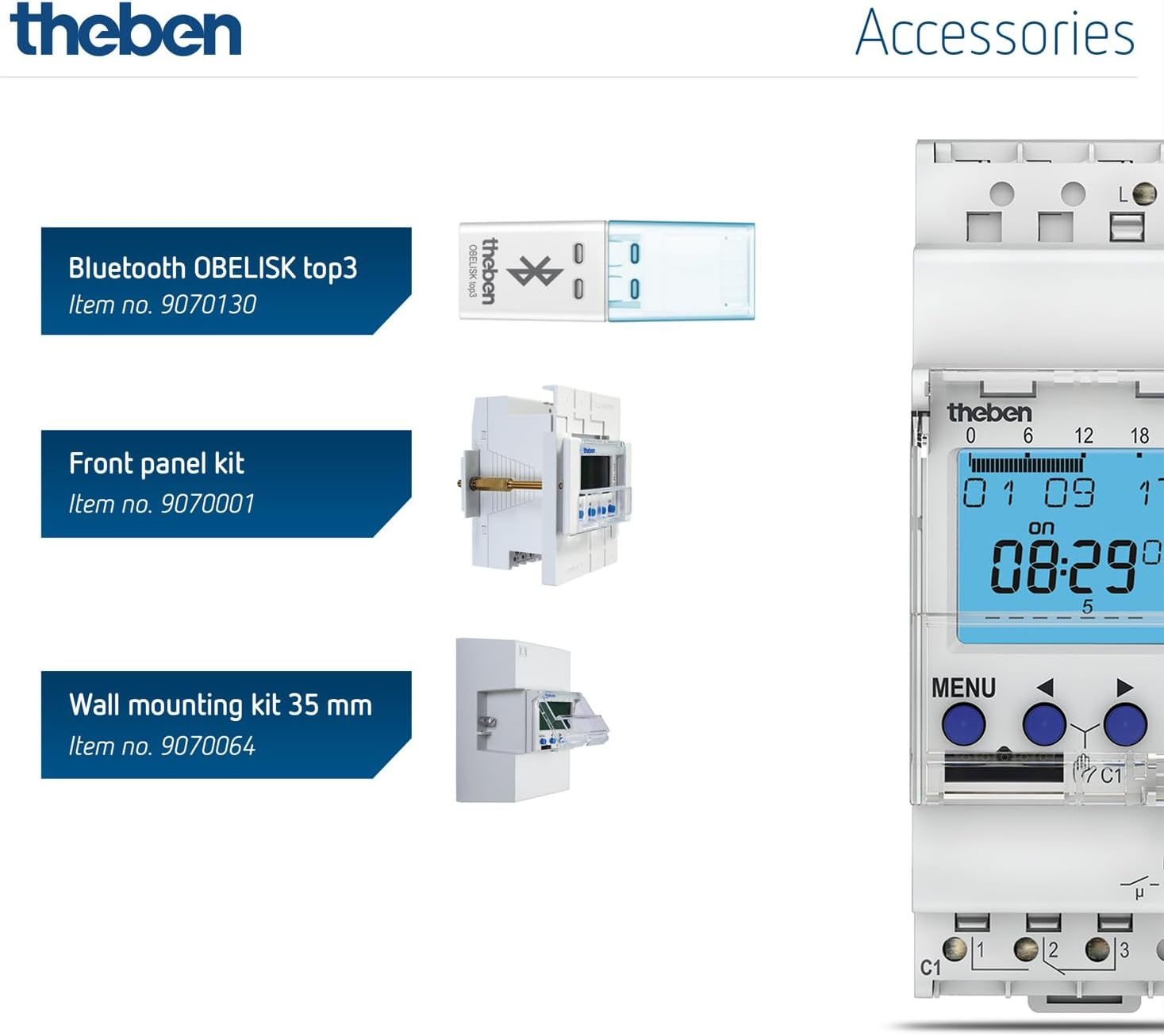

- Protect your digital timers from manipulation: the safe transfer of the programs via Bluetooth OBELISK top3 Low Energy Dongle (sold seperately under Art.-No. 9070130) to the top3 device makes it possible
- Save your time programs directly from the app in the cloud, send programs by e-mail or transfer them directly from smartphone to smartphone - it couldn't be easier!
• Digital time switch with weekly program
• 1 channel
• Programming by app possible
• Safe transfer via optional Bluetooth Low Energy OBELISK top3
• Maximum manipulation security, time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the time switch
• 100 % compatible with top2
• DuoFix spring terminals
• For 2 conductors each
• Wire or strand (with or without wire end sleeve)
• Wire diameter: 0.5 - 2.5 mm²
• Button for releasing plug-in connection
• Text-oriented user guidance in display
• Preset date and time
• fully operable without mains connection
• 56 memory locations
• Interface for OBELISK top2 memory card (PC programming)
• 2. insertable switching program
• Copying programs
• Storing programs
• 10 year power reserve (lithium battery)
• Zero-cross switching for relay-saving switching and high lamp loads (not with 24 V devices)
• ON-OFF switching times
• Switching preselection
• Permanent switching ON/OFF
• Integrated operating hour counter
• Reset option
• Service function for monitoring maintenance intervals
• Holiday program
• Display back light (can be turned off)
• Permanent switching ON/OFF
• PIN coding
• Automatic summer/winter time changeover
• can be deactivated
• Date rule options are already stored for Europe, the USA and other countries
• own date rule options or changeover around set dates are available
- Item weight: 100 Grams
- Batteries required: No
- Size Name: TR 610 top 3 (nuovo)
