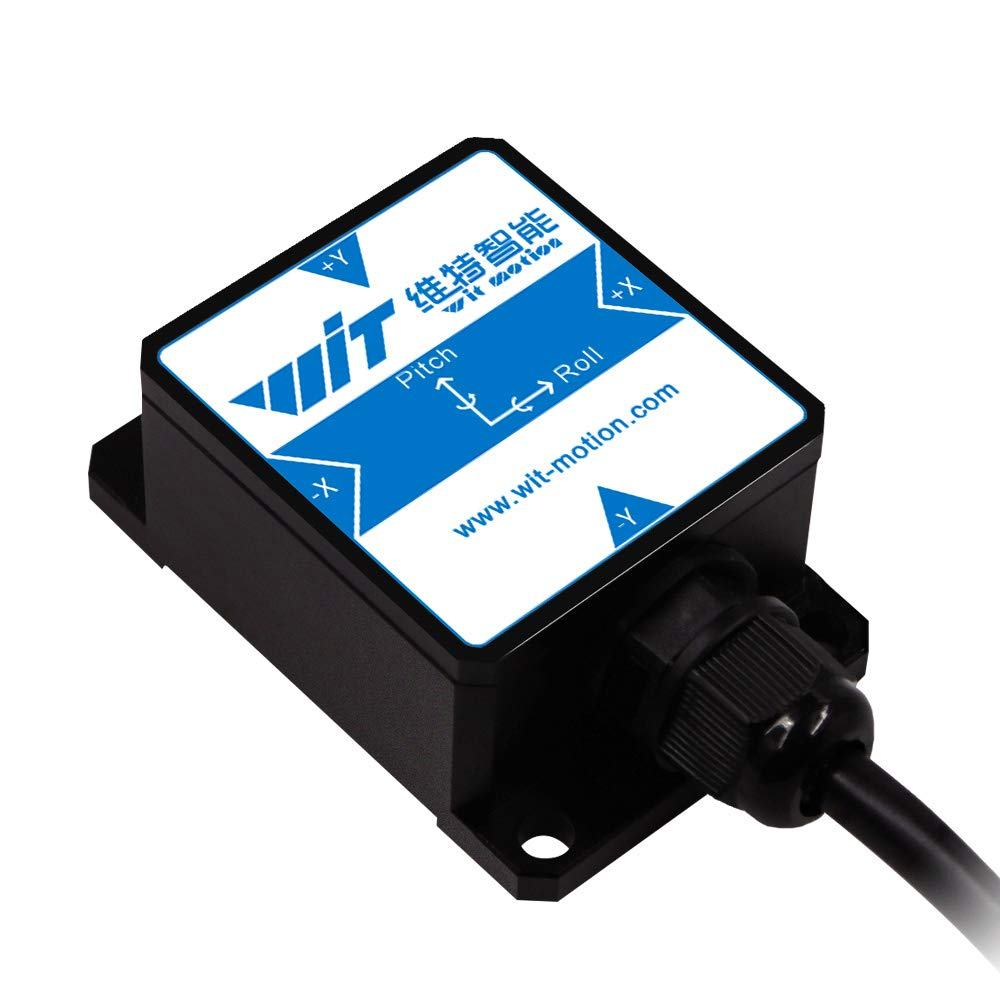

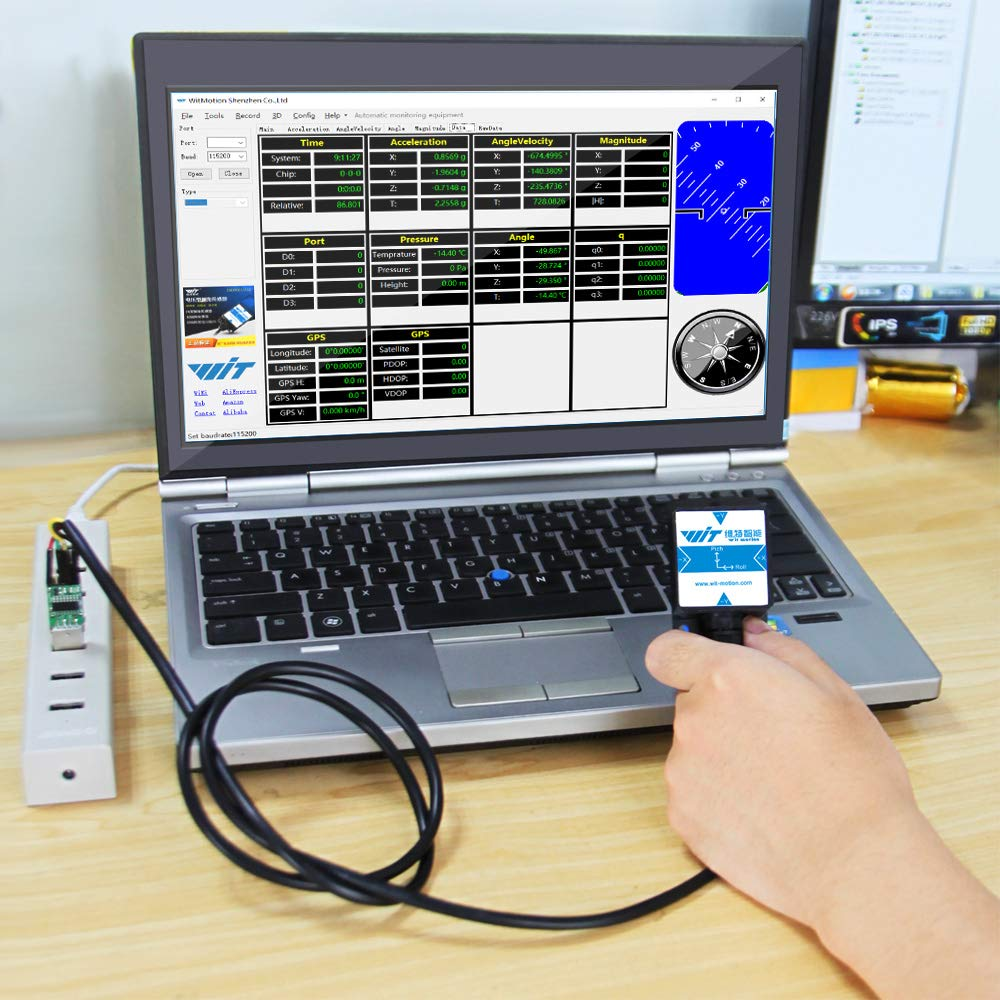

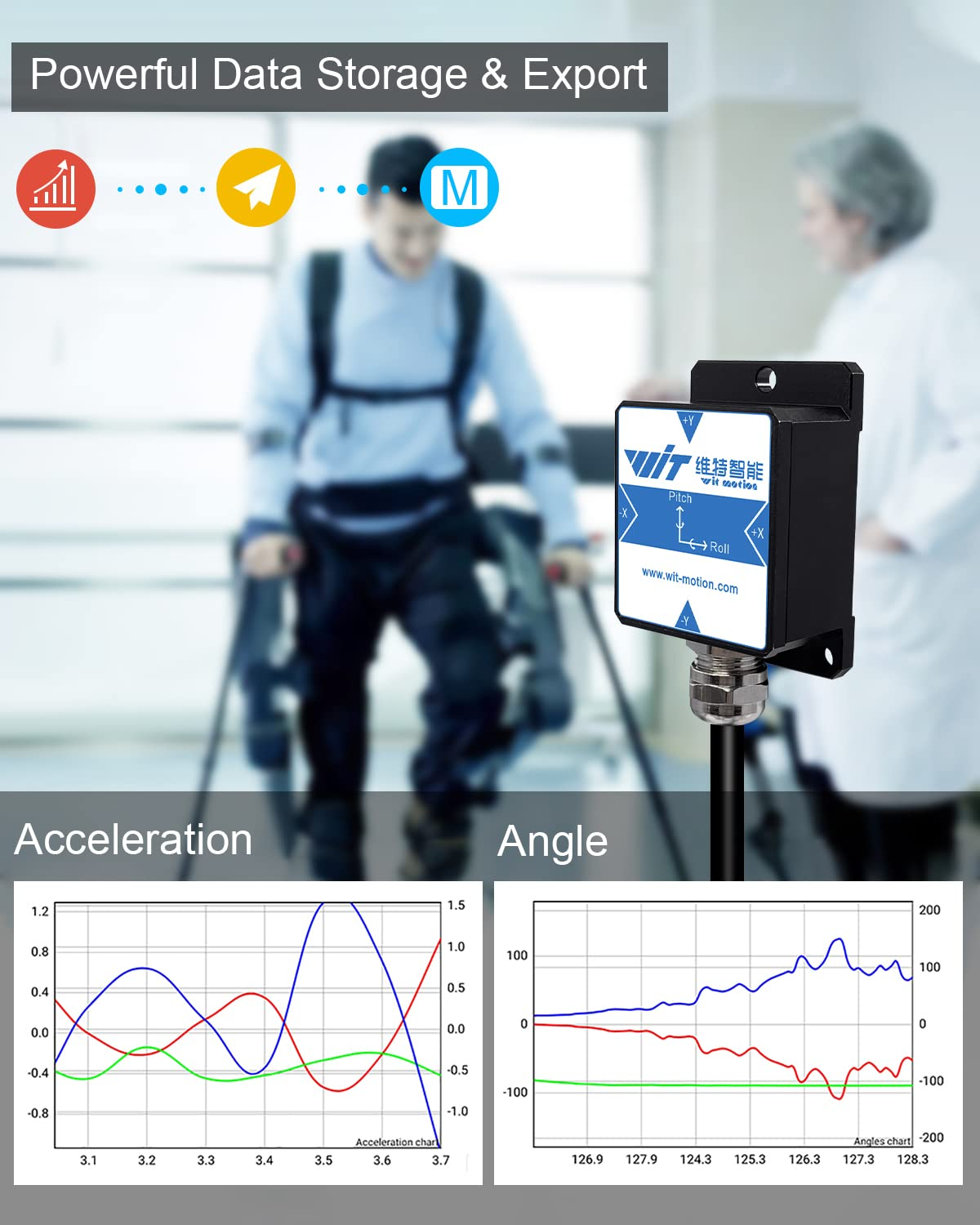

HWT901B’s scientific name is AHRS IMU sensor. A sensor measures 3-axis angle, angular velocity, acceleration and magnetic field. HWT901B is employed where the highest measurement accuracy is required. Its strength lies in the algorithm which can calculate three-axis angle accurately.

• Robust MEMS designs and high performance in harsh environment
• Ground breaking bias stability, low noise level and good vibration robustness
• Persued for best data accuracy and stability: WTMOTION patented zero-bias automatic detection calibration algorithm and R&D dynamic fusion algorithm outperforms traditional accelerometer sensor

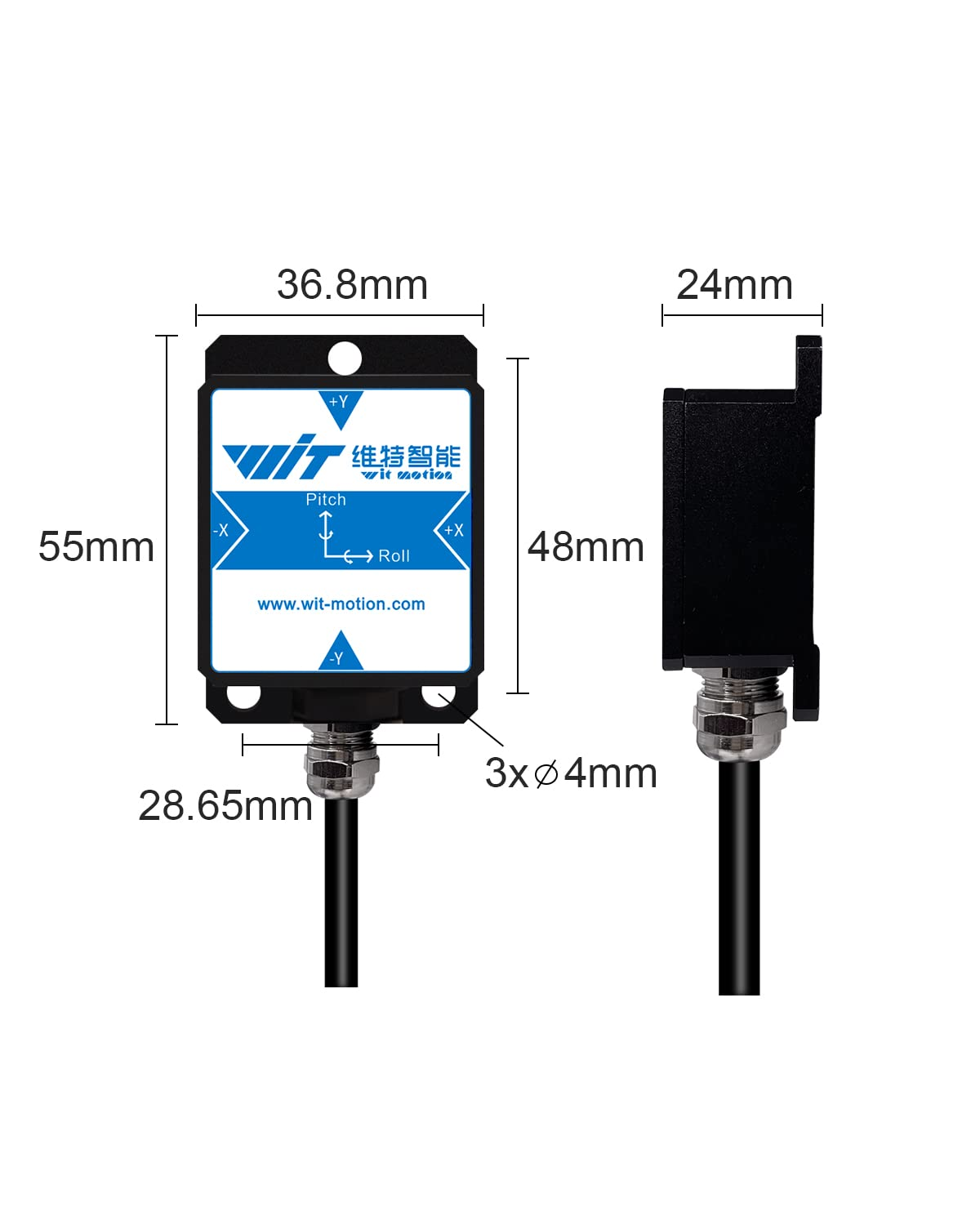

Technical Specifications:

• Current: <40mA
• Voltage: 9-36V (requiring a power source of 9-36V)
• Data output frequency：0.2-200Hz
• Baud Rate: 4800-961200 (adjustable)
• Working Temperature: -40℃ ~ +85℃

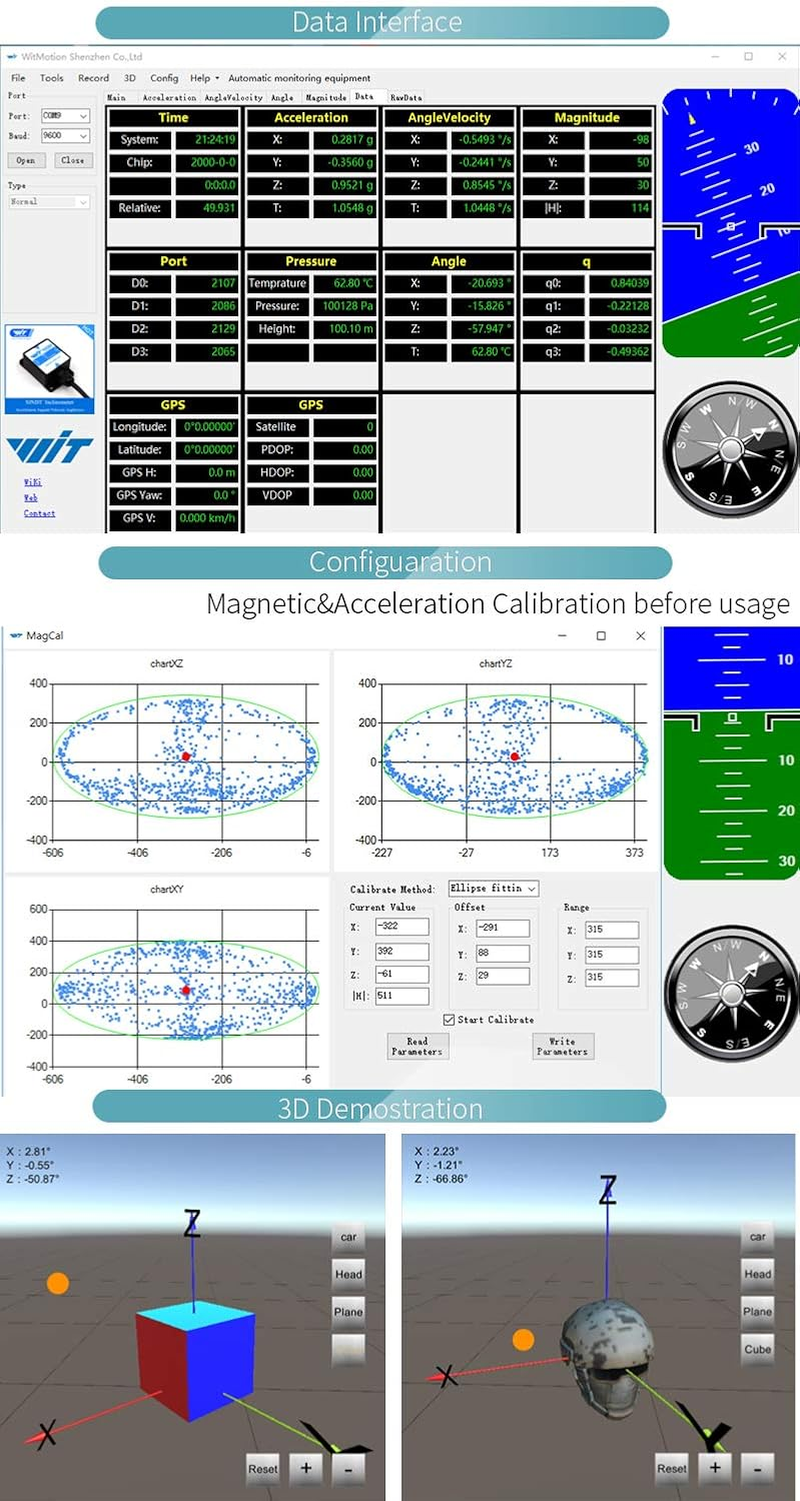

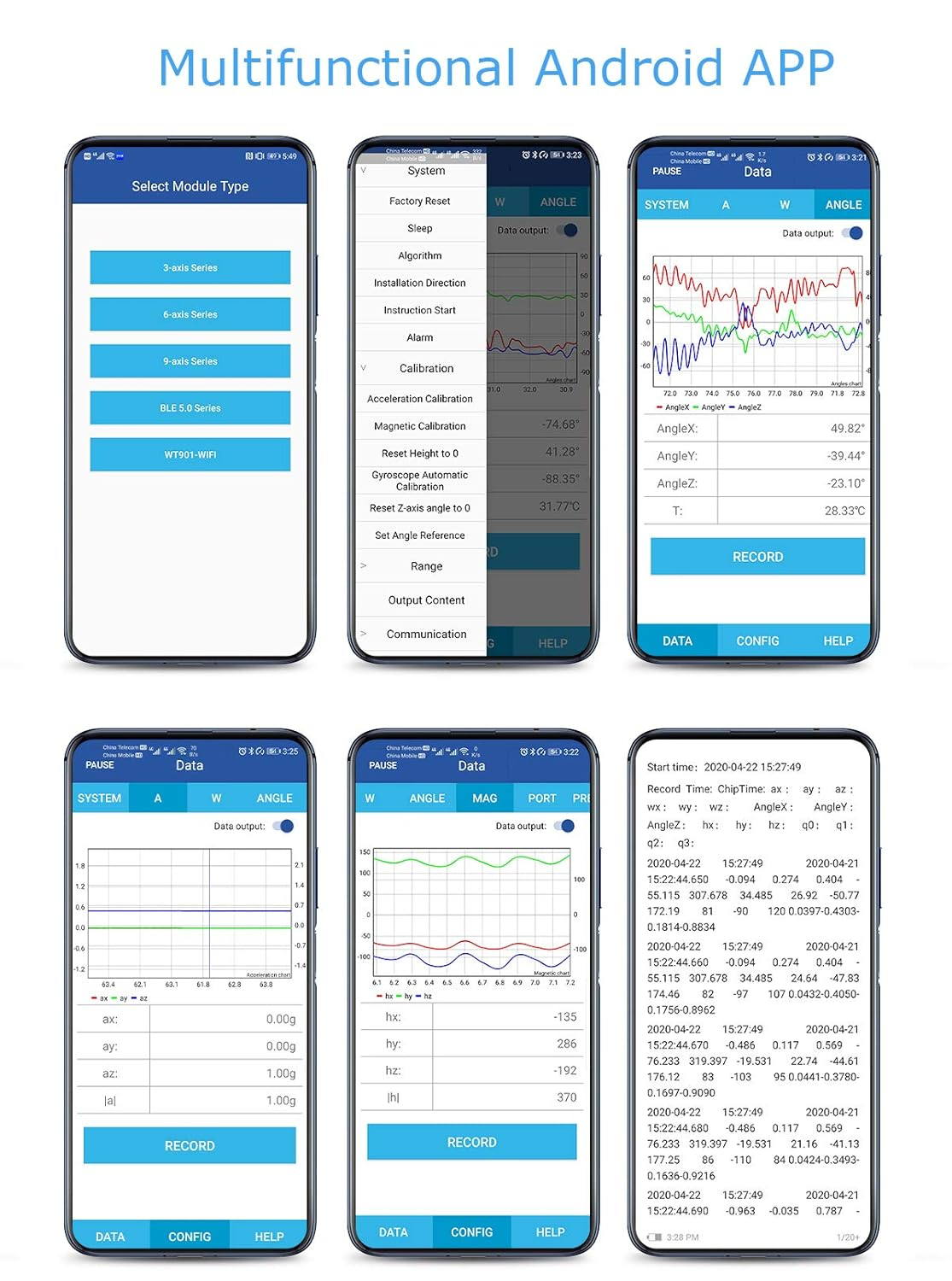

• Output Content: 3-axis Acceleration+Angle+Angular Velocity+Magnetic Field+Quaternion+Air Pressure+Height
• Range: Acceleration (±16g), Gyroscope (±2000°/s), Magnet Field (±4900µT), Angle (X, Z-axis: ±180°, Y ±90°), Barometer (1 axis)
• Resolution: Acceleration (0.005g), Gyroscope (0.61°/s), Magnet Field (16 bits)
• Angle Accuracy(after calibrated): X, Y-axis: 0.05° (Static) , X, Y-axis: 0.1° (Dynamic)

Note: Z-axis angle will be affected by magnetic field. It is required to calibrate and keep the sensor at least 20cm away from the stuff like metal that may create magnetic field interference.

About The Background of WitMotion

About WITMOTION

Established in 2014, WitMotion Team to become a profession manufacturer in attitude sensor, AHRS IMU. Foud out more here in our Witmotion Brand Store.

The company is dedicated to make attitude measurement and tilt angle sensing solutions more accessible and easier for engineers around the world. Widely used every day by customers in over 50 countries for energy and electric power, tower control, Monitoring, engineering machinery, medical, academic, integrated system, more developing projects.

WITMOTION' s R&D Dept.

• 20+ engineer industry's R&D team, and has a long-term collaboration with the Beihang University PhD team.
• WitMotion R&D protocol and Dynamic Fusion Algorithm
• over 50+ patents and software program

Research and Development Facilities:

• Triaxial nonmagnetic turntable: All finished items will be calibrated through the turntable, ensuring the X Y Z angle's accuracy.
• High& low temperature test chamber, making sure that the sensor can actually work well under -40℃ ~ +85℃ environment
• Vector Network Analyzers(VNA): Bluetooth antenna impedance matching
• 6 degrees of freedom vibration test bench: sensor's high performance and stability secured under vibration and dynamic environment

Premium Components & QC System: All components are selected and certified under a strict quality control system from the procurement, manufacturing process to assembly, inspection.

Automatic Production&Assemble line of Factory:

• Automatic Solder Paste Printing, Imported Placement Machine, Multi-temperature Reflow Soldering, Fully Automatic Inspection
