X-Bull 12V 3000Lbs/1360Kg Electric ATV Winch 2 Remote Wireles Control Steel Cable Boat ATV Kit…

X-Bull 12V 3000Lbs/1360Kg Electric ATV Winch 2 Remote Wireles Control Steel Cable Boat ATV Kit…

Brand: X-BULL
3.4
A$143.85
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

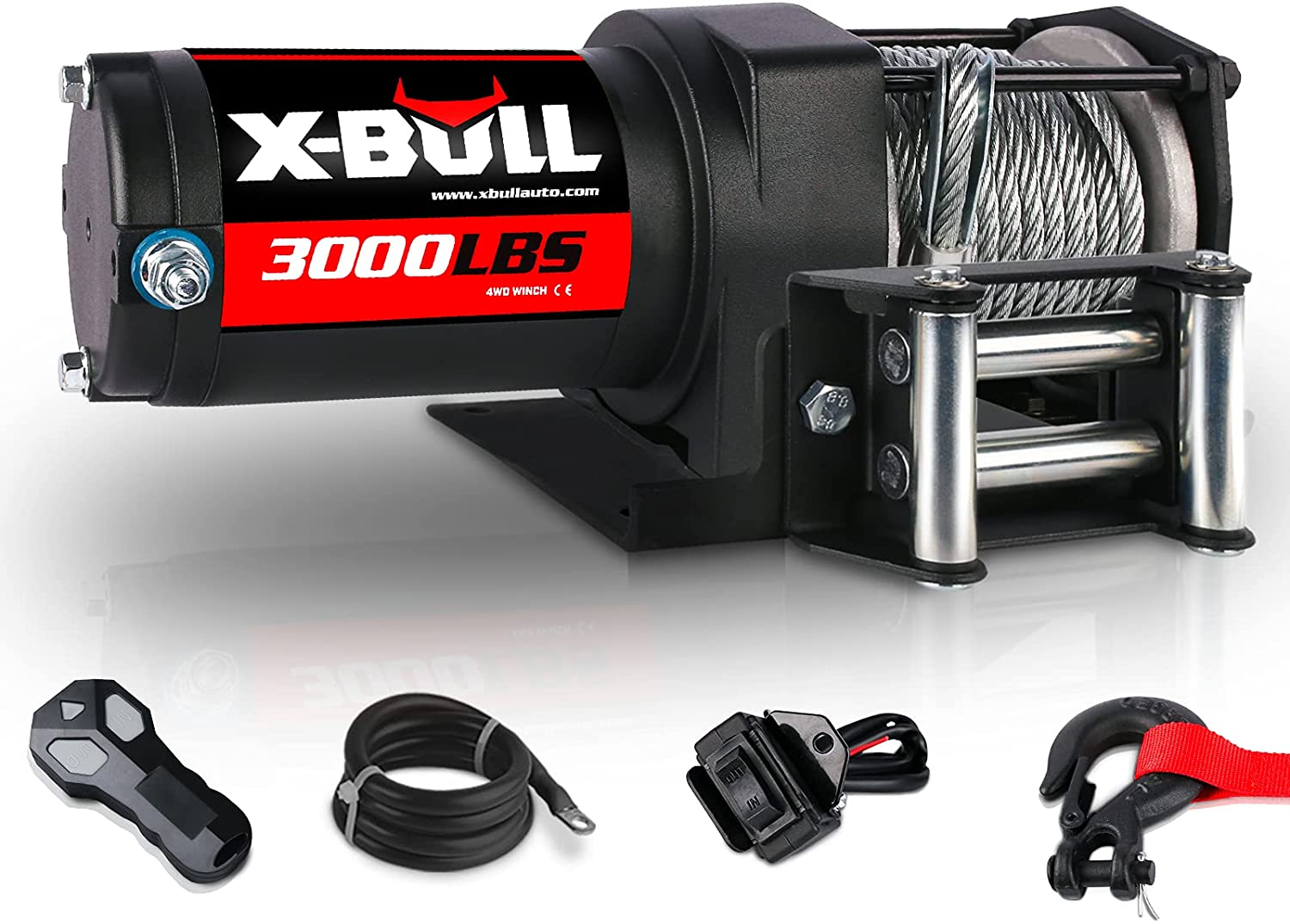

  • [What You Get] X-BULL 3000lbs Steel Cable Winch, wireless remote, wired remote, control box and hawse fairlead with forged hook, All required power cables to hook up to your vehicle. The winch comes with a 1 year free warranty and replacement service. We will give you professional service with a friendly attitude.

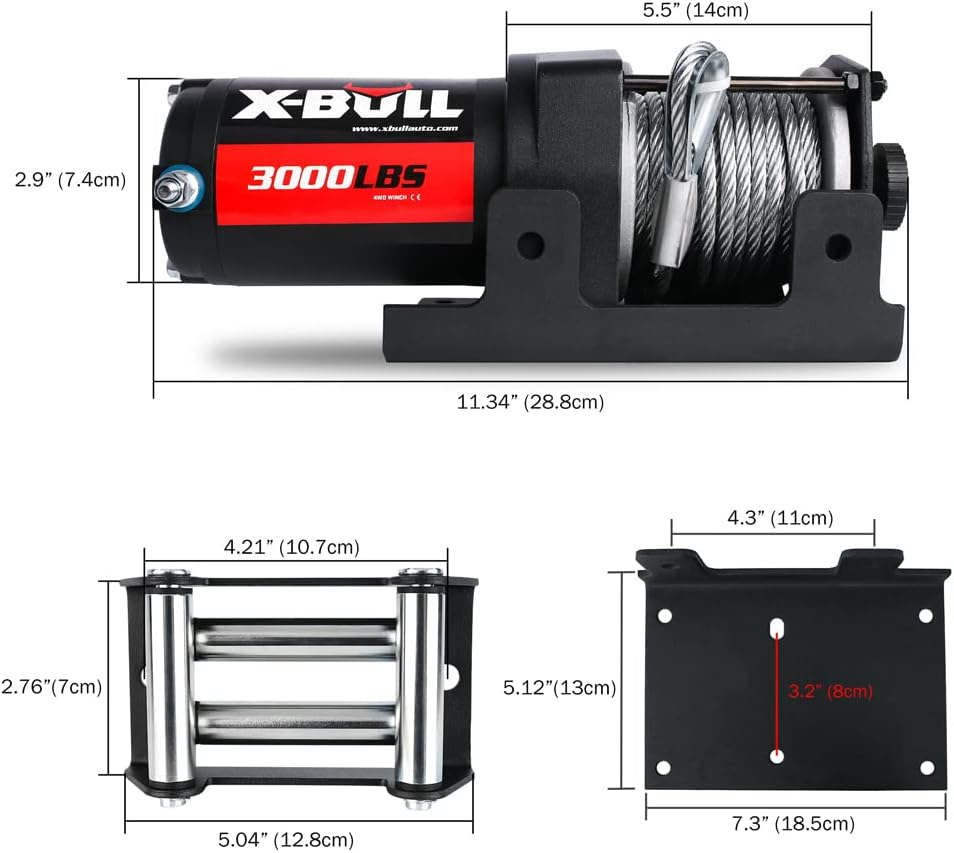

  • [Overall Dimensions] 11.81"L x 3.93"W x 4.33" H. Mounting Bolt Pattern: 6.29" × 3.74". Synthetic Rope : Ø5.4mm X 9.2m. Net weight: 18.1lbs(8.2kg). 3000 LBS is suitable for towing vehicles under 0.675 tons out of mud, sand and deep trenches. Suitable for UTV, ATV, Boat!
  • [Great Performance] 1.3 HP Wound Motor, 3-Stage Planetary Gear System, Auto Load Holding, a Ratio of 153:1, IP68 Waterproof. The tight arrangement and oil make the steel wire have good toughness and rust resistance. Steel cable is not easy to break so it's suitable for heavy duty.

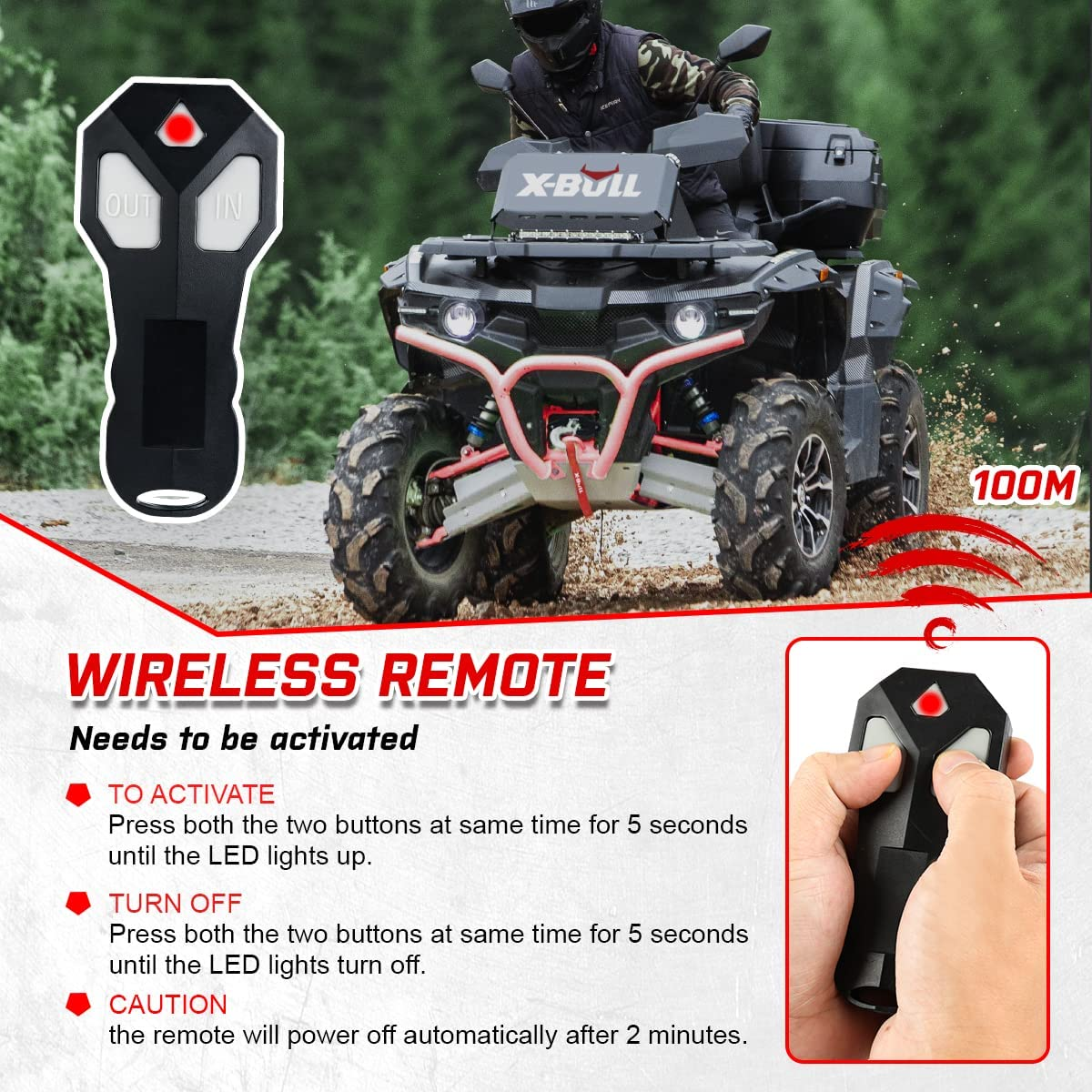

  • [Remote Control] Come with wired control and wireless remote control. Wireless Remote control distance up to 100m. Press the power button for 5 seconds to turn on the remote control.
  • [The Xbull Advantage] Become one of the more than 1,000,000 member of Xbull which's motto is "affordable toughness". Winches and recovery tracks are Xbull's core products. If you have any doubts, welcome to tell us.
  • [Attention] This winch can be used for lifting. When the outer circle rope is used for lifting, the pulling force is 750lbs (340kg). When the inner circle rope is used for lifting, the pulling force is 1500lbs (680kg). In addition, 3000lbs of tension is used horizontally. Non-horizontal pulling will reduce the tension.

Product Description

3 ADVANTAGES OF THE WINCH

MOTOR

Pure copper motors have the characteristics of high magnetic inductive melting point, high temperature resistance, strong power, safe work and high efficiency.

3-STAGE PLANETARY

The real 3-Stage Planetary enables differential, deceleration(growth), reversal, and more. The combined use of multiple groups of planetary wheel systems can achieve a very large speed ratio, which can achieve coaxial deceleration(growth).

WINCH SOLENOID RELAY

Small or mismatched relays can cause a burning phenomenon. So we need to use a suitable relay for different winches, noy necessarily an overload protector if your winch has a perfect relay. The X-BULL 500A relay is truly insulable, durable and stable, avoiding winch damage due to insufficient relay power.

Color coded terminals

Color coded terminals can reduce the time for judgment, so as to achieve the purpose of easy installation and use.

Black powder coat finish

The strong and lightweight body has a durable black powder coat finish on the outside. The coating makes the winch have a good performance at waterproof.

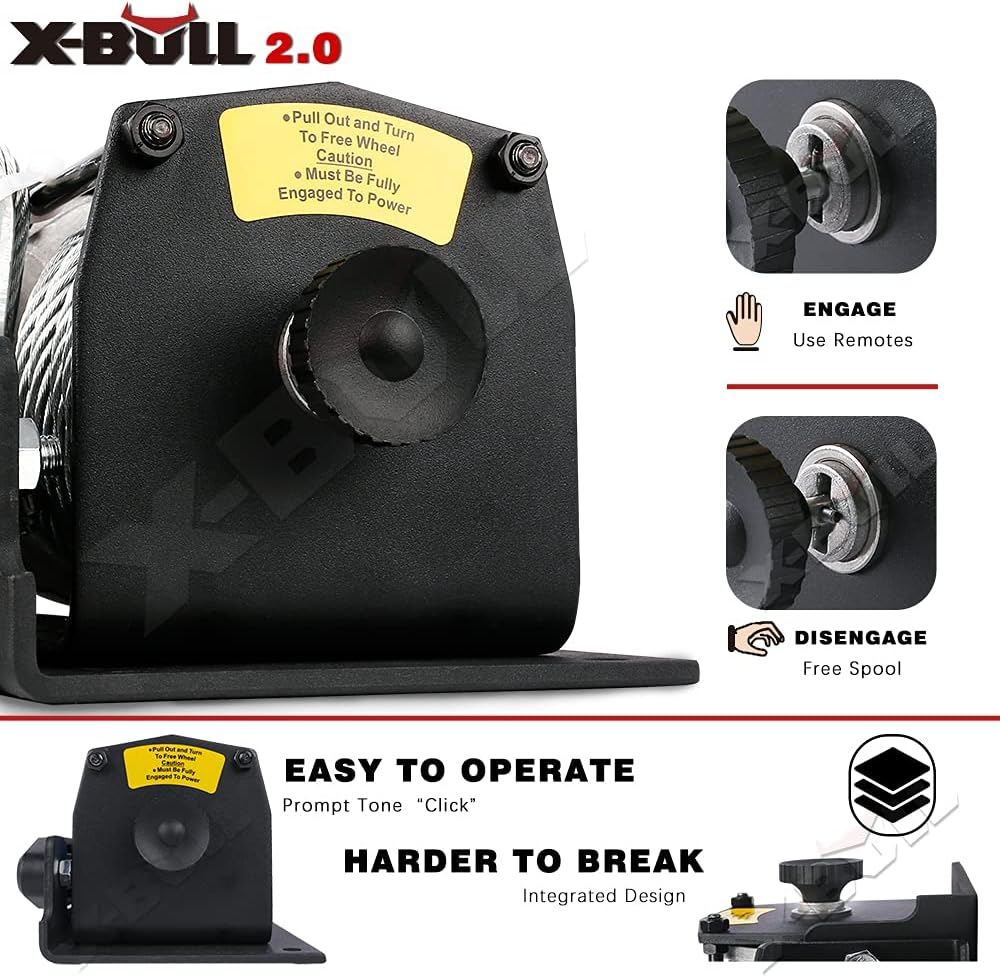

Cam-Style Clutch

Spring loaded and cam-style cluth mechanism let the X-bull winch become a great machine. The solid structure brings you a reassuring experience.

Cam-Style Clutch

The remote function include the cord remote, handlebar mounted and wireless remotes. X-bull electric winch can achieve a large range of 100 meters.

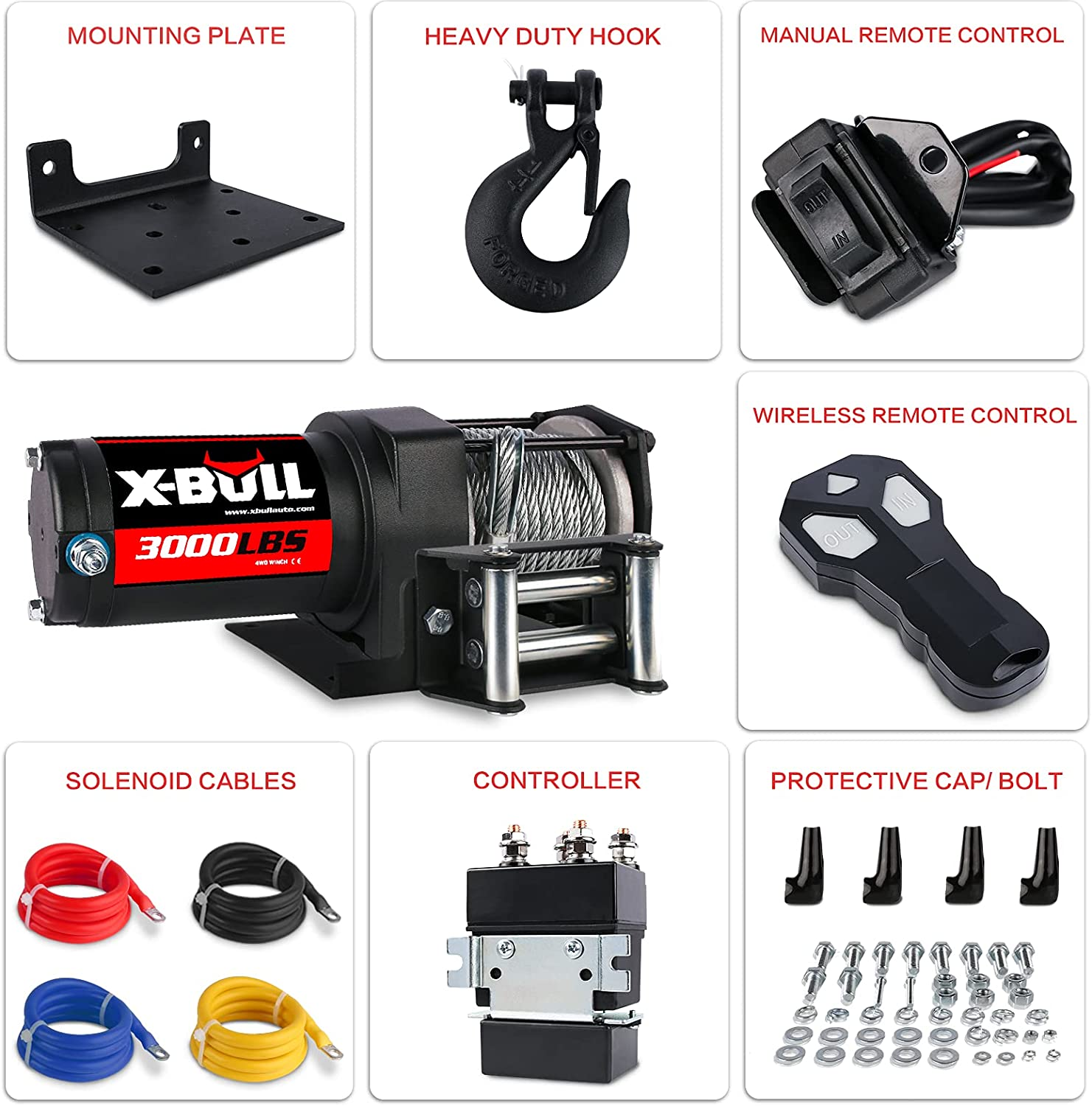

IN THE BOX

You would get:

1×3000lb ELECTRIC WINCH

1×Clevis Hook With Safety Clip and Market Tab

1×New Style Wireless Remotes

1×Next Generation Control Box

1×Set of Stainless Steel Fitting Bolts

and Other Accessories as the Following

  • 1×Aluminium Hawse
  • 1×Hand Held Switch
  • 1×Winch Lanyards
  • 1×14mtr Multi Dtranded Synthetic Rope Fitted to Drum
  • 1×User Manual

SPECIFICATIONS

Electric Winch with Steel Cable

Rated Single Line Pull: 3000lb.(1360kg)

Duty Cycle Rating: 5%(45 set at Max Rated)

Pendant Controller: Wired, 12ft(3.7m)long

Application: ATV/UTV/BOAT

Gear Train: 3-Stage Planetary

Weight: 8.2kg

Hook: 1/4''Clevis with Spring-Loaded Safety Latch

Brake: Auto, Load Holding Mechanical

  • Winch Certification: CE
  • Load: 14min,15sec rest
  • Handlebar Controller: Wired, 8ft(2.4m)long
  • Motor: 12V DC 1.3HP Permanent Magnet
  • Freespool: Cam Activated

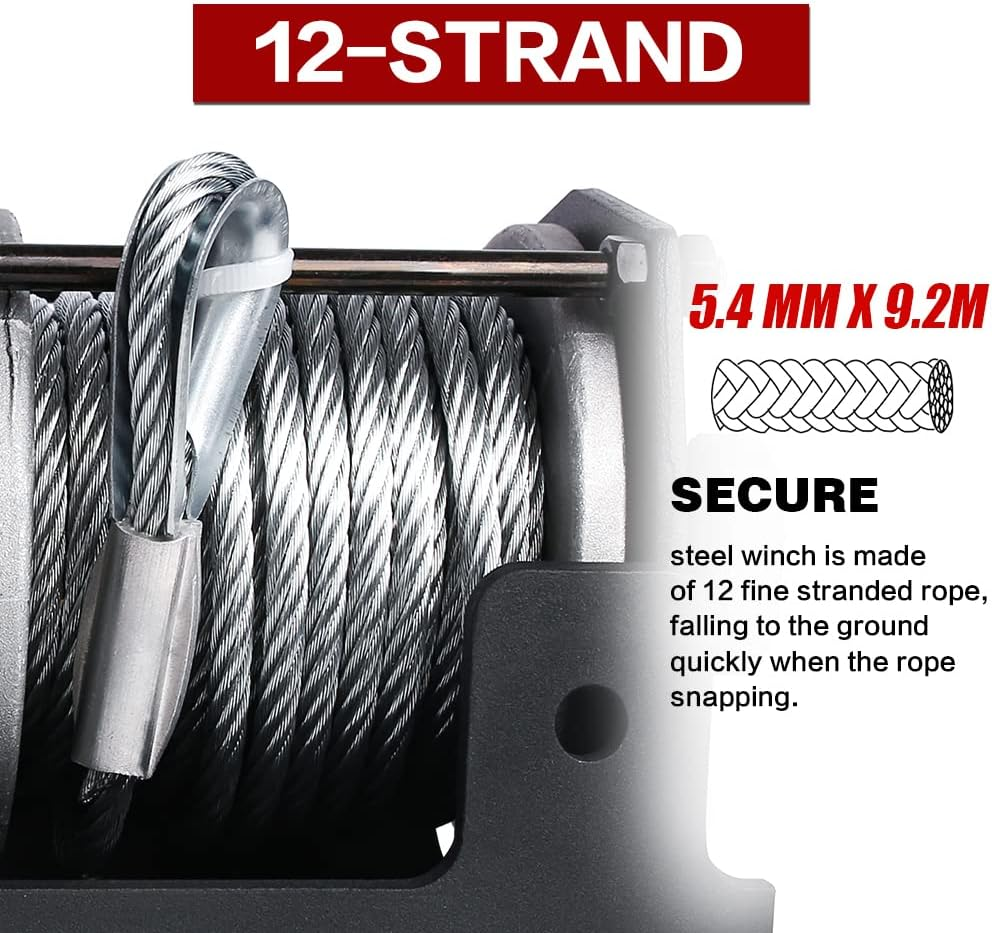

  • Synthetic Rope: 5.4mm*9.2m
  • Item Model Number: 4332987907
  • Part Number: AUEB-AXEW001
  • Style: steel wire
  • Item Package Quantity: 1
  • Product dimensions: 32.5 x 24 x 17.5 cm; 8.44 kg
  • Material: steel wire rope type
  • Batteries Required?: No
  • Certification: certified frustration-free
  • Item Weight: 8.44 kg
  • Batteries Included?: No
  • Voltage: 12 Volts
  • Size: 3000LBS Steel Cable
  • Is discontinued by manufacturer: No
  • Colour: steel wire rope type
  • Manufacturer: EE803
