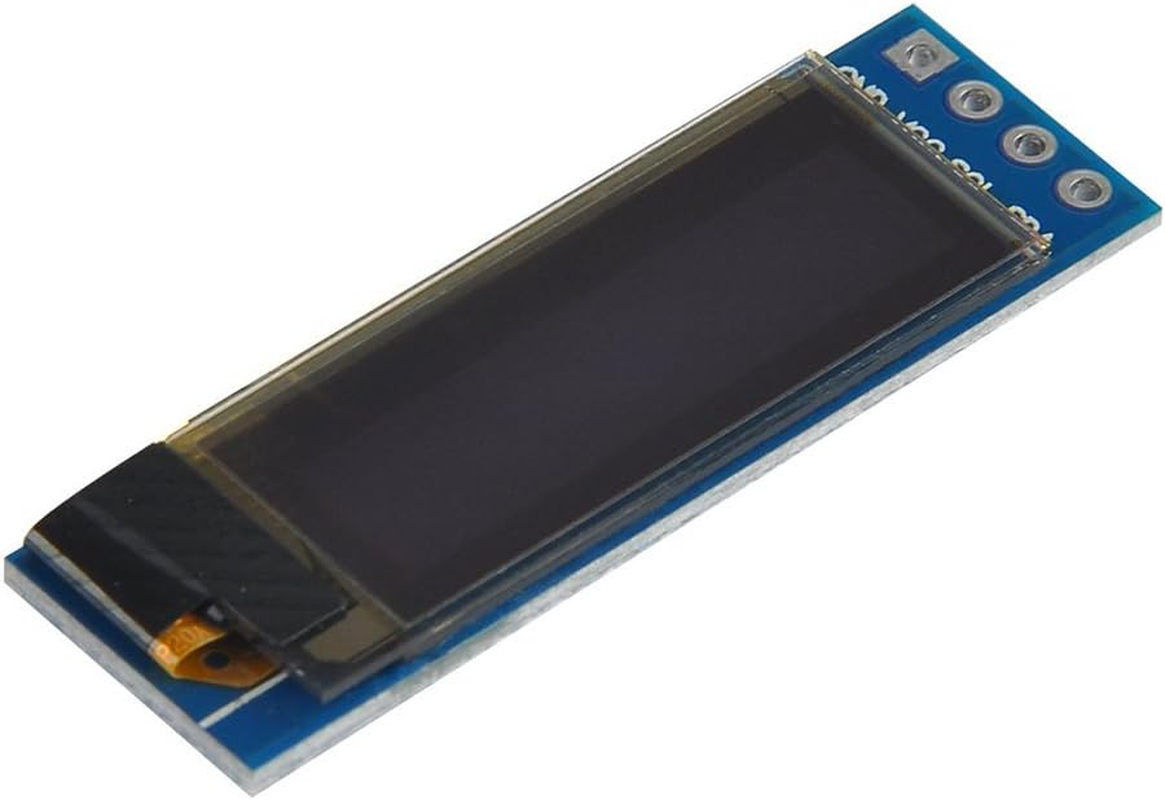

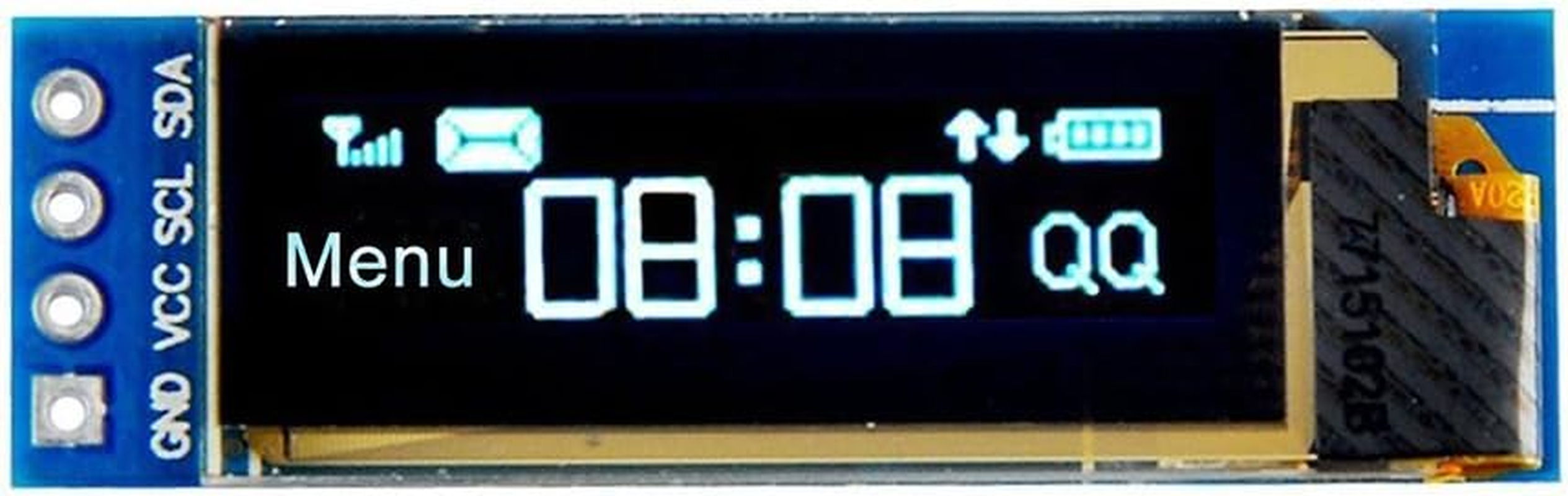

Hiletgo I2C OLED Display Module 0.91" IIC I2C Serial OLED LCD Display SSD1306 128X32 Blue I2C OLED Screen Driver DC 3.3V/5V AVR PIC STM32 Arduino
Hiletgo I2C OLED Display Module 0.91" IIC I2C Serial OLED LCD Display SSD1306 128X32 Blue I2C OLED Screen Driver DC 3.3V/5V AVR PIC STM32 Arduino
Brand: HiLetgo
A$19.45
- OLED display, no need backlight, self-illumination, Display Color: White. Plz note: These I2C OLED Display Modules come without pin headers.
- The display performance is better than the traditional LCD display, it uses the very common I2C bus, and runs on the SSD1306 display driver.
- High resolution OLED for any of your micro controller projects, 128x32 pixels gives you a nice sharp, crisp text output.
- Use with Arduino, ESP8266, ESP32, STM32, etc. This is a really good way to add a very compact LCD to your project. No need to add some big bulky backlit LCD.
- The display can run on 3.3v. It is legible, even with 4 lines of text. Highly recommended for projects that require some form of user interface.

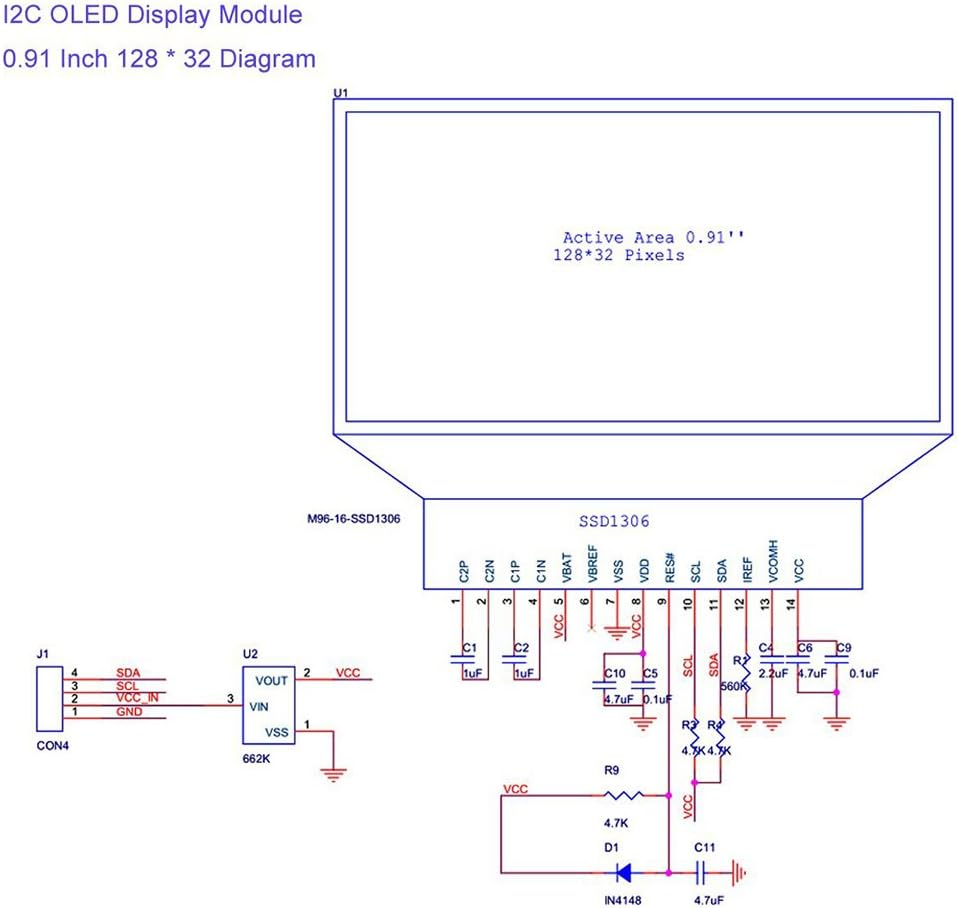

Driver IC: SSD1306, Font Color: white, Voltage: DC 3.3-5V, PIN Interface: IIC or SPI optional. IIC Pin definition:-- GND: Power Ground. VCC: Power + (DC 3.3 ~5v). SCL: Clock Line. SDA: Data Line. SPI Pin definition:--GND: Power ground. VCC: Power. CLK: Clock line. MOSI: Data cable. RES: Reset line. DC: Data/commands. CS: Chip select (when not use can be grounded directly).
- Item Model Number: 3-01-1259
- Part Number: 3-01-1259
- Batteries Required?: No
- Item Package Quantity: 1
- Item Weight: 18 g
- Batteries Included?: No
- Voltage: 5 Volts
- Is discontinued by manufacturer: No
- Package Dimensions: 9.4 x 5.84 x 1.78 cm; 18 Grams
- Manufacturer: HiLetgo
