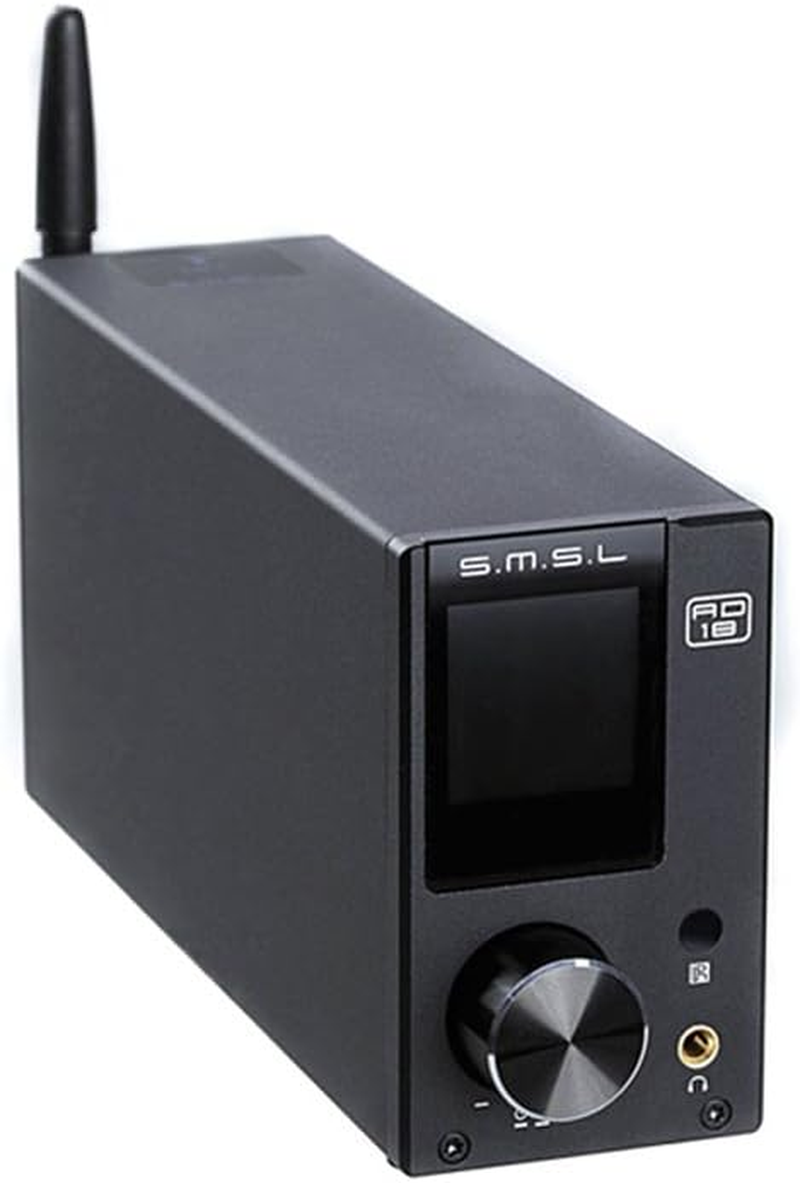

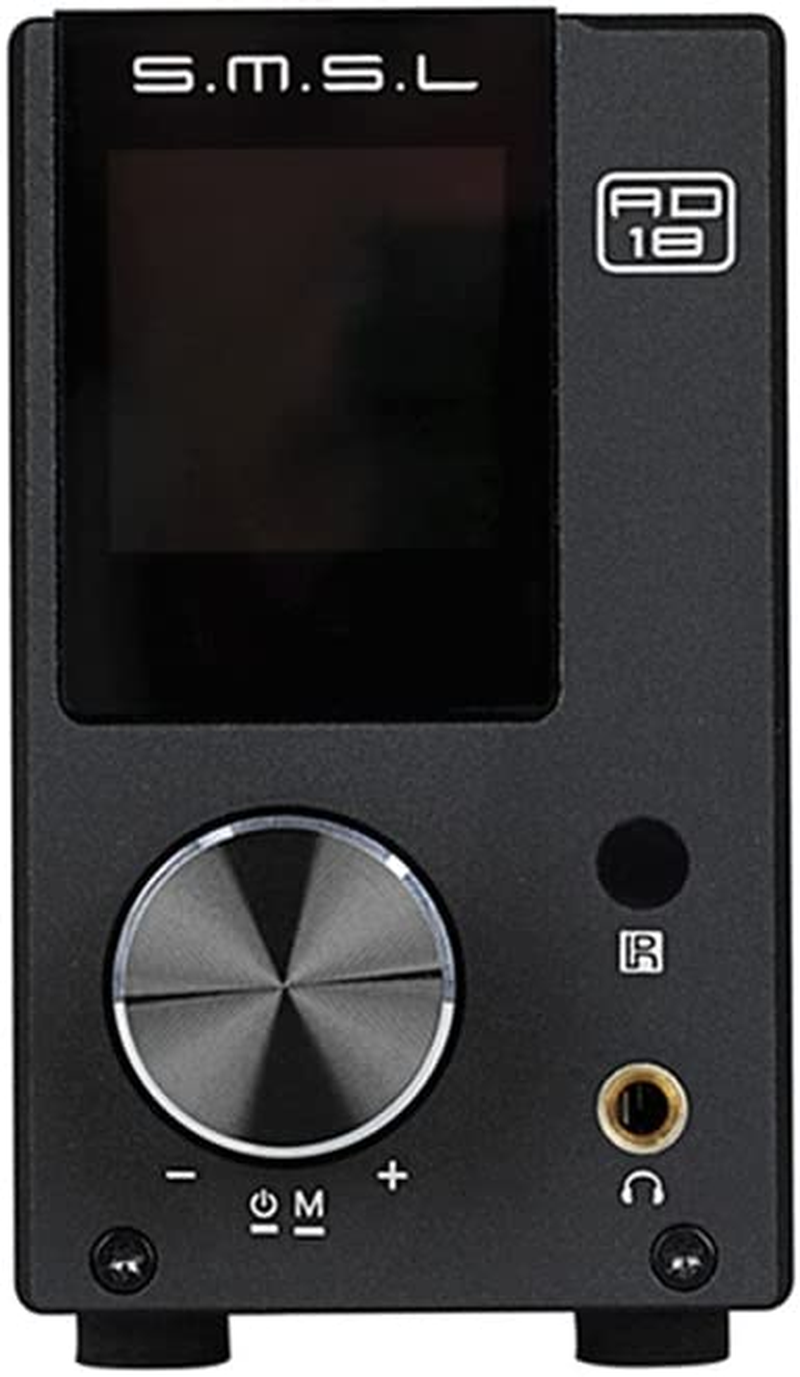

S.M.S.L AD18 Audio Hifi Stereo Amplifier with Bluetooth 4.2 Supports Apt-X,Usb DSP Full Digital Power Amplifier 2.1 Small 80Wx2 Class D Amplifier with Subwoofer Output

S.M.S.L AD18 Audio Hifi Stereo Amplifier with Bluetooth 4.2 Supports Apt-X,Usb DSP Full Digital Power Amplifier 2.1 Small 80Wx2 Class D Amplifier with Subwoofer Output

Brand: S.M.S.L
3.9
A$139.80
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • 【Digital Input】The SMSL AD18 has 6 input methods, USB, coaxial, analog, Bluetooth and two optical fibers, using two different chips for SPDIF and USB input. The USB comes from Texas Instruments' TAS1020B. The chip fully supports 24bit/96khz, and any excess will be automatically downsampled. SPDIF uses Cirrus Logic's CS8422. The chip can decode files up to 24bit/192khz, but can only decode up to 96kh on the AD18.

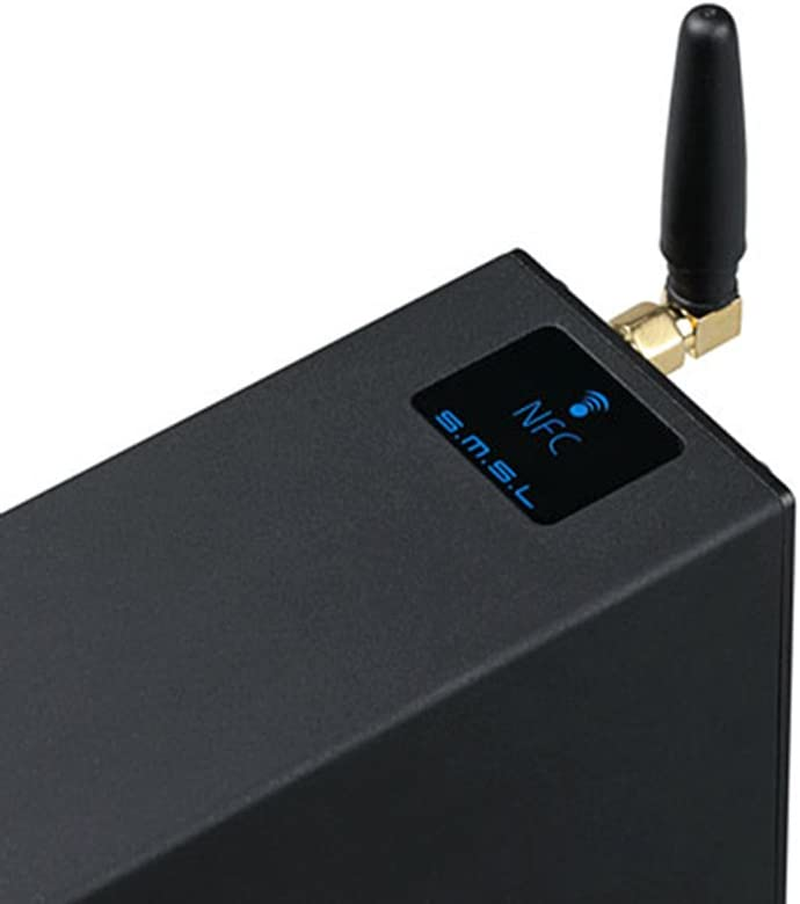

  • 【Bluetooth and NFC】The Class D amplifier allows you to Bluetooth BT4.2 Bluetooth input, Bluetooth supports apt-X, and easily connects Bluetooth via NFC, providing higher quality wireless playback for compatible iPad, iPhone, iOS, tablets and Android smartphones.
  • 【Two Independent Circuits】The S.MS.L ad18 bluetooth amp has two independent circuits, one for speakers and one for headphone output. It also has a subwoofer active subwoofer output, 80W*2 amplifier output, with amplifier output, which can provide unparalleled stereo audio for speakers. 3.5mm headphone jack, the headphone amplifier
  • 【Bass and Treble Control】SMSL Audio Stereo Amplifier This all-in-one amplifier is also equipped with a digital equalizer with multiple functions (bass tuning, treble, etc.), built-in SMSL patented sound effect SDB, SDB can effectively improve the sound restoration, while dynamically adjusting the high and low sounds according to the current music signal.
  • 【SMSKL AD18 chip】Full digital amplifier is part of the new generation of FDA all-digital amplifiers. It uses high-tech TAS5508C and TAS5342 chips using Texas Instruments (TI) digital pure path technology. The amplifier has the characteristics of "all-digital", compact design, high sound quality and high resolution, bringing a wonderful experience to music lovers.

Product Description

Parameter:
Model Number: AD18
Signal to noise ratio: 90dB
Power amplifier output power (4ohm): 80W * 2
Headphone output (32 ohms): 53mW@THD = 0.04%
THD + N: 0.04%
EQ Quantity: 7 kinds
Treble adjustment range: ± 8dB
Bass adjustment range: ± 8dB
Bluetooth specification: BT4.2

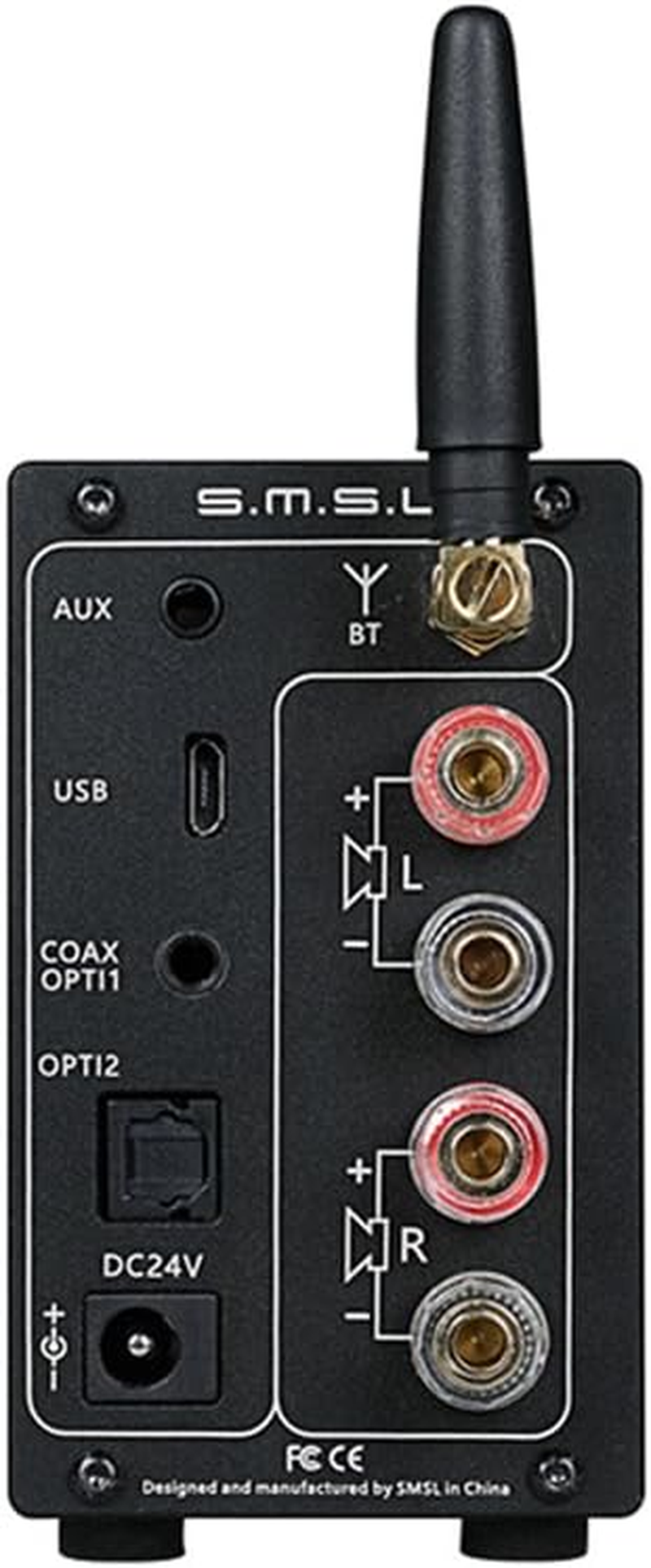

Input interface: USB, coaxial, 3.5mm analog, Bluetooth, optical fiber * 2
Output interface: amplifier output port, headphone port
Chip: TAS5508C, TAS5342A, CS8422, VT1620A, MAX97220A, CS5341, BT4.2 Bluetooth module, NE5532
USB sampling rate: 16bit 44.1kHz-48kHz-96kHz-192kHz; 24bit 44.1kHz-48kHz-96kHz
USB Compatibility: USB2.0
Optical fiber sampling rate: 16bit44.1kHz-48kHz-96kHz-192kHz
Coaxial sampling rate: 16bit44.1kHz-48kHz-96kHz-192kHz
Power amplifier power consumption: 50W
Amp consumption: 4W
Standby power: 0.8W
Supply voltage: 24V

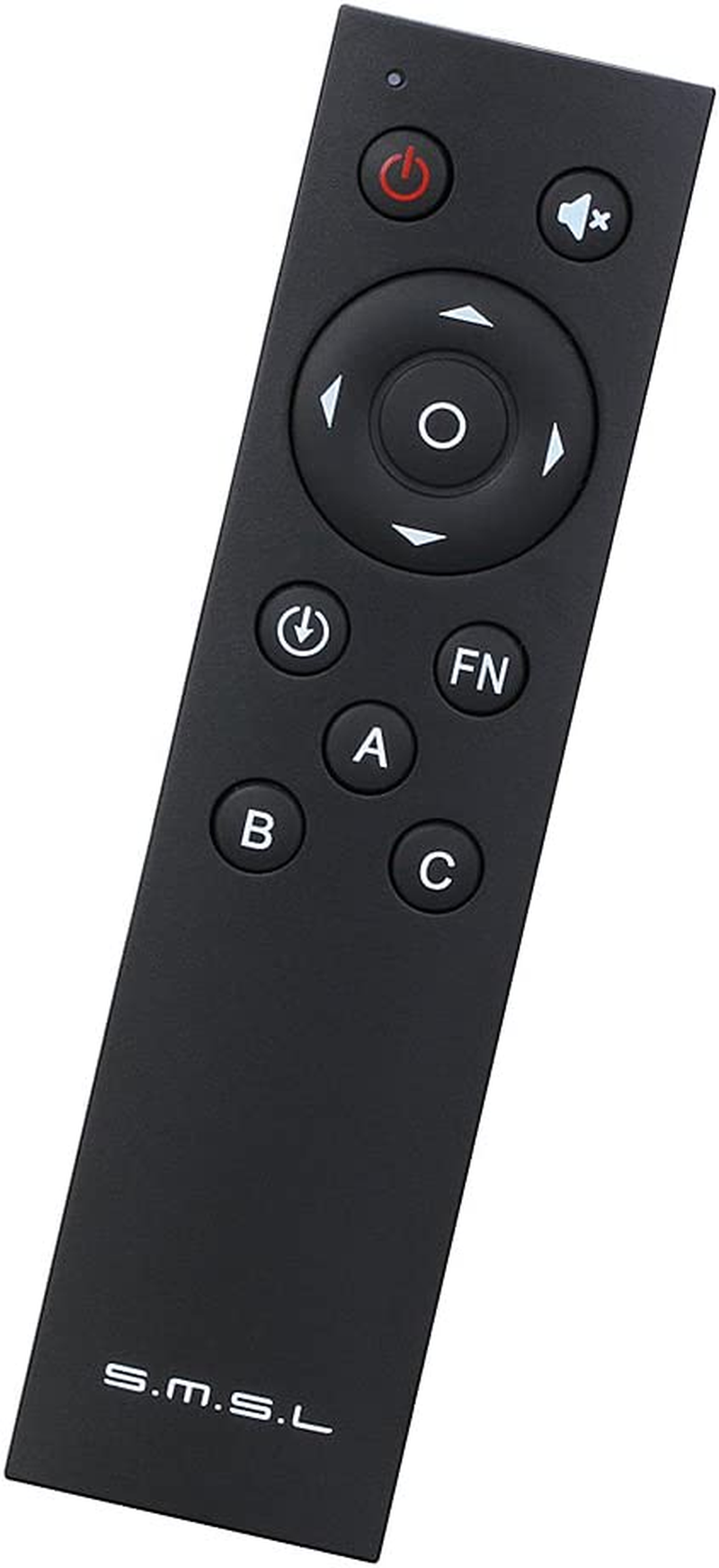

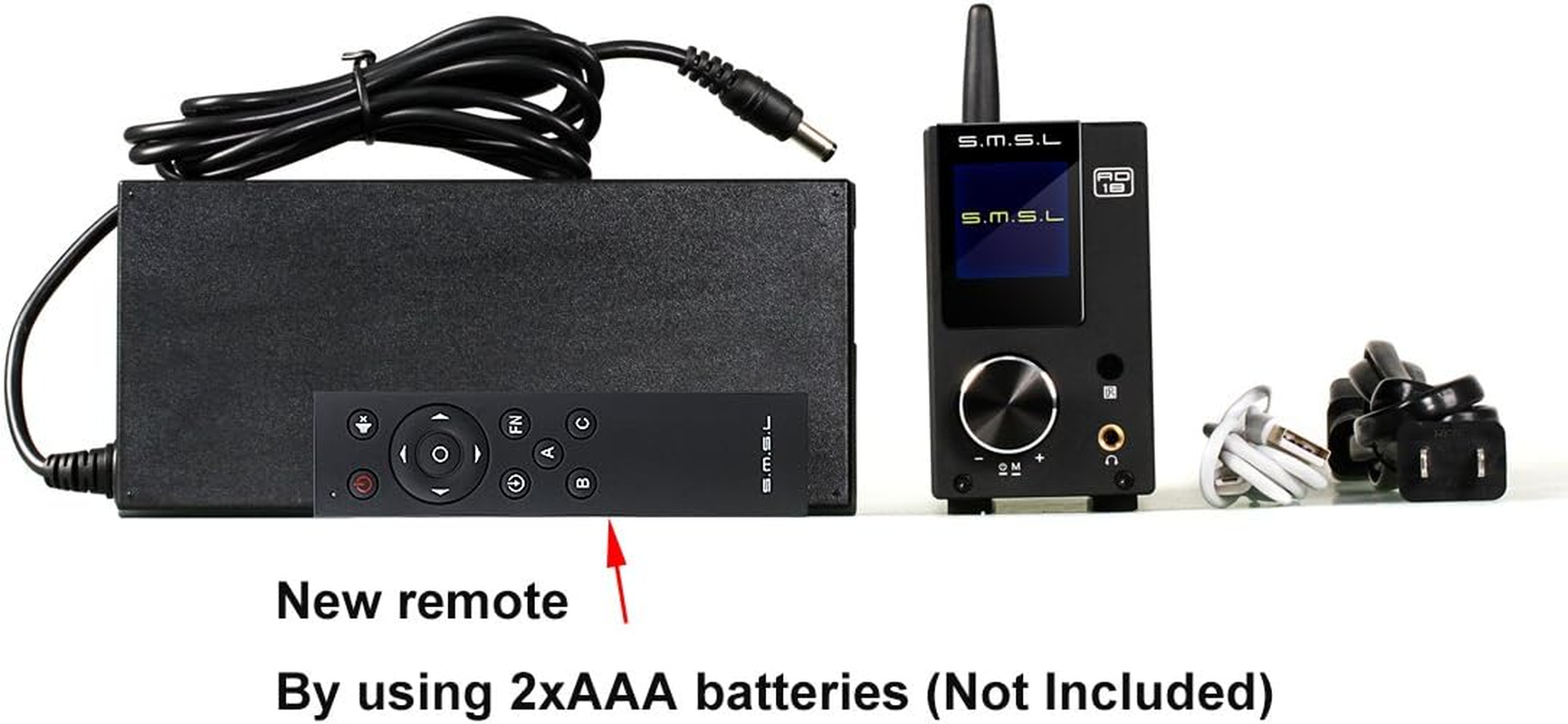

Accessories: power supply, MICRO USB cable, remote control, antenna
Total weight: 1.55KG
Packing size: 275 * 231 * 74mm

Set Contains:

1 x SMSL AD18 80W×2 Bluetooth Audio Digital Power Amplifier USB Decoding Amplifier

  • Item Model Number: AD18
  • Colour Name: AD18
  • Product dimensions: 17.2 x 5.1 x 8.5 cm; 572 Grams
  • Item Weight: 572 g
  • Batteries: 1 Lithium Polymer batteries required.
  • Is discontinued by manufacturer: No
  • Manufacturer: S.M.S.L
