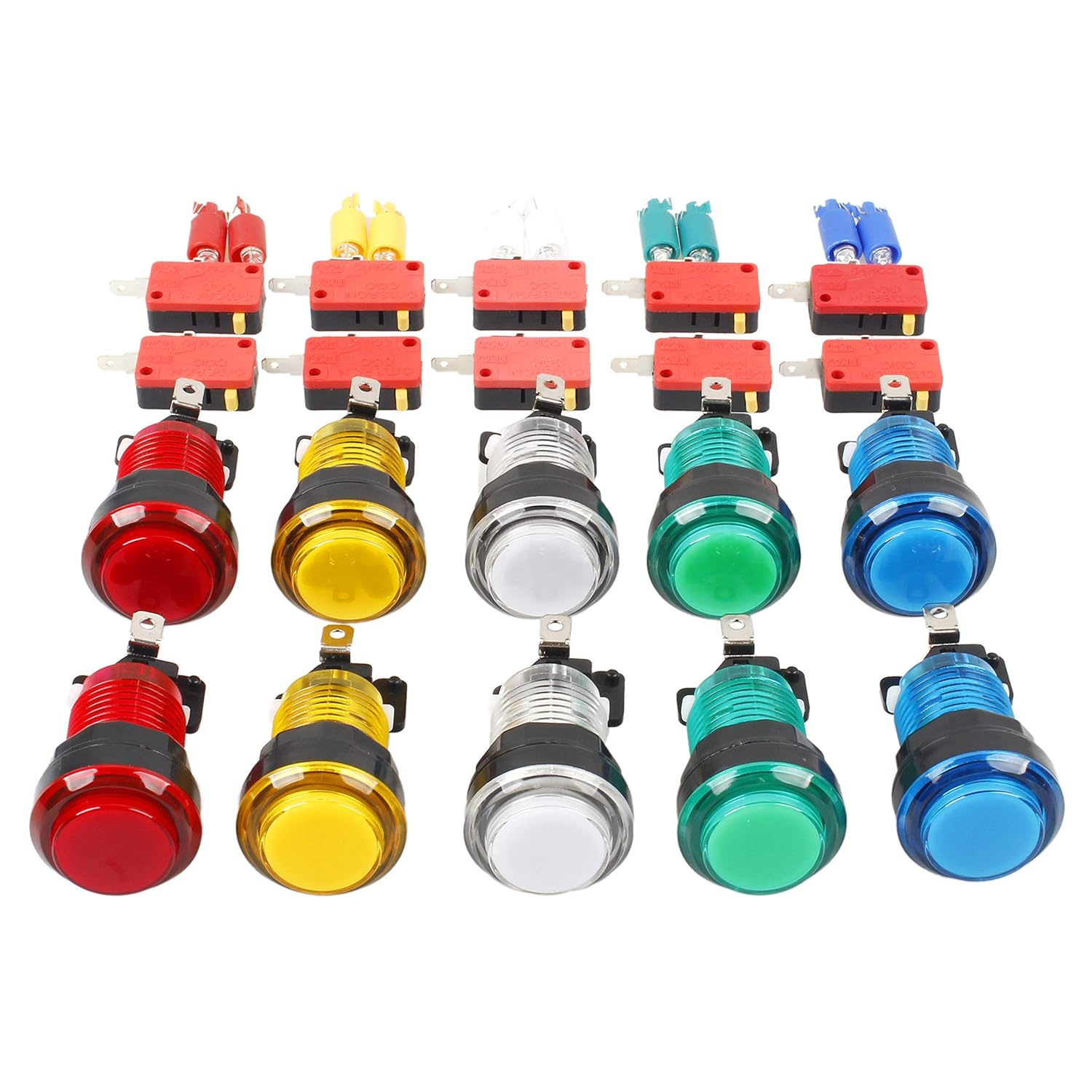

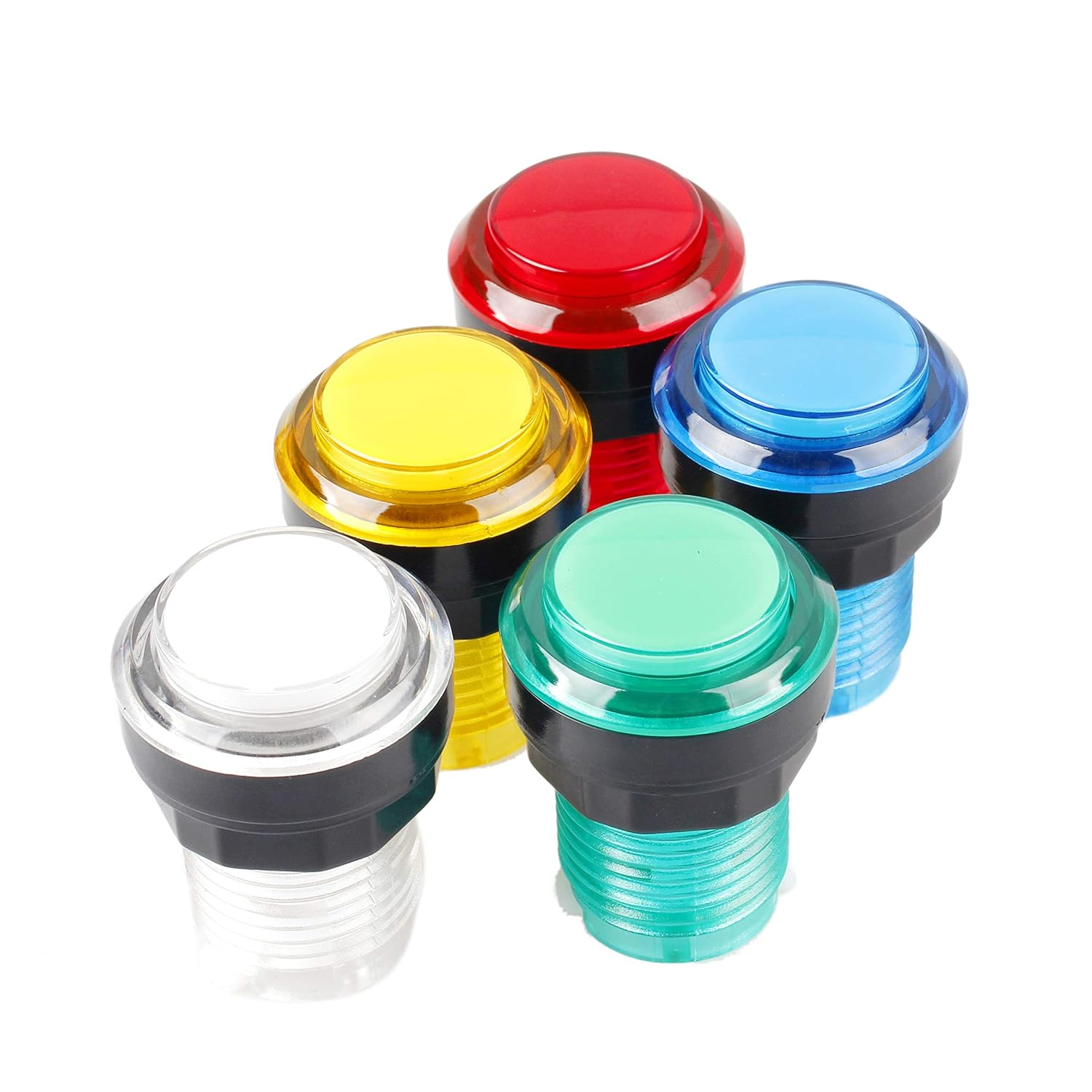

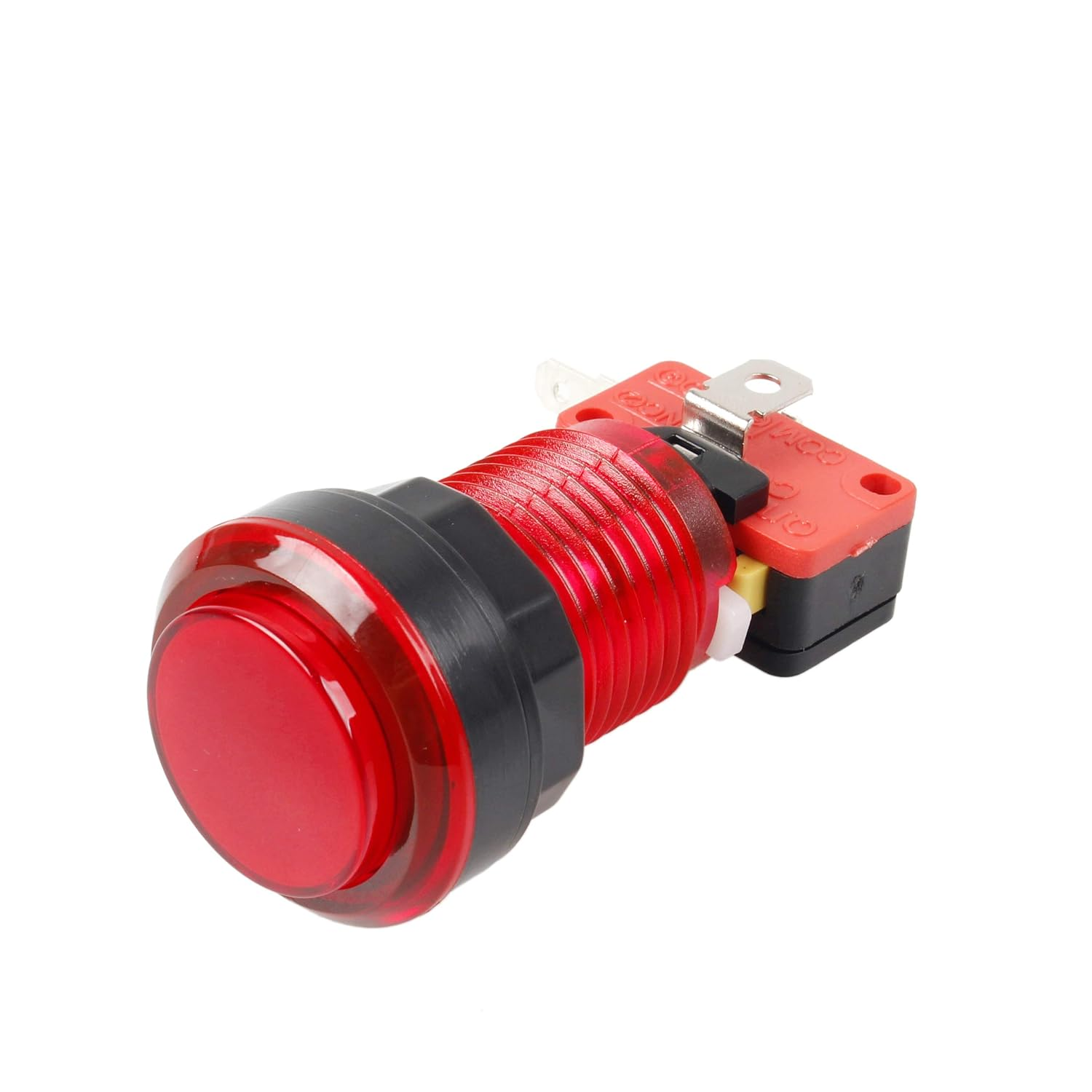

This listing is for 10 x New full color Illuminated Arcade Button With 12V LED

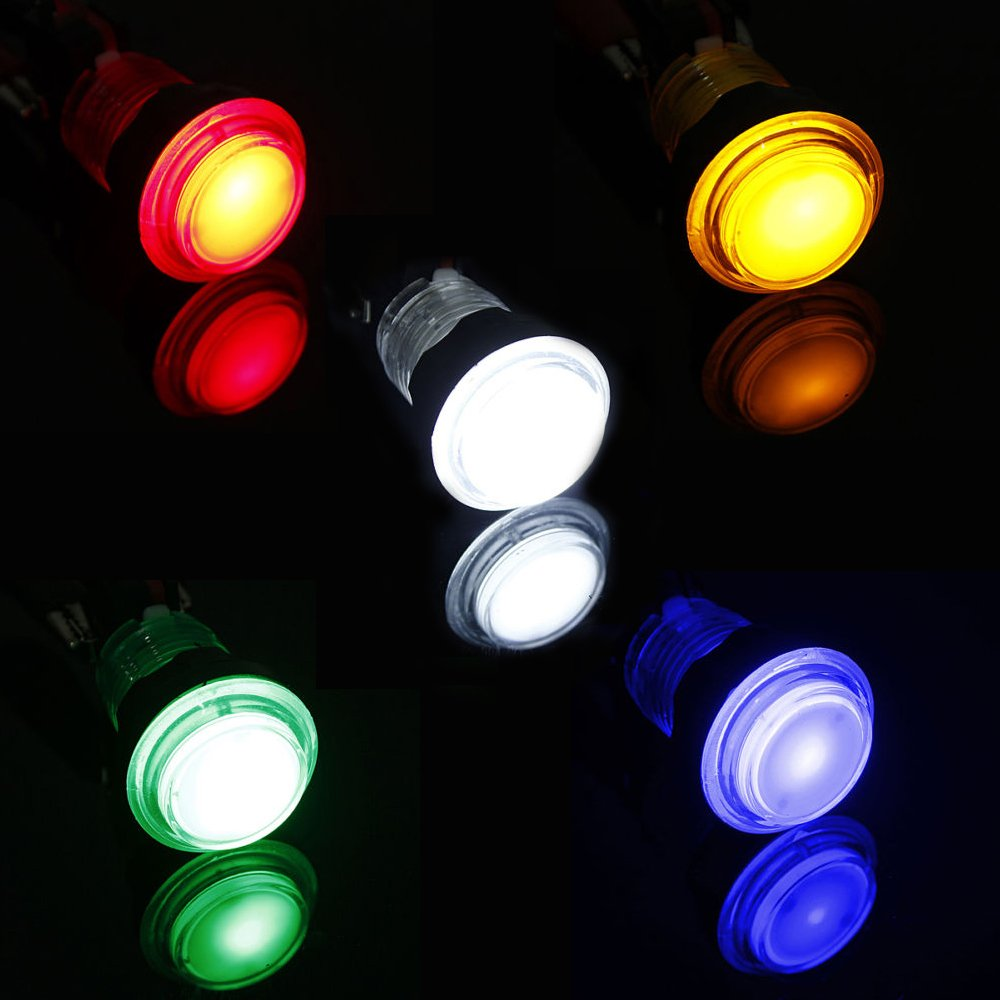

Give your arcade project the wow factor with this translucent, illuminated arcade button.

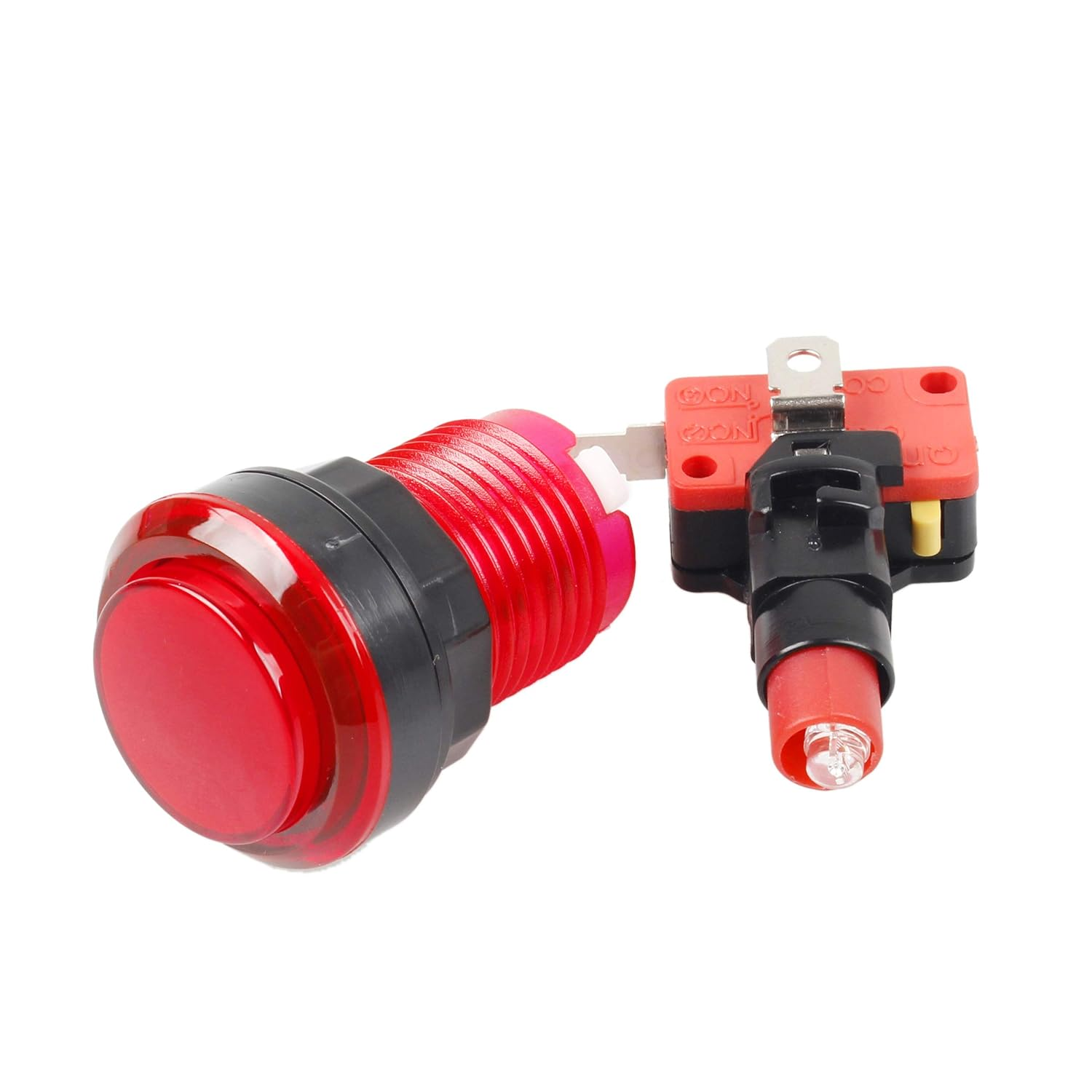

Each button comes complete with a fixing ring, bulb holder, spacer, microswitch and 5V LED.

If you decide to illuminate the LED supplied with this arcade button, you will need a 12V power supply.

This can be taken from a spare molex connector (yellow wire) on a PC power supply or a Jamma PSU.

This button will mount in a 24mm to 28mm hole.

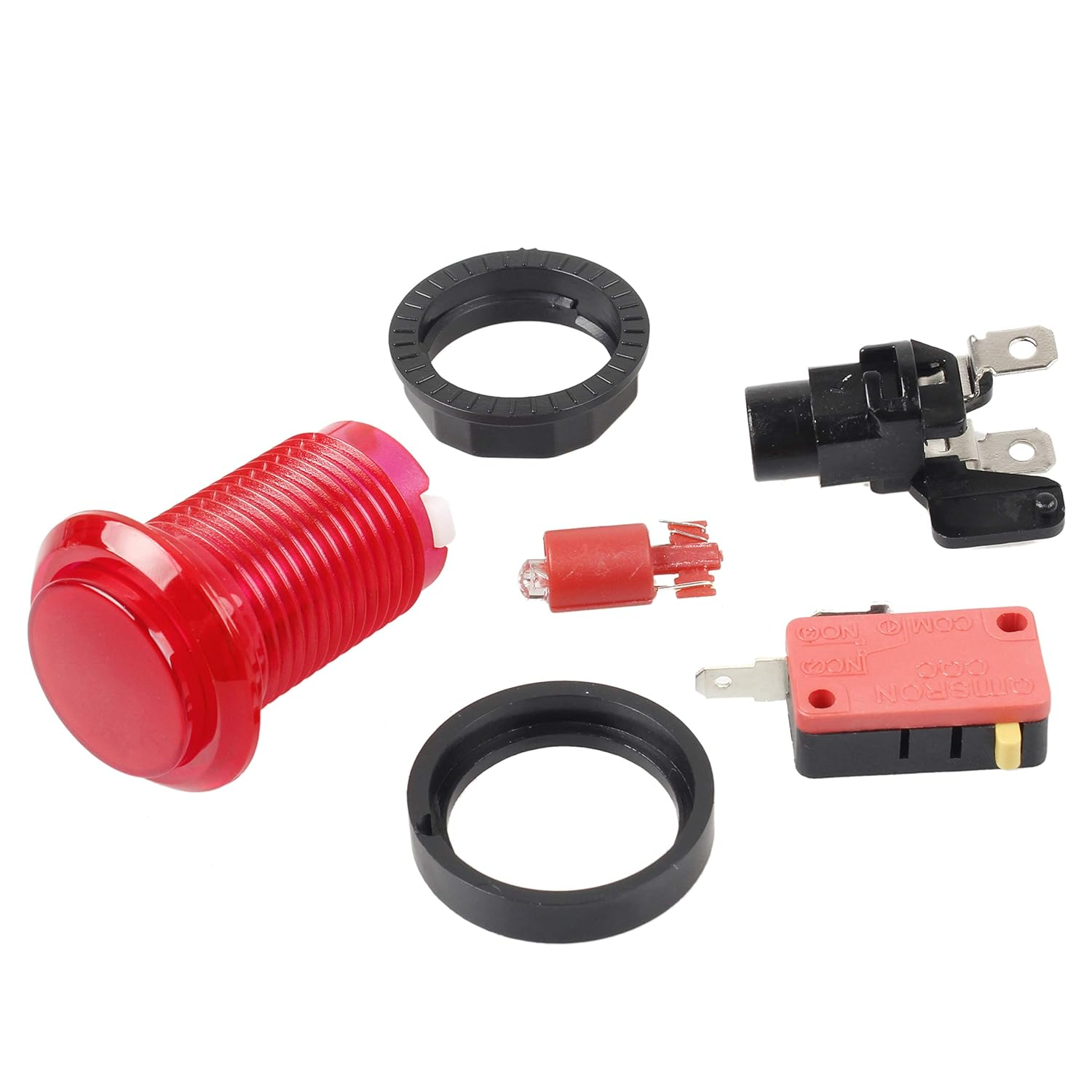

What's included with this button?

10 x LED Illuminated Push Button

10 x Fixing ring

10 x 12V LED Lamp (We will add two lamp as a gift)

10 x Bulb holder

10 x Microswitch (We will add one Microswitch as a gift)

Product Dimensions:

* Mounting hole required: 24mm - 28mm

* Overall diameter of button across plunger: 32mm

* Maximum depth of button from top of plunger to bottom of microswitch: 65mm

Wiring Information:

These buttons require 4.8mm crimped wires for connection. 1 wire for ground connection (CO) and 1 wire for signal connection (NO). These buttons require 6.3mm crimped wires for illuminating. 1 wire for the positive connection and 1 wire for the negative connection

(if the LED does not work. Please exchange LED lights interface. )
