Features:

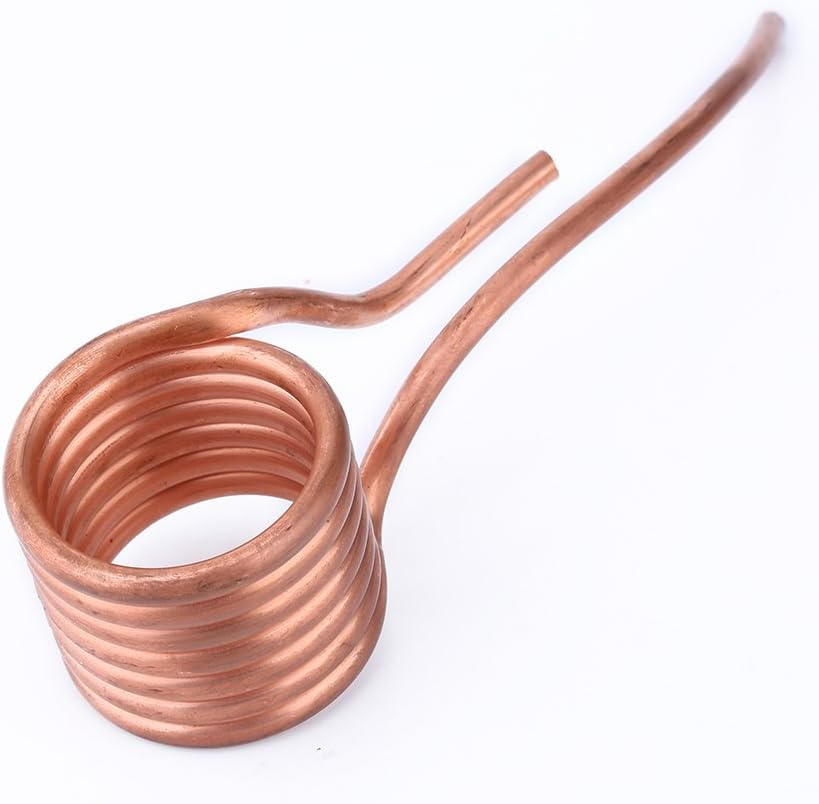

Inner diameter of spool: 40mm
Spool height: 50 mm
24V input with 3A no-load current
48V input with 6A no-load current
The higher the voltage, the higher the heating current when the same, the effect is better,
But at the same time, heat is also important, so to eradicate the real situation to select the input voltage, the general use of the words 24V or 36V power supply is sufficient.
It is suitable for 12-36V power supply (not included).
Coil accepts 40mm crucible.
Note:
1, The kit contains complete set of driving circuit elements and brass
2, Buyers need to bring their own power and cooling unit.

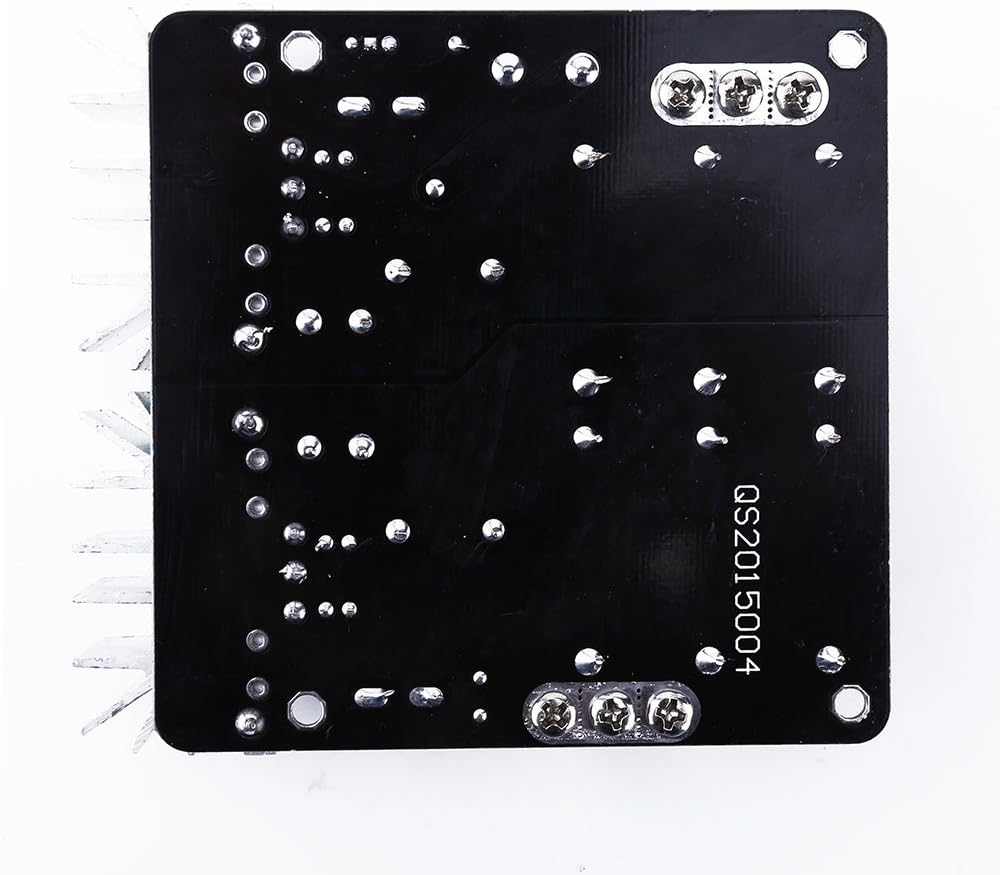

3, the printed circuit board using double-sided fiberglass board, mainly traces of copper are used to expand the use of all the back of the common resonant circuit, continuous work, please add fan to blow from above, to resonance capacitors and other fresh components.
4, The use of switching power supply Please note that due to the high power, the start function is usually slow, which just opened the output voltage of the machine is slowly increasing, while it is turned on before the induction heating circuit if the voltage rises to 12V, because starting insufficient voltage can not afford vibration, resulting in two mos tubes simultaneous conduction therefore components burned.
Thus the first will begin to switch the supply voltage that reaches 12V above and then access the induction heating circuit.
Package includes:

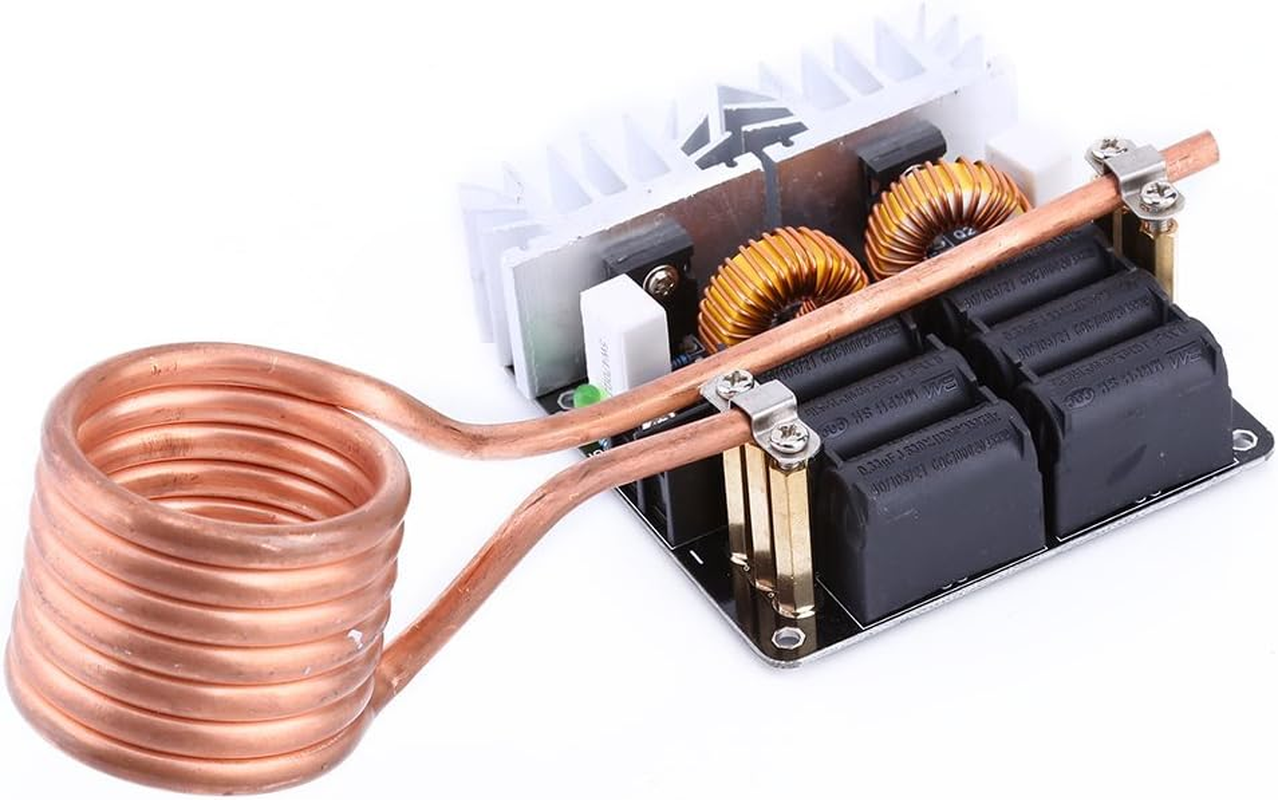

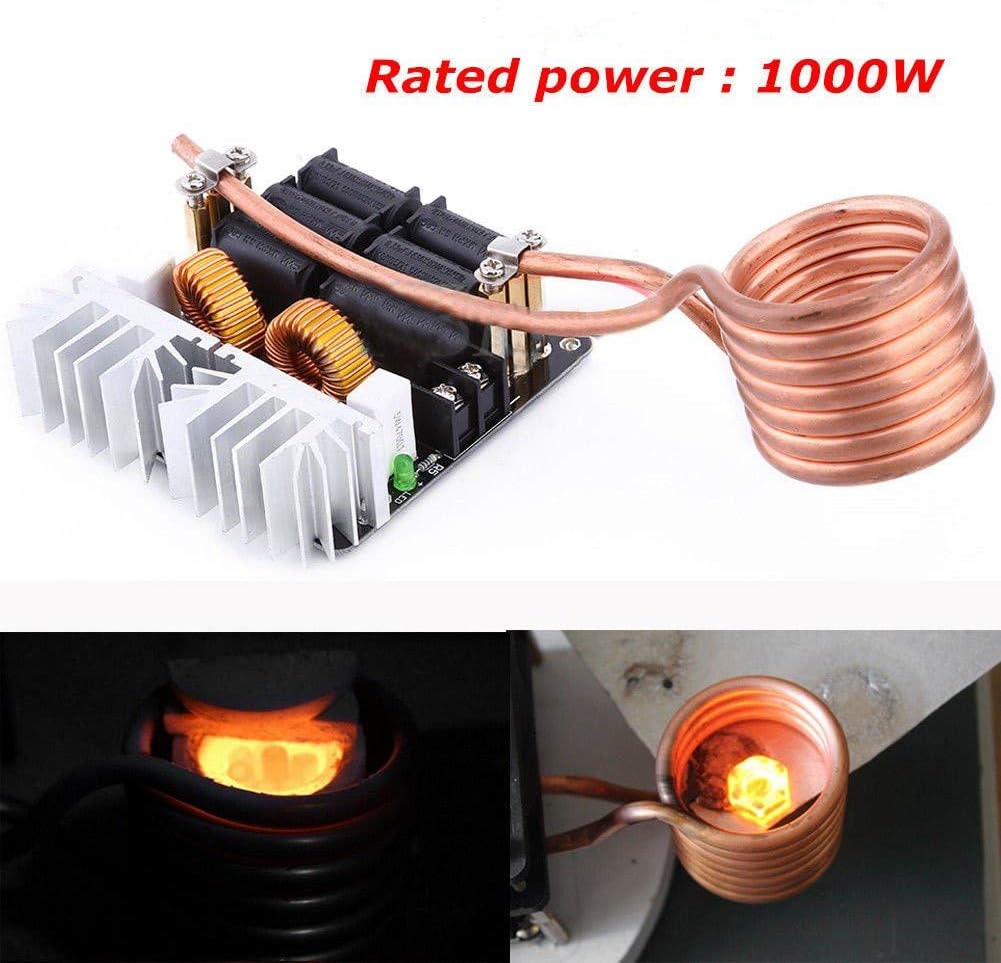

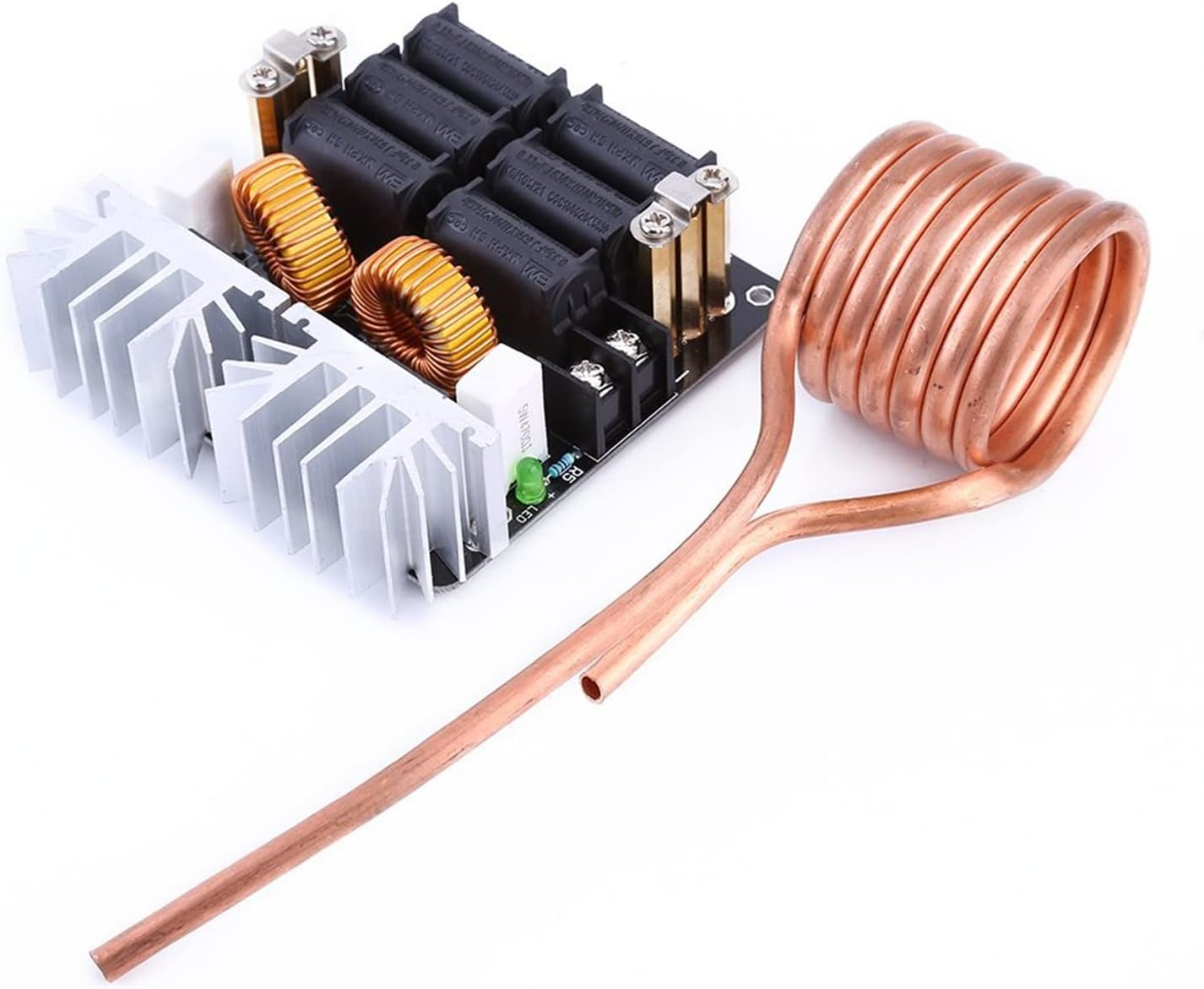

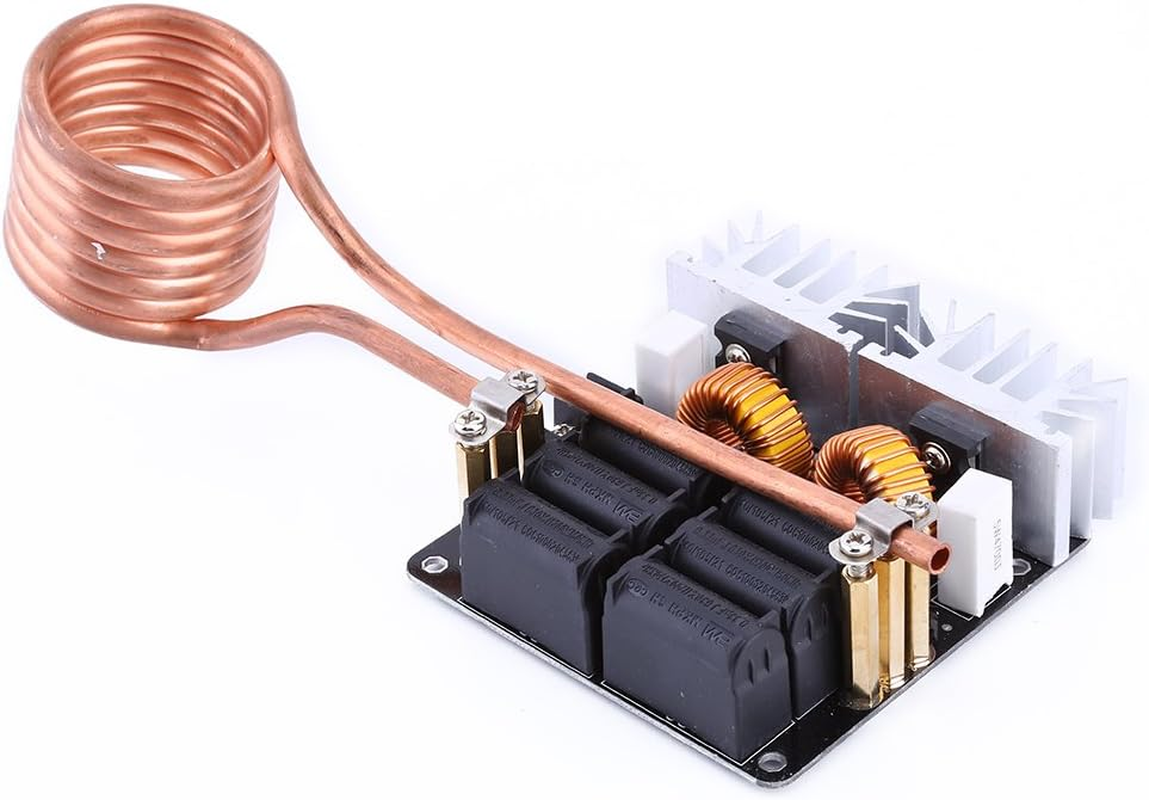

1 x ZVS Low Voltage Induction Heating Panel
1 x Brass
