Toneshaper Guitar Wiring Kit, for ES-335
Toneshaper Guitar Wiring Kit, for ES-335
- CTS 500k audio-taper, low-torque pots with 1/2 bushing lengths - long enough for any top thickness
- All hardware included, and its the right hardware - youll have everything you need
- The finest OEM component brands, no generic part specs the RIGHT parts for your application

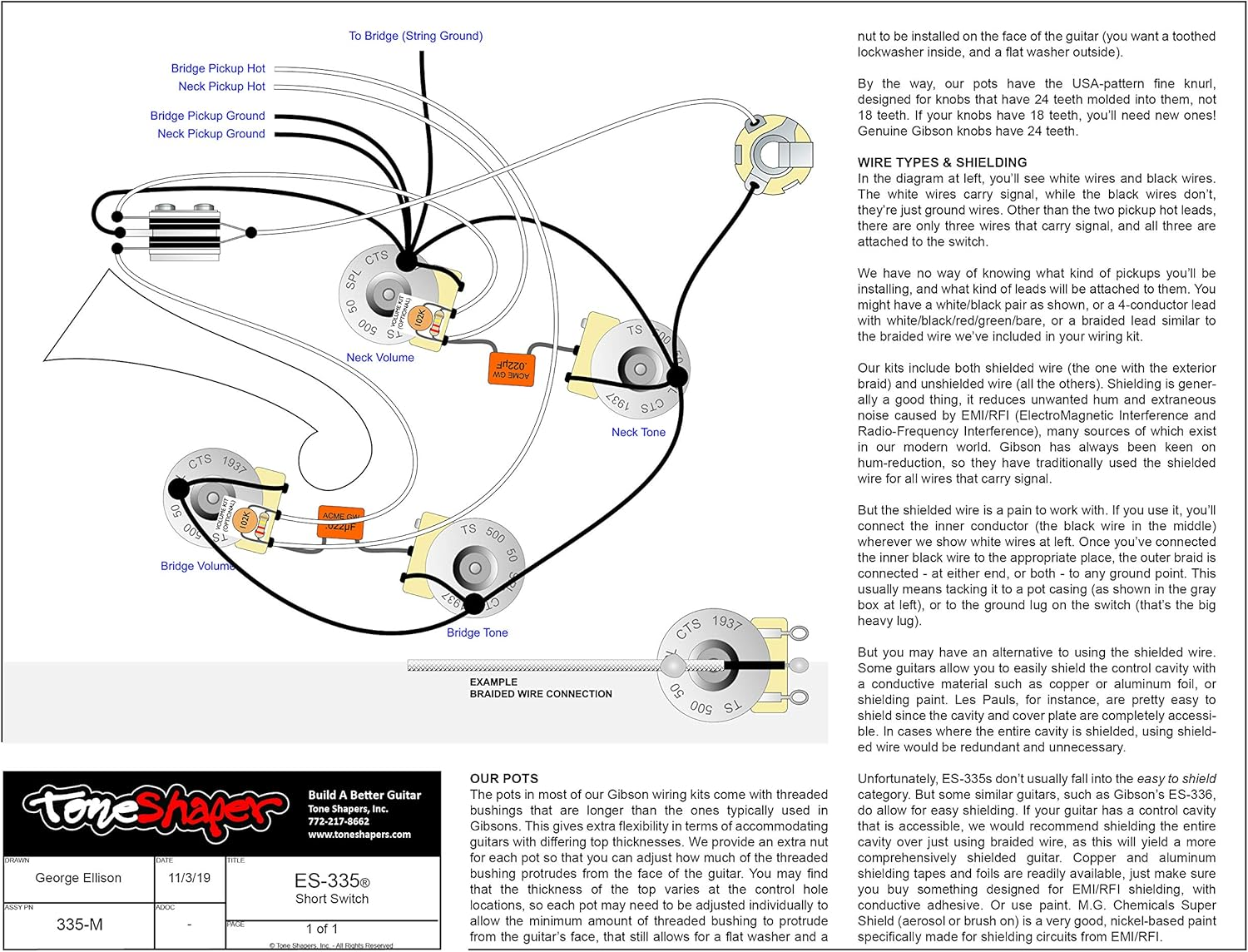

- Professional wiring diagram - the highest-quality documentation in the industry

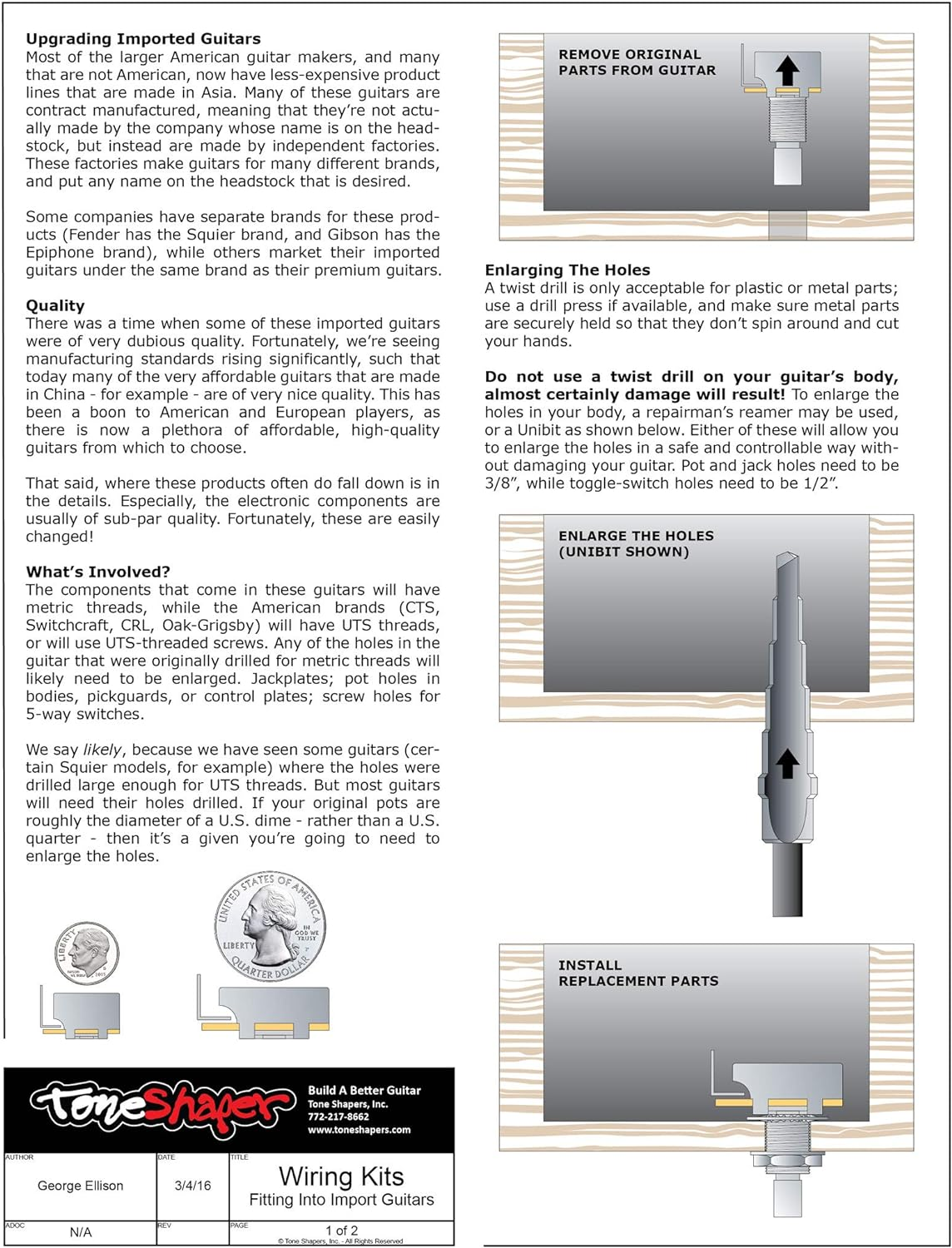

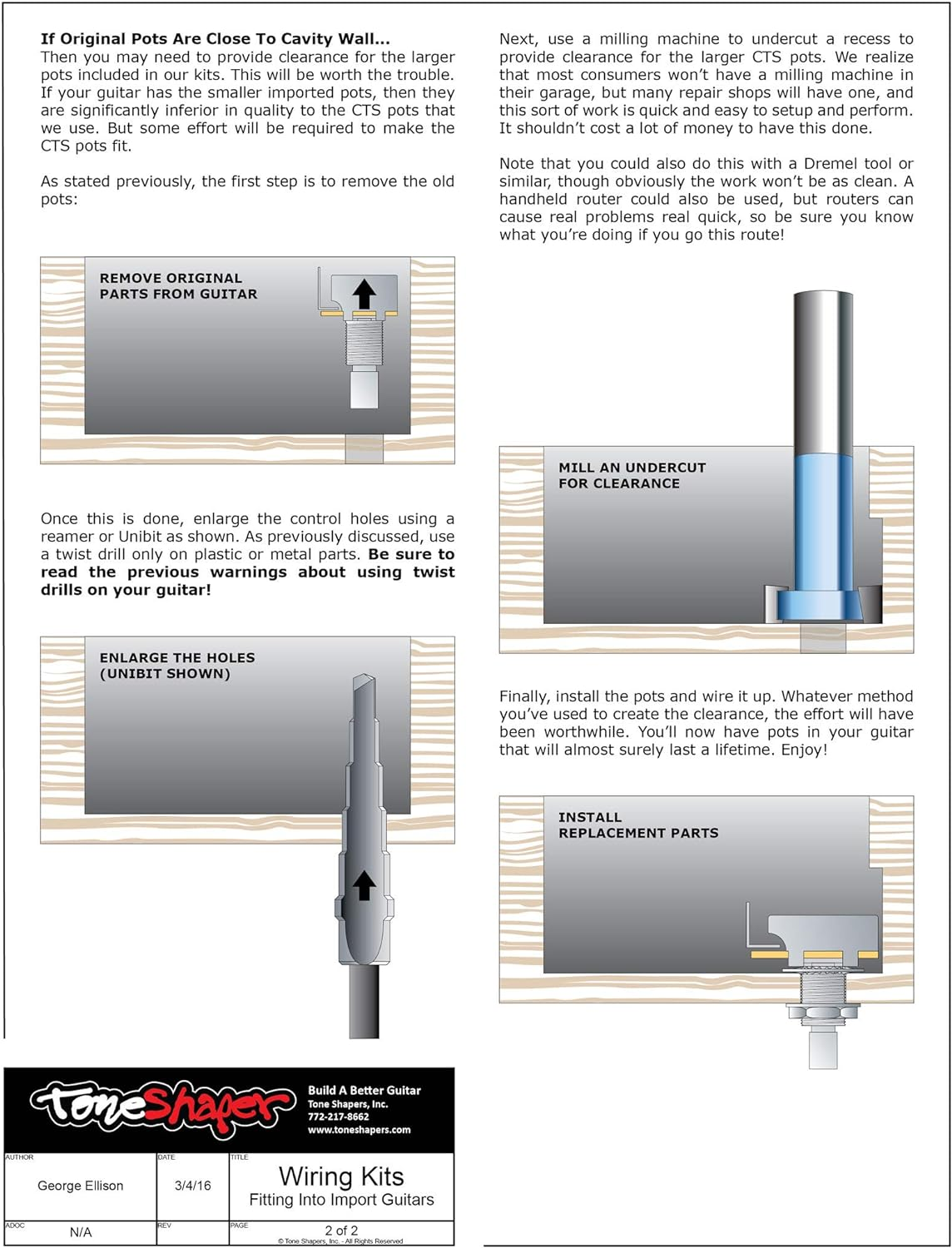

- UTS threads for USA guitars; imported guitars may require hole enlargement
This kit includes everything you need to wire a Gibson ES-335 or similar guitar. It includes the finest components, from the same suppliers that Gibson has used for years: (2) Capacitor, .022F Orange Drop (1) Jack, Switchcraft 1/4" Mono, Long Bushing (4) Pot, CTS 500k Audio, Low Torque (.500" Bushing Length) (1) Switch, Switchcraft 3-Way Toggle, Short Straight (2) Treble Bleed Kit for Humbuckers (2) Wire, 22 AWG Cotton Push Back w/ Tinned Overcoat, Black (2) Wire, 22 AWG Cotton Push Back w/ Tinned Overcoat, White (2) Wire, 22 AWG Single Conductor Braided (2) Wire, 22 AWG Stranded Silver-Plated Copper, Black PTFE (2) Wire, 22 AWG Stranded Silver-Plated Copper, White PTFE (1) Professional, Fully-Illustrated Wiring Diagram Please note: knobs & switch tip are not included. There are just too many options - we sell 12 varieties of Gibson-style knobs sets. Each includes four knobs plus a Switchcraft switch tip. The knobs will fit these 24-tooth pots correctly, and the switch tip is the right part for the Switchcraft switch included in this kit. Gibson knobs & switch tips fit our parts properly, but imported knobs and switch tips don't. So if you have knobs/tip that came off an Epiphone or other imported guitar (Tokai, Burny, PRS CE, etc), then you're going to need knobs.
- Item Model Number: TS-WK-335-M
- Item Weight: 168 g
- Package Dimensions: 20.19 x 15.19 x 2.59 cm; 168 Grams
-
In Stock
