DIGITEN 4 Digital LED Tachometer RPM Speed Meter+Hall Proximity Switch Sensor NPN Blue
DIGITEN 4 Digital LED Tachometer RPM Speed Meter+Hall Proximity Switch Sensor NPN Blue
Brand: DIGITEN
A$26.25
- Measure range: 5-9999RPM.
- Power requirement:DC 8-15V
- Come with hall sensor and magnet
- Display:red 0.56" LED
- Measure varied motor RPM
Power requirement:DC 8-15V
Measure range : 5-9999RPM.
Clear zero: Automatic.
Clear zero time:about 10s.the greater the RPM value,the longer the clear zero time.
Refresh frequency: 0.2-0.5S@120-1200RPM;0.25-0.06S@2400-9999RPM.
Measure indication:RPM<5000,??2;RPM>5000,??3.
Display:bLUE 0.56?｡ﾀ LED
Sign:Pusle signal,Hall NPN 3 wires normally open.

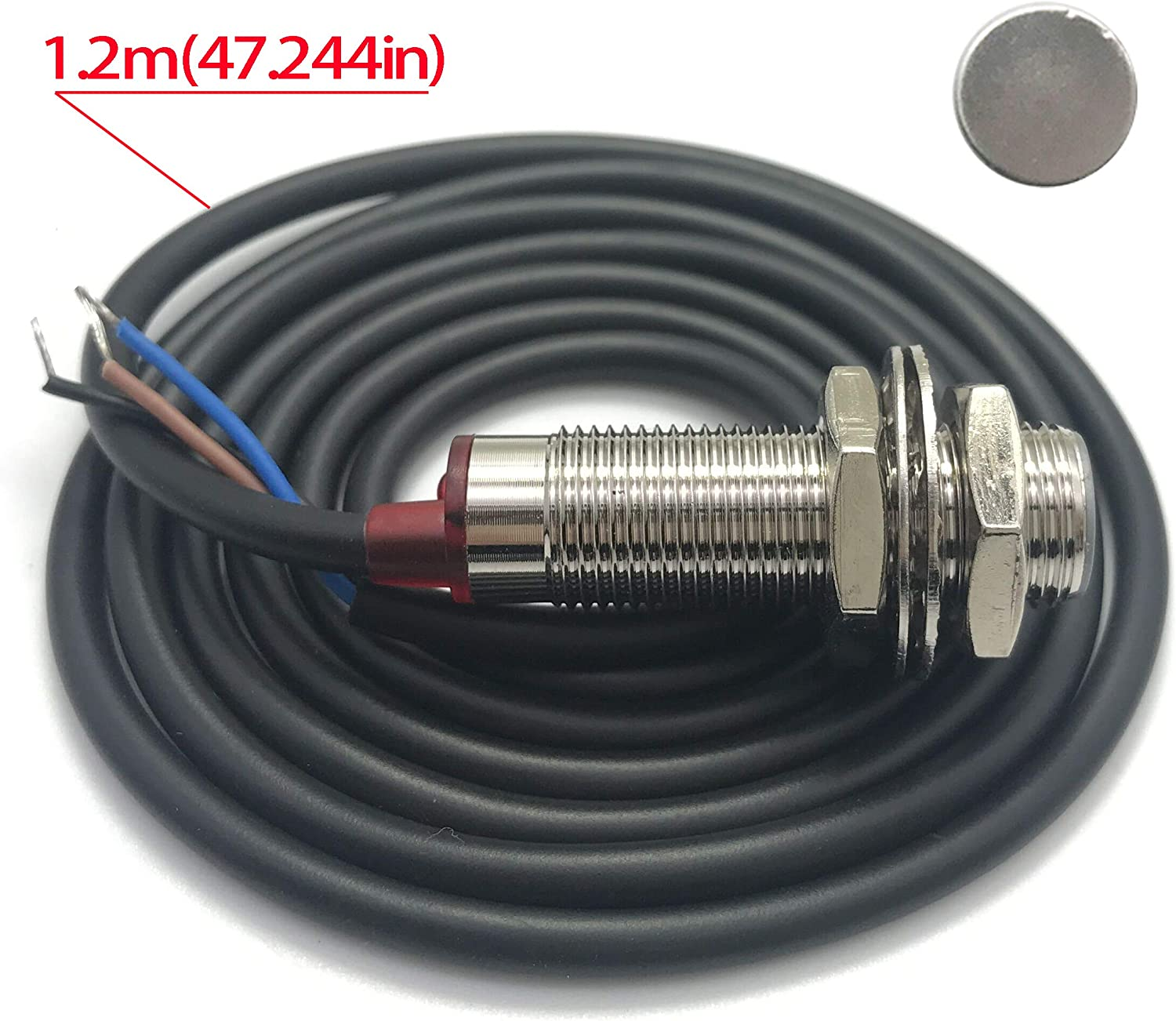

Hall proximity model:NJK-5002C
Appearance:M12mm cylinder.
Detection range: 10mm
Proximity output current: 200mA
Detected objects: magnet
Response frequency: 100HZ

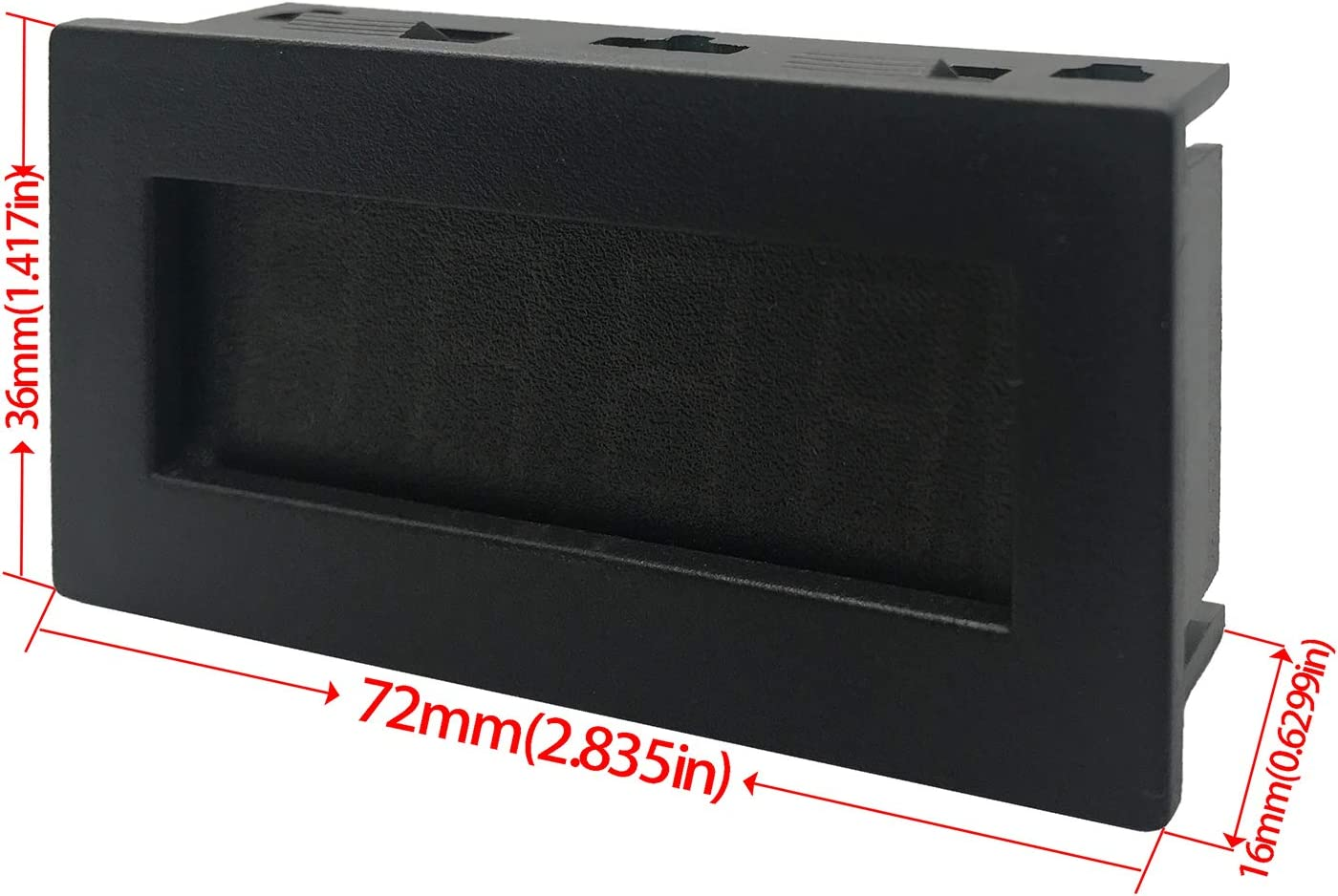

Tachometer dimension:72x36x20mm,panel cutout Dimension:68x33mm.
Sensor dimention: M12x10x55mm.

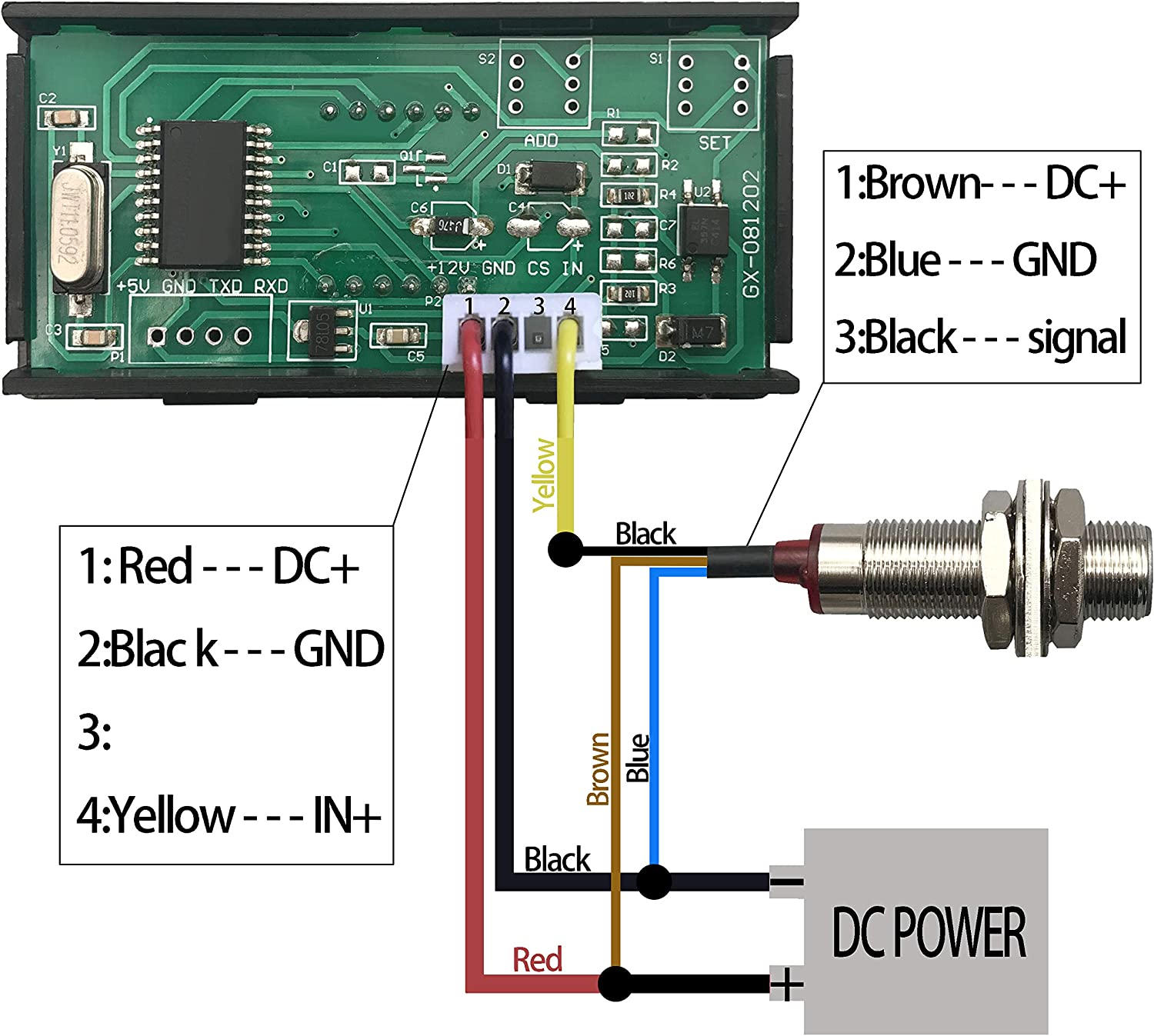

Sensor wiring:brown-Power+;blue-Power-;black-signal.
Operating temperature: 0 to 50｡.

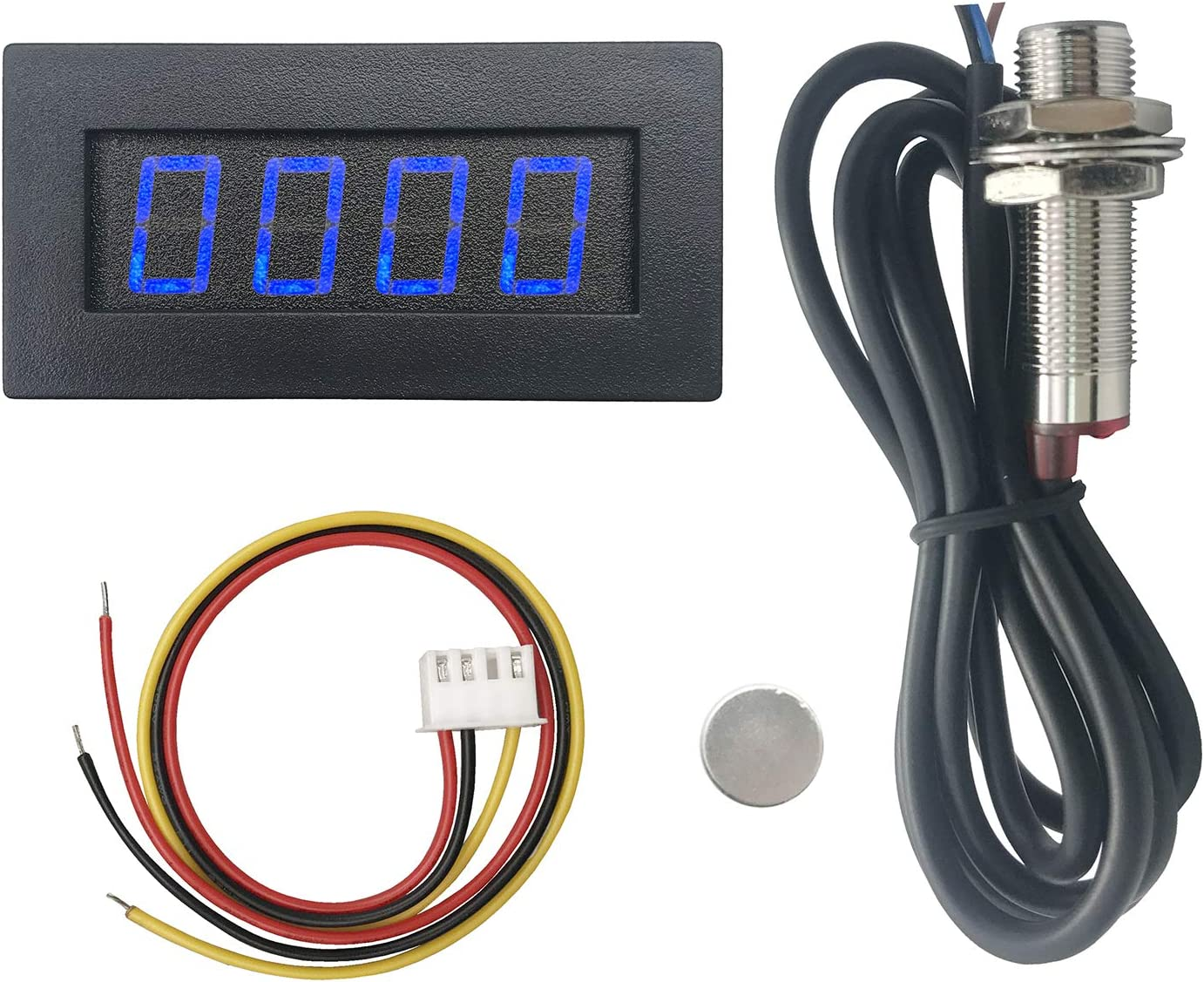

Packaging include
Tachometer x 1
Hall NPN proximity sensor x 1
- Item Model Number: RPM1204BHA
- Brand: DIGITEN
- Manufacturer Part Number: RPM1204BHA
- Item Weight: 70 g
- Voltage: 12 Volts
- Is discontinued by manufacturer: No
- Product dimensions: 7.11 x 3.56 x 2.03 cm; 70 Grams
- Manufacturer: DIGITEN
