Waveshare SN65HVD230 CAN Board Connecting Mcus to CAN Network Features ESD Protection Communication Evaluation Development Board 3.3V [1 PC]
Brand: Waveshare
A$19.95
- onboard CAN transceiver SN65HVD230
- powered from 3.3V
- features ESD protection
- connecting MCUs to the CAN network
- compatible with PCA82C250
Product Description
Overview

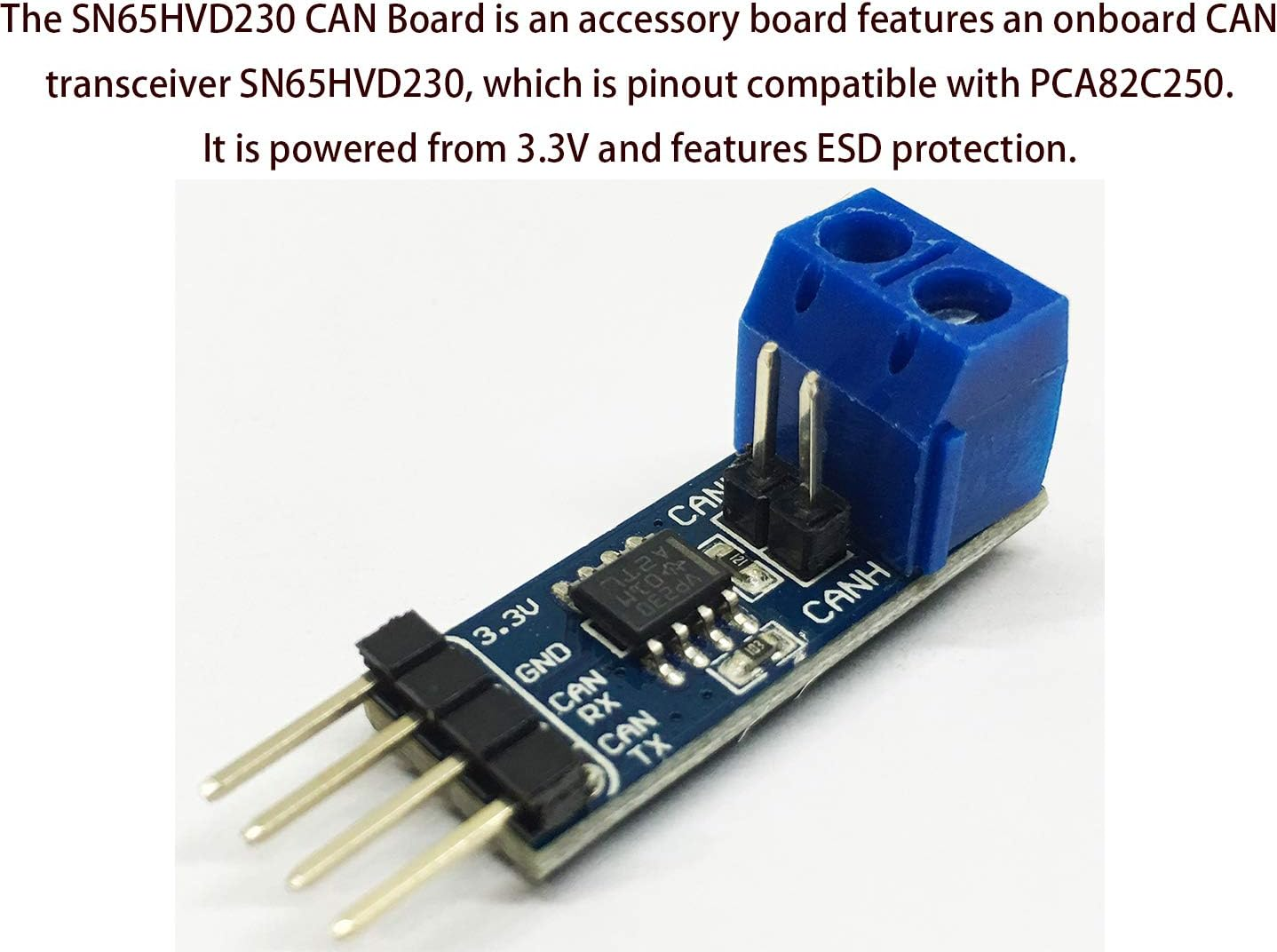

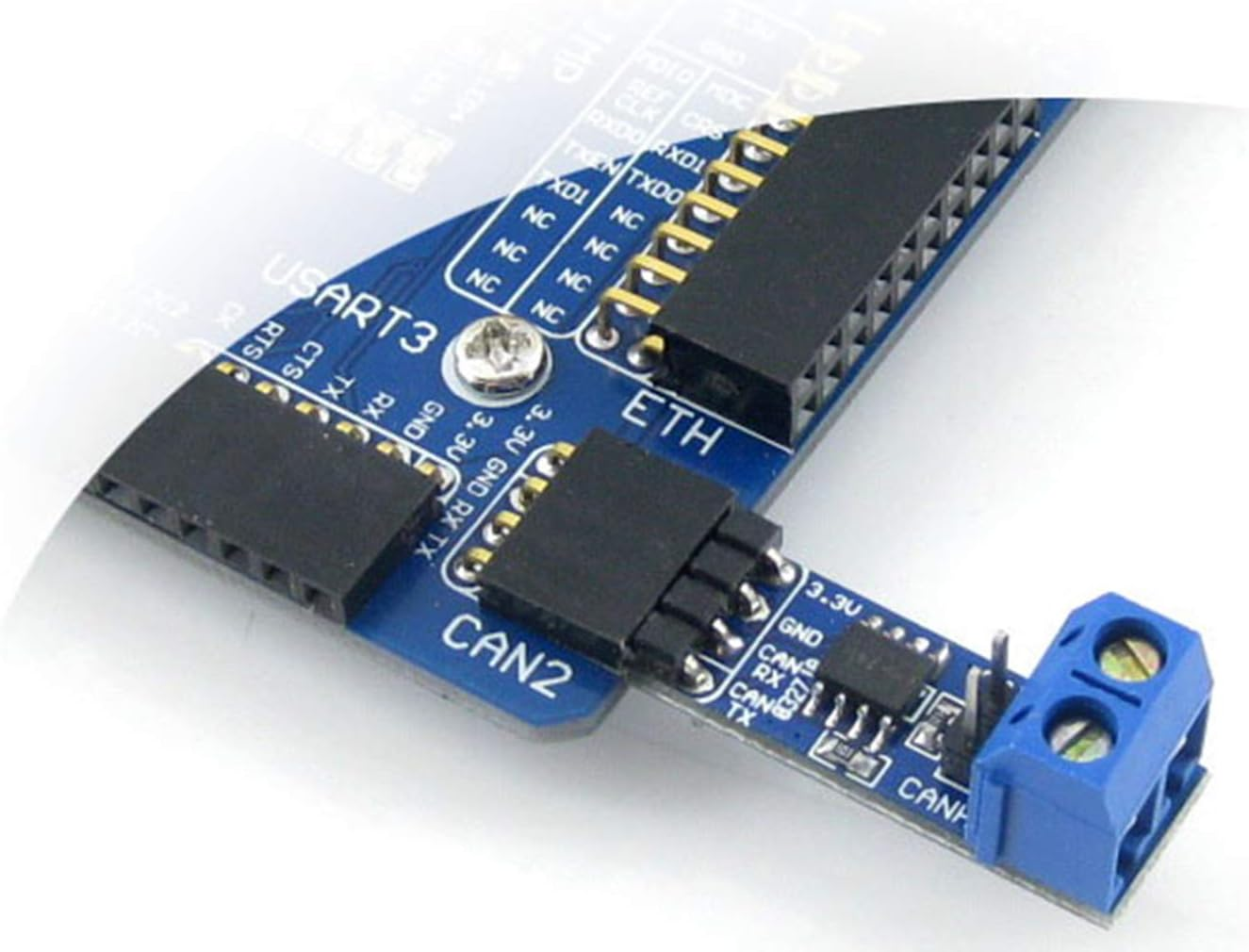

The SN65HVD230 CAN Board is an accessory board features an onboard CAN transceiver SN65HVD230, which is pinout compatible with PCA82C250. It is powered from 3.3V and features ESD protection. The SN65HVD230 CAN Board is ideal for connecting microcontrollers to the CAN network.
Downloads
Development resources: demo codes, schematic, datasheets, etc.
Wiki: waveshare.com/wiki/SN65HVD230_CAN_Board?amazon
- Country/Region of origin: China
- Product dimensions: 18 x 10 x 9 cm; 10 Grams
- Colour Screen: No
- Processor Count: 1
- Is discontinued by manufacturer: No
- Wireless Type: 802.11b
- Operating System: Linux
- Processor Brand: ARM
- Brand: Waveshare
- Ram Memory Technology: LPDDR3
- Model Name: SN65HVD230 CAN Board
- Manufacturer: Waveshare
- Item Model Number: SN65HVD230 CAN Board
- Batteries Included: No
- Batteries Required: No
- Connector Type: CAN, Wi-Fi
- Item Weight: 10 g
- Model: SN65HVD230 CAN Board
- Includes Rechargeable Battery: No
- Part Number: SN65HVD230 CAN Board
- Mounting Hardware: SN65HVD230 CAN Board
- Compatible Devices: Microcontroller (MCU), PCA82C250
- Processor Type: ARMv7
A$19.95
